Used Cloos Robot for sale (52)

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, 2 Cloos welding robots Qirox QRC 320 incl. control V 6, cooling unit, socket for robot, 2 cloos welding machines cloos qineo champ 600, wire drive, welding torch, torch hose package, 2 station turning table incl. turning-tilting table consisting of 2 c bows with turning devices WP-DH-TSC-5 kN, load capacity/station 500 kg, distance of the surface plates 1500 mm, swing radius about 750 mm. Manax ( manually control of the turning device in the loading station) safety wall on turning table, 2 swing doors 1 light beam, 1 start pre selection, touch sensing, parameter interpolation, point editor, Master slave control of robots, CTMS autom. TCP control, Gtedpfetrdlpox Aa Ijt Machine will be completly overhauled before delivery.

Condition: ready for operation (used), Year of construction: 2013, This CLOOS QRH 390 was manufactured in 2013. It features a QRH 390 with a QIROX Controller V6 and a C-stand MH=24330. Equipped with advanced welding technology and an extraction system, this welding robot is ideal for enhancing your production capabilities. Contact us for more information about this machine. Application Types Godpfx Aox S Siuoa Iott Welding

Year of construction: 2018, condition: ready for operation (used), A complete welding system with a robot and peripheral equipment is available. Welding stations: 2, robot travel path: 11000mm, max. workpiece diameter left/right: 2200mm, max. workpiece length left: 4000mm, workpiece length range right: 1000mm-5000mm, welding process: TIG, materials: aluminum/stainless steel, shielding gas: argon, overall system dimensions X/Y/Z: approx. 15350mm/5700mm/4000mm, control unit: Qirox QC2 Advanced. Including suction technology. Documentation available. An on-site inspection is possible. Gtodpjxnz Upofx Aa Ist

Condition: excellent (used), Year of construction: 2017, operating hours: 28,400 h, Maximum working area: 10,000 x 4,000 x 3,000 mm Robot arm radius: Ø 4,430 mm Welding processes: MAG / MIG / TIG Repeatability: +/- 0.1 mm Gedpfxoxu Udwe Aa Istt Axes: 2 x 6-axis articulated robots Table type: 2 x rotary tilting tables incl. 2 x counter bearings Table load: 50 kN / 20 kN Horizontal stroke: 14,000 mm Vertical stroke: 1,500 mm – 5,000 mm Programming: Teaching method

Condition: used, Year of construction: 2012, functionality: fully functional, total height: 3,500 mm, working range: 3,000 mm, Single-wire welding robot, overhead suspended Controller Rotrol V5 Tactile sensor Qineo (gas nozzle, 60V) Tactile probe sensor (V5) Arc sensor (GLC V5) Welding technology Quineo Pulse A 450A Control module Master 5m RPU Cleaning cutter C-frame type CST stationary 3000 N Robot attachment height 3200 mm Total height 3500 mm Gtedpfxex At Tyo Aa Ist Workpiece positioner VWR-3DP-5000N Maximum load 30000 N Swivel time for 180°: 6 sec. Complete H-frame 5000N Drive 3.1 kW Max load per station 7500 N, rated torque 800 Nm, moment of inertia 140 kgm2 Max rotation speed 20 rpm Clamping length 3000 mm, max free rotation radius 700 mm Integrated connection control Central power supply Safety technology: 4-beam light barrier with stand (deflection mirror not possible)

Condition: used, Cloos Romat 320 robot arm Gtsdpfxoxltxus Aa Ijt

Year of construction: 2011, condition: excellent (used), Cloos welding robot Qirox QRC 320 incl. control V 6, pedestal for standing arrangement, Cloos welding machine Quinto II 603 ( 600 A), wire feed, welding torch, torch hose package, mech. cleaning, pressure booster Godpfx Aajizwv Ns Ijtt 1 rotary tilt table WPK 5000, pick-up weight 500 kg, 1 start preselection, 1 control for customer-provided sliding door gas nozzle sensor, arc seam search, point editor Unit will be completely overhauled and serviced before delivery. Second station with another, same rotary tilt table possible.

Condition: ready for operation (used), Year of construction: 2019, Main Drive Max payload 15 kg Media Power consumption 36 kVA This CLOOS QIROX QRC 350-E was manufactured in 2019. It features a maximum payload of 15 kg and a working range up to 4500 mm. Equipped with a QC 2 Master control system, it includes a handheld programming device with an 8.4" touchscreen. The robot supports expansion up to 12 axes and comes with integrated welding software and a digital interface. Consider the opportunity to buy this CLOOS QIROX QRC 350-E welding robot. Contact us for more information about this machine. Application Types Gtodpex D Hdhjfx Aa Ijt Welding

Year of construction: 2004, condition: ready for operation (used), A completely overhauled automatic welding station Cloos from the year 2025 including two rotary tables is available. Robot type: Romat 350, welding source: GL 300 IHPR, control system: Rotrol II, welding process: TIG. Rotary table load capacity: 2x250kg, rotary table type: WPEK-DP-KP-2.5kN, axes: 6+2+2. Documentation vorhanden. An on-site inspection is possible. Gtodexyk Szspfx Aa Iet

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 306 431, type of input current: three-phase, total height: 2,165 mm, total width: 1,800 mm, total length: 3,000 mm, overall weight: 1,250 kg, input voltage: 400 V, type of cooling: air, Equipment: cabin, Machine year 2021, bought used December 2022, checked / repaired / adjusted by specialist company in April 2023. Only run for a few hours in trial operation since then. Gtsdpfx Aaeulw E Se Iet

Condition: excellent (used), Year of construction: 2000, operating hours: 6,000 h, functionality: fully functional, machine/vehicle number: 7807005/3175.860T03, Complete robot cell: CO2 welding robot very well maintained including 2-way turntable for operator and with extraction system TECHNICAL DETAILS Robot payload: 10 kg Gsdpeu Rdgnofx Aa Iett Type of welding: CO2 MACHINE DETAILS Robot dead weight: 245 kg Weight: 450 kg Cell + table dimensions: 4000 x 3600 mm + 1600 x 870 mm Operating voltage: 3x400 V; 50 Hz Power: 20 kVA

Condition: good (used), Year of construction: 2000, operating hours: 1,500 h, Cloos Romat 310 overhauled in good condition and still in operation for a short time. Gtjdpotctnksfx Aa Ijt

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Cloos welding robot Qirox QRC 350 year 2016 incl. control unit QC 6 year 2013 C Stand for suspended arrangement of the robot, repainting Cloos Qineo Champ 600 welding machine, wire feeder, welding torch, torch hose package, mechanical cleaning, pressure booster 2 station indexing table with H frame and WPG 5000 turning devices, take-up weight per station 500 kg, face plate distance 2200 mm, turning radius approx. 500 mm. Table newly painted, all motors overhauled, Gtjdpfogz S Twsx Aa Iot Arc protection on the indexing table, 2 swing doors, 1 start preselection, 1 light barrier gas nozzle sensor, arc seam detection, point editor System is completely overhauled and serviced before delivery. Pre-acceptance possible in Burbach. If ordered at short notice, delivery still possible in 2024.

Condition: not inspected (used), Manufacturer: Cloos Type: Romat 76 S The device has not been tested and its condition is unknown. Sold with the accessories shown. Gtodpfxsvxqzqo Aa Ijt

Year of construction: 2004, condition: ready for operation (used), A fully overhauled automatic welding station Cloos from the year 2025 is available. Robot type: Romat 320, welding power source: GLC 353 MC3 R, control system: Rotrol II fibre optic, welding process: MIG. Load capacity: 15kg, robot axes: 6, reach: 3200mm, repeatability: +/-0.1mm, power: 25kVA, total weight: approx. 600kg. Documentation available. An on-site inspection is possible. Gjdpfexyk Sujx Aa Ijtt

Condition: excellent (used), Year of construction: 2018, Very well maintained Quinto 603. Multiple machines of this type are available. Gtodpfew Exytsx Aa Iet

Condition: reconditioned (used), Year of construction: 2007, operating hours: 29,000 h, Cloos welding robot system consisting of: ROMAT 350 robot with ROTROL II V4 control unit (optionally upgradable to version 2025), gas nozzle sensor, arc seam tracking, point editor, Qineo Puls 600 welding machine (600 A), wire feeder, MRW 510 evo welding torch, torch hose package, mechanical cleaning system, pressure amplifier. 1 L manipulator WPEK 25000, load capacity 2500 kg, turning radius 1500 mm, loading height 945 mm. 1 C stand with vertical slide, travel distance 1500 mm, boom length 2750 mm. Light barrier, start preselection. Godpfx Aew Razzsa Iott The system is in excellent condition and was only used for simple TIG welding tasks. Overhauled and serviced prior to delivery.

Condition: not inspected (used), Manufacturer: Cloos Tip: Romat 56 Gsdpovxqy Tefx Aa Iett The device has not been tested and its condition is unknown. Sold with the accessories shown.

Condition: like new (used), Year of construction: 2020, operating hours: 2,900 h, functionality: fully functional, cloos robot Qirox 350 incl. control QC 2 touch sensor, seam tracking, point editor rotary gallow Gtsdex Iu R Hopfx Aa Iot welding machine cloos qineo puls 451, wirde drive, torch, torch hose package 2 light beams, 2 start pre selections manipulators on request

Condition: good (used), Year of construction: 2005, functionality: fully functional, Cloos welding robot ROMAT 320 with ROTROL II control system incl. Gas nozzle sensor, arc seam tracking, hard disk, point editor, 16 I/O, programming pendant with 8 m cable base stand for robot mounting with robot accessories Welding machine Quinto II 403, wire feeder, mechanical cleaning, pressure amplifier, DUO drive wire feed 1 welding torch MRW 380, 1 torch hose package initial equipment for steel 1.2 mm, torch test gauge torch holder with safety shut-off diagonal axis 1 safety for 2-station operation, robot standstill monitoring connection cable for robot control as well as manipulator control, length 5 m 2 start preselection panels incl. cable, 2 light barriers intermediate control integrated for the 2 L manipulators WPEK 5000, load capacity 500 kg, swivel radius approx. 800 mm Gedpfxjxghrrs Aa Iett Special price for disassembly by week 46

Condition: good (used), Year of construction: 2008, functionality: fully functional, Cloos welding robot system consisting of: ROMAT 350 robot with ROTROL II control system Computer retrofit 2023 to the latest technical status of the computer, software and handheld programming device Gtedpfx Asvtp D Hoa Iet Gas nozzle sensor, arc seam search, point editor Rotating gallows CSTR 1500 1 L manipulator WPEK 25000, support weight 2500 kg, turning radius 1900 mm 1 L manipulator WPEK 10000, support weight 1000 kg, turning radius 1400 mm 2 Quinto II 603 welding machines, single-wire and tandem welding equipment Automatic torch change system between single-wire and tandem torch Mechanical cleaning for both torches 2 start pre-selection, 2 light barriers, partition wall between the two work stations Cable duct cover Few operating hours System can be inspected by appointment. Regular maintenance by Cloos.

Condition: used, Year of construction: 2019, functionality: fully functional, System consisting of: 1 Qirox QRC 350-E welding robot including QC2 adv. control unit, 1 Qirox QRC 410-E welding robot including QC2 adv. control unit, handheld programming unit with 25 m cable, 24 V buffering, 2 GB flash drive Software expansion for each robot: Gas nozzle sensor, arc seam detection, multi-layer technology, point editor, transformation, 15" TFT with touchscreen on the cabinet, master-slave for robots 1 and 2, RSM software for remote maintenance 2 ICSE LD offline lasers Robot 1 single-wire tandem welding equipment with automatic torch change system: 2 Qineo Puls 600 (600A) with master control module, 3 wire feeders, 3 torch hose packages, single MRW 510 evo welding torch, Duo drive CDD 2, single torch test gauge, and CDD, single-wire mechanical cleaning with external cleaning, pressure booster, 1 tandem burner ZMW 850 evo, Duo drive tandem CDD-T, burner test gauge single and with CDD, tandem mechanical cleaning with external cleaning Gtedpfx Aaewgd Hzj Iot Ground track 50 kN, travel distance 26 m, 1 C stand with height slide, travel distance 1.5 m for robot 1, 1 fixed C stand for robot 2 2 WPST-30 kN rotating devices, electric. Shaft, synchronous drive, designed as a gyro wheel for the support of hall beams (min. size 70x180 and max. 400x900 mm, support weight 4000 kg, on a motorized sliding track, max. clamping length approx. 19 m, 1 L-shaped manipulator WPS-TS 20 kN, turning radius 2750 mm Connection control, 2 light barriers for floor track protection, 2 start pre-selectors, partition walls and sliding gates including limit switch protection, 2 bumpers for floor track protection of both carriages, signal light for system status. Both robots can weld on the hall beams, and robot 2 can also weld on the L-shaped manipulator. 1 Tecau filter unit with 6000 m³ extraction capacity, 2 mobile extraction hoods with curtains, extraction slotted duct Delivery date: available immediately. Appointments by arrangement. Inspections under power are possible.

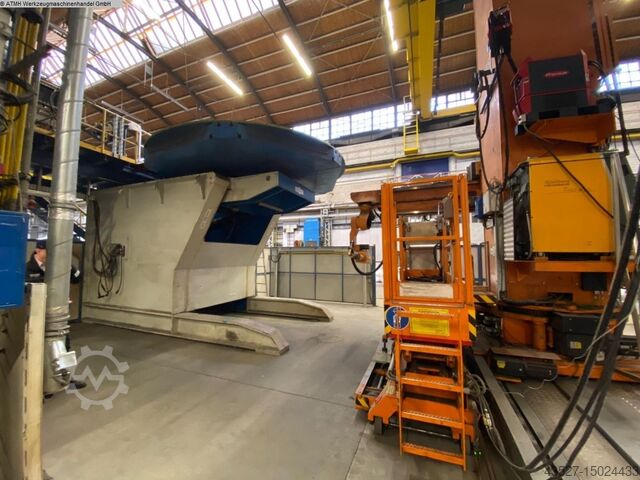

Condition: used, Year of construction: 2007, table diameter 4520 mm table load 35000 kg swivelling range 110 Grad total power requirement 44 kW weight of the machine ca. / t required space / m Type: ROMAT 350 / LVEB-120000N-4m / VVEs-D-18000N-5m-S / QVEB-2m travelling beam / CR-200000N / Hydraulic scissor lift table In the scope of delivery: Item Designation 1 Welding power source GLC 603 Quinto SD 2 Wire drum 3 Service door 2.1 4 Robot control cabinet 5 Service door 1.2 6 Scissor lift table (shown in parking position) 7 Cross-travelling unit QVEB 8 ROMAT 350 robot 9 Service door 1.1 10 Safety fence 11 Platform 12 Positioner 13 Sliding door 1 14 Linear traversing unit LVEB 15 Vertical traversing unit VVEs 16 Sliding door 2 The disc ring on the table is a device that is not included in the scope of delivery ----- Technical data - Mechanical dimensions (without control unit and superstructures): approx.6440(57 7 0)x4520(2700)x5460(3320) LxWxH - Turntable diameter: 4520mm - Weight: approx. 25,000kg (without superstructure) - Speed range: 0.004 - 1.07 rpm - Welding current coupling: 600 A - Maximum table load capacity: 35 tons (according to load chart) Ambient temperature Storage / transport 0 to 60'C Operation +4 to 35 "C Gtjdpormulvsfx Aa Iot Interfaces Central transfer point for control, power supply, earth connection ----- 2.3 Linear traversing unit, LVEB Type LVEB-120000N 4m Dimensions W x D x H 7,700 x 2,440 x 776 mm Weight 4,355 kg Travelling distance 4,000 mm Load of the carriage 120,000 N Drive unit Gear motor Precision bevel gear motor Manufacturer Stöber Type K402VF0250EK703V Power 4.21 kW Voltage UKE 140 V / 1000 rpm Current Rated current IN: 8.32 A Type of current Standstill current I0: 9.04 A Motor speed 3,000 rpm Gear ratio i = 25.28 ----- 2.4 Vertical traversing unit, VVEs Type VVEs-5m Dimensions W x D x H 2,000 x 1,960 x 7,150 mm Weight 9,500 kg Travelling distance 5,000 mm Max. moving mass 18,000 N Drive unit Gear motor Bevel gear motor with brake Manufacturer Stöber Type K713VF0790MQ30ED704B Power 4.8 kW Motor speed 2,000 rpm Gear ratio i = 78.83 (20181/256) ----- 2.5 Cross-travelling unit, QVEB Type QVEB-2m Dimensions W x D x H 1,270 x 4,100 x 756 mm Weight 1,950 kg Travelling distance 2,000 mm Load on the travelling beam 10,000 N Max. moving mass 18,000 N Drive unit Gear motor Precision flat geared motor Manufacturer Stöber Type FS202VQ0145ED402U Power 1.43 kW Voltage UKE 140 V / 1000 rpm Rated current IN 2.86 A Type of current Standstill current I0: 3.1 A Motor speed 3,000 rpm Gear ratio i = 14.65 (3180/217) ----- 2.6 Rotary indexing table Type CR-200kN Manufacturer Cloos Dimensions W x D x H 1,820 x 2,120 x 541 mm Weight 2,850 kg Drive unit Gear motor Bevel gear motor Manufacturer Stöber Type K814VG1540EK803U Power 6.7 kW Motor speed 3,000 rpm Gear ratio i = 154.322 ----- 2.7 Robot ROMAT 350 Type ROMAT 350 Dimensions (W x D x H) in reference position 1,900 x 600 x 1,500 mm Weight 205 kg Footprint 500 x 515 mm N...

Condition: like new (used), Year of construction: 2016, Technical Data: Robotic welding system featuring a 6-axis articulated arm robot with classic wrist and a 7th robot axis Robotic welding system with QIROX control V6A / QR-WPS-DH-TCS-10kN The robotic welding system has a total of 13 axes 7 robot axes, one axis extending the robot’s workspace by an additional 1200 mm, an asynchronous axis for station transfer, and two axes per station Offline laser sensor Torch changer system Maximum distance between rotation axis and support: 4500 mm Swing radius: 1050 mm Maximum workpiece dimensions: 4000 x 2000 x 800 mm Maximum swing weight without support: 500 kg Maximum swing weight with support: 1000 kg Two work positions: for loading and welding Power source: Qineo Champ 450A MIG/MAG welding: 450 A Extraction system incl. extraction hood: HERR Various partitions, safety barriers, and safety scanners Roboplan incl.: • Module tool change • Module macro technology • Module flat position Condition: Gedsw Idv Dopfx Aa Iott As-new condition, very lightly used, approx. 10,000 operating hours The system is still assembled and can be inspected The seller accepts no liability for typographical or data transmission errors. The machine is in age-appropriate optical, technical and wear condition; used machines are sold without any guarantee.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: 5668430QC5A, travel distance X-axis: 10,000 mm, torque: 4,000 Nm, TECHNICAL DETAILS Travel path X-axis: 10,000 mm Moment of inertia: 200 kg/m² Torque: 4,000 Nm Swivel moment: 10,000 Nm Clamping plate size: approx. 1,000 x 1,200 mm MACHINE DETAILS Power (welding wire feeder): 4 kW Power (Cloos QIROX-C QRC350): 40 kVA EQUIPMENT 2 welding positioners (left/right), Type: WPEK-25000N Rotary unit Welding robot, make: Cloos-Bauer, Type: BPF4001/2/4 Welding wire feeder, make: ESAP Extraction unit Rail-guided Separate welding units, make: Cloos, Type: GLC603 Quinto Gsdpfx Aajxgqy Ee Istt Separate control unit Corrugated sheet metal enclosure with 2 sliding doors
