Used Weiler Da 210 for sale (4)

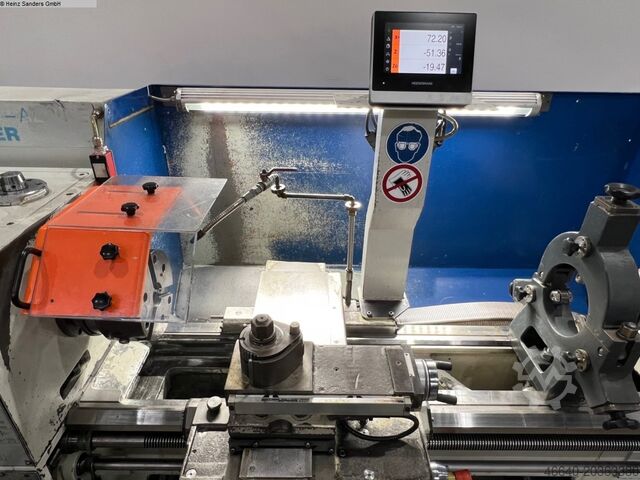

Condition: ready for operation (used), Year of construction: 2005, L & Z Lathe / WEILER DA 210x1000 / With new 3-axis digital readout - Year of manufacture: 2005 - CE marking - Guideways in good condition - FULL TECHNICAL DATA SEE PHOTOS - Three-axis digital readout "NEW" - Quick-change collet system incl. 79 collets (173E) Cjdpfxsy H Ikqo Aqwjhb - Multifix base holder with inserts - 3-jaw chuck - Electrical chuck guard - Additional sliding guard - Coolant system - Drill chuck / live center - Chip guard rear wall - Work light - Complete documentation Dimensions: LxWxH 2.8x1.2x1.8 meters / Weight 1600 kg Errors / input mistakes excepted.

Condition: good (used), Year of construction: 2001, Weiler DA 210 Lathe Weiler DA 210 with Fagor digital readout, year of manufacture 2001, in very good original condition. The machine comes from the special production department of a renowned German mechanical engineering company. CE-compliant!! Technical Data: WORKING AREA Centre height: 210 mm Swing diameter over bed: 435 mm Swing diameter over cross slide: 245 mm Centre distance: 1,000 mm SPINDLE Spindle nose: DIN 55027 / DIN ISO 702-3 Size 6 Spindle bore: 52 mm Spindle bearing diameter (front): 83 mm MAIN DRIVE Drive power 60% / 100% duty cycle: – / 5.5 kW Speed range: 44 – 2,000 rpm Csdjy Auyqjpfx Aqwjhb Number of speeds: 12 FEED RANGE Number of feeds: 66 Longitudinal: 0.072 – 4 mm/rev Cross: 0.036 – 2 mm/rev THREAD CUTTING RANGE Metric threads: 0.5 – 28 mm TAILSTOCK Quill diameter: 65 mm Quill stroke: 120 mm Internal taper: DIN 228 MK 4 ACCEPTANCE ACCURACY DIN 8605 About the machine: HIGHEST PRECISION, USER-FRIENDLY OPERATION AND SOPHISTICATED TECHNOLOGY are advantages of the conventional Weiler DA series. Offered is a Weiler DA 210 lathe with Fagor digital readout, year 2001. This lathe is in very good original condition. It comes from a workshop where it was only occasionally used for special production. Very easy to operate controls. The guides are regularly lubricated via the central lubrication system. The Weiler DA 210 has been mechanically and electrically inspected by us. Take the opportunity to view and test the Weiler DA 210 under power at our facility. You can find further lathes from well-known manufacturers on our website.

Condition: used, L + Z Lathe VOEST ALPINE - WEILER Type DA 210 / 1 Machine No. 1-004/2581 Year of manufacture: 1984 Centre distance: 1000 mm Swing over bed: 420 mm Centre height over bed: 210 mm Swing over cross slide: 240 mm Centre height over cross slide: 120 mm Spindle bore: 52 mm Spindle speed: 33 - 1500 rpm, 12 steps Chuck flange: short taper DIN 55027 size 6, 4x M12 Tailstock taper: MT 4 Motor power: 5.5 kW Electrical connection: 380 Volt, 50 Hz - Spindle speeds via 12-step gearbox - 3-jaw scroll chuck AROWA Ø 200 mm (only one set of chuck jaws) - Multifix quick-change tool post, size B, with 3 tool holders - Automatic longitudinal and cross feed - Coolant system - Spindle brake - Emergency stop - Splash guard - Fixed steady rest Ø 160 mm - Machine lamp - Operating manual Cjdpfjyah Rvsx Aqwohb Space requirement (L x W x H): 2200 x 1200 x 1450 mm Weight: 1500 kg In very good condition

Condition: used, L + Z Lathe VOEST ALPINE - WEILER Type DA 210 / 1 Machine No. 1-004/2552 Year of manufacture: 1983 Centre distance: 1000 mm Swing over bed: 420 mm Centre height over bed: 210 mm Swing over cross slide: 240 mm Centre height over cross slide: 120 mm Spindle bore: 52 mm Spindle speed: 33 - 1500 rpm, 12 steps Chuck flange: short taper DIN 55027 size 6, 4x M12 Tailstock taper: MK 4 Motor power: 5.5 kW Power supply: 380 Volt, 50 Hz - Spindle speed via 12 gearbox steps - EMCO 3-jaw scroll chuck Ø 200 mm with turning and boring jaws - Multifix size B quick-change tool post with 3 change cartridges Cedpfeykca Hsx Aqwjhb - Automatic longitudinal and face feed - Coolant system - Spindle brake - Emergency stop - Machine lamp - Operating manual Space requirement (L x W x H): 2200 x 1200 x 1450 mm Weight: 1400 kg Very good condition
