Used Weiler CNC lathe for sale (189)

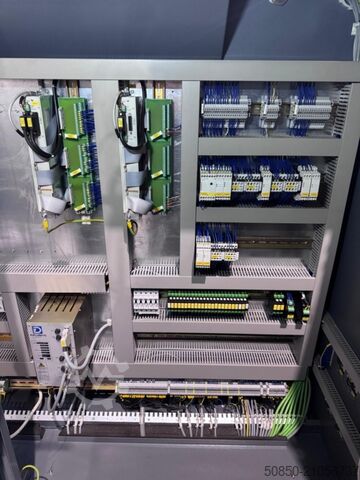

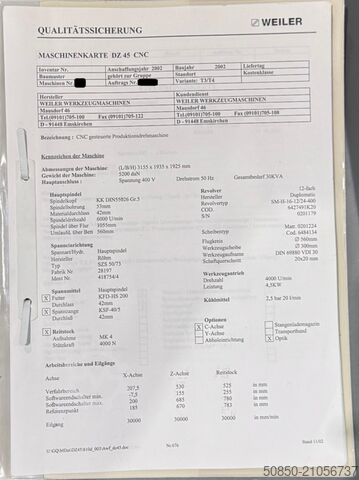

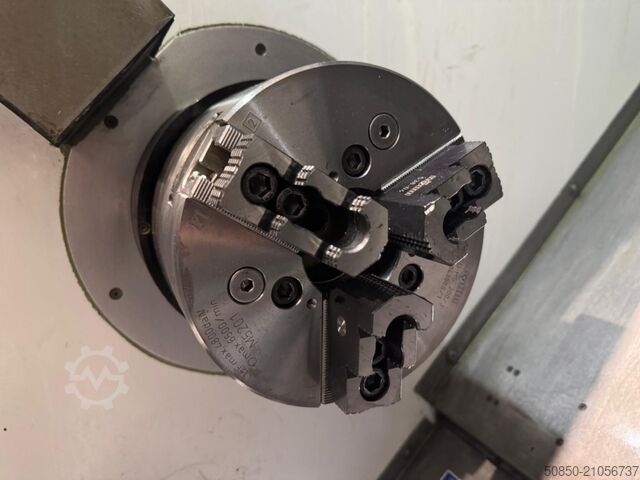

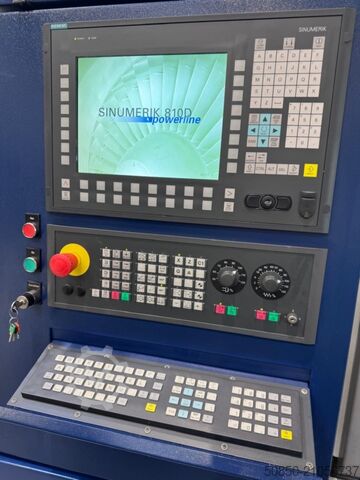

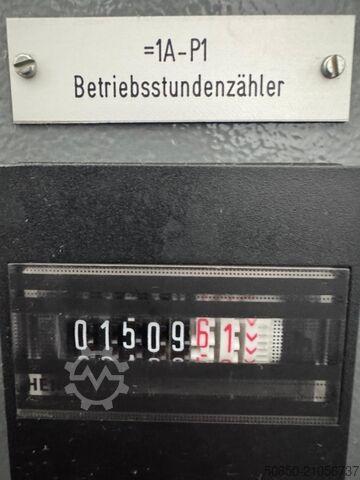

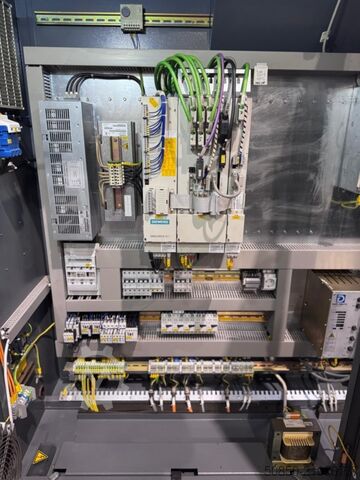

Condition: new, Year of construction: 2022, functionality: fully functional, turning length: 500 mm, turning diameter: 240 mm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 205 mm, travel distance Z-axis: 530 mm, Equipment: documentation/manual, Numerically controlled turning center Weiler DZ 45 CNC / ARY with Siemens Sinumerik control system 840D sl The CNC precision lathe from Weiler for the highly productive area in production, toolmaking, research institutes and much more, toolmaking, research institutes and much more. High-quality, energy-efficient, precise and very versatile. Turning diameter 240 mm Turning length approx. 500 mm Bar capacity 42 mm Main drive with 21.5 kW Powerful axis drives Suitable for chuck, bar and shaft machining Y-axis for machining complex workpieces Counter spindle Up to 16 driven tools Complete machining of workpieces in one clamping operation High rapid traverse speeds High accuracy due to direct path measuring system Wide range of applications Integrated safety function in all axes LED machine light Dusdpfxjum R Ebe Albjw This offer is subject to change and non-binding. Subject to alterations, errors and prior sale. Thank you for your information, payment has already been received.

Condition: ready for operation (used), Year of construction: 2002, operating hours: 33,908 h, functionality: fully functional, CNC – Lathe Manufacturer: WEILER Model: E 35 D Year of manufacture: 2002 Technical data Brand: WEILER Model: E35 D Year: 2002 Center distance: 950 mm Center height: 200 mm Turning diameter over bed: 410 mm Spindle bore: 54 mm Max. turning diameter: approx. 260 mm Spindle speed: 20 – 3000 rpm Power: 10 kW Dimensions: approx. L 2.60 x W 1.60 x H 1.70 m Weight: approx. 2.5 t Equipment Duedpfx Aey R Uukjlbjw • Operating manual • Coolant system • 3-jaw chuck • Collet chuck adapter All information subject to change without notice. A demonstration under power is possible at any time in our exhibition hall.

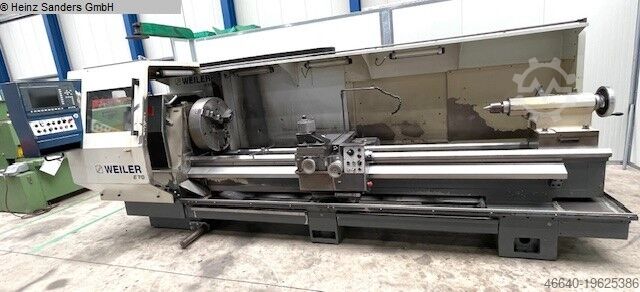

Condition: good (used), Year of construction: 2008, Ref. -No.: 10623 Dodpfx Aljzkpwqebjuw Manufacturer: WEILER Type: E90 x 4500 Year of construction: 2008 Type of control: CNC-Steuerung Control: SIEMENS D1 - Zyklen Storage location: Halberstadt Country of origin: Germany Bed width: 600 mm Turning Length: 4500 mm Swing Diameter Over Bed Slide: 900 mm Spindle Bore: 128 mm Max. Torque: 6000 Nm Feed Capacity - Z: 20000 kN Feed Capacity - X: 20000 kN Rapid Speed: 10/5 RPM Tailstock Quill Diameter: 140 mm Tailstock Quill Stroke: 300 mm Lathe tool dimensions: 32 x 25 mm Front bearing diameter: 178 mm Circumferential diameter over facing slide: 530 mm Spindle head according to DIN 55027 (size): Gr. 11 Tailstock inner cone: MK 6 / 140 Type Machine length: 6900 mm Machine width: 2600 mm Machine Height: 2150 mm Weight Of The Machine Ca.: 10,5 t Further information: The machine can be viewed while powered up.

Condition: used, Year of construction: 1999, turning length: 1,000 mm, turning diameter: 500 mm, spindle bore: 80 mm, spindle speed (max.): 2,500 rpm, capacity: 1000 x 570 mm spindle bore: 80 mm multi-tool turret Siemens control steady rest 3-jaw rotary chuck, 315 mm Djdpfx Aljy E Hvvobsuw

Condition: used, Year of construction: 2002, turning diameter 240 mm turning length 530 mm control Siemens 810 D Powerline swing diameter 560 mm x-travel 207,5 mm z-travel 530 mm turning speeds 6000 U/min 12 Stk. Djdpfx Aleycxibsbeuw total power requirement --- kW weight of the machine ca. 6,1 t

Condition: excellent (used), Year of construction: 2008, turning diameter over cross slide: 530 mm, turning length: 2,500 mm, turning diameter: 900 mm, spindle bore: 280 mm, spindle speed (max.): 1,120 rpm, spindle speed (min.): 1 rpm, turning diameter over top slide: 530 mm, chuck outer diameter: 600 mm, Weiler CNC Hollow Spindle Lathe Model: E-90 Control: Siemens Year: 2008 Swing Over Bed: 900mm Swing Over Top Slide: 530mm Distance Between Centres: 2500mm Spindle Bore: 280mm Spindle Speeds: 1-1120 RPM Machine With: 4 Way Auto Indexing Tool Post 600mm Front 3 Jaw Power Chuck 600mm Rear 4 Jaw Manual Chuck 2 Fixed Steadies Duedpszbhc Isfx Albjw Various Tooling

Condition: used, Year of construction: 1997, - Year: 1997 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 270 - Drive system: Teach-in - Centre height [mm]: 210 - Swing over bed [mm]: 420 - Distance between centres [mm]: 900 - Spindle bore [mm]: 55 - Min. spindle speed [rpm]: 4 - Max. spindle speed [rpm]: 3000 - Options: Digital readout - Type of digital readout: Weiler - Control: CNC Financial information Duedpfx Aljwnh I Ssbow VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

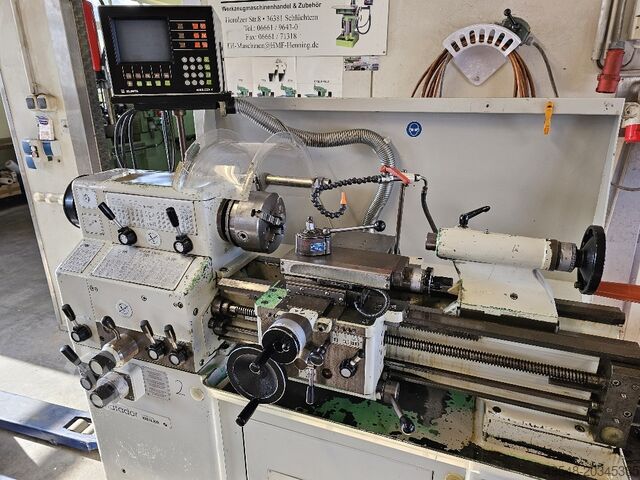

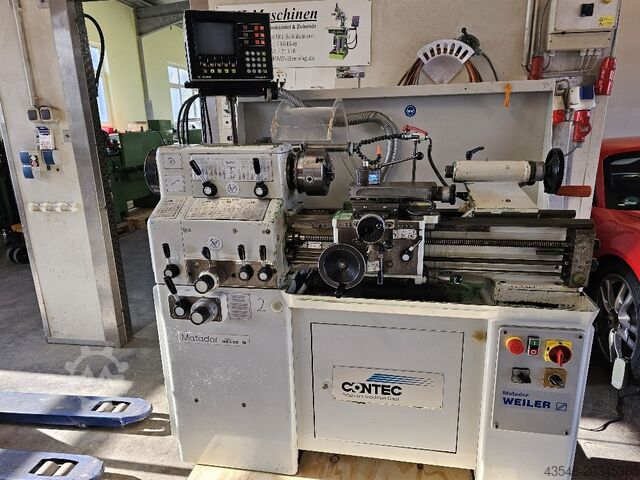

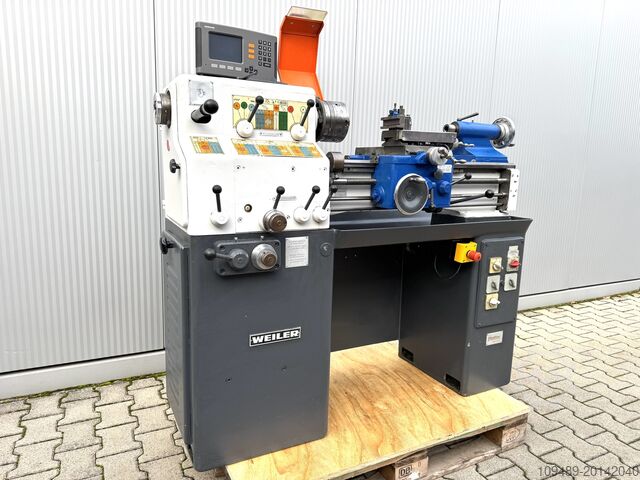

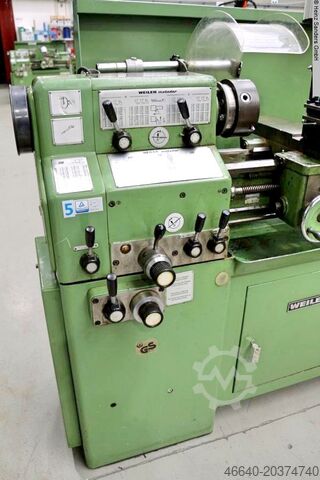

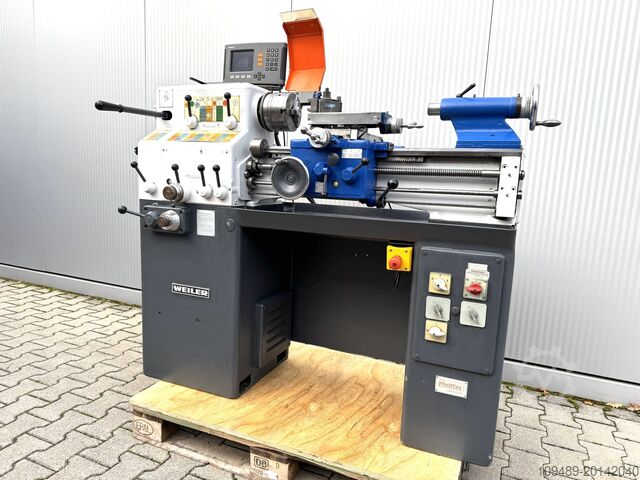

Condition: ready for operation (used), L & Z Spindle Lathe WEILER MATADOR, from a vocational school -Center height approx. 150mm -Swinging diameter over the carriage approx. 160mm -Swinging diameter over the bed approx. 300mm -Distance between centers approx. 500mm Dedpfx Alszdzplebjuw -Spindle bore approx. 36mm -Speed range 30 - 3500 rpm -Automatic longitudinal / cross feeds -Tailstock MK3 -Three-jaw chuck -Documentation Dimensions: L x W x H 1.5 x 0.7 x 1.5 meters / Weight 600 kg Errors and omissions excepted.

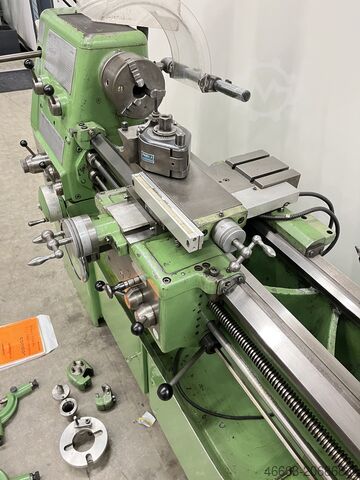

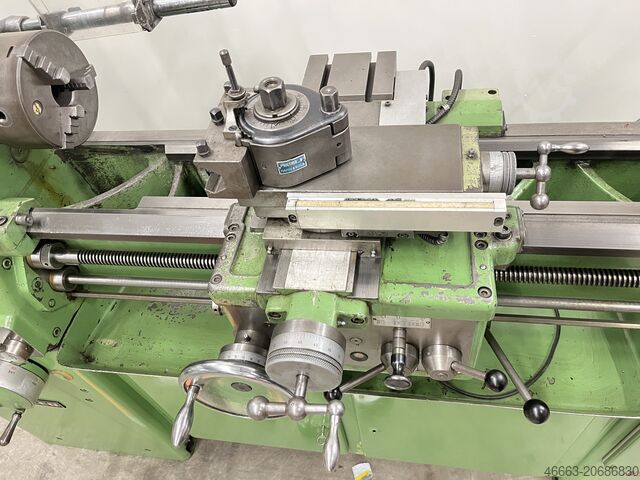

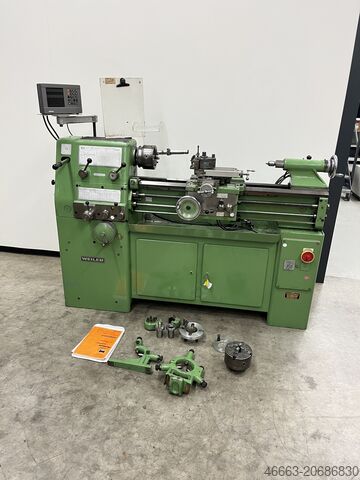

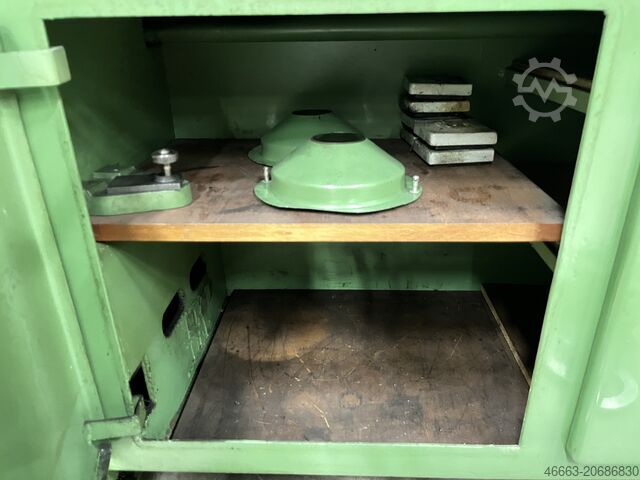

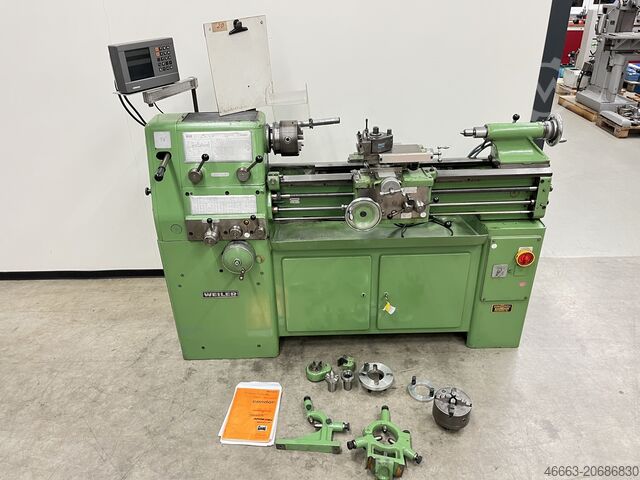

Condition: used, Year of construction: 1992, Weiler Guide and Lead Screw Lathe Type / Model: Condor B Condition: Used Year of Manufacture: 1992 Technical Data Center height: 165 mm Center distance: 750 mm Swinging diameter over bed: 330 mm Swinging diameter over cross slide: 180 mm - 185 mm Main spindle and drive Speed range: 22 - 2800 rpm Spindle bore: 40 mm Spindle head: DIN 55027 / Size 5 (with bayonet fitting) Drive power: 3.2 kW Feed and threading Longitudinal feeds: 0.016 - 0.8 mm/rev Metric thread pitches: 0.18 - 28 mm Dsdpfx Aozfhgtjlbouw Tailstock Internal taper of the quill: MK 3 Quill travel: 110 mm Dimensions (L/W/H) approx.: 2000 mm x 860 mm x 1600 mm Weight approx.: 1,100 kg Delivery costs via freight forwarder to the curb are shown in the shopping cart or in the individual offer for items on request.

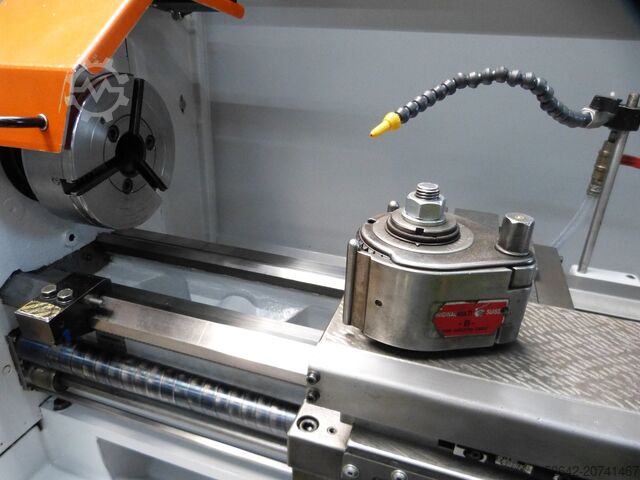

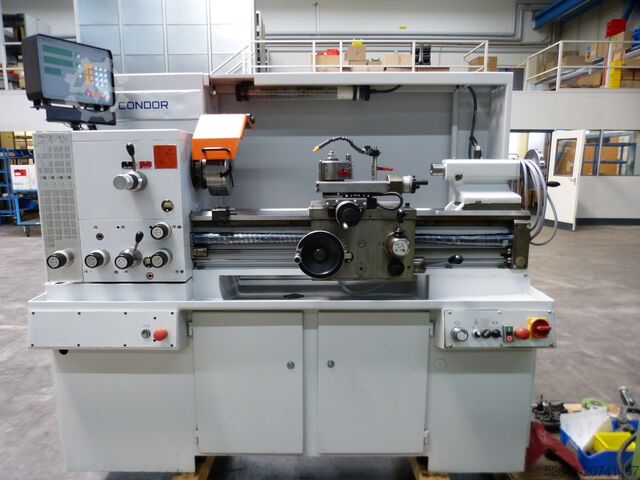

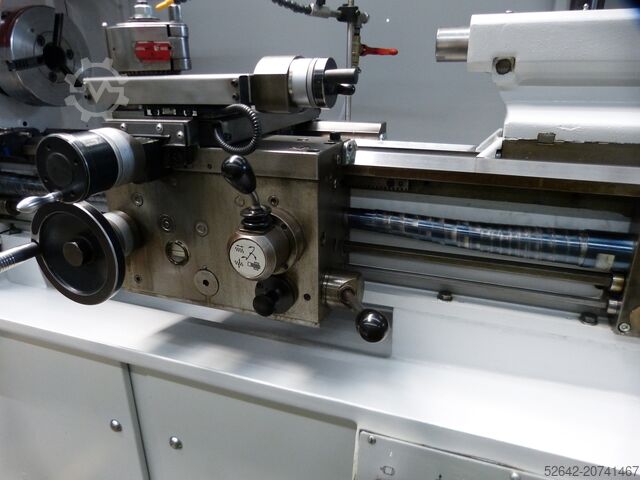

Condition: used, Year of construction: 1996, Weiler Guide and Pull Spindle Lathe Type/Model: Condor AC Condition: Used Year of Manufacture: 1996 Technical Data: Center height: 165 mm Distance between centers: 750 mm Swinging diameter over bed: 330 mm Swinging diameter over cross slide: 180 mm Spindle bore: Ø 40 mm Spindle speed, stepless: 22 - 2,800 rpm Spindle head: DIN 55027 Size 5 (short taper) Drive power: 5.5 kW Tailstock and feeds: Tailstock internal taper: MK 3 Quill stroke: 110 mm Feed range automatic longitudinal and cross feeds: approx. 0.016 - 0.50 mm/rev Thread cutting range suitable for metric threads and inch threads: approx. 0.20 - 28 mm Dimensions (L/W/H): approx. 2000 mm x 860 mm x 1600 mm Weight approx.: 1,100 kg Dedpfx Aljzfgupobeuw Equipment: - Quick-change tool holder system Multifix, 1 insert size A - Bed stop - Coolant system - Chuck guard with limit switch - Collet chuck system, limit switch secured Costs for delivery by freight forwarder, free to curb, see shopping cart or in individual offers for request items.

Condition: ready for operation (used), L & Z Spindle Lathe, WEILER MATADOR, from a vocational school -Center height approx. 150mm -Swinging diameter over cross slide 160mm -Swinging diameter over bed approx. 300mm -Distance between centers approx. 500mm -Spindle bore approx. 36mm -Speed range 30 - 3500 rpm -Automatic longitudinal/facing feeds -Tailstock MK3 -Three-jaw chuck -Documentation Dimensions: L x W x H 1.5 x 0.7 x 1.5 meters / Weight 600kg Dedpfozduyqsx Albeuw Subject to errors and omissions.

Condition: ready for operation (used), Year of construction: 2003, Machine type CNC turning and milling center Manufacturer WEILER Type DZ 67 / V3 Year of manufacture 2003 Condition Used Duodpfeza Aqwox Albew Control system type CNC Control system Siemens 840 D Location D-64625 Bensheim Turning diameter 220 mm Turning length 450 mm Control system Siemens 840 D Tool turret SAUTER VDI 30 - 12x Tool holders Various VDI 30 Bar feed LNS Quick Load Servo 3 mm Collets Various collets Main drive DC 27 kW Total power consumption 27 + 8.5 + 5 + X kW Machine weight approx. 6.5 t Space requirement approx. 10 x 2 x 2 m Additional information Various accessories - Collets - Chuck jaws - VDI tool holders with and without drive - Documentation

Condition: ready for operation (used), Machine type CNC turning machine Manufacturer WEILER Model UD 24 Year of manufacture Condition Used Control type CNC Control system BOSCH CC 200 Turning diameter 190 mm Turning length Dsdsza Anpspfx Albsuw 190 mm Control system BOSCH CC 200 Total power consumption 12 kW Machine weight approx. 1.6 t Space requirement approx. 2 (9) x 1.5 x 1.8 m

Condition: good (used), Year of construction: 2007, operating hours: 8,000 h, functionality: fully functional, machine/vehicle number: CK01, turning length: 750 mm, turning diameter: 330 mm, spindle bore: 43 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1 rpm, total height: 1,700 mm, total length: 1,800 mm, total width: 1,350 mm, quill diameter: 50 mm, quill stroke: 110 mm, overall weight: 1,400 kg, center height: 165 mm, Equipment: documentation/manual, rotational speed infinitely variable, WEILER E30x750 Cycle Turning Machine | Year of Manufacture 2007 | Top Geometry (DIN 8605) | Ready for Demonstration under Power in Graz _____ Item Description: For sale is an excellently maintained, fully functional, and highly precise WEILER E30x750 precision cycle turning machine. This model is considered the absolute industry standard in toolmaking, prototype construction, and demanding small-batch production. Thanks to the intuitive WEILER cycle control system, both the simplest turning operations can be performed manually via the traversing handwheels, and complex contours can be programmed highly efficiently without in-depth ISO code knowledge. The machine comes from a clean workshop, has been regularly maintained, and exhibits excellent mechanical accuracy. _____ Technical Data in Detail: Working Area & Capacities: • Distance between centers: 750 mm • Swing over bed: 330 mm • Swing over cross slide: 160 mm • Bed width: 240 mm (massive, heavily ribbed cast iron bed for maximum vibration damping) • Travel of cross slide (X-axis): 180 mm Main Spindle & Drive: • Spindle head / spindle nose: Size 5 (according to DIN 55027 / ISO 702-3) • Spindle bore: 43 mm (usable inner diameter) • Diameter of the spindle in the front bearing: 70 mm • Speed range: 1 – 4,500 rpm (continuously variable via digital inverter) • Drive power (60% / 100% duty cycle): 11 kW / 9 kW • Max. torque at the spindle: 165 Nm (high cutting performance even at low speeds) Feed & Axis Dynamics: • Rapid traverse rate Z-axis (longitudinal): 8 m/min • Rapid traverse rate X-axis (lateral): 4 m/min • Feed rate range: 0.001 – 50 mm/rev • Threading range: 0.1 – 2,000 mm • Feed force (longitudinal axis): 6,000 N Tailstock: • Arbor diameter: 50 mm • Arbor taper: MK 3 (with integrated anti-rotation device) • Arbor travel: Via handwheel with adjustable scale ring and additional longitudinal scale • Clamping: Convenient eccentric clamping on the bed _____ Operating Hours, Control System & Condition: Dujdpfsvphv Tsx Albjw • Switch-on hours (machine under power): 26,492 h • Important commercial note regarding operating time: Based on experience, the actual spindle running time (pure turning under load) in workshop machines is only 30% to 50% of the switch-on time. The actual machining time is therefore only approximately 8,000 to 13,000 hours! • Accuracy: Toolmaker's accuracy according to DIN 8605. • Equipment: Traversing control panel with electronic handwheels, automatic central lubrication of guideways and spindle lead screws, folding chuck guard, coolant system, and complete machine documentation. _____ Inspection & Handling: The machine is located at our site in Graz (Styria). It is fully connected and can be inspected and thoroughly tested at any time after prior appointment. A video of the spindle running up and the axis travels can be sent in advance via WhatsApp or email upon request. • Loading: The professional loading by crane/forklift onto your provided truck is included in the price.

Condition: ready for operation (used), L & Z lathe / WEILER MATADOR from a vocational training center -Center height approx. 150mm -Swinging diameter over carriage 160mm -Swinging diameter over bed approx. 300mm -Distance between centers approx. 500mm Dsdpfx Alszb Rm Aobjuw -Spindle bore approx. 36mm -Speed range 30 - 3550 rpm -Automatic longitudinal / cross feeds -Tailstock / MK3 -Three-jaw chuck -Chip guard -Coolant system -Work light -Documentation Dimensions: L x W x H 1.5 x 0.7 x 1.5 meters / Weight 600kg Errors and omissions excepted.

Condition: used, Year of construction: 1998, operating hours: 38,856 h, functionality: fully functional, machine/vehicle number: 643, turning diameter over cross slide: 340 mm, turning length: 2,000 mm, turning diameter: 570 mm, spindle bore: 66 mm, rotational speed (min.): 1 rpm, rotational speed (max.): 2,500 rpm, total height: 1,750 mm, total length: 3,850 mm, total width: 1,815 mm, quill diameter: 80 mm, quill stroke: 200 mm, swing diameter over cross slide: 340 mm, turning diameter over bed slide: 570 mm, overall weight: 3,550 kg, center width: 2,000 mm, center height: 280 mm, bed width: 350 mm, For sale is a used/well-maintained WEILER lathe, model E 50. 2022 (Repairs/renovations performed by WEILER service technicians): - Bed slide disassembled, cleaned, and recoated - Hand grips re-covered and adjusted - Spindle bearings and timing belt of the X-axis replaced - Bearing unit of the Z-axis replaced - Scraper replaced - Reference points adjusted - Test run performed Duodpfozcv Egjx Albsw

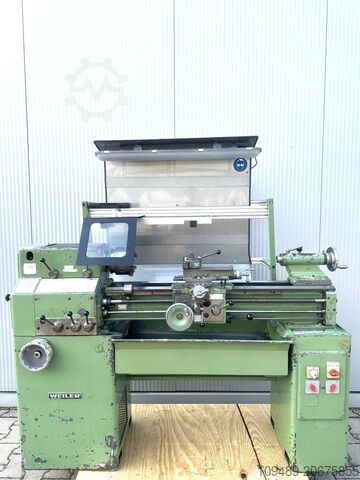

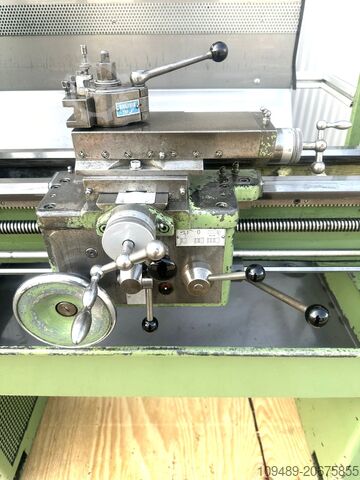

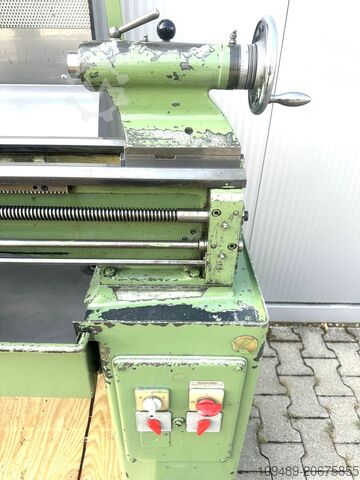

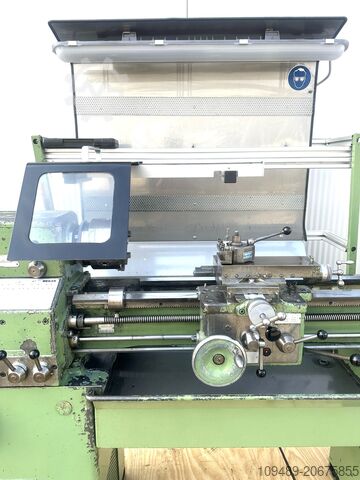

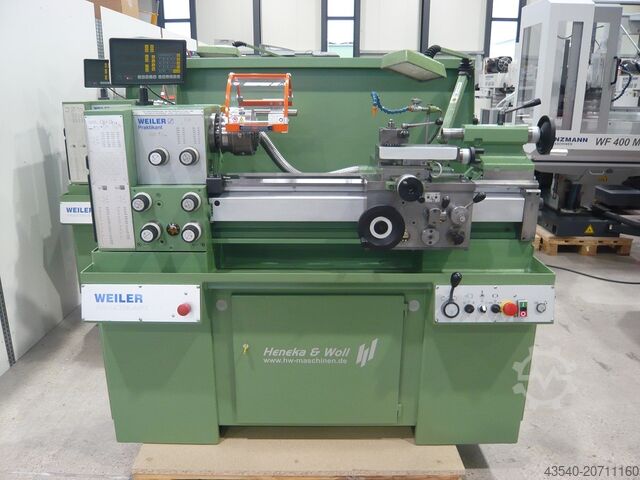

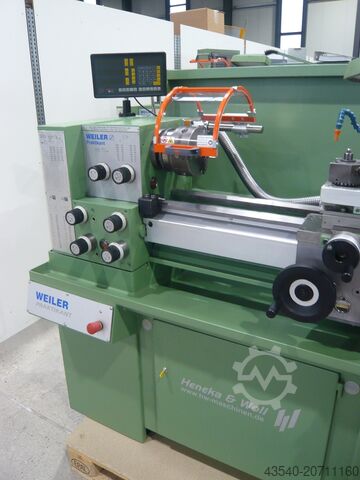

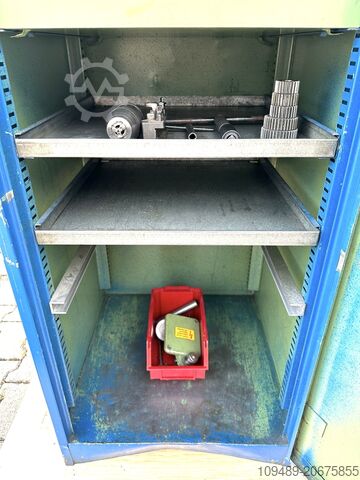

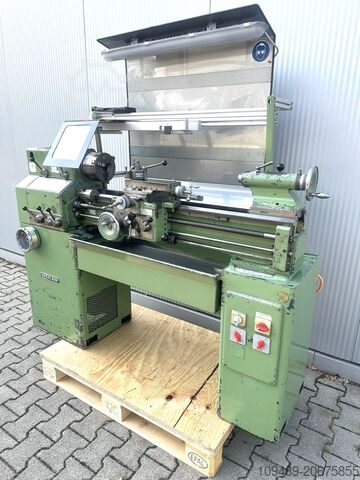

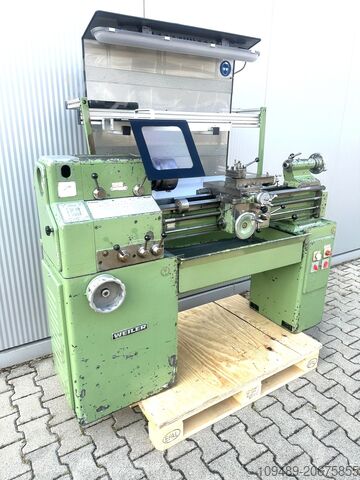

Condition: ready for operation (used), L & Z Lathe WEILER Praktikant 800 R -Turning diameter over bed: 300mm -Turning diameter over cross slide: 150mm -Turning length: 800mm -Spindle bore: approx. 42mm -Speed range: 40 - 2000 rpm -Automatic longitudinal/facing feeds -Threading / Metric / Inch, etc. -Tailstock: MK 3 -Three-jaw chuck -Chip guard & work light -Chip tray -Change gears -Tool cabinet & operating tools Djdpfxjzbiyhe Albeuw -Documentation Dimensions: L x W x H 1.8 x 0.8 x 1.6 meters / Weight: 800 kg Errors and omissions excepted.

Condition: used, Year of construction: 1996, operating hours: 22,400 h, functionality: fully functional, machine/vehicle number: 474, -Weiler -E50/1 -No.: 474 -Year of manufacture: 1996 -Operating hours: approx. 22,400 -Voest-Alpine Steinel control system (the control system likely operated via a separate desktop PC) -Includes chip conveyor, various tool holders, and tools Shipping possible upon request. Sale only to commercial businesses. Dusdpfjy U Iqgox Albsw Stated purchase price = net price plus 19% VAT = €9,282.00 gross.

Condition: excellent (used), Year of construction: 2001, Length:1200mm Width:800mm Height:1200mm Weight:290kg Dodpjx Tp Dxofx Albeuw

Condition: ready for operation (used), WEILER PRIMUS / MD-G / Mechanic's Lathe - Centre height: 125 mm - Centre distance: 400 mm - Speed range: 40-3000 rpm - Spindle bore: 24 mm - Electric chuck guard - Multifix base holder with inserts - Tailstock with drill quill - Four-jaw chuck - Work lamp - Bed stop - Documentation Dimensions (LxWxH): 1.3 x 0.8 x 1.6 meters / Weight: 450 kg Duedpfx Alsy Sm Dtsbew Subject to errors and input mistakes.

Condition: ready for operation (used), L&Z Lathe WEILER LZ 330 incl. new 3-axis digital readout (from educational facility) - "NEW" 3-axis digital readout - Center height 165 mm - Swing over bed 330 mm - Turning length 800 mm - Spindle speed range (gearbox) 25–2800 rpm - Automatic longitudinal/cross feeds - New Multifix toolpost with holders - Three-jaw chuck - Collet system with 20 collets - Original copy attachment - Various accessories - Documentation Dimensions (LxWxH): 1.8x0.7x1.6 meters / Weight: 800 kg Errors and omissions excepted. Dedpjy Id Uhefx Albsuw

Condition: ready for operation (used), Year of construction: 2005, L & Z Lathe / WEILER DA 210x1000 / With new 3-axis digital readout - Year of manufacture: 2005 - CE marking - Guideways in good condition - FULL TECHNICAL DATA SEE PHOTOS - Three-axis digital readout "NEW" - Quick-change collet system incl. 79 collets (173E) - Multifix base holder with inserts - 3-jaw chuck - Electrical chuck guard - Additional sliding guard - Coolant system Dujdpey H Ikqjfx Albow - Drill chuck / live center - Chip guard rear wall - Work light - Complete documentation Dimensions: LxWxH 2.8x1.2x1.8 meters / Weight 1600 kg Errors / input mistakes excepted.

Condition: good (used), Year of construction: 2008, Weiler DZ 40, Year of manufacture: 2008, Siemens 840 D control, Travel X/Z: 200/350 mm, Turning diameter: 180 mm, Max. swing diameter: 560 mm, Y-axis: +/-25 mm, Q-axis / programmable tailstock, Q-axis travel: 360 mm, Q-axis measuring system: rotary, Tailstock: MK 4, Main spindle max. bar capacity: 42 mm, Dodey Ev Iuspfx Albsuw Spindle bore: 52 mm, Rapid traverse X/Z/Q: 30/30/20 m/min, Turret: 16 stations – all driven, VDI 25, Shank diameter: 25 mm, Driven tools up to 4,500 rpm, Parts catcher, Accessories, Driven tool holders, Fixed holders,

Condition: ready for operation (used), WEILER Condor VS 2 with new 3-axis digital readout from university (test laboratory) - New 3-axis digital readout - Guideways in "as new" condition - Centre height: 165 mm - Swing over bed: 330 mm - Distance between centres: 800 mm - Speed range: 28-2800 rpm - Automatic longitudinal / cross feeds - Spindle bore: 40 mm Dedpfx Aloy Efqrjbeuw - Thread cutting / metric / imperial etc. - Collets / quick-clamping device incl. collets - 4-jaw chuck - Röhm - Face plate - Multifix toolpost with holders - Emergency stop - Chuck guard - Documentation Dimensions: LxWxH 2x0.8x1.6 meters / Weight: 900 kg Subject to errors and input mistakes.

Condition: good (used), Year of construction: 2001, Weiler DA 210 Lathe Weiler DA 210 with Fagor digital readout, year of manufacture 2001, in very good original condition. The machine comes from the special production department of a renowned German mechanical engineering company. CE-compliant!! Technical Data: WORKING AREA Centre height: 210 mm Swing diameter over bed: 435 mm Swing diameter over cross slide: 245 mm Centre distance: 1,000 mm SPINDLE Spindle nose: DIN 55027 / DIN ISO 702-3 Size 6 Spindle bore: 52 mm Dodpfey Auyqox Albsuw Spindle bearing diameter (front): 83 mm MAIN DRIVE Drive power 60% / 100% duty cycle: – / 5.5 kW Speed range: 44 – 2,000 rpm Number of speeds: 12 FEED RANGE Number of feeds: 66 Longitudinal: 0.072 – 4 mm/rev Cross: 0.036 – 2 mm/rev THREAD CUTTING RANGE Metric threads: 0.5 – 28 mm TAILSTOCK Quill diameter: 65 mm Quill stroke: 120 mm Internal taper: DIN 228 MK 4 ACCEPTANCE ACCURACY DIN 8605 About the machine: HIGHEST PRECISION, USER-FRIENDLY OPERATION AND SOPHISTICATED TECHNOLOGY are advantages of the conventional Weiler DA series. Offered is a Weiler DA 210 lathe with Fagor digital readout, year 2001. This lathe is in very good original condition. It comes from a workshop where it was only occasionally used for special production. Very easy to operate controls. The guides are regularly lubricated via the central lubrication system. The Weiler DA 210 has been mechanically and electrically inspected by us. Take the opportunity to view and test the Weiler DA 210 under power at our facility. You can find further lathes from well-known manufacturers on our website.
