Gear Grinding Machine
HÖFLER H 2500 / 1200

Year of construction
1980
Condition
Used
Location
Metzingen Germany

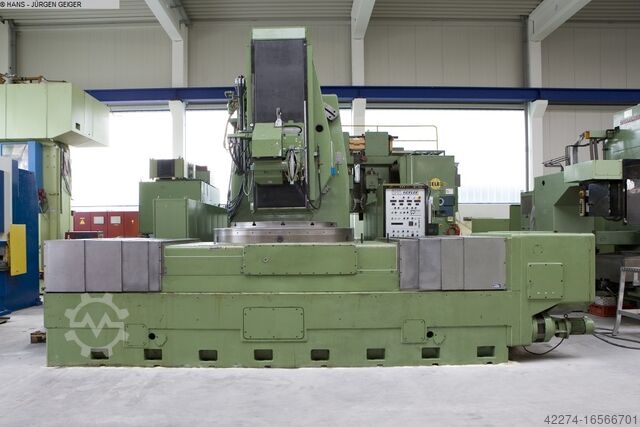

Gear Grinding Machine HÖFLER H 2500 / 1200
Gear Grinding Machine HÖFLER H 2500 / 1200
Gear Grinding Machine HÖFLER H 2500 / 1200
more Images
HÖFLER H 2500 / 1200
HÖFLER H 2500 / 1200
HÖFLER H 2500 / 1200

Basic data

Machine type:
Gear Grinding Machine
Manufacturer:
HÖFLER
Model:
H 2500 / 1200
Year of construction:
1980
Condition:
used

Price & Location

Location:
Metzingen Germany
Call

Details about the offer

Listing ID:
A165-66701
Reference number:
1049-328981
Update:
17.07.2024

Description

max. wheel diameter 2500 mm
gear width 1200 mm
max. module 32
min. module 3
total power requirement 25 kW
weight of the machine ca. 60 t
dimensions of the machine ca. m
Gear , min. / max. 180 / 2,500 mm
Module 3 - 32
Helix angle, max. 10 - 35 °

Gear width for straight gears 1,200 mm
Stroke length, approx. 100 - 1,200 mm
No. of strokes 80 - 350 /min
Stroke position adjustable 300 mm
Stroke speed 4 - 40 mm

Max. weight of workpiece, approx. 18,000 kg
Min. / max. no. of teeth 16 / 576
Table size x bore 1,400 x 500 mm

Grinding wheel Ø, approx. 500 mm
Grinding wheel peripheral speed 34 m/s

Total electrical load, approx. 45 kW - 380 V - 50 Hz
Weight of machine, approx. 60,000 kg

Accessories / Special Features:
* Hydrostatic guides in grinding slide, table and in all other guideways.
* Completely covered working area with sliding doors.
* Automatic grinding process for various cycles, with settings for roughing, finishing,
fine finishing and automatic dressing cycle after preset number of teeth.
* Profile correction is possible via appropriate dressing, as well as additional
movement of grinding slide (depth and width crowning).
* Approx. 50 change gears. * Grinding slideTilt display device.
* Large coolant device with band filter and oil mist exhaust.
* Separate switch cabinet. * Separate hydraulic unit. * Separate oil cooling unit.


Condition : Very good. Machine can soon be inspected in our showrooms.
Ibsdpfxjt Hwqqj Afued
It is not under power at present.
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.

The machine comes directly from a first class gear factory, where it was grinding Quality 5 - 6.
Grinding diagrams are available. This type and quality of machine is rarely available.

Thank you for your interest. We always have a good selection of gear machines available.
Please let us know what you need.
