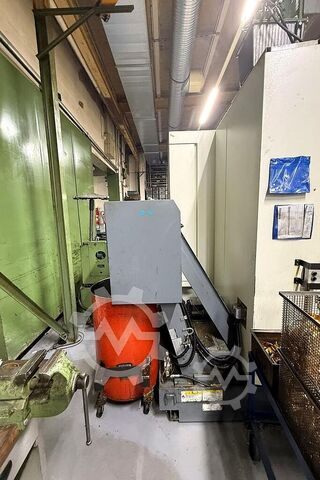

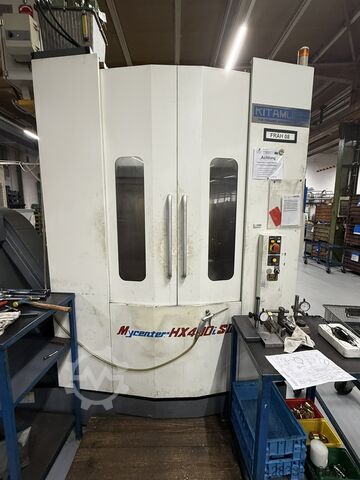

Horizontal machining center

Kitamura Mycenter-HX400

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 735 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller model: FANUC 16iM, spindle speed (max.): 13,000 rpm, The machine is available from 01.10! TECHNICAL DETAILS Travels Travel X: 735 mm Kjdpfow Euc Rsx Ad Iedw Travel Y: 610 mm Travel Z: 610 mm Workpiece Table size Length: 400 mm Table size Width: 400 mm Workpiece weight: max. 400 kg Spindle and Tool Tool changer: 50 stations Spindle taper: BT 40 Spindle speed: max. 13,000 rpm Spindle motor power: 22 kW CNC control: FANUC 16iM MACHINE DETAILS Dimensions & Weight Machine dimensions (L x W x H): 3,987.8 mm x 2,232.7 mm x 2,893.1 mm Machine weight: 15,000 kg

Condition: used, Year of construction: 2006, Technical details: x-travel: 800 mm y-travel: 800 mm z-travel: 800 mm turning speeds: 12.000 1/min tool taper: SK 50 control: SIEMENS 840D shopmill tool change unit: 240 fach size of pallet: 630 x 630mm mm spindle: 52 kW / 430Nm total power requirement: 87 kVA Kdsdpfx Aepumdced Isw weight of the machine ca.: 15 t horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours *

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Kjdpfxoqzkdmj Ad Isdw

Year of construction: 1980, condition: good (used), A used very well preserved cycle controlled lathe from Weisser Heilbronn with SIEMENS control. centre distance 2000 mm centre height 295 mm Swing over bed 600 mm Swing over cross slide 260 mm Swing diameter in the bend 800 mm Total length of the crank 375 mm Bed width 450 mm Plan travel X-axis 350 mm Longitudinal travel Z-axis 1850 mm Spindle nose DIN 55022 size 8 Spindle speed Number 18 14 - 1400 rpm spindle bore 71,5 mm Diameter of front bearing 110 mm feed range 0,01 - 40,95 mm/rev rapid traverse 8 m/min Direct current drive 15 kW 400V 50Hz Max. permissible torque at the spindle 2500 Nm Tailstock quill 80 mm Kodpfx Aegyy I Aed Isdw quill stroke 250 mm inner taper quill MK 5 Length x width x height Weight of the machine 5500 kg Accessories Tailstock Pneumatic three-jaw chuck with interchangeable jaws 315mm Quick change holder "MULTIFIX "in front of the center size "C Quadruple turret behind the center Tool holder Coolant device Pneumatic steady rest Technical data and dimensions: Errors excepted. Videoconference via whatsapp possible by appointment

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Fanuc 18i - MB TRAVELS: X axis: mm 850 Y axis: mm 700 Z axis: mm 750 Distance from spindle center to pallet top: mm 50 - 750 Distance from spindle nose to table center: mm 150 - 900 TABLE: Pallet size: mm 500 x 500 Pallet loading capacity: kg 500 Pallet surface: 24 – M16 x P 2.0 Pallet index degree: deg 1 SPINDLE: Max spindle speed: Rpm 14.000 Spindle taper: ISO 40 Max spindle torque (25% ED): Nm 220,5 FEEDRATE: Rapid traverse rate (X, Y, Z): m/min 60 Cutting feedrate: mm/min 30.000 AUTOMATIC TOOL CHANGER: Type of tool shank: MAS403 BT40 Tool storage capacity: 120 Max tool length: mm 400 Max tool weight: kg 10 Method of tool selection: Fixed address Tool change time (tool-to-tool): sec 1 Tool change time (chip-to-chip): sec 3,5 Kdjdpfx Adsvw Uyuo Isw AUTOMATIC PALLET CHANGER: Number of pallet: 7 Type: Rotary shuttle Pallet change time: sec 7,5 Pallet rotation in loading station: deg 90 MOTOR: Spindle motor (30 min): kW 18,5 / 22 Feed motor (X, Y, Z, B): kW 7,0/7,0/7,0/2,7 MACHINE SIZE: Machine height: mm 3.000 Machine dimension: mm 5.600 x 2.700 Machine weight: kg 15.000 Machine equipped with: • High pressure through the spindle 35 bar • Chip conveyor • Instruction manuals and CE declaration

Condition: good (used), Year of construction: 1992, functionality: fully functional, machine/vehicle number: M 73 175, feed length X-axis: 320 mm, feed length Y-axis: 60 mm, feed length Z-axis: 2,100 mm, feed rate X-axis: 2 m/min, feed rate Y-axis: 75 m/min, feed rate Z-axis: 5 m/min, spindle speed (max.): 3,150 rpm, spindle speed (min.): 45 rpm, quill stroke: 160 mm, quill travel distance: 420 mm, quill diameter: 90 mm, position of the milling head: vertikal, type of input current: three-phase, table load: 3,000 kg, input voltage: 380 V, input frequency: 50 Hz, Equipment: documentation/manual, rotational speed infinitely variable, Wanderer CNC extruder screw milling machine Control: Siemens, type Sinumerik 3M/4C Swing diameter: 200 mm Ksdpfx Adowbzvvj Isdw Workpiece length: 2,500 mm Drive power: 20 kW Tool holder: SK50 Workpiece clamping device: 3-jaw chuck (Forkardt F315)

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 30013012, 27.10 25: Machine currently in serial production. Shutdown planned for mid-2026. Please state your offer price. Sale only within Europe, including Turkey. ----- For technical data, see handout. Kdjdpfeth Sc Hex Ad Isw Without packaging; any warranty rights are excluded. Should you wish to dismantle the system yourself, please indicate this in your bid. We do not assume any liability for the accuracy of the technical data, the completeness of accessories and tool equipment, nor for compliance with all safety and environmental protection requirements as specified in accident prevention regulations.

Condition: refurbished (used), Year of construction: 2007, Table size: 500 × 500 mm 2 pallets Max table load: 500 kg X-axis: 730 mm Y-axis: 650 mm Z-axis: 730 mm CNC control: Makino Professional 5 Rapid feed X/Y/Z: 60 m/min Spindle nose to pallet center distance: 70–800 mm Tool magazine: 60 positions Taper: HSK 63 Kedpfx Adexcmi Ij Iedw Max workpiece size on pallet: Ø800 × 1000 mm Max tool weight: 12 kg Max tool length: 360 mm Max tool diameter: 70 mm Options: High-pressure pump 15 Bar

Condition: good (used), Year of construction: 2009, Traverses XYZ 850 x 700 x 750 mm, Pallet size 500 x 500mm, pallet load 500 kgs, 60 ATC, BT40 spindle taper, Fanuc 31i- control. Spindle power 22Kw, B axis 0.001 Degrees, 14000 rpm spindle, Kdjdjwq Iwxepfx Ad Iew swarf conveyor, Through Spindle Coolant.

Condition: used, TECHNICAL DETAILS - Number of axes : 4 MILLING SPINDLE - Tool holder type : HSK63 - Spindle power : 22 / 26 [kW] - Spindle speeds : 100 - 10.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 800 x 600 x 800 [mm] - Rapid traverses rates (X/Y/Z) : 40 [m/min] B ROTARY AXIS - Travel : 360 [°] - Indexing precision : 0,001 [°] Kdodpouhb D Nsfx Ad Isw - Rapid traverse rate : 13,88 [rpm] TOOL CHANGER - Auto. Tool Changer type : Bras chargeur - Tool magazine capacity : 60 - Tool exchange time : 2,2 [sec] PALLET CHANGER - Pallet changing device type : Rotopalette - Pallet size : 630 x 500 [mm] - Pallets number : 2 - Maximum weight upon pallet : 900 [kg] - Distance table / spindle axis (min./max.) : 43 - 643 [mm] - Distance table center / spindle nose (min./max.) : 145 - 945 [mm] - Maximum workpiece diameter : 740 [mm] - Maximum workpiece height : 550 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 56 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 5.244 x 3.305 [mm] - Machine height : 3.345 [mm] - Machine weight : 10.000 [kg] MACHINE HOURS - Number of working hours : 9.095 [h] EQUIPMENT - CNC : Fanuc 0i-MD - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : Manual guide - Electronic handwheel - Linear scales - Rigid tapping - 3 colors status lamp - Coolant tank : 700 [l] * with oil separator * with high-pressure pump : 40 [bars] * Coolant through spindle * with paper filtering unit * With washing gun * With cabin washing - Parts hydraulic clamping : prepared - Hydraulic counter balance : upon Y axis - Chips conveyor - Spindle cooling unit - Tool-holders : 35
