Bevel Gear Grinding Machine

KLINGELNBERG G 27

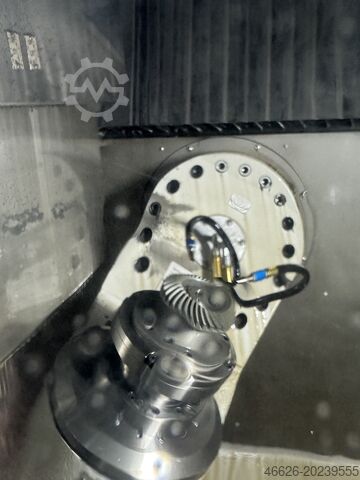

Condition: excellent (used), Year of construction: 2011, operating hours: 49,000 h, functionality: fully functional, KLINGELNBERG OERLIKON G 27 – Bevel Gear Grinding Machine Manufacturer: KLINGELNBERG AG Brand: KLINGELNBERG OERLIKON Series / Model: G 27 Year of Manufacture: 2012 Type: Bevel Gear Grinding Machine Condition: Excellent – all tolerances within manufacturer's specifications Location: Bavaria, Germany Nearest Airport: Munich Application Areas - Spiral and hypoid bevel gears - Planetary gears - Passenger car and commercial vehicle transmissions - Agricultural and forklift drive systems - Special gear units - Helicopter gearboxes - ...and many other precision applications Technical Specifications - Max. gear diameter: 300 mm - Max. module: 8 - Min. module: 0.7 - CNC control: Siemens Sinumerik 840D Solution Line - Software: KIMoS5 (Klingelnberg Integrated Manufacturing of Spiral Bevel Gears) Dsdjxuwmnjpfx Ah Ssul - Min./max. bevel angle: −90° / +90° - Workpiece spindle bore: 127 mm - Grinding wheel diameter: 50 – 230 mm - Grinding spindle speed (stepless): up to 7,500 rpm - Workpiece spindle speed: up to 700 rpm - Connected load: 146 kW - Machine weight: approx. 21 t - Machine dimensions (L × W × H): approx. 9.5 × 3.6 × 3.1 m - Integrated probe unit at grinding head - External grinding spindle cooling - ELBARON oil mist extraction system (integrated) - HOFFMANN coolant filtration system

Condition: used, Technical details: max. ram stroke: 250 mm workpiece diameter - max.: 80 mm max. workpiece length: max. 900 Dedpfx Aew Au I Ijh Soul total power requirement: 1,5 kW weight of the machine ca.: 2,1 t

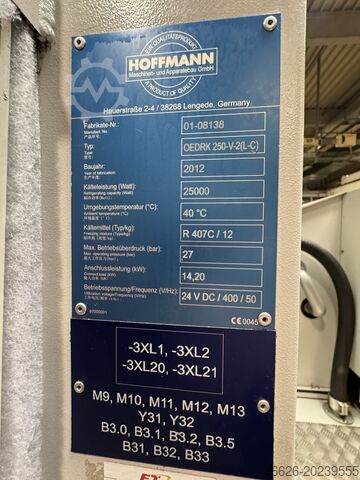

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, For sale at MONTRASIO GMBH: 2 machines from the Swiss world market leader in bevel gear grinding technology, KLINGELBERG AG. Series / Model: G 27 Year of manufacture: 2011 + 2012 Type: Bevel gear grinding machine Condition: Excellent / Grade 1 Application areas: Spiral bevel gears, hypoid gears, planetary gearsets Industries: Gear manufacturing, automotive transmissions, commercial vehicle and agricultural gear units, forklift transmissions, special gear units, helicopter drives, and many more. Technical data: Max. gear diameter: 300 mm Dsdjxlzhdspfx Ah Seul Max. module: 8 Min. module: 0.7 Control: SIEMENS SINUMERIK 840 D solution line (latest software options!) Min./max. bevel angle: -90° / +90° Workpiece spindle bore: 127 mm Grinding wheel diameter: 50 – 230 mm Spindle speed (stepless): up to 7,500 rpm Workpiece spindle speed: 700 rpm Total connected load: 146 kW Machine weight: approx. 21 t Machine dimensions: approx. 9.5 × 3.6 × 3.1 m Measuring probe (integrated on grinding head) External grinding spindle cooling system ELBARON integrated oil mist extraction HOFFMANN coolant filtration system per machine As the machines are immediately available, we are seeking a prompt agreement. Photos attached. Inspection reports attached. On-site inspection is possible at any time.

Condition: used, Year of construction: 2017, Absolutely as good as new Consists of 1 measuring case 12-20mm Dodpfsvvxvdjx Ah Seul Consists of 1 measuring case 20-50mm Consists of 1 measuring case 50-100mm

Condition: used, Year of construction: 2015, x-travel 600 mm y-travel 800 mm z-travel 600 mm 0 1,7 + L µ Temperature range 20 °C weight of the machine ca. 1200 kg dimensions of the machine ca. 1319 x 1940 x 2710 m Gantry measuring machine on hard stone measuring plate with high accuracy, high- precision guides, wear-free precision air bearings, contactless scale system on all axes 0.1 µm, as well as with 3-axis CNC control, joystick,PH 10M rotary/ swivel head, measuring probe scanning kit 2 + scanning module kit. Dell OptiPlex system computer with LED monitor, keyboard, laser printer and software for graphical representation of the shape deviation, assistant for generating travel paths, simulation model, Excel protocol output, statistics module. Flexible exchange system for storing the scan modules. As is well known, measuring machines must be professionally dismantled by a specialist company and transported using special transport equipment. This Dsdpovu E Rljfx Ah Soul costs approximately €3,500 + VAT. The machine has already been dismantled and issued with a certificate. It is in our stock now. Machine dealer with own stock of 1600 m².

Condition: defective spare-parts repository (used), Table size: 1300 x 950 mm Djdpfxjicnk Es Ah Soul The device is not functional! Chassis for sale,

Condition: ready for operation (used), Year of construction: 1970, Gear hobber ZFWZ 6300x40 Dusdpfsxln Iwjx Ah Sjl Manufacturer: WMW-MODUL Model: ZFWZ 6300x40/1 Year of manufacture: 1970 Max. workpiece diameter: 7100 mm Gear width: 1500 mm Max. module: 45 Table diameter: 5300 mm Cutter diameter x width: 400x500 mm Max. helical angle: 45 degrees Hob diameter: 500 mm Hob speeds: 9–63 rpm Total power requirement: 47 kW Machine weight: 160 tons Equipped with standard hobbing head, tangential hobbing head, internal milling head, change gears, supports. Video available.

Condition: good (used), Year of construction: 2007, control 840 D x-axis 4000 mm y-axis 3000 mm z-axis 2200 mm Technical data: The travel in the x-direction is 4000 mm, in the y-direction 3000 mm and in the z-direction 2000 mm. The quill stroke is 800 mm. The distance from the spindle center to the clamping surface is a minimum of 80 mm and a maximum of 3080 mm. The maximum workpiece weight is 20000 kg. The worktable is rectangular (HEHM) with a clamping surface 2500 mm long and 2000 mm wide. There are 12 T-slots according to DIN with a slot width of 28 mm and a slot spacing of 160 mm. The table height above floor level is 800 mm. The table can be swiveled through 360°. Duedpowzyphefx Ah Sjl The work spindle has an ISO 50 tool holder in accordance with DIN 69871-A40. The spindle diameter is 160 mm. The maximum torque absorption is 2346 Nm. The spindle cannot be swiveled.

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 Duedpfjrtrzdjx Ah Sol RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: ready for operation (used), Year of construction: 1965, A vertical gear shaping machine Lorenz is available. Module: 6.5, stroke: 120mm, max. gear diameter: 900mm, max. workpiece weight: 180kg, min. concentricity: 0.1mm, min. squareness: 0.05mm, roundness: 0.1mm. An on-site inspection is possible. Dusdpfx Ajxq Eyhjh Sjl
