Edge banding machine

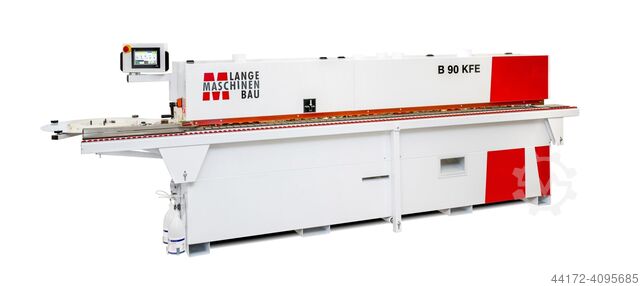

Lange B90 KFE

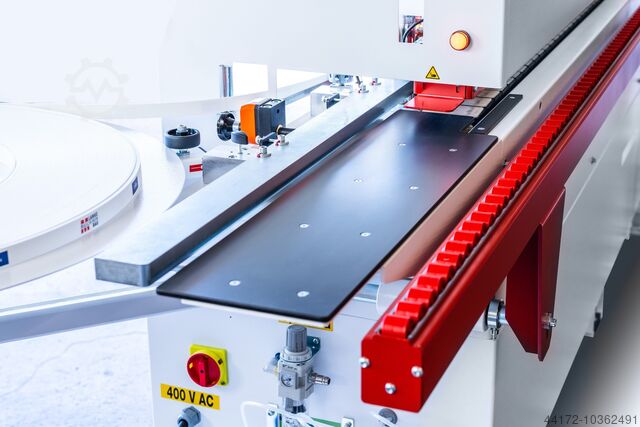

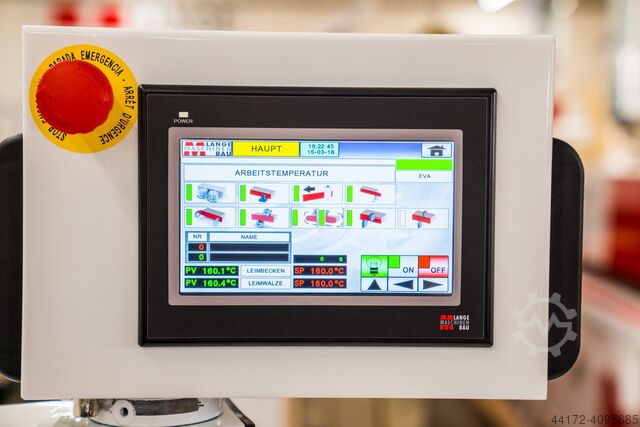

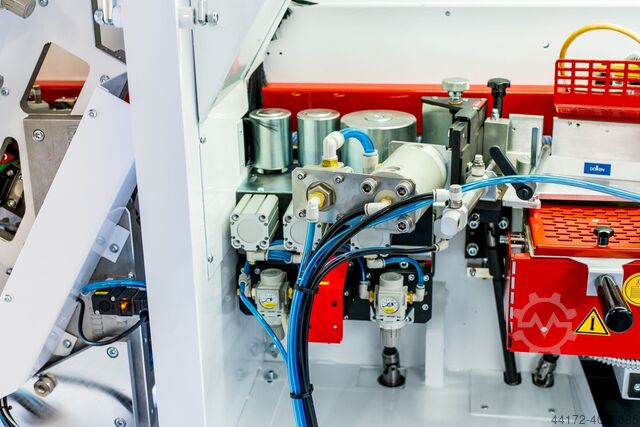

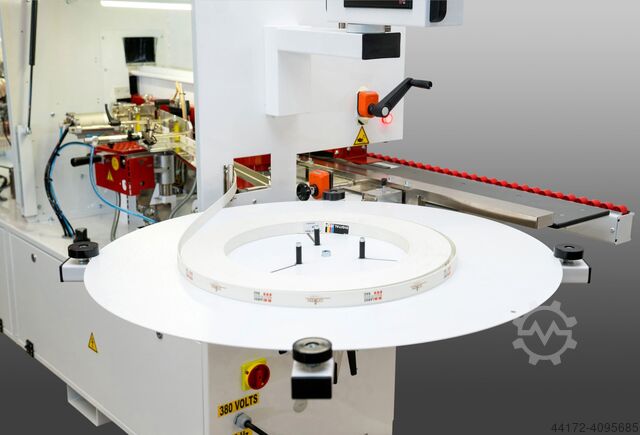

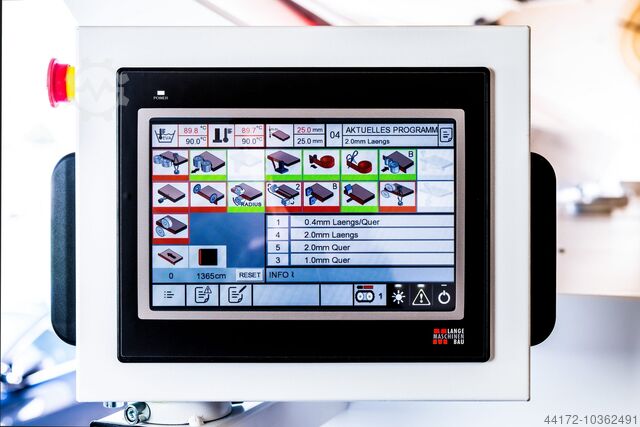

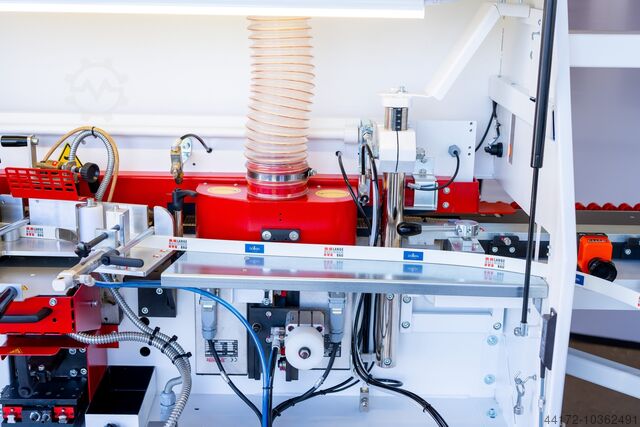

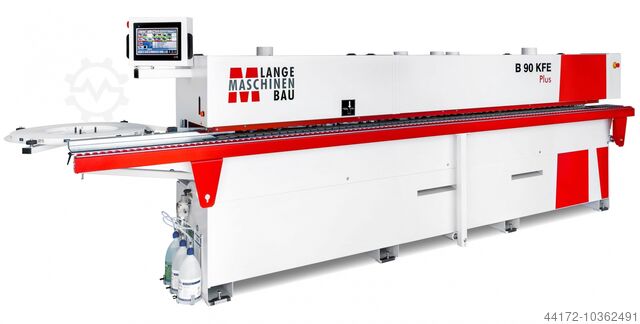

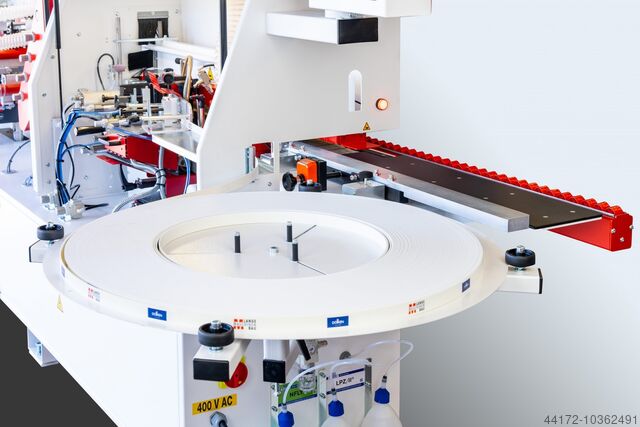

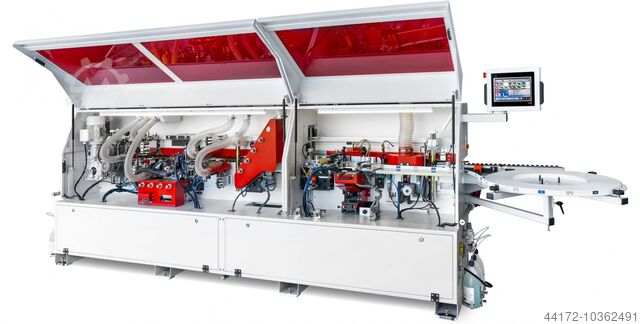

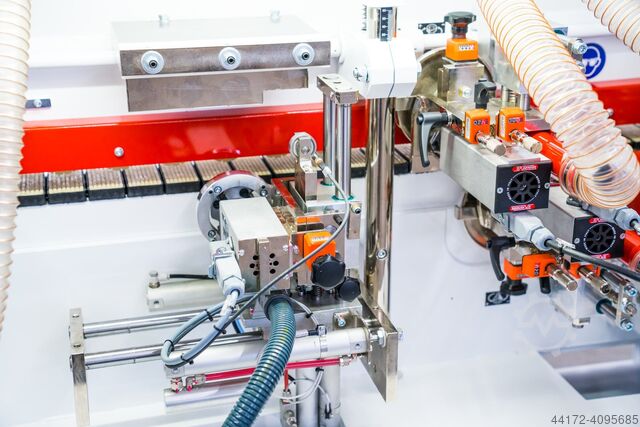

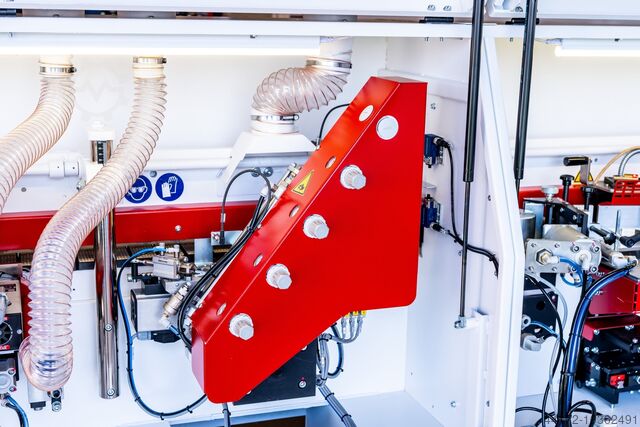

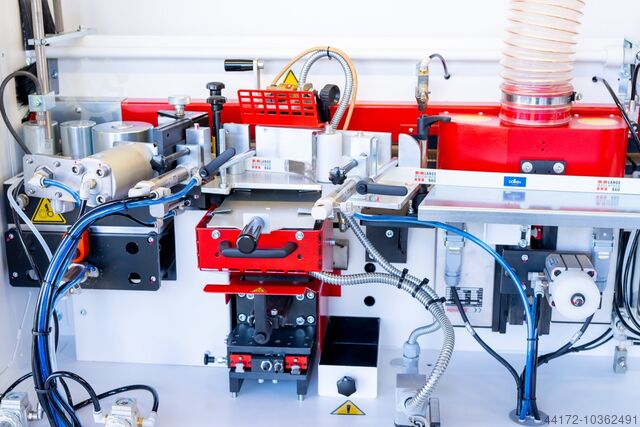

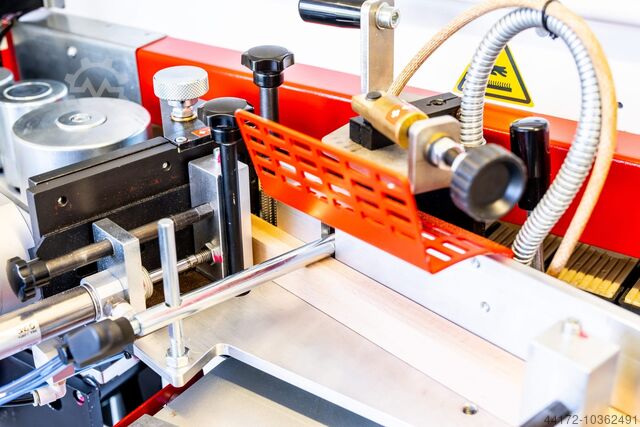

Condition: as good as new (ex-display), Year of construction: 2025, One-sided automatic edge banding machine with pre-milling unit, direct glue application to straight workpieces (EVA-PUR Glue pot with run-out function/optional), HF-cut-off saw station, HF-top and bottom milling unit, corner rounding unit, chain feed, double roller top pressure, extendable work piece support, signal lamp for work piece sequence and synchronisation of working units by encoder. For ABS, PVC, melamine and strong wood veneer roll material as well as fixed lengths from 0.4 – 3.0/6.0 mm and of 8 – 60 mm work piece thickness. Speed: 10,0 m/min.; 8,0 m/min. with corner rounding • 3 spaces for finishing units • 10“ Colour Touch screen →Automatic edge feeding for roller material over turntable D = 800 mm →Longer infeed lineal (650 mm) →Two reverse, operating-controlled pre-milling units with diamond charged helical joining millers provide a neat and tear-free premilling of the work pieces before the gluing of the edge material →Glue application directly to workpieces: Teflon-coated glue pot with a capacity of 1,5 kg, leak proof with glue supply from below (excess glue automatically flows back into the glue pot). Glue roller allows exact dosage of glue. Separate glue roller temperature adjustment. Electronic temperature control with automatic stand-by function (reduces probability that the glue burns if the machine is not used for a longer periods and is still turned on). Dedsd R U Agepfx Advjkh Optional: EVA/PUR gluepot with run out / cleaning function for quick change of glue →Pneumatically operated cut-off knife from roll material up to 3mm edge thickness →Automatic feeding magazin (70mm magazin capacity) with spiked roller for solid wood →Pressure unit consisting of one driven pressure roller synchronized with glue spreading roller and two of smaller diameter, conical, one positive and one negative pressure roller with spring tension for a nearly invisible joint of the edge material with the work piece , adjustment of the pressure unit with digital readout. →High-frequency cut-off saw equipped with HF motor 0.35 kW, 12,000 rpm, 2 saw blades and high-precision linear guides ensure a clean and precise saw cut, with extraction hood. →High-frequency top and buttom milling station, 2 powerful 0.55 kW high-frequency motors with HM-WPL special millers; suitable for radius, bevel and flush milling, horizontal and vertical scanning of the work piece; aggregate adjustment equipped with digital readouts for setting to various edge types; 2 extraction hoods for shavings with central extraction nozzle 2 x Ø 100 mm; height adjustment of the upper aggregate with the top roll pressure →Corner rounding unit : Automatic processing of corner edges up to 2 mm edge thickness. Equipped with one high frequency motor 0, 27 kW, selectable on operating panel. One side (front or back edge) or both side corner rounding unit. →Rotatable control panel with 10“ color touch screen controls glue temperature settings, automatic temperature reduction for stand-by function of the machine, switching on and off of aggregates and error diagnosis, incl. digital Meter counter Additional finish aggregates : →Radius scraper unit : With a slight draw cut eventual radius milling traces are removed to provide a perfect finish. The fine adjustment is made by digital readouts. →Glue scraper unit : Removes eventual glue rests with a slight draw cut from the glue joint of the work piece surf

Condition: excellent (used), SINGLE SIDE EDGE BANDER (Left) Edges (band in rolls) thickness (Min/Max) mm 0,4 / 3 Edges thickness in strips / lippings (min/max) mm 0,4 / 8 (12)* Panels thickness (min/max) mm 8 / 60 Numerical Control "StarTouch" + "Touch 7" Dkjdpfxoxlqntj Advjh Feeding speed m/min 12-18 Top pressure system with rubber belt (C.N.) Spraying unit (Anti-sticking liquid) AAR In-feed fence, adjustable by N.C. "EASY SIZE PLUS" Pre-milling Unit (vertical joint trimmers) 2 x Kw Lamps to heat the workpieces side Glueing Unit (P.U.R. Glue + Quick Melt system) "VC/800" - "VC/6" + "AirFusion AF15" Band Pressure zone (N.C. adjustment) Edge coils supporting unit - 1 Snipping (end-cutting) K/SEL Rough Trimming unit RS/K Fine Trimming unit RI / 800 (3 pos.) Multi Function Unit (Profile contour Trimming Unit) “4 EDGE” KIT Spraying Unit (for sliding liquid) Profile edge scraping unit RAS/1000 Glue scraper RCA / 2C Milling grooving unit K-100 (1 x Kw 1,8) 90° Hot Air Heater (to reactivate the color of plastic tape) Panels Return System "SAG" Mod. SPINNER 47 / 63

Condition: as good as new (ex-display), Year of construction: 2025, One-sided automatic edge banding machine with pre-milling unit, direct glue application to straight workpieces (EVA-PUR Glue pot with run-out function/optional), HF-cut-off saw station with 2xMotors , HF-top and bottom milling unit, corner rounding unit, chain feed, double roller top pressure, extendable work piece support, signal lamp for work piece sequence and synchronisation of working units by encoder. For ABS, PVC, melamine and strong wood veneer roll material as well as fixed lengths from 0.4 – 3.0/6.0 mm and of 8 – 60 mm work piece thickness. Speed: 10,0 m/min.; 8,0 m/min. with corner rounding • 3 spaces for finishing units • 10“ Colour Touch screen Djdpfol Rix Nsx Advjkh →Automatic edge feeding for roller material over turntable D = 800 mm →Longer infeed lineal (650 mm) →Two reverse, operating-controlled pre-milling units with diamond charged helical joining millers provide a neat and tear-free premilling of the work pieces before the gluing of the edge material →Glue application directly to workpieces: Teflon-coated glue pot with a capacity of 1,5 kg, leak proof with glue supply from below (excess glue automatically flows back into the glue pot). Glue roller allows exact dosage of glue. Separate glue roller temperature adjustment. Electronic temperature control with automatic stand-by function (reduces probability that the glue burns if the machine is not used for a longer periods and is still turned on). Optional: EVA/PUR gluepot with run out / cleaning function for quick change of glue →Pneumatically operated cut-off knife from roll material up to 3mm edge thickness →Automatic feeding magazin (70mm magazin capacity) with spiked roller for solid wood →Pressure unit consisting of one driven pressure roller synchronized with glue spreading roller and two of smaller diameter, conical, one positive and one negative pressure roller with spring tension for a nearly invisible joint of the edge material with the work piece , adjustment of the pressure unit with digital readout. →High-frequency cut-off saw equipped with 2xHF motor 0.55 kW, 12,000 rpm, 2 saw blades and high-precision linear guides ensure a clean and precise saw cut, with extraction hood. →High-frequency top and buttom milling station, 2 powerful 0.55 kW high-frequency motors with HM-WPL special millers; suitable for radius, bevel and flush milling, horizontal and vertical scanning of the work piece; aggregate adjustment equipped with digital readouts for setting to various edge types; 2 extraction hoods for shavings with central extraction nozzle 2 x Ø 100 mm; height adjustment of the upper aggregate with the top roll pressure →Corner rounding unit : Automatic processing of corner edges up to 2 mm edge thickness. Equipped with one high frequency motor 0, 27 kW, selectable on operating panel. One side (front or back edge) or both side corner rounding unit. →Rotatable control panel with 10“ color touch screen controls glue temperature settings, automatic temperature reduction for stand-by function of the machine, switching on and off of aggregates and error diagnosis, incl. digital Meter counter Additional finish aggregates : →Radius scraper unit : With a slight draw cut eventual radius milling traces are removed to provide a perfect finish. The fine adjustment is made by digital readouts. →Glue scraper unit : Removes eventual glue rests with a slight draw cut from the glue joint of th

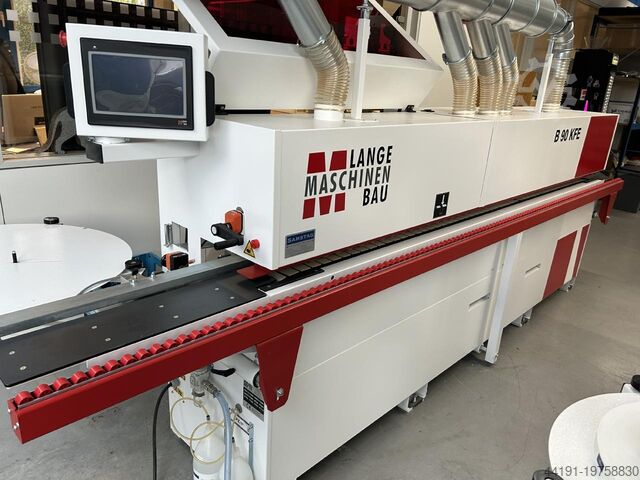

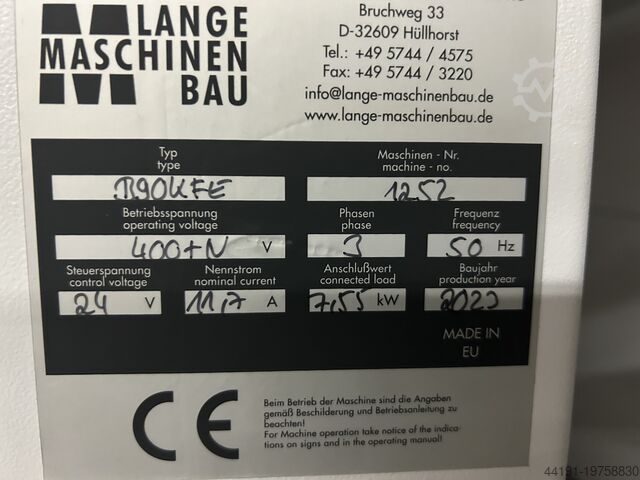

Condition: new, Year of construction: 2023, New machine Year of manufacture: 2023 Single-sided automatic edge banding machine with pre-milling unit, hot-melt adhesive application on straight workpieces (EVA/PUR glue pot with emptying function optional), HF cross-cut saw station, HF milling unit, corner copying unit, chain feed, double roller upper pressure, extendable workpiece support rail, signal lamp for workpiece tracking and integrated length control for contactless operation of processing functions. Suitable for ABS, PVC, melamine, and solid wood veneer edging coils, as well as fixed lengths from 0.4–3.0 / 6.0 mm and workpiece heights from 8–60 mm. Feed speed: 10.0 m/min; 8.0 m/min with corner copying. ● 3 free slots for finishing units ● 10" color touch screen. Machine length: 4030 mm Workpiece thickness: 8–60 mm Min. workpiece width: approx. 75 mm Min. workpiece length: approx. 120 mm (min. approx. 200 mm with corner copying) Edge thickness: 0.4–3.0 mm Dsdpfx Adsw I U Drovjkh Pre-milling unit chip removal: 0–2.0 mm, stepless adjustment Total connected load: 7.5 kW – 400 V Feed speed: 10 m/min; 8 m/min Pneumatic connection: 6 bar Net weight: 1050 kg Options: Surcharge for radius scraper unit with air nozzle + extraction Surcharge for surface scraper unit + extraction Surcharge for buffing unit EVA/PUR glue pot with emptying function Surcharge for diamond tools, height = 65 mm for pre-milling unit Riepe spray system (anti-adhesive) at the pre-milling unit Riepe spray system (cleaning spray before buffing unit) Pipe system with 90° bend + manual slide valve, installed on machine, D=200 mm Availability: short-term Location: Hochheim

Condition: used, Year of construction: 2020, functionality: fully functional, workpiece height (max.): 45 mm, edge thickness (max.): 3 mm, type of input current: three-phase, Further technical data: Ball-bearing turntable for edge banding rolls, Ø 740 mm Edge thickness: 0.4 – 3 mm Workpiece height: 8 – 45 mm Dsdpfx Asxdb U Uodvskh Extendable workpiece support up to 450 mm Manually adjustable workpiece height m-motion and x-motion PLUS control systems (highest setting repeat accuracy, programmable) Robust processing units in new design, solid machine base, precise extraction system Additional equipment: Surface scraper Spraying unit for cleaning agent LED lighting package Tempora 45.03 Spraying unit for release agent Cross-cut saw unit with 45° travel path and radius processing Pneumatic-mechanical infeed lock 75 x-motion PLUS package Tempora 45.03

Condition: as good as new (ex-display), Year of construction: 2021, functionality: fully functional, overall weight: 915 kg, type of input current: three-phase, input voltage: 400 V, input current: 24 A, input frequency: 50 Hz, Worktable dimensions 3465x710mm, height 875mm Gluing thickness roller edges 0.4 - 3mm Glue-on thickness strip edges up to 5mm, min - max. workpiece thickness 8-50mm min. Workpiece length/width with roller edges 190/110mm min. Length of panel 120mm Feed speed 9 m/min Feed motor 0.55 kW Working air pressure of pneumatics 6.5 bar Suction hood glue container 80mm 2 suction hoods Flush trimming unit 60mm 2 extraction hoods Pre-milling unit 80mm Working temperature 20-190C° Equipment: Pre-milling unit (jointing) Rounding unit (corner copying) Gluing unit, applying and pressing on the edge (self-lubricating glue pot) Trimming unit, for cutting off 90° of the protruding edge at the front and rear Flush trimming unit (joining) Scraper unit Buffing unit Surface scraper Automatic application of the strip edges with edge magazine Kit for quick change of the glue container Device for heating the panel edge Non-stick agent spraying unit Dsdpfsuacqzox Advskh Spraying unit for finishing the edge

Condition: used, Year of construction: 2009, Used SCM edgebander model OLIMPIC K1000 Control panel with membrane keyboard Technical data: Djdpfx Asxrndxsdvekh Min. panel height: 8 mm Max. panel height: 55 mm Min. edge thickness (roll): 0.4 mm Max. edge thickness (roll): 3 mm Max. edge thickness (solid wood): 12 mm Configuration: Strip edge magazine Glue pot capacity 1.5 kg, with independent motor No. 4 pressure rollers with pneumatic feed, first roller with independent motor Edge roll guillotine End trimming unit with 2 independent motors, tiltable 0-15° - each 0.35 KW - 12,000 rpm Overlapping trimming unit with 2 motors, each 0.65 KW - 12,000 rpm - tools with reversible knives Tiltable corner rounding unit for flat/radius finishing; 2 motors each 0.5 KW - 12,000 rpm, electro-pneumatic positioning - tools with reversible knives Electro-pneumatic exclusion of the unit Glue scraper unit Machine length: 4,310 mm Year of manufacture: 2009 CE marked

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, Brand: SCM Model: OLIMPIC K 500 T/ER-2 - CE Automatic edge banding machine with sanding unit for wooden, veneer, PVC, melamine, ABS edges – suitable for furniture manufacturing, joinery, custom fittings, panels, kitchens, bathroom furniture, and various other applications Technical specifications: Min./max. panel height: 8–60 mm Panel height with corner rounding unit: 10–45 mm Edge thickness: 0.4–8 mm Edge thickness from coil: 0.4–3 mm Minimum panel width: 55 mm Feed speed: 11 m/min Pressure beam with motorized vertical movement Panel support rail Sound-insulated safety enclosure Fluid inlets Components: Anti-adhesive spraying unit with two nozzles – two tanks for anti-adhesion liquid Pre-milling units with two high-frequency motors – H64 mm diamond tools – diameter 100 mm, bore 30 mm, height 65 mm – copying set Gluing unit VC 560 for edge application on panels up to 60 mm – glue pot capacity: 1.5 kg – exchangeable glue pot End trimming unit with two independent motors, each 0.35 kW at 12,000 rpm – motor tilt from 0° to 15° – 2 saw blades, diameter 115 mm – front copying devices Tilting trimming/bevelling unit for removing top and bottom edge overhang – 2 motors at 0.55 kW – 12,000 rpm – tilt range from 0° to 25° – two-position pneumatic set for quick change between thin or radius edges Corner rounding unit with two motors on prismatic guides – for rounding and trimming thin or thick edges – 2 motors at 0.55 kW – 12,000 rpm Dksdjxnvr Aopfx Advoh Edge scraping unit for optimal finishing of ABS/PVC edges with rotary copying and extraction hood, scrap collection cassette Glue scraping unit – removes glue residues from the lower and upper panel surfaces Buffing unit for cleaning and polishing plastic edges – motor 0.25 kW – brush diameter 150 mm Compressed air: 7 bar Overall dimensions: 5500 x 1150 x 1550 (H) mm Weight: 1,780 kg Recently serviced New diamond pre-millers New copying wheels...

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2650x640x1400 mm Weight 700 kg Dsdpfx Adevz E T Hovekh Total power requirement 5 kw
