Gear skiving machine

LIEBHERR LK 200

Year of construction: 1995, condition: excellent (used), Technical data Manufacturer: brown & sharp Type: DEA Mistral Year of construction: 1995 Measuring range X = 1500 mm Y = 1000 mm Z = 900 mm Gbjdpfsf Dvzcox Abpow Equipment Renishaw PH10M probe TP200 touch probe + probe changing bench 6 garages Software PC-DMIS Version 4.2 Status 2008 PC (WIN XP), monitor, inkjet printer, computer table The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: good (used), Year of construction: 2004, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual Gbjdpfxjul Efmj Abpow knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

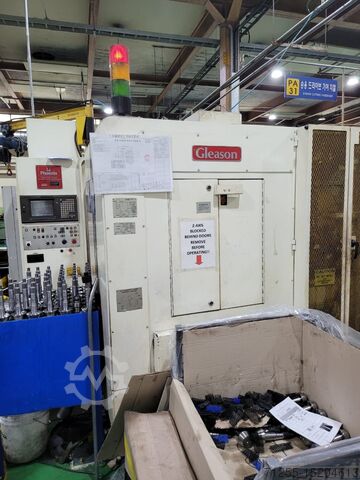

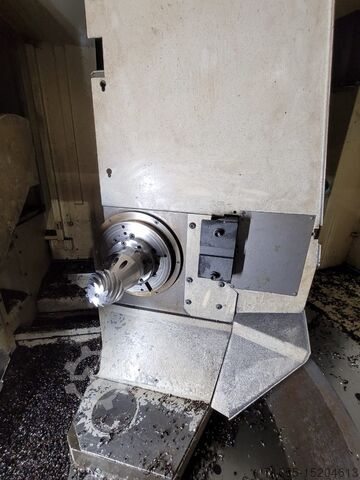

Condition: good (used), Year of construction: 2000, gear diameter: 449 mm, Equipped with: Fanuc 150MB CNC Control Dry Cutting Cutter Shroud Chip Evacuation System Auto Doors Hydraulic System Lubrication System Work light Stack Light Specifications: Largest Speed Ratio: 10:01 Work Area (Continuous): Gedpfx Absruakgspjbw Largest Depth of Teeth: 15.24 mm Largest Width of Tooth Face: 50.8 mm Work Area Axis: Horizontal Movement X Axis: -114 - 178 mm Vertical Movement Y Axis: -178 - 190 mm Movement of the Carriage Baseplate Z-Axis: -10.16 - 500 mm Workpiece Headstock Swiveling Range B-Axis: -3 - 90 Degree Maximum Distance Machine Center to Spindle Side: 165 mm Number of Teeth: 5-200 Inclusive Max. Gear Pitch Dia. of Typical 35 Deg. Spiral Angle Gear Using Max. Cutter Dia. 12" Cutter at the Following Ratios: Face Milling 1 x 1 - 13.5" - 342.9mm 2 x 1 - 16.0" - 406.4mm 5 x 1 - 17.7" - 450.0mm Face Hobbing (210mm Dia. Cutter) 1 x 1 - 10.560" - 268.22mm 2 x 1 - 10.286" - 275.00mm 5 x 1 - 11.810" - 300.00mm Milling Head Diameter: Helixact: 100,125,169,200,250,320mm Continuous Gumption Procedure, Teichloroethylene: 102 - 210 mm Workpiece Spindle: Drilling of Large Diameters: 5 3/64" Cone Upward Gradient on 304.8 mm (1 Foot): 21/32" Deep One of the Cone: 5.29" Diameter of the Whole Spindle Perforating: 3.35" Speeds: B-Axle Workpiece Headstock Drag Axis: 30 Degrees A-Axle Workpiece Spindle Number of Revolutions: 0 83 min-1 X-Axis Horizontal: 80 mm/sec Y-Axis Vertically: 80 mm/sec Z-Axis Carriage Baseplate: 80 mm/sec Space Requirement L x W x H (Approximate): 4.75 x 3.40 x 2.54m / 188" x 134" x 100" Machine Weight (Approximate): 10980 kg / 24,156#

Condition: like new (used), Year of construction: 2019, absolutely as good as new condition, 2 external wheels, 1 internal grinding spindle Siemens control controlled B-axis suitable for Capto grinding (out of round) center width 1000 mm center height 200 mm Godovt R Awopfx Abpobw

Condition: as good as new (ex-display), Year of construction: 2023, operating hours: 50 h, functionality: fully functional, machine/vehicle number: K17483-152-1, arm reach: 1,440 mm, type of input current: three-phase, Yaskawa MA 1440 welding robot with Abicor Binzel iROB pulse 500 welding source , Abicor Binzel welding neck and unrolling device , with Scansonic TH6D , and automatic centering and cleaning station . Gedpfx Aevb D Ehobpsbw The equipment is like new , barely used, and used the Scansonic TH6D to self correct during welding .

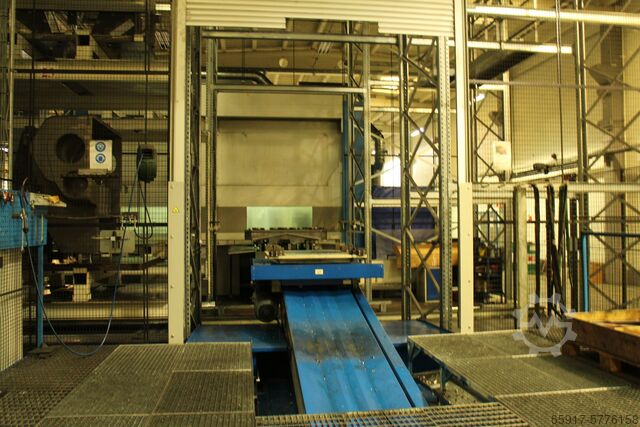

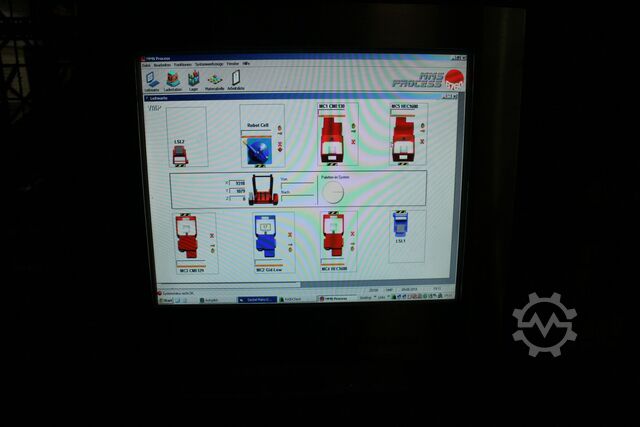

Year of construction: 2006, condition: ready for operation (used), FASTEMS Type: MLS-XHD Gsdpsguk E Tsfx Abpobw Load max pr. pallet 6.000 kg Machine capacity 5 pcs Pallet capacity 25 pcs Available pallets 19 pcs Loading stations 2 pcs X 2650 mm max Y 2300 mm max Robot with grinding function 1 pcs Layout dimensions 15 x 54 meter Build year 2006

Condition: excellent (used), Manual control box for Dea or Brown&Sharpe machines Gsdpefhqxdsfx Abpebw

Condition: excellent (used), Year of construction: 2015, With a view to optimized and energy-saving drives in the vehicle industry, significantly higher demands are placed on the components of the drive system. Higher power transmission and higher torques combined with smaller size are the challenges. This development has increased the demand for cold-formed splines. With the Vertical Splines Press (VSP) Sack & Kiesselbach provides the customer with a solution that offers technological and also logistical advantages compared to conventional technologies (such as roller burnishing or broaching). The relatively small and very user-friendly press can be configured both manually and as an automated system. In addition to the splines press, the customer can also obtain the appropriate die system and process technology from a single source. 1 used Vertical Splines Press make Sack & Kiesselbach type VSP 50/30 Year 2015 Technical data: Pressing force 500KN ram stroke 450 mm Closing speed 200 mm/s pressing speed 5,5 mm/s opening speed 120 mm/s table dimension 500 x 400 mm installation height 1000mm width between columns 530 mm splines cylinder speed 3-9,5 mm/s Dimensions height 2900 mm width 3100 mm depth 1400 mm Drive power 8 KW Special equipment Digital measuring system Splines tool for internal splines Gbedpfx Ajgtty Tebpow

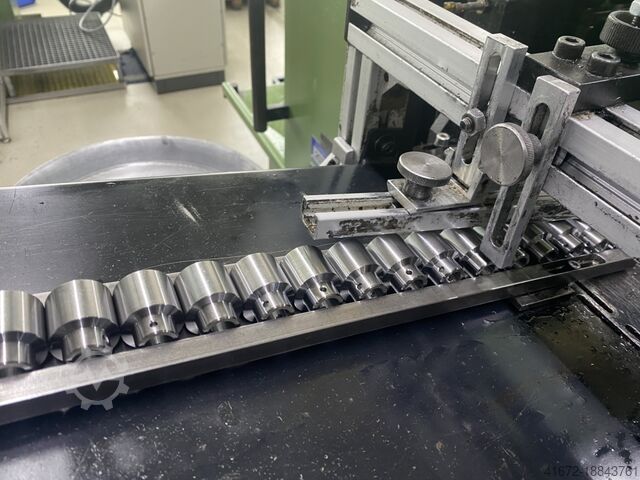

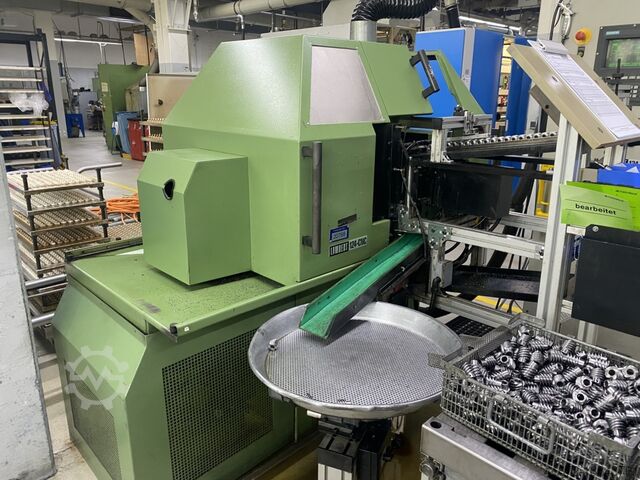

Condition: good (used), Year of construction: 2002, workpiece dia. 40 mm max. module 2 min. module 0,1 workpiece length - max. 665 mm weight 4,5 t spindle bore diameter 82,5 mm Control Siemens total power requirement 5,5 kW Technical data max. module 2 Pitch 0.5 - 25 mm Number of speeds multi-speed / multiple max. workpiece diameter40 mm max. workpiece length180 mm Milling cutter diameter max.80 mm max. milling cutter width12 mm Z-axis (milling length with counter point)90 mm Z-axis (milling length without counter point)113 mm Milling head swivelling angle30° / 30° Description Gear hobbing and thread cutting machine. LAMBERT - 124 CNC Gbedpfx Ajv Ucdvjbpsw The machine is in a well-maintained condition.

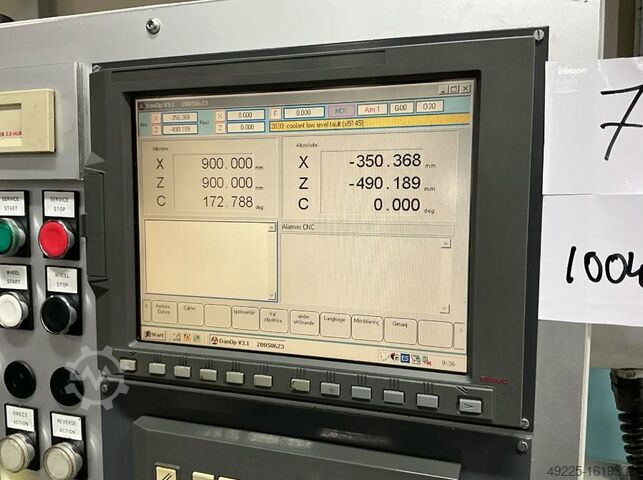

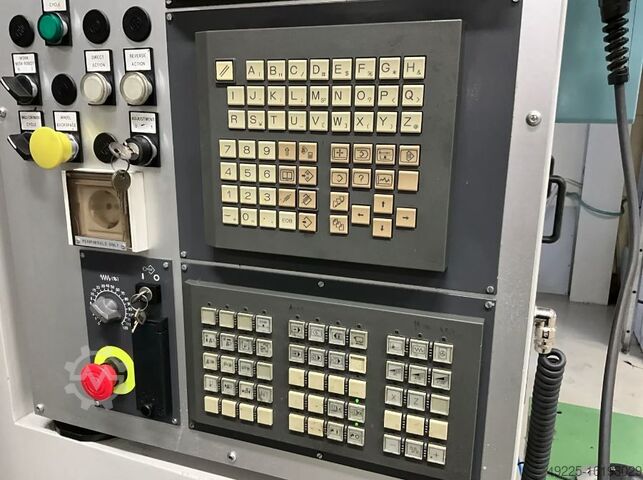

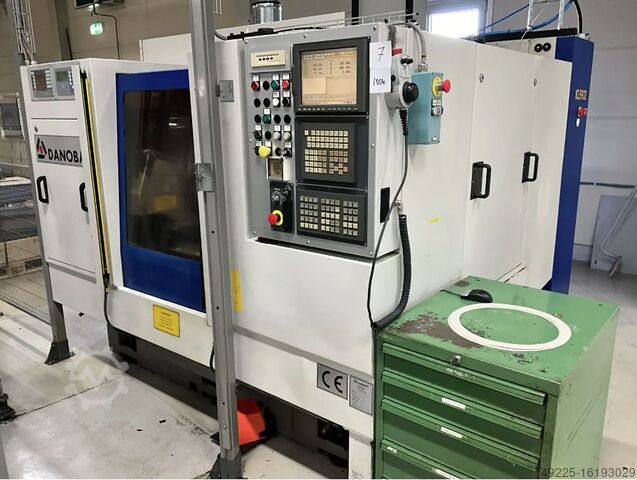

Condition: good (used), Working wheel dimensions (od x id x width) Ø610x80xØ304.8 mm Brand CNC FANUC Model CNC 21 Oi TB Maximum length between points 1060 mm Max. travel Z axis 750 mm Max. length to be ground 600 mm Point height 225 mm Ø min/max to be ground 10 - 300 mm Max. weight of the piece 125 Kg Max. travel X axis 325 mm Gbodpfx Aetrgugobpsw Grinding wheel speed 45 m/s Main motor power 11 Kw Working head speed 30 to 1000 rpm Working head cone MORSE 5 Working head motor power 12 Nm Tailstock cone MORSE 4 Tailstock quill travel 70 mm Tailstock hydraulic movement 150 mm Total power 22 Kw Length 2300 mm Height 1900 mm Width 2634 mm Weight 7750 Kg Accessories Cooling equipment with paper filter; MARPOSS meter, positioner and balancer;
