Gear Shaping Machine

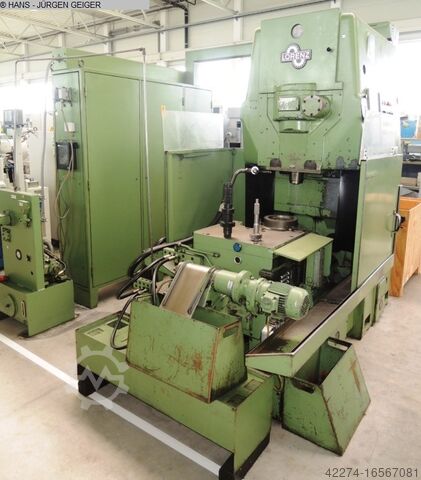

LORENZ LS 400

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Gtodjt Hww Djpfx Aa Iot Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: MGB1320E, center height: 180 mm, workpiece weight (max.): 100 kg, grinding length: 500 mm, grinding wheel diameter: 400 mm, total width: 14,150 mm, total length: 18,000 mm, total height: 14,750 mm, grinding diameter: 320 mm, workpiece length between centers: 350 mm, grinding wheel width: 50 mm, spindle speed (max.): 3,000 rpm, feed length X-axis: 500 mm, feed length Z-axis: 150 mm, feed rate X-axis: 10 m/min, feed rate Z-axis: 1 m/min, overall weight: 2,100 kg, workpiece spindle speed (max.): 400 rpm, Equipment: rotational speed infinitely variable, Beijing Second Machine Tool Beijing Second Semi-automatic High Speed Cylindrical Grinding Machine MBS1320E On-line production equipment; test machine available; roundness within 0.001 Gedpfx Aajtr Azks Iett beier machine tool works co ltd Online production equipment machine testing available The roundness within 0.001

Condition: excellent (used), Grinding range 650 x 300 x 550 mm Table size 650 x 250 mm Automatic dresser Gedporvhirofx Aa Iett MARCELS MASCHINEN CH

Condition: refurbished (used), Year of construction: 2025, functionality: fully functional, center height: 150 mm, total length: 620 mm, Mechanics: All wear parts of the machine are replaced, including the infeed spindle in the X-axis. All assemblies are restored to as-new condition. After the overhaul, the machine is comparable to a new machine. Geometry: The machine is completely dismantled down to the guides. Before the geometry of the individual tables and assemblies can be restored, both guides of the X and Z axes are scraped by hand and restored to as-new condition. After completion, the machine receives a measurement report in accordance with the manufacturer's specifications. Painting: Once the geometry of the machine has been restored, it is prepared for repainting. All housings, tables and the machine bed are stripped of old paint, cleaned and repainted. Hydraulics: The entire lubrication system, including the lubrication unit, is replaced. The hydraulic unit is also completely overhauled. Conventional internal cylindrical grinding machine TSCHUDIN HTG 610I Equipment of the machine: Technical data: Center height: 150 mm Center width: 680 mm Grinding length: 620 mm Weight and space requirement of the machine: 2500kg // 2340x1445x1900 mm Machine equipment (standard): 1 pc. Workpiece headstock MK5 1 pc. Control panel Gsdourw Uyopfx Aa Ijtt 1 pc. Holder for internal grinding spindle 1 pc. Speed control unit for belt spindle (UJ50 / UJ80) FISCHER 1 pc. Hydraulic unit Optional: - Digital measuring system 2-axis - Freely adjustable speed (1-800 rpm) incl. soft start (higher speeds are optionally possible after clarification of technical details) - Separate low speed for part alignment

Year of construction: 1985, condition: used, workpiece diameter 25-90 mm threading length 3000 mm thread pitch 2-16 mm total power requirement 25 kW Gedpfxetzdyze Aa Ijtt weight of the machine ca. 10,5 t dimensions of the machine ca. m

Condition: reconditioned (used), Year of construction: 1992, functionality: fully functional, center height: 150 mm, grinding length: 620 mm, center width: 680 mm, grinding wheel diameter: 350 mm, total width: 500 mm, Condition of the machine: The machine is currently in a used, non-overhauled condition. The following work carried out on the machine: - Complete disassembly of the entire machine except for the guides - Replacement of all sealing and wear parts of the entire machine - Replacement of the infeed spindle of the X-axis - Replacement of the main bearing of the workpiece spindle - Replacement of grinding spindle - All machine assemblies are restored to as-new condition Gedpfx Ajrz Nflja Istt Geometry: - Scraping of the X-axis guide - Scraping the Z-axis guide - Grinding the X-axis table - Grinding the Z-axis table - Grinding the upper tables - Grinding of the assembly housing (workpiece headstock, grinding headstock and tailstock) - Creation of measurement report for TSCHUDIN cylindrical grinding machine Painting: The main assemblies are repainted, the rest of the machine retains the original paintwork Electronics: The complete electronics of the machine are checked, tested and defective switches and cables are replaced

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation Godpfx Aevzhf Ssa Ijtt

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation Gtjdpevz Ec Ijfx Aa Iet

Condition: used, TECHNICAL DETAILS - Number of axes : 2 MAIN SPINDLE - Spindle nose : A2-6 - Spindle power : 15 [kW] - Spindle speeds : 4000 [rpm] - Max. bar diameter : 65 [mm] Gtedpfxsuhbnue Aa Ist - Max. turning diameter : 410 [mm] - Max. diameter on bench : 550 [mm] TURRET - Number of positions : 12 - X/Z stroke : 210 / 430 [mm] POWER SUPPLY - Supply voltage : 380 [V] - Total installed power : 21 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 2.405 x 1.650 [mm] - Machine height : 1.870 [mm] - Machine weight : 4100 [kg] MACHINE HOURS - Number of hours under power : 13865 [h] - Number of working hours : 1216 [h] EQUIPMENT - CNC : Fanuc i Series - Coolant tank - Chips conveyor - Tool probe - Parts catcher - Bar loader : LNS ALPHA 552 - Electric transformer

Condition: used, Technical details: swing diameter: 200 mm centre distance: 450 mm cross travel: 245 mm longitudinal feed: 830 mm table speed: 0,05-4,5 stufenlos m/min revolution per minute: Schleifspindel 1780, 2050 U/min revolution per minute: Werkstückspindel 50-500 U/min dimensions of grinding wheel: 350x32x127 mm Table dimensions: 2200x280 mm table swivelling to both sides: 9°vor+10°zurück Grad total power requirement: 6,0 kW weight of the machine ca.: 2,2 t dimensions of machine: 2,2x2,05x1,6 m Universal Center Grinding Machine without internal grinding device! - for precision grinding of outer, inner such as cone surfaces - feed of grinding headstock via hydr. or manual possible - table feed hydraulic stepless - grinding spindle swivelable with 60 degrees - workpiece headstock 90 degress swiveable with tapper MK4 - tailstock tapper MK 3 Gsdpfeu Ng Dgox Aa Ijtt equipment: - dressing device/extruder - coolant tank incl. pump and supply i.D. *
