Used Gear Shapping Machine for sale (70,520)

Condition: used, Year of construction: 1998, max. wheel diameter . mm Fgjdeucgwwepfx Accjc gear width . mm max. module . min. module .

Condition: used, Year of construction: 2001, Control SIEMENS Fjdpfx Ajudc S Teccegc table surface area 160 mm weight of the machine ca. 10 t

Condition: used, Year of construction: 1998, max. wheel diameter 85 mm gear width max. 125 mm max. module 3 Control ja total power requirement 30 kW Fedpfxjwhqx Tj Accjgc weight of the machine ca. 8 t

Condition: used, Year of construction: 2005, weight of the machine ca. 7.800 kg Fgodpoudc S Hofx Accec dimensions of the machine ca. 3.380 x 3950 x 3015 m

Condition: ready for operation (used), functionality: fully functional, Manufacturer: LORENZ Model: S8/630 Wheel diameter: 630 mm Wheel width: 180 mm Max. module: 8 Serial number: 12371 Power (kW): 10 Dimensions (L×W×H mm): 3000 × 2500 × 3500 Weight (kg): 5500 Max. workpiece diameter (mm): 630 Max. module: 8 Current condition: fully functional Fgsdpfx Asxakzpoccoc

Condition: used, Year of construction: 1988, machine/vehicle number: 14411, stroke length: 220 mm, table diameter: 730 mm, For sale is a Lorenz LS 630. A robust and precise machine, renowned for its high build quality. The machine requires technical refurbishment due to the control system, but is in very good mechanical condition. It can process components up to module 12. A stable and high-quality Lorenz LS 630 that can be made fully operational again with some effort. Fgjdpfjxrcmbox Accec

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, spindle speed (max.): 3,000 rpm, travel distance X-axis: 90 mm, travel distance Y-axis: 80 mm, travel distance Z-axis: 400 mm, spindle bore: 40 mm, TECHNICAL DETAILS Travel Distance X-Axis: 90 mm Travel Distance Y-Axis: 80 mm Travel Distance Z-Axis: 400 mm Maximum Permissible Head Circle Diameter: 140 mm Milling Arbor Diameter: 22 mm Maximum Gear Cutting Length: 160 mm Angles Maximum Swivel Angle of Milling Head +A Direction: 45° Maximum Swivel Angle of Milling Head -A Direction: 118° Workpiece Spindle Outer Diameter: 105 mm Bore: 40 mm Rapid Traverse X-Axis: 7,500 mm/min Y-Axis: 5,000 mm/min Z-Axis: 15,000 mm/min Rotational Speeds Tool: 50 to 4,000 rpm Workpiece Spindle max.: 3,000 rpm MACHINE DETAILS Operating Hours: 29,790 h Cycle Time: 6,654 h Electrical Connection Mains Connection: 400 V (AC) Fgedpfxjxvrare Accoc Supply Voltage: 400 V (AC) Control Voltage: 24 V (DC) Frequency: 50 Hz Connected Load: 13 kVA Cable Cross-Section: 16 mm² Fuse Rating: 63 A Dimensions & Weight Space Requirement: 5.25 x 4.06 x 2.94 m Machine Weight: 8 t EQUIPMENT Industrial Filter IFS EC1500 Sediment Separator Knoll KF200/640 Integrated Chip Conveyor with Magnetic Separator Machine Automation for Loading and Unloading Workpieces Robot Automation Güdel KTB-31/62, Year Built: 2018 with Station for Part Remover

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, table bore: 80 mm, table diameter: 145 mm, gear diameter: 125 mm, controller manufacturer: Siemens, controller model: SINUMERIK 840 D, TECHNICAL DETAILS Fgodpswyn Amjfx Accoc Working Area Maximum wheel diameter: 125 mm Maximum module: 3 Maximum gear width (spur gears): 24 mm Centre distance: -25 to +180 mm Maximum swivel angle: 12° Maximum helix angle: 45° Table Table diameter: 145 mm Table bore: 80 mm Infinitely variable table speeds: 0.03 – 50 rpm Shaper Spindle Strokes (double strokes): 1,500 – 3,000 DS/min Stroke position adjustment: 70 mm Stroke length min./max.: 0 – 30 mm Shaper spindle diameter: 85 mm Cutter holder interface: HSK 80 B Tool and Workpiece Tool number of teeth: 1 – 200 Minimum tool module: 0.05 Workpiece number of teeth: 1 – 1,500 Minimum workpiece module: 0.05 Control Control system: SINUMERIK 840 D MACHINE DETAILS Electrical Data Drive power: 7.5 kW Total connected load: 30 kVA Weight and Dimensions Machine weight: approx. 8 t Space requirement: approx. 4.3 × 2.8 × 2.9 m EQUIPMENT Swiveling counter holder with 4 positions Automatic workpiece changer Linear workpiece conveyor

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Fjdpfx Aet Hww Deccogc Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: used, Year of construction: 1969, max. wheel diameter 265 mm gear width 45 mm max. module 4 min. module 0,3 max. workpiece diameter 300 mm stroke length max. 0-50 mm stroke position adjustment 25 mm distance work spindle /surface of the table 170/245 mm spindle taper innen MK 4 table-size 180 mm table hole 95/75 mm strokes per minute 450 - 840 total power requirement 10 kW weight of the machine ca. 5200 kg dimensions of the machine ca. m Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 mm Table travel, cross, approx. 175 mm Number of strokes, infinitely variable 450 - 840 /min Feed range 0.09 - 0.6 mm/stroke Rotary feed, strokes per cutter revolution 2,722 - 681 Total electrical load 10 kW - 380 V - 50 Hz Weight 5,200 kg Accessories / Special Features * Selection switch for various working programmes, and for manual control. * Multi-cut device for roughing, finishing and sparkout, via presettable micrometer screws. * Hydraulic workpiece external clamping device mounted on table, for internal gears (a sort of collet chuck). * Separate switch cabinet. * Separate hydraulic unit. * Hydrostatic straight guide, with cooling aggregate for the hydrostatic pressure oil, separate. Fsdpfet Hwrusx Accsgc * Lateral table adjustment ensures optimal ram lift from workpiece. * Infinitely variable number of strokes via DC motor. * Built-on coolant device. * Presettable impulse counter for switching off table after every cut. With digital display. * Various change gears.

Condition: used, Year of construction: 1973, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7000 kg Fodpst Hw Hlofx Accsgc

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, table bore: 80 mm, table diameter: 145 mm, gear diameter: 125 mm, controller manufacturer: Siemens, controller model: SINUMERIK 840 D, TECHNICAL DETAILS Maximum wheel diameter: 125 mm Maximum module: 3 Maximum gear width (spur gears): 24 mm Center distance: -25 to +180 mm Maximum swivel angle: 12° Maximum helix angle: 45° Table Table diameter: 145 mm Table bore: 80 mm Infinitely variable table speed: 0.03 – 50 rpm Shaper spindle Stroke rate (double strokes): 1,500 – 3,000 DS/min Stroke position adjustment: 70 mm Stroke length min./max.: 0 – 30 mm Shaper spindle diameter: 85 mm Cutter holder mount: HSK 80 B Tool and workpiece Tool number of teeth: 1 – 200 Minimum tool module: 0.05 Workpiece number of teeth: 1 – 1,500 Minimum workpiece module: 0.05 Control Control: SINUMERIK 840 D Fgsdpfxsxf Azxs Accjc MACHINE DETAILS Electrical data Drive power: 7.5 kW Total power requirement: 30 kVA Weight and dimensions Machine weight: approx. 8 t Space requirement: approx. 4.3 × 2.8 × 2.9 m EQUIPMENT Swiveling counter-holder with 4 positions Automatic workpiece changing device Linear workpiece conveyor

Condition: good (used), Year of construction: 2007, max. wheel diameter 500 mm gear width 200-400 mm Fodpfx Acevr Hf Escsgc module 12 turning speeds 0-3250 U/min bracke pressure bis max. 95 Nm inner taper Konus #39 Control Fanuc 16 total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2.350 x 2.240 x 2.500 mm HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm.

Condition: good (used), Year of construction: 2001, Equipped with: Power Stock Fanuc 5-Axis CNC Control 160M 400mm Honing Wheel X Axis Pulse Generator Coolant System w/Twin Filters Magnetic Chip Separator Honing Tool Set up for Last Job is Still in Machine Internal Diameter of Honing Tool on Machine is 14" Work Light Power Door Auto Dress 5-Part Program Instruction Book for 16M Control Instruction Book for Set-Up and Operation Specifications: Maximum Outer Diameter: 250 (350) Minimum Outer Diameter: 30 Maximum Overall Length: 400mm Maximum Tooth Width: 45mm Module: 1.0-3.0 Cross Feed Device(Z Axis): 430mm Max. Travel Honing Wheel Cutting Feed Device(X Axis): 370 Max. Travel Honing Wheel Swing Device(C Axis): Swing Angle: +30 Degress Honing Wheel Rotation Drive Device(A Axis): Honing Wheel Spindle Speed R/Min: 500 Honing Wheel Outer Dia.: 300 (400) Maximum Honing Wheel Width: 50mm Crowning Device (Y Axis): Maximum Rocking Angle: 1.6 Degrees Fgsderualpepfx Accsc Motor Types: Z-Axis Drive Motor: 1.8Kw X-Axis Drive Motor: 1.8Kw Y-Axis Drive Motor: 0.7Kw C-Axis Drive Motor: 1.8Kw A-Axis Drive Motor: 2.2/3.7Kw Maximum Distance Between Centers: 600mm Center Height: 1,100mm Floor Space: 2,170W X 2,800D X 2,100H Mass Of Machine: 4,500Kg

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Fodpfx Ajrtrzdoccegc Taper Per Foot: 3/4" Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with precisely can only be achieved with precisely adjusted cutterheads. Fgjdpjw N S E Asfx Accoc The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

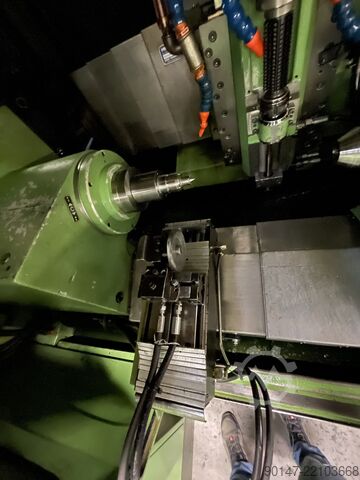

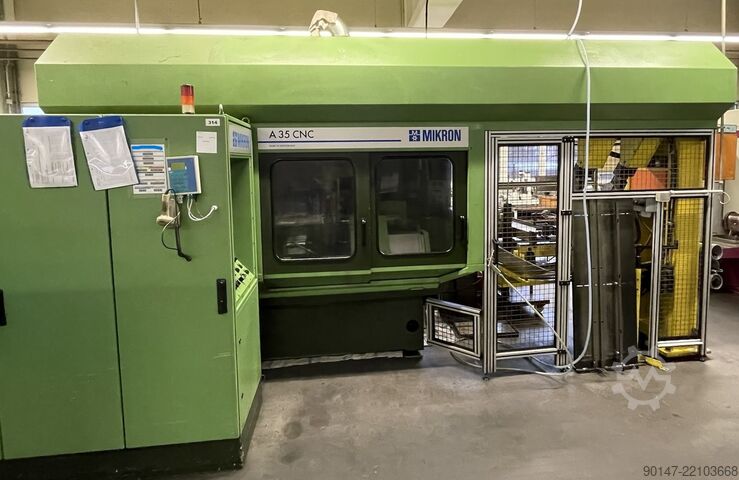

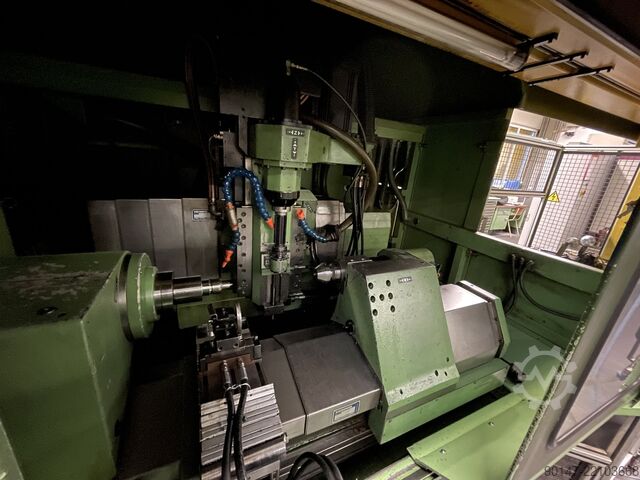

Condition: used, Year of construction: 1991, functionality: fully functional, Mikron A35, complete with accessories, in perfect working order. Fjdpfxszcvxyj Accogc

Condition: excellent (used), max. wheel diameter 600 mm gear width 250 mm max. module 10 min. module 1 weight of the machine ca. 0,9 t Fodpfxezcq Rke Accjgc dimensions of the machine ca. 1,8 x 1,4 x 1,4 m

Condition: good (used), Year of construction: 1975, functionality: fully functional, Largest module: 10 Fgsdjzcpc Sopfx Accsc Maximum gear diameter: 800 mm Weight: 7.2 tons.

Condition: excellent (used), functionality: fully functional, a very well-maintained gear hobbing machine, manufactured by PFAUTER, type P251, with interchangeable gears. Fedpfx Acozcncdocsgc

Condition: ready for operation (used), functionality: unexamined, Gear hobbing machine – Celta model C4, with a cutter diameter of 480 mm, maximum workpiece diameter of 550 mm, and maximum module of 8. Total power: 9 kW, estimated weight: 4500 kg. Fgedpfjzbzygjx Accec

Condition: excellent (used), Year of construction: 1983, functionality: fully functional, Gear and Rotor Hobbing Machine Fgjdpfx Aezbt Iioccec

Condition: used, Year of construction: 1991, max. wheel diameter --- mm gear width --- mm max. module --- min. module --- Control --- total power requirement --- kW Fodpfx Ajya Eqaoccogc weight of the machine ca. --- t dimensions of the machine ca. --- m

Condition: used, Year of construction: 1988, Technical details: max. wheel diameter: 210 mm total power requirement: 60 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 2,85 x 2,60 x 1,80 m grinding slide feed: 700 mm grinding slide feeds: 1-15.000 m/min max. workpiece weight: 150 kg centre height: 260 mm grinding wheel diameter: 240 mm Fedpfx Aswrzutsccsgc

Condition: good (used), Year of construction: 1995, functionality: fully functional, The perfect retrofit machine! Mechanically in phenomenal condition! This machine can be inspected under power until 12.05.2026 and will then be dismantled due to space constraints. Please refer to the attached KLINGELNBERG inspection reports available for download. Gleason P 800 Year of manufacture: 1995 Control: SIEMENS 840 C (discontinued) Condition: Mechanically in excellent condition Functionality: Fully operational Inspection: Available under power Technical Data: Nominal workpiece diameter: 800 mm Max. workpiece diameter: 800 mm Max. workpiece diameter, special version: 1,200 mm Nominal module: 20 / 30 mm Nominal module, special version: 25 / 35 mm Drive power: 35 kW Drive power, special version: 52 kW Cutter head speed range: 20 - 200 rpm Cutter head speed range, special version: 26 - 265 rpm Additional cutter head speed range, special version: 36 - 360 rpm Cutter head swivel range: +30 / -45 degrees Cutter head dimensions (standard cutter head), diameter/length: 350 / 375 mm Min./max. center distance workpiece/tool: 50 / 600 mm Center distance workpiece/tool, special version: 50 / 800 mm Max. axial slide travel: 700 mm Max. axial slide travel, special version: 1,000 mm Max. axial slide travel, special version: 1,300 mm Lowest cutter head position above table: 450 mm Table diameter: 800 mm Table bore diameter: 245 mm Table bore depth: 875 mm Max. table speed: 15 rpm Max. table load: 10,000 kg Machine dimensions: Width A: 5,800 mm Length B: 6,900 mm Height C: 4,700 mm Machine weight: 22,000 kg Regarding the current KLINGELNBERG gear inspection data BEFORE grinding: Fedpfsy Hfm Nex Accsgc "Pitch and lead are inconspicuous. One measurement shows a borderline or slightly out-of-tolerance fHα deviation in the profile. Please check whether this value is permissible according to the drawing/customer approval or if correction/rework is required. The gears were always forwarded for grinding to the RZ 1000 REISHAUER and processed accordingly. Nevertheless, overhaul of the C-axis is recommended. A cost estimate from GLEASON PFAUTER LUDWIGSBURG is available. Estimated cost: 10,000 EUR."
