Used Gleason Pfauter P90Wm for sale (77)

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 28 958, travel distance X-axis: 100 mm, travel distance Y-axis: 160 mm, TECHNICAL DETAILS Maximum permissible pitch circle diameter: 80 mm Lasdpjw T Rz Djfx Amtod Maximum gear length: 170 mm Total length: 240 mm Mounting diameter: 32 mm Radial slide travel (X-axis): 100 mm Tangential slide travel (Y-axis): 160 mm Axial movement Z-axis: 300 mm/min Workpiece spindle - bore: 45 mm MACHINE DETAILS Approx. machine weight: 7,000 kg Approx. dimensions (LxWxH): 9,130 x 3,895 x 3,450 mm Voltage: 400 V Frequency: 50 Hz Connected load: 45 kVA

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, gear diameter: 180 mm, travel distance Z-axis: 300 mm, shaft length: 640 mm, TECHNICAL DETAILS Wheel diameter - max.: 180 mm Lsdpfx Aew T R Absmtjad Module - max.: 4 Carriage travel axial (Z-axis): 300 mm Shaft length - max.: 490-640 mm Y-axis travel: 33 - 193 mm MACHINE DETAILS Total power requirement: 14 kW Machine weight: 8 t Workpiece counter: 886,067 pieces

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, GP300 CNC gear hobbing machine, WET AND DRY MACHINING available as required. Both options are freely selectable. Ljdpfxjxqn Tqo Amtead Siemens 840D Solution Line, 5-axis system, suitable for shaft and disc-type workpieces. Max. Ø300 mm, max. module 6, swivel range ±45°, axial travel 440 mm, hobbing power 15 kW, HSK-B80, table Ø300 mm, direct drive, speed 90–900 rpm. High precision, digital drive technology (Sinamics S120), automatic head positioning 0.001°, linear guides, safety retraction, temperature compensation, full enclosure.

Condition: new, Gleason-Pfauter 0/360.10.133.01 worm wheel with 0/360.10.133.02 worm shaft, unused in opened original packaging, 100% functional, scope of delivery as per photos ATTENTION: Please enquire for charges for packing and transport separately! ATTENTION: Please enquire for charges for packing and transport separately! Lasdpoqdm Ncjfx Amtjd

Condition: good (used), Year of construction: 2000, gear diameter: 449 mm, Equipped with: Fanuc 150MB CNC Control Dry Cutting Cutter Shroud Laodpferuakgex Amted Chip Evacuation System Auto Doors Hydraulic System Lubrication System Work light Stack Light Specifications: Largest Speed Ratio: 10:01 Work Area (Continuous): Largest Depth of Teeth: 15.24 mm Largest Width of Tooth Face: 50.8 mm Work Area Axis: Horizontal Movement X Axis: -114 - 178 mm Vertical Movement Y Axis: -178 - 190 mm Movement of the Carriage Baseplate Z-Axis: -10.16 - 500 mm Workpiece Headstock Swiveling Range B-Axis: -3 - 90 Degree Maximum Distance Machine Center to Spindle Side: 165 mm Number of Teeth: 5-200 Inclusive Max. Gear Pitch Dia. of Typical 35 Deg. Spiral Angle Gear Using Max. Cutter Dia. 12" Cutter at the Following Ratios: Face Milling 1 x 1 - 13.5" - 342.9mm 2 x 1 - 16.0" - 406.4mm 5 x 1 - 17.7" - 450.0mm Face Hobbing (210mm Dia. Cutter) 1 x 1 - 10.560" - 268.22mm 2 x 1 - 10.286" - 275.00mm 5 x 1 - 11.810" - 300.00mm Milling Head Diameter: Helixact: 100,125,169,200,250,320mm Continuous Gumption Procedure, Teichloroethylene: 102 - 210 mm Workpiece Spindle: Drilling of Large Diameters: 5 3/64" Cone Upward Gradient on 304.8 mm (1 Foot): 21/32" Deep One of the Cone: 5.29" Diameter of the Whole Spindle Perforating: 3.35" Speeds: B-Axle Workpiece Headstock Drag Axis: 30 Degrees A-Axle Workpiece Spindle Number of Revolutions: 0 83 min-1 X-Axis Horizontal: 80 mm/sec Y-Axis Vertically: 80 mm/sec Z-Axis Carriage Baseplate: 80 mm/sec Space Requirement L x W x H (Approximate): 4.75 x 3.40 x 2.54m / 188" x 134" x 100" Machine Weight (Approximate): 10980 kg / 24,156#

Condition: used, Year of construction: 1996, functionality: fully functional, machine/vehicle number: 25734, Equipped with: Fanuc 150MB Control Hydraulic Chucking Work Spindle Large Bore Work Spindle #80 Taper Stock Divider Helical Motion Modified Roll Hansen Coolant Chiller & Filtration Coolant Tank & Pumps Chip Conveyor Chip Hopper Reven Mist Collector Hydraulic System Transformer Cutter Bolt Work Light Operator Platform Hand Tools Documentation Specifications: Extreme Ratio: Face Milling: 10:1, Face Hobbing: 10:1 Full Depth: Maximum: Face Milling:1.25" (31.75mm), Face Hobbing: 0.93" (23.50mm) Face Width: Maximum: Face Milling:6.00" (152.00mm),Face Hobbing: 3.00" (76.20mm) Range of Tooth Numbers: 1-300 Inclusive Gear Pitch Diameter, Maximum: 1000 mm (39.37") Ljdpfxoxaqa Se Amtead Cutter Size, Maximum: 18" (diameter) Face Milling Cutter Size, Maximum: 350 mm (radius) Face Hobbing Root Angle Range (B-Axis) 5 deg.to 90 deg., Face Hobbing:5 deg. to 90 deg. Machine Center to Work Spindle Face:9.00"Fixed, 229mm (Fixed) A-Work Spindle: 0 to 67 RPM, 0 to 333 RPM B-Swinging Base: 0 to 30 deg./sec, N/A C-Cutter: 0 to 500 deg., Same X-Horizontal: +/-305mm (+/-12") Y-Vertical: +/-305 mm (+/-12") Z-Sliding Base: -25/+700mm (-1/+28") B-Root Angle: -5 Degree/+90 Degree Diameter of Taper Hole at Large End: 8" (#80 Taper) to 6" (#60 Taper) Taper Per Foot:3/4", Same Depth of Taper Front:6", 152.40 mm Depth of Bore: 678 mm (26.7") Diameter of Taper Bore: 140 mm (5.5") Diameter Through Spindle of Hole:7.125", 180.98 mm MACHINE DIMENSIONS: Length x Width:233"x 209", 5920 mm x 5310 mm Height: 129", 3280 mm Weight: 65,000 lbs., 29,484 kg

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 32006, input voltage: 480 V, The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class. Equipped with: Siemens Sinumerik 840D SL Control Hydraulic System 180 Degree Load System HSK-63 Spindle Auto Stroke Adjustment Chip Conveyor Chip Basket Flexlink Automation Festo Pneumatics Rittal Panel Conditioners Chiller Laedpfxjrtrvyo Amtod 480/3/60, 35 KvA Motor & Controls Specifications: Workpiece With External Gear: -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Diameter: 100 mm Workpiece With Internal Gear: -Largest Module (Steel With Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Swing Diameter: 150 mm -Maximum Internal Diameter: 100 mm Tool: -Locating Cone In The Cutter Spindle: HSK-D63 -Diameter Shaping Spindle: 85 mm -Maximum Stroke Length: 30 mm Machine Travel Distances: -Radial (X-Axis): 180 mm -Column Tilting (B-Axis): -1 - +11 Degrees Machine Workpiece Table: -External Diameter: 220 mm -Clamping Diameter: 160 mm -Bore: 63 mm Speeds: -Feed Rate X-Axis: 12,000 mm/min -Workpiece Table (C-Axis): 0-400 min-1 -Cutter (C2-Axis): 0-300 min-1 -Spindle Stroke (A-Axis): 500-3,000 min-1 Electrical Equipment: -Operating Voltage: 480V -Supply Voltage: 115V -Control Voltage: 24V -Frequency: 60 Hz -Connected Load of Machine: 35 kVA -Cable Cross-Sectional Area: 35 mm2 -Protection: 80 A Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm Weight of Machine: 7,800 kg

Condition: good (used), workpiece diameter between centers: 2,286 mm, The No. 61 Angular Hypoid Tester is designed to test large bevel and hypoid gears up to 90" diameter and with shaft angles from 0 - 135 degrees. Spur, helical and internal gears can also be accommodated. The drive or pinion spindle can be rotated in either direction at a recommended spindle speed of 600 RPM. It is mounted in a head which is vertically adjustable on a column, so that the spindle can be offset either above or below the center line of the gear spindle for testing hypoid gears. The pinion head column is adjustable angularly in a horizontal plane to permit testing of gears of any shaft angle from 0 - 135 degrees. Specifications: Centerline of Drive Spindle to Nose of Brake Spindle (90 degrees shaft angle and without face plate): 38-1/2" Max. / 7-5/8" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and without face plate): 60" Max. / 10" Min. Centerline of Brake Spindle to Nose of Drive Spindle (90 degrees shaft angle and with 54" face plate): 60" Max. / 28" Min. Centerline of Brake Spindle to Centerline of Drive Spindle (For Spur Gears): 56" Max. / 6" Min. Distance Between Nose of Brake Spindle and Nose of Drive Spindle (for spur gears): 36-1/2" Max. / 0" Min. Offset of Drive Spindle Either Above or Below Centerline of Brake Spindle: 10" Range of Shaft Angles: 0 - 360 Degrees Maximum Diameter of Gear: 90" Diameter of Face Plate: 54" Outboard Bearing: 3" Diameter Hole Spindles: RPM of Drive Spindle Pulley Set No. 1: 100 - 400 RPM of Drive Spindle Pulley Set No. 2: 250 - 600 Diameter of Taper Hole (large end): 6" Taper Per Foot: 3/4" Lodpertrzdofx Amtead Depth of Taper: 8" Hole Through Spindle: 5-1/2" Net Weight of Machine: 20,000# Net Weight of Machine W/Outboard Support and Bed Plate: 24,000#

Condition: used, Year of construction: 1977, machine/vehicle number: 19909, Equipped with: Index Plate Geneva Cam Lsdpfxoxdfaze Amtjad Cutter Body Hydraulic Work Clamping Coolant Pump & Tank Chip Conveyor Additional Cutter Bodies, Index Plates & Geneva Cams Available Specifications: Minimum Outside Cone Distance: 2.75" Maximum Cone Distance: 10" Maximum Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 Deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 15.6 to 87.7 RPM Feeds (seconds/tooth): 5 to 34.3 Main Motor: 10hp, 1800 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approximate Floor Space: 118" x 86.5" Needed Overall Height: 70" Approximate Net Weight: 18,820 lbs Shipping Weight Boxed for Export: 20,500 lbs

Condition: used, Year of construction: 1973, machine/vehicle number: 24109, Equipped with: Stock Divider Hydraulic Work Clamping Chip Conveyor Cutter Clamping Bolt Lajdpfxsxdfa Uo Amtod Index Plate Change Gears Hydraulic System Coolant System Specifications: Min. Outside Cone Distance: 2.75" Max. Cone Distance: 10" Max. Gear Pitch Dia.: 20" Cutter Diameters Utilized: 9 - 18" Root Angle: 55 - 80 deg. Face Width: 3" Number of Teeth: 20 -75 Diameter of Taper Hole at Large End: 3-27/64" Taper Per Foot: .50" Depth of Taper: .625" Cutter Speeds: 6.8 to 16.5 RPM Feeds (seconds/tooth): 3 to 9 Main Motor: 5hp, 900 rpm Hydraulic Motor: 7.5hp, 1800 rpm Approx. Floor Space: 118" x 86.5" Needed Overall Height: 70" Approx. Net Weight: 16,000 lbs Shipping Weight Boxed for Export: 17,000 lbs

Condition: good (used), gear diameter: 508 mm, total height: 1,780 mm, total length: 2,990 mm, total width: 2,200 mm, MODEL 610 GLEASON GEAR ROUGHER/FINISHER Equipped with: Hydraulic Workholding Pendant Control Chip Conveyor Index Plate Geneva Cam Change Gears Hydraulic System Coolant System Lsdpfx Asrtrykomtsad Manuals Specifications: Maximum Gear Pitch Diameter: 20" Cutter Diameters: 9", 10.5", 12",14",16", 18" Whole Depth: 1.250" Root Angle: 60 to 80 deg. Face Width: 3.0" Extreme Ratio (Minimum): 2.25 to 1 Number of Teeth: 20 to 75 Diameter of Taper Hole at Large End: 3-27/64" Cutter Speeds (Per Minute) for Roughing: 15.6' to 87.7' Feeds (Seconds Per Tooth) for Roughing: 3 to 35 Cutter speeds (Per Minute) for Finishing: 6.8' to 20.5' Feeds (Seconds Per Tooth) for Finishing: 3 to 9 Floor Space: 118" x 86.5" x 70" H Weight: 17,500 lbs.

Condition: excellent (used), max. wheel diameter 175 mm gear width 350 mm Lasdpeznnitjfx Amted max. module 3 min. module 0,5 weight of the machine ca. 0,9 t dimensions of the machine ca. 1,2 x 0,8 x 1,4 m

Condition: excellent (used), functionality: fully functional, I would be happy to add technical data to the document for you. Gear Hobbing Machine Conventional Country of origin: Germany Technical specifications Details Max. wheel diameter: 800 mm Gear width: 250 mm Max. module: 8 Total power requirement: 2.2 kW Machine weight: approx. 2000 kg Machine dimensions: approx. 2500 x 1600 x 1900 mm Cutter diameter: max. 250 - 285 mm Clamping table diameter: 460 mm Table hole: 70 mm Accessories: Various Control unit: Conventional Additional information Documents Ledpfx Aezmqalomtoad I would be happy to add technical data to the document for you. I would be happy to add technical data to the document for you. Gear Hobbing Machine

Condition: used, functionality: fully functional, The bevel gear testing machine Gleason-Welter 2000 T was designed as a universal machine and is used by manufacturers of gears and transmission technologies for the single flank rolling test process of bevel and crown gears. Technical Data Ljdpfx Aswn D Uhomtjad Diameter: 2000 mm Spindle bore: 310/250 mm Test speed: 5-100 rpm Dimensions: approx. 4,200 x 4,500 x 2,300 m Machine weight: approx.12,500 kg *Specifications and data are non-binding, subject to prior sale Special Features: Angle-hypoid test device, suitable for testing larger sizes of bevel and hypoid gears with a diameter of up to 2,000 mm and shaft angles from 0 to 360 degrees, as well as straight, helical, and internal gearing. Deviations in gear geometry, machining errors through defective tools, as well as damage to the gears, can thus be identified and eliminated before assembly. The following parameters can be measured here: - Single flank rolling deviation Fi', fi', fl', fk' - Pitch deviations Fp, fp, fu - Runout and roundness - Runout error Fr - Backlash - FFT analysis For technical questions and further information, you can contact us at any time.

Year of construction: 1991, condition: good (used), Ref. -No.: 10656 Manufacturer: PFAUTER Type: PE 150 Year of construction: 1991 Type of control: CNC Control: Sinumerik 840 Storage location: Halberstadt Country of origin: Germany Turning Speeds: 150 - 600 RPM Tool Taper: SK 40 Machine length: 4700 mm Machine width: 3600 mm Machine Height: 2800 mm Weight: 8 t Workpiece Diameter: 150 mm Maximum tooth width.: 150 - 200 mm Table diameter: 160 mm Table drilling: 63 mm Max. cutter diameter: 130 mm Max. cutter length: 220 mm swivel angle: +/- 45° Further information: - The machine has been completely converted to Siemens 840D, including the motors and control cabinet. - The milling head was completely overhauled by Pfauter in 2013. - The low-voltage system and magazine conveyor are included. Laedpfezkpx Uex Amtod - It is equipped with a deburring station. The machine can be viewed while powered on by prior arrangement.

Condition: used, Year of construction: 1980, max. wheel diameter 1010 mm gear width 0 mm max. module min. module total power requirement 15 kW weight of the machine ca. 9,5 t dimensions of the machine ca. m Lodpjt Hwnisfx Amtoad Max. depth of tooth 10 mm Max. workpiece Ø (for clearance) 1,010 mm Max. external Ø of coupling 610 mm Sliding base withdraw 216 mm Max. distance from grinding wheel to workpiece nose 90 - 430 mm Max. weight of workpiece, including clamp 500 kg No. of teeth 32 to 150 Grinding wheel Ø, approx 152 - 320 mm Grinding wheel speeds, infinitely variable 0 - 3,600 rpm Work spindle bore 60 mm Total electrical load, approx. 15 kW - 380 V - 50 Hz Weight, approx. 9,500 kg Accessories / Special Features * Automatic roughing and finishing process via pre-settable counter and built-in feed cam. * Counter for number of teeth. * Counter for number of dressing cycles. * 2 built-on dressing units with three dressing diamonds for radius dressing, side dressing and wheel end dressing. * Built-on index plate for 48 teeth. * Separate coolant device with band filter. * Separate hydraulic unit. * Separate TRION oil mist exhaust. * Various small parts.

Condition: used, Year of construction: 1997, max. wheel diameter 215 mm gear width 40,65 mm max. module total power requirement 20 kW weight of the machine ca. 10 t Lodpfx Aot Hwxhsmtsad Max. external Ø of workpiece 215 mm Tooth profile, height x width 16 x 40.65 mm No. of teeth 5 - 200 Max. tooth ratio 1 : 10 Grinding wheel Ø 51 - 190 mm Grinding wheel speeds 1,000 - 6,000 rpm X Axis (horizontal) 152 mm Y Axis (vertical) 178 mm Z Axis (slide base plate) 304 mm Distance from middle of machine to middle of workspindle 115 mm Axial speed 125 mm/sec Workpiece speeds 0 - 30 rpm Workspindle bore, conical 3 29/32 inch Total electrical load 20 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features * FANUC CNC Control, Model 150 MB, for 7 axes, with monitor and direct input. Automatic calculation of all workpiece and grinding parameters. * Extensive coolant equipment with filter system, band filter, etc. * Driven grinding wheel dressing device with CNC dressing control for automatic compensation of form and diameter after every dressing. * Gear grinding is effected either in single component operation using a conical cup wheel (Gleason 30°), or with a cylindrical cup wheel. These grinding wheels can be made of CBN, or of traditional "dressable" aluminium oxide material (question of cost). Grinding with a conical grinding wheel is of advantage with regard to heat build-up and quality of tooth contact pattern. Therefore these pairs of bevel gears (for automotive industry) can be generated in high quality with consistent accuracy, economically, and with short set-up times. Condition : Very good - machine can be inspected here under power Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available. Please let us know what you need.

Condition: used, Year of construction: 1979, max. wheel diameter 350 mm gear width 350 mm max. module 8 Lajdpet Hwxzsfx Amtsd min. module total power requirement 7,5 - 22 kW weight of the machine ca. t dimensions of the machine ca. m Gear hobber with gear shaping device, 2-cut cycle

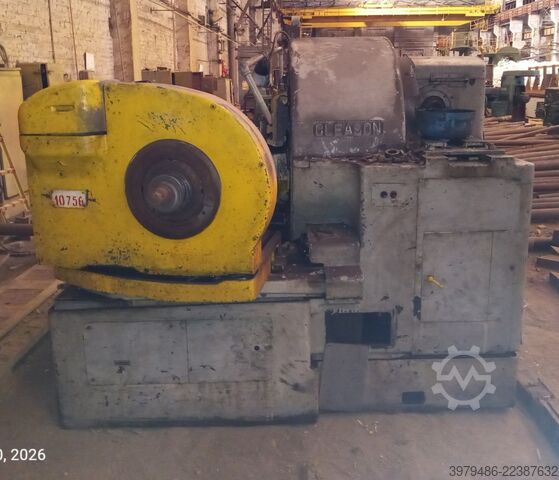

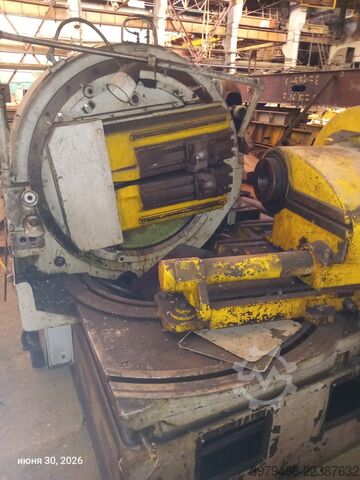

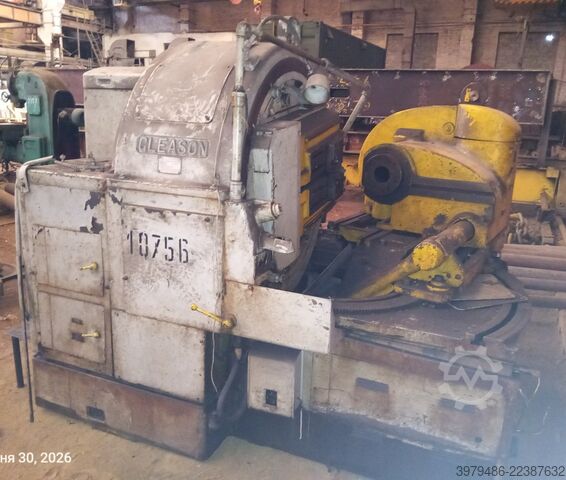

Condition: used, Year of construction: 1970, functionality: not functional, wheel width: 900 mm, For sale: Gleason No. 24A bevel gear shaping machine, manufactured around the 1970s. Maximum diameter: 900 mm. Maximum module: 20. The machine requires electrical system maintenance. Price: 12,000 Euros. Ljdpfoznh Suex Amtead

Year of construction: 2019, condition: as good as new (ex-display), Involute gear cutting tool Manufacturer: Gleason - Hurth Type: CH7M5R - 7B340-B1A 200 mm diameter unused delivered in a wooden crate Lodefgwt Eopfx Amtead Weight: 9.5 kg

Condition: ready for operation (used), Year of construction: 2011, functionality: fully functional, CNC Spiral Bevel Gear Cutting Machine Gleason No 631 Year of manufacture: 2011 Control: SIEMENS 840d Lajdpfxjw Tfb Sj Amtjd Retrofitted in 2011/2012 with new control, drives, etc. The machine was fully overhauled in 2011. A new control system and drives were installed.

Condition: ready for operation (used), Year of construction: 1980, Gleason Hypoid cutter Sharpener 13A -1 pcs Milling diameter 89-500 mm Grinding wheel dimensions 305x19x102 mm Feed 0,05-0,18 mm Grinding wheel drive motor - 1800 rpm (60 Hz) - 1500 rpm (50 Hz) Floor space 1240x2310 mm Height 1422 mm Machine weight 4083 kg Ljdpfsr Elpvsx Amtoad Gleason 19 revacicle cutter checking machine - 1 pcs

Condition: used, amount 1 Palette Wooden box containing a variety of metal parts for a Pfauter P 250 S. Included are: -> Various gear sets -> Shafts + bolts -> Bushings + spacer rings -> Shims + clamping pieces -> Clamping shafts -> Screws -> Pinions Laedpfx Amezgid Aeted -> Spacer/clamping band -> Centering pins -> Broaching needles + cutting knives + forming tools Complete package price

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Ledpfevz Ec Iex Amtsad Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation

Condition: excellent (used), functionality: fully functional, a very well-maintained gear hobbing machine, manufactured by PFAUTER, type P251, with interchangeable gears. Laedpfxszcncdj Amtod
