Used Anayak 4-Axis Cnc Travelling Column Milling Machine for sale (102,635)

Condition: used, Year of construction: 2008, machine/vehicle number: 220028, CNC control: HEIDENHAIN iTNC 530, travel ranges: X-axis 4300 mm, Y-axis 1500 mm, Z-axis 1300 mm, table size 4970 mm x 1200 mm, max. table load 15,000 kg/m, tool holder ISO 50, multi-angle milling head 45°, automatic angular positioning of axes B and A, spindle motor power 22 kW, hydraulic rotary lock, working feed rate 10,000 mm/min, rapid traverse rate 20,000 mm/min, with coolant system, total spindle operating hours: 25,496 hours. Lrjdpfxjzn A U Re Amtsp

Condition: used, 4-axis CNC drilling and milling machine IXION Type 30 CNC W VMC, BAZ, machining center Year of construction approx. 1997, machine overhauled in 2020 Travel X: 600 mm Y: 350 mm Z: 600 mm Table size 800 x 400 mm T-slot spacing 75 mm Table load 300 kg Spindle holder SK 40 (tightening bolt DIN 69872 A) Spindle speed 20-5000 rpm Torque at the spindle max. 150 Nm Distance between spindle nose and table max. 660 mm Feed speed X, Y and Z 0 - 5000 mm/min. infinitely variable Rapid traverse speed X, Y and Z 15000 mm/min. Tool change time approx. 5 sec. Lodpfx Aju Tln Njmtjrp Tool change time from chip to chip approx. 7.5 sec. Milling capacity in St 60 150 ccm/min. Drilling capacity in St 60 35 mm Thread cutting capacity in St 60 M24 Spindle motor drive power 5 kW (10 kW at 25% duty cycle) Mains connection 400 Volt, 50 Hz - CNC control Heidenhain TNC 415 with 12" TFT display - Electronic handwheel - RS 232 interface - 12-position tool changer - hydro-mechanical tool clamping - Rotary axis as dividing head on the table = 4th axis, MECATECNICA type DCN 250-8, jaws lathe chuck Ø 200 mm Speed approx. 25 rpm, transmission ratio 1:180 - Cabin lighting via 2x halogen spotlights - Chip conveyor with coolant pump - Switch cabinet fixed to the machine Space required for transportation Length 320 cm x width 230 cm x height 300 cm Footprint of the machine with chip conveyor L x W x H 3200 x 3100 x 3000 mm Weight of the machine 3100 kg Weight of the chip conveyor approx. 200 kg good condition

Condition: used, CNC Gantry-Type Boring and Milling Machine ANAYAK Type HVM-3800-P Bed type milling machine, structure similar to a plate-type boring mill with fixed table Machine No.: M-20021203 Year of manufacture: 2002 ("Refurbished 2025") The machine will be completely workshop overhauled in 2025 and can then be inspected in storage at 37235 Hessisch Lichtenau. Travel distances: X: 3,200 mm, Y: 1,200 mm, Z: 1,500 mm Table size: 3,800 x 1,200 mm T-slots: 8 pieces, 22 mm, spacing 130 mm Table load: max. 25 tons (stationary table – virtually unlimited load capacity) Spindle taper: ISO 50 (DIN69871-A) (drawbar: DIN 69872-B) Spindle speed: 60 – 4,000 rpm, stepless Feed rate: up to 10,000 mm/min, stepless Rapid traverse X + Y: 20 m/min Rapid traverse Z: 10 m/min Spindle drive: 22 / 30 kW Lrodexcgtgspfx Amtsp Electrical connection: 400 Volt, 50 Hz, 50 kVA - Automatic tool changer for 30 tools - Spindle drive with 2 speed ranges - With automatic tool changer and tool magazine - Orthogonal milling head with hydro-mechanical tool clamping - Orthogonal milling head fully automatic swiveling in two 45° planes – B+C axis - HEIDENHAIN iTNC 530 control, with electronic handwheel - Prepared for wireless touch probe (probe and receiver not included) - Additional HF-spindle, 18,000 rpm – for attachment - Free-standing control cabinet - Chip conveyor positioned between the gantry bed and the machine table - 32,078 operating hours recorded - Coolant system - Free-standing hydraulic unit - Operating manual with circuit diagrams Installation area (L x W): approx. 1,000 x 700 cm Installation height: approx. 410 cm Weight (total): approx. 33 tons Good condition

Condition: like new (used), Year of construction: 2000, operating hours: 25,000 h, functionality: fully functional, travel distance X-axis: 10,300 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,800 mm, position of the milling head: 2.5 x 2.5 °, mount diameter: 50 mm, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 60 rpm, total width: 50,000 mm, total height: 48,750 mm, total length: 212,400 mm, table length: 12,000 mm, table width: 1,650 mm, power: 0.03 kW (0.04 HP), overall weight: 50,000 kg, X-axis: 10300mm Y-axis: 2000mm Z-Axis: 1800mm Table Length: 12000mm Table Width: 1650mm Table load: 50000 Power on spindle: 22/30kW Spindle speeds: 60-3000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 10000mm/min. Feed rate Y-Axis: 10000mm/min. Feed rate Z-Axis: 10000mm/min. Millinghead auto-index:2.5 x 2.5° Working hours: 25000H Lredpfjrx Rtrox Amtjp Length: 21240mm Width: 5000mm Height: 4875mm Weight: 50000kg

Condition: good (used), Year of construction: 2003, Ref. -No.: 10454 Manufacturer: DOOSAN Type: DAEWOO PUMA 300 MSC Year of construction: 2003 Type of control: CNC-Steuerung Lrjdpfxozc Dy Eo Amtep Control: FANUC 18i-TB Storage location: Halberstadt Country of origin: South Korea Machine-No.: 0MS19XX Turning Speeds: 4500 RPM Bar passage: 62 mm Turning Length: 595 mm Turret places: 12 Pcs Further information: - 4 axes (X/Z/C/B) - counter spindle - driven tool station - finished part removal system - conveyor belt - chip conveyor - Powercool coolant system - LNS Quickload Servo 3 bar loader - tool holder - collet holder - collets Machines can be inspected under power by appointment.

Condition: good (used), Year of construction: 1990, 1 used, well-maintained CNC tool milling machine, traveling column design, with CNC path control GRUNDIG Dialog 11 Table size 1600 x 675 mm Tool holder SK / ISO 40 Travel distances X-axis, longitudinal 1200 mm Y-axis, transverse 600 mm Z-axis, vertical 500 mm Table load 2000 kg Spindle speed range 20 – 6300 rpm Feed rate range, stepless 2 – 10,000 mm/min Rapid traverse in all axes 10 m/min Quill stroke 80 mm Drive power 100% ED 7.5 kW 40% ED 12 kW Machine dimensions L x W x H 3600 x 3000 x 2300 mm Machine weight 6800 kg Control cabinet dimensions L x W x H 1700 x 900 x 1750 mm Control cabinet weight 470 kg Accessories / Special features: • CNC tool milling machine suitable for tool and fixture manufacturing, training, and mold making • CNC path control GRUNDIG Dialog 11 • Screen graphics, dialog-guided input, 3D linear interpolation, circular interpolation, helical interpolation, polar coordinate input, numerous drilling and milling cycles, cycle input graphically supported, milling cycles "contour pocket" for automatic free milling of irregular pockets, even with islands, shifting and rotation of the coordinate system • Electronic handwheel • RS 232 interface • Swiveling vertical milling head +/- 90° • Hydraulic tool clamping, DIN 2080 with clamping groove, Ott system • Quill adjustment 80 mm • Horizontal milling attachment • Full protection enclosure • Ball screw spindles in all 3 axes • Coolant system • Lighting Lrjdpfx Amehhuf Hstsp Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 D - 44143 Dortmund - Wambel

Year of construction: 2000, condition: ready for operation (used), Travel path X/Y/Z: 1670mm/800mm/900mm, Speed: 4000rpm, Tool positions: 16, Tool holder: SK40, Table dimensions X/Y: 2000mm/900mm, Weight: approx. 4500kg, Operating hours: approx. 9680h. According to the error message, the standstill monitoring of the Z-axis is defective. Documentation available. An on-site inspection is possible. Ljdjymfdajpfx Amtsrp

Condition: excellent (used), Year of construction: 2000, functionality: fully functional, WE OFFER AN VERY NICE CONDITION MACHINE WEEKE OPTIMAT BP 140 MACHINE COMES FROM A FIRST OWNER AND ONLY ONE PERSON WORKING ALL TIME ON MACHINE. VERY GOOD CONDITION AND GOOD OPORTUNETEY TO BUY AN VERY NICE MACHINE. MACHINE IS READY TO WORK INCLUDES SAFETY CARPET Lrodpfx Amevkklgotop VACUM PUMP DOCUMENTATION MACHINE IS READY TO WORK WE CAN SHIP MACHINE WORLDWIDE

Condition: excellent (used), Year of construction: 1993, functionality: fully functional, Specifications Manufacturer MONFORTS Model RNC4 Year 1993 Description WE OFFER AN VERY NICE CONDITION MONFORTS CNC LATHE INCLUDING COMPLETE TOOLINGS DRAWERS FOR TOOLS MACHINE HAS LIVE TOOLS , DRIVEN TOOLS Ledpfxjvk E A Te Amterp MACHINE IS CONECTED ON POWER TECHNICAL INFO: Diameter 420 mm Distance between centers 600 mm CNC system Control System F Tools 12 positions Cross travel 250 mm Longitudinal travel 620 mm Hole through spindle 65 mm Spindle speed 70 - 4000 RPM Motor power 18,5 HP Weight 7500 Kg

Condition: excellent (used), Year of construction: 2010, XYZ SMX 5000 3 Axis CNC Bed Milling Machine ProtoTRAK SMX Control Spindle: 7.5Hp – Programmable 70 – 5000rpm ISO40 Quill Dia 105mm Manufactured 2008 Table: 1930 x 355mm 4 off T Slots size 15.9mm Max load 850kgs Travel: X – 1524mm Y – 596mm Z – 584mm Dims: W - 5805mm D – 2530mm H – 3143mm Weight - 3100Kgs For sale with *Jet Machinery Ltd* Stock No: 79199 Serial No: 11273 Price: £24,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use. Ljdoy Ni Ivspfx Amtsrp

Year of construction: 2010, condition: ready for operation (used), functionality: fully functional, working length: 7,600 mm, machine/vehicle number: 1400040505, number of axes: 4, TECHNICAL DETAILS Max. machining length with end face machining: 7,600 mm Lrodpfszhuyfsx Amtjp Max. machining length without end face machining: 7,720 mm EQUIPMENT 12 pneumatic collet chucks 2 work areas 4-axis profile machining center; stepless machining between -90° and +90° with each available tool Automatic clamping position adjustment with absolute measuring system Two separate machining zones for tandem operation 4-axis control 18.5" color monitor, USB ports, and network connection Windows operating system EluCam software Automatic profile length measurement (on both sides) Barcode scanner The traversing tool magazine ensures short tool change times and thus optimal machining cycles; the magazine can be equipped with eight tools. 8x tool holders with collet chucks

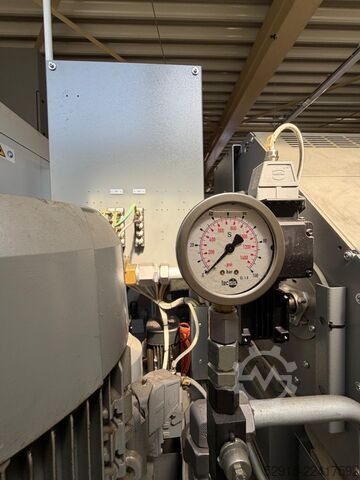

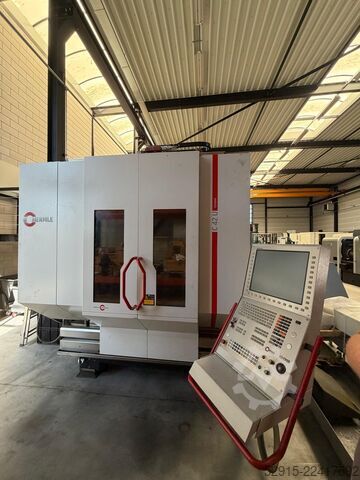

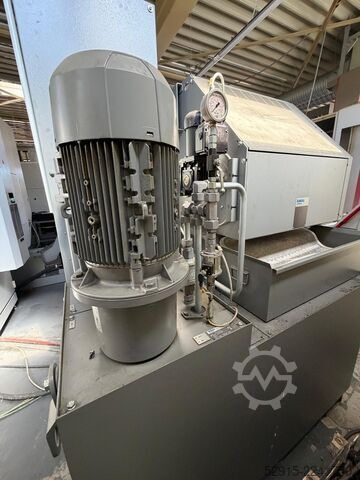

Condition: excellent (used), Year of construction: 2015, operating hours: 12,500 h, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 550 mm, spindle speed (max.): 18,000 rpm, overall weight: 12,500 kg, We offer in perfect condition Hermle C42U Dynamic with Heidenhain 640 control. Machine has 12.000 spindle hours. X-Axis travel: 800 mm Y-Axis travel: 800 mm Z-Axis travel: 550 mm Dynamic package torque axis, table Ø440 with secondary claming plates 920 x 490 mm Spindle: HSK-A63 18.000 RPM Machine will be in stock in 2 weeks Lredpfezpfg Eex Amtjp

Condition: used, Servo press brake SAFAN Type SMK-P 50-2550 TS1 Downstroke bending machine with 4-axis CNC control Lsdexpqy Dspfx Amtorp Serial No. MK 285 Year of manufacture: 1998 CNC control SAFAN software version 5.07 TS1 Press force: 500 kN (50 tons) Working length: 2550 mm Stroke: 215 mm Clearance between side frames: 2700 mm Tool installation height: max. 414 mm Table width: 55 mm Table height above floor: 950 mm Approach speed: approx. 75 mm/s Return speed: approx. 75 mm/s Working speed: approx. 1.6 to 15 mm/s Motor power: 9 kW Power supply: 400 Volt, 50 Hz, 9 kW - 4-axis CNC control SAFAN software version 5.07 TS1, Y1 and Y2 axis for ram - 2-axis backgauge, X-axis (backgauge depth adjustment), R-axis (backgauge height adjustment) - 2 backgauge fingers, laterally adjustable by hand (Z1, Z2) - Ram drive via 2 servomotors and belt drive - Working speed steplessly adjustable - Operation via electric foot switch and/or two-hand control panel - 13 clamping holders for the upper tool (UKB system, type 50.571, UKB System A) - Tool holder for lower tool, 55 mm wide with 13 mm groove, 21 mm groove depth (Trumpf system or UKB System B) - Supplied without bending tools (a new set from UKB costs approx. 3,600 EUR net) - Displayed total operating hours = 8,120 h - Number of working strokes: 1,049,789 strokes Space requirements (L x W x H): 3450 x 1850 x 2650 mm Weight: 5,000 kg Good condition

Condition: excellent (used), Year of construction: 2009, x-travel 6000 mm y-travel 2100 mm z-travel 1500 mm control HEIDENHAIN iTNC 530 feed 2- 20 m/min spindle turning speed range 20 -4000 U/min table dimension - longitudinal 7000 mm table dimension - cross 2000 mm total power requirement 79 kW weight of the machine ca. 55 t dimensions of the machine ca. 15 x 7 x 4,6 m The SORALUCE FP6000 is in very good condition. accessories as option: # clamping angle: 5'000.-€ # Clamping cube: 2'000.-€ # Div. tools & workbench: 2'000.-€ Description: - CNC control: HEIDENHAIN ITNC 530 Orthogonal milling head: - Tool holder: ISO 50, DIN69871 AD - Automatic tool clamping: Clamping force 20,000 N - Indexing accuracy / repeatability: ± 3 sec. == ± 0.002 mm - Tightening bolt: DIN 69872 form A - Number of swivel positions: 1 x 1 ° milling head ( 360 positions rear plane, 270 positions front plane) 270 positions front plane) Lsdpfxevwgl Ae Amtsrp - Diameter spindle bearing: 90 - Sealing air: 0,7 bar Main drive: - Drive type: three-phase motor - Drive power: 100 % ED 32 kW spindle: - Spindle speed: 20 - 4000 rpm - Full power from: 340 rpm - Torque at 32 kW/S1: 910 Nm - Speed control: 2 ranges infinitely variable via star/delta connection Rapid traverse: max. 35000 mm/min

Condition: new, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,000 mm, position of the milling head: Universal-Diagonal-Fräskopf, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, rapid traverse Z-axis: 30,000 m/min, spindle speed (max.): 6,000 rpm, pivoting range: 1 °, table length: 9,500 mm, table width: 1,100 mm, torque: 1,178 Nm, table load: 62,000 kg, coolant supply: 36 bar, workpiece weight (max.): 62,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, LAGUN CM 8 Traveling Column Milling Machine The LAGUN CM 8 is a highly dynamic traveling column milling machine for the precise machining of large and complex workpieces. Ideal for single-part production as well as series production with the highest requirements for accuracy, stability, and flexibility. Your benefits at a glance: ✔ Installation & commissioning in Germany included ✔ Service & spare parts directly from JMT ✔ Lease purchase / financing possible ✔ High flexibility thanks to the traveling column concept ✔ 24 months warranty Why LAGUN: LAGUN is one of the leading machine tool manufacturers in Spain (MAHER HOLDING) and stands for robust design, high dynamics, and decades of experience in the construction of milling machines. The machines impress with their reliability, ease of maintenance, and economical operation. Technical equipment: Control system: Two HEIDENHAIN TNC 7 controls – one at the front of the machine and one at the rear in the cabinet 2 x HEIDENHAIN TFT screens 19" HEIDENHAIN motors, measuring systems, and electronic handwheels HR-510 Lrjdpjm Tv D Ajfx Amtop Cooling: Internal coolant supply (ICS) 36 bar Tool changer: 60-position chain magazine with double gripper Chip disposal: 2 x hinge belt conveyors Preparation: Preparation for rotary table / 4th axis Enclosure: Three-sided perimeter enclosure Accuracy: Positional accuracy: ±0.040 mm Repeatability: ±0.008 mm Your advantages as a JMT customer: ✔ Official LAGUN sales partner in Germany ✔ Technical support and on-site service ✔ Fast spare parts supply ✔ Training and instruction included ✔ Reference machines available in Germany Contact us – we will be happy to advise you and create an individual offer.

Condition: used, CNC 3+2 axis vertical machining center DECKEL MAHO type DMU 35 M CNC control SIEMENS 810D with ShopMill Manufacturer no. 11065353554 Year of manufacture 2001 Travel paths: X: 350 mm, Y: 240 mm, Z: 340 mm Table movements: C-axis: 360° Swivel range: +105° / -15° Universal swivel - rotary table: 400 x 290 mm, center hole 30H6 Table load: max. 100 kg Distance spindle nose - table: min. 145 mm to max. 485 mm Feed rate: 5,000 mm/min Rapid traverse (X / Y / Z): 5 m/min Input resolution: 0.01 mm Total power requirement: 15 kVA Speed range - main spindle: 20 - 6,300 min/-1 Drive power - main spindle: 6.3 / 10 kW (100% / 40% ED) Torque: max. 55 / 80 Nm Tool holder: SK 40 DIN 69871 Pull bolt: DIN 69872 or ISO 7388/2 Type B Interface: Serial RS232C, LAN (RJ45) Power connection: 400 volts, 50 Hz, 15 kVA Compressed air connection: 6 bar - CNC control Siemens Sinumerik 810D with ShopMill V05.03.22, NCU 03.03.34-CCU1E, MMC103 - 3-axis controlled (X, Y and Z axis) - Manual swivel rotary table, C axis = table rotation 360°, B-axis = swivel range +105°/ -15° - direct path measuring system for all 5 axes - electronic handwheel - spindle drive via servo motor with toothed belt and 2 gear stages - fully protected cabin with sliding door - swiveling control panel - coolant nozzles on the vertical head - chip tray with coolant container and cooling lubricant pump - work area lighting - documentation available Lodpfx Amovt D D Ustjrp space requirement L x W x H 2000 x 2000 x 2100 mm weight 1750 kg good condition

Condition: used, CNC 5-Axis HMC – Horizontal Machining Center, Milling Center, Manufacturing Center Manufacturer: LICON Model: Liflex 1266 PC B1 Year of construction: 2016, Commissioned: 2017 Equipped with SIEMENS 840D SL (Solution Line) CNC path control, with 5 simultaneously controlled axes Travel paths X: 1200 mm, Y: 660 mm, Z: 650 mm A-axis as swivel bridge +/– 135° (270°) B-axis 360° continuous Axis acceleration X + Y-axis 6 m/s² Axis acceleration Z-axis 9 m/s² Feed force X + Y-axis 7500 N Feed force Z-axis 10000 N Positioning tolerance (X/Y/Z) 0.008 mm A-axis swivel speed 180° rotation in 4 sec. Interference diameter on the swivel bridge max. 1400 mm Lrjdpet Ac Efsfx Amtjp Transport load on the swivel bridge max. 700 kg Tool holder HSK 63 Spindle speed max. 12,000 rpm, stepless Spindle power 37kW at 40% duty cycle Spindle torque at 40% duty cycle 85 Nm Maximum spindle torque 100 Nm Tool change time (chip-to-chip) approx. 3.7 sec. Tool diameter with adjacent slots occupied Ø 140 mm Tool diameter with adjacent slots free Ø 250 mm Maximum tool length 400 mm Maximum tool weight 20 kg Power supply 400 Volt, 50 Hz Connected load 80 kVA Compressed air connection 5-8 bar - LIFLEX MSP 80/63/85/12,000 motor spindle (output 37kW/40% duty cycle) with liquid cooling and recooling unit - 2-axis rotary tilting table LICON as B- and C-axis, with hydraulic axis clamping - Zero-point clamping system on the swivel axis turntable - Dual pallet changer, without pallets (these need to be newly sourced) - Media transfer of 5 single-action pressure lines for oil or air, for workpiece clamping on the pallets Hydraulic functions from 30-150 bar, with pressure monitoring (controllable via M-functions) - Tool changer with 30 tool positions, disc turret type - Machine designed for dry machining with minimal quantity lubrication (MQL) system - MQL-TSC, internal MQL lubrication supply through the spindle - Scraper belt chip conveyor, discharge height 1150 mm - Licon ECO-Mode (energy-efficient aggregate operation) - Direct linear measurement system on all axes - Operating hours (control voltage on) ≈ 7,500 h Space required for operation L x W x H 9,000 x 5,000 x 3,800 mm Space required for transport L x W x H 6,100 x 4,400 x 3,600 mm Base machine weight approx. 21 tons Total weight: approx. 24 tons Very good condition

Condition: new, Year of construction: 2025, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,600 mm, Heidenhain TNC 7 Water-cooled inline motor 43 kW / 900 Nm Travel distances: X = 8,000 Y = 3,200 Z = 1,600 Milling heads: 0.001° x 0.001°, 6,000 rpm Additional equipment: Tool changer for 60 tools 1 chip conveyor Selectable NC tables Plate fields Carousel rotary tables Optional: Fully automatic milling head change system Pendulum machining Lodoqy Hinopfx Amtorp Splash guard enclosure Operator support technology packages

Condition: new, travel distance X-axis: 4,000 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 600 mm, rapid traverse X-axis: 30,000 m/min, rapid traverse Y-axis: 30,000 m/min, For the efficient and productive machining of long parts, such as beams, profiles, tubes, etc. • Max. travel ranges: X-axis: 4000 mm working range Y-axis: 400 mm working range Z-axis: 400 (600) mm • Max. load capacity: 1000 kg • Main spindle drive power: 11 kW asynchronous motor • Main spindle speed: 8000 rpm • Tool holder: SK 40 • Rapid traverse rate X-axis: approx. 30000 mm/min • Rapid traverse rate Y-axis: approx. 20000 mm/min • Drilling capacity: ø 30 mm in S355 • Thread cutting: M16 in S355 Lredpeznkipefx Amtop • Servomotors for separate drive of the Y and Z axes with ball screw; X-axis with helical and hardened rack and pinion drive • End and reference switches in non-contact design • Spindle overload protection • Solid, precise cross table, generously sized • Safety device combined with a light curtain and/or safety fence • Tool diameter: max. 100 mm • Tool length: max. 270 mm • Approx. space requirement L x W x H: 6660 x 4500 x 3400 mm • Total weight: approx. 5500 kg • Connections on the customer side: Connection power: 30 kW / 63 A • Compressed air: 6 – 8 bar • Control system: Heidenhain TNC7vBasic • Main computer: MC 355 Touch with control panel and integrated 19-inch TFT color flat screen - 24-position tool changer - Minimum quantity lubrication - Internal spindle cooling (IKZ) - Chip conveyor including discharge chute - Heidenhain electronic handwheel - Heidenhain 3D probing system for workpiece measurement - Heidenhain CAD import software option - Heidenhain tool length measuring system - 4 units of mechanical-hydraulic vises MSH 150, clamping width 300 mm - Pendulum operation duo (divided working area) Price on request.

Condition: excellent (used), Year of construction: 2007, operating hours: 13,500 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, overall weight: 15,800 kg, operating hours of spindle: 13,500 h, coolant supply: 40 bar, We offer in good condition Deckel Maho DMU100P Duoblock from 2007 with only 13.500 spindle hours. Heidenhain iTNC530 control X-Axis travel: 1000 mm Y-Axis travel: 1000 mm Z-Axis travel: 1000 mm Internal coolant 40 bar Ledpfezlyd Dex Amterp SK40 12.000 RPM Spindle Table Ø1100 x 900 Machine will be in stock in the next 2 weeks.

Condition: used, Butler Elgamill CNC Travelling Column Bed Type Mill x 5000mm T slotted Table 8,000mm x 1030mm Lodpfx Asyx Hv Asmterp Column travel X 6200mm TBC Ram travel Y 1250mm TBC Vertical travel of Head Z 1950mm TBC Spindle speeds Various and a Max of RPM TBC Spindle Taper 50 Spindle drive motor HP TBC Power feeds Horizontal and Vertical 6 – 500 mm/min Rapid power traverse to all motions 2,000mm/min Complete With: Heidenhain CNC Control Manual Indexing Head Machine Data: Machine weight 20,000kg

Condition: used, Year of construction: 2013, machine/vehicle number: 5279, travel distance X-axis: 8,000 mm, travel distance Y-axis: 1,600 mm, travel distance Z-axis: 1,300 mm, spindle speed (max.): 4,000 rpm, spindle speed (min.): 22 rpm, Year of construction 2013 Control system: SIEMENS Sinumerik 840D pl HSK 100-A tool holder TRAVEL horizontal-longitudinal X = 8,000 mm Vertical headstock slide Y = 1,600 mm Headstock horizontal-transverse Z = 1,300 mm FUNCTIONAL PROBE: m&h HSK 100 Ljdpfx Amou Sppwstorp SIEMENS B-MPI HAND-HELD CONTROL UNIT TRAVELING WORK PLATFORM 3-SIDED SPRAY AND CHIP PROTECTION WALL CHIP CONVEYOR SPRAYING PLATE Sizes: Length: 10,000 mm Width: 2,500 mm WASHING GUN IN THE WORKROOM REINFORCED COOLANT SYSTEM Pump capacity: 32 l/min at max. 20 bar Coolant tank: 2000 l COLLISION MONITORING SYSTEM 2 CHANNEL pcs. 2 monitoring channels: - 1st collision monitoring orthogonal milling head (channel 1) - 2nd collision monitoring fork head (channel 2) PENDULUM MACHINING 3 WORK AREAS MILLING SURFACE INTERPOLATION (TRAORI, 3D tool radius compensation, spline interpolation) ROTATED AXIS COORDINATE SYSTEM 2 PICK-UP STATION For fork head, arranged on clamping plate Storage positions 10 Maximum tool weight kg 12.5 Maximum tool length mm 200 Maximum tool diameter mm 63 Maximum tool diameter when free mm 250 Neighboring position Tool holder HSK 6 AUTOMATIC TOOL CHANGER Number of tools in chain magazine 48 Maximum tool diameter with magazine filled to mm 125 Maximum tool diameter with mm 250 free adjacent positions Maximum tool length mm 500 - Maximum tool weight kg 25 Maximum tool load torque Nm 40 Tool holder HSK 100-A HEAD CHANGE MAGAZINE 1 pc.FORK HEAD WITH HIGH FREQUENCY SPINDLE AUTOMATIC FORK HEAD WITH INTEGRATED HIGH-FREQUENCY SPINDLE - High-frequency milling spindle: - Integrated high-frequency spindle - Tool holder HSK - A 63 DIN 69893 - Main drive power 20 kW at 100 % ED or 25 kW at 40 % ED - Speed range up to 20,000 1/min - Motor spindle bearing with permanent grease lubrication - Sealing air seal - Torque: 40 Nm at 100% ED, 50 Nm at 40% ED - Automatic tool clamping - Power transmission according to speed-performance diagram GMN HCS 170 - Technical data according to data sheet E 745.1467.00 UNIVERSAL MILLING HEAD IN ORTHOGONAL DESIGN - Liquid-cooled milling head - Cast construction made of GGG 60 - Milling head, automatically swivels 180 x 1 degree - The resulting positions can therefore not only be approached via the CNC control, but also programmed and processed - Repeat accuracy at the spindle nose ±0.002 mm, part accuracy thus ±3 sec - HSK 100-A tool holder - The milling spindle is equipped with a hydromechanical quick tool clamping system - Tool pull-in force: 45 kN - Internal coolant supply form A-D - External coolant supply via shower ring - Speed range 22- 4,000 1/min MAIN DRIVE by a frequency-controlled liquid-cooled AC motor with - 32 kW drive power at 100% duty cycle, 46 kW at 40% duty cycle. Direct power transmission WITHOUT gearbox, therefore no heating or wear of a gearbox. - 637 Nm torque at 100% ED, 875 Nm at 40% ED

Condition: reconditioned (used), travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 2,100 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 30 m/min, feed rate Y-axis: 30 m/min, feed rate Z-axis: 30 m/min, spindle speed (max.): 6,000 rpm, spindle speed (min.): 36 rpm, rotational speed (max.): 6,000 rpm, tank capacity: 1,200 l, SHW Powerspeed 5 Travel paths • X-axis (bed): 10,000 mm • Y-axis (headstock): 1,300 mm • Z-axis (vertical): 2,100 mm Control • CNC control: Heidenhain iTNC 530 Feed rate • X, Y and Z axes: 30,000 mm/min • Acceleration: 3.5 m/s² Universal milling head in orthogonal design • Milling head holder swivel range: 360 x 1 degree • Milling head swivel range: 180 x 1 degree • Tool holder: SK 50 DIN 69871 • Speed range: 36 - 6,000 rpm Chip conveyor • Feed length: 10,000 mm Ledpfx Amov Dhw Toterp Coolant system • Container capacity: 1,200 Liter ATTENTION the images are comparison images About us: MBM Maschinenservice & Gebrauchtmaschinen GmbH is an independent specialist for SHW machine tools. Our main focus is on tool milling machines. Our services include spare parts deliveries, on-site customer service, machine overhauls and control system modernizations. Services: - Used machines - Spare parts - Customer service - Machine service - Machine overhauls - Control system modernization _____ Used machine - used milling machine - used traveling column milling machine - orthogonal milling head - metalworking - tool milling machine - milling head - SHW machine - SHW spare parts - used milling machine - used milling machine - used CNC milling machine - used drilling and milling machine - used metal milling machine - used metal milling machine - used metal milling machine - used CNC milling machine - CNC milling machines - CNC milling machines - milling machine - large part machining - large part machining - large part machining - CNC large part machining - milling - shw - PS5 - PS 5 - Powerspeed - SHW PSZ 5 - SHW Powerspeed - SHW Powerspeed 5 - PSZ 5 - PSZ 5 - Heidenhain - MBM milling machine - MBM machine - column milling machine

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Soraluce model FL8000 high performance travelling column, floor type CNC milling machine TRAVEL (X) 7,500 mm TRAVEL (Y) 1,400 mm TRAVEL (Z) 1,000 mm RAPID TRAVERSE (X,Y,Z) 25,000 mm/min WORKING FEED RANGE (X,Y,Z) 1 – 10,000 mm/min Lrsdjw U Tlzopfx Amtjp ACCELERATION RATE (Instantaneous not maximum) 1 m/sec2 SPINDLE SPEED 20 - 4,000 Rpm SPINDLE TAPER ISO 50 SPINDLE POWER 28 Kw NC15C - HEIDENHAIN iTNC 530 (Flat 15.1" TFT Screen with digital drives). Single processor version. Prepared for a machine of 10 motors (9 CNC axes + spindle motor). Main push button panel with individually operated push buttons for linear axes (X+, X-, Y+, Y-, Z+, Z-) K20 option for the i530M. Independent AC. Heidenhain digital drive servomotor for each axis HEIDENHAIN HR-410 portable electronic handwheel with 5m spiral cable Automatic Indexing head 28Kw, 760Nm, 0.001°x 0.001°, 4000 Rpm. Continuous air and oil mist lubrication system for head gears. Automatic Tool Clamping device – 15,000N. Automatic hydraulic tool releasing device Spindle taper: BT50 High Torque spindle motor 28kW, 100% ED, digital motor. R10 – ZF gearbox two speed including cooling unit Spindle Speed Range 20 – 4,000Rpm Rapid Feed X-Y-Z axes 25.000mm/min Working Feed range X-Y-Z axes 0 - 10.000mm/min Acceleration rate X- Y -Z axes 1 m/s2 (instantaneous, not maximum) Hydraulic counterbalance system for head/ram assembly X axis driving system by two servomotors, two gearboxes and a double rack & pinion Preloaded ballscrews with double recirculating nuts in Y and Z axes. Automatic centralized lubrication system. Linear Guiding System with recirculating cylindrical rollers in each axis. Automatic centralized lubrication system for the guides. HEIDENHAIN Linear measuring scales in X-Y-Z axes with compressed air purge system - (Precision +/- 0,005mm) H48 – Coolant through the spindle type AD. M3 – Automatic tool changer 40 stations. M6 – Horizontal-vertical tool changing facility. M8 – Motorized tool changing device. Tool changer is driven by a servo motor Hydraulic equipment Front metallic roller blind cover to both upper and lower ram area, together with metallic protection to the lateral side of the column, between the machine table and the rear guideway support, which protects the vertical movement of the ram. CE10 - PROTECTION on the back and both lateral sides of the machine column P20 - Operator's platform fixed to the column and travels together with it in the "X" axis direction. The main operator’s panel is mounted within the operator's platform area for machines without an operator’s pendant and is accessed from the rear of the machine. D7 + D50A - Coolant system with 1000L capacity tank with two pumps providing high and low pressure providing 5 & 12bar and 50L/min flow rate. Paper and Magnetic filtering. E30A – swarf conveyor FL8000 Hinge conveyor belt. Width 350mm PW11B – Pendulum working area system. PM2 x 2 – Machine prepared by Soraluce for the inclusion of two rotary tables. Working area lighting. Electrical cabinet cooling system Electrical cabinet lighting Working methods - According to CE safety regulations Filter to assure electromagnetic compatibility. Protection to both sides of the column with security bumpers Anchoring Bolts Standard Colour - Blue RAL 5005 / Grey RAL 7035 K19 – Two sets of machine documentation (One hard copy, one on CD ROM) Floor plate 8,000 x 1,500 x 300mm

Condition: excellent (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 1,300 mm, travel distance Z-axis: 1,600 mm, Travel ranges: Longitudinal (X): 4000 mm Vertical (Z): 1600 mm Lateral (Y): 1300 mm Rotary table: Diameter: 1600 mm Maximum speed: 250 min⁻¹ Drive power (100% duty cycle): 53 kW Maximum transport load (positioning): 8000 kg Maximum transport load (rotation): 3000 - 8000 kg Work table: Length: 4000 mm Width: 1240 mm Height of work table: 760 mm Automatically indexing milling head: Tool interface: ISO 50, DIN 69871 AD Automatic tool clamping: Clamping force 20000 N Spindle speed range: Spindle speed: 20 - 5000 min⁻¹ Full power from 340 min⁻¹ Torque at 32 kW/S1: 900 Nm Main drive: Drive power: 43 kW Maximum rapid traverse rate: X-axis 45000 mm/min Y- and Z-axis 35000 mm/min Maximum feed force: X, Y and Z-axis 16000 N Automatic tool changer Magazine positions in M version: Maximum tool positions: SK 50 40 positions Maximum tool positions: Capto C8 20 positions Machine weight: approx. 32,100 kg Equipment: - Work table 4000 x 1240 x 760 mm with integrated rotary table Ø 1600 mm - Swiveling control panel with telescopic arm with HEIDENHAIN TNC 640 HSCI (6 axes + spindle) control, including 19" flat screen, metallic keyboard with integrated mouse and USB interface on the control panel. Processor speed 0.5 ms including HEIDENHAIN smarT.NC. - Interpolative turning with HEIDENHAIN TNC 640 HSCI consisting of CAM system, HEIDENHAIN postprocessor, software adaptation for C-axis (spindle). - Portable electronic hand-held unit HEIDENHAIN HR 520 with 5 m cable. - Automatically indexing milling head / 2 levels with 2.5° x 2.5° division and a tool clamping force of 20,000 N (H200), 32 kW / 900 Nm, tool interface ISO 50 - DIN 69871 AD. Mounting flange with Hirth gearing for adapting turning tool holders, grinding spindles or additional milling heads and a protective ring to cover the Hirth gearing; not required if H205 is selected. - Spindle drive 43 kW at 100% duty cycle via water-cooled HEIDENHAIN inline motor with direct power transmission. The motor is integrated into the milling slide. - Turning tool holder with Capto C8 interface (manual tool clamping) for turning operations incl. Hirth gearing and SK 50 interface according to DIN 69871 AD for adaptation to SORALUCE milling heads. (Semi-automatic changing with additional manual fastening by 8 x M8 screws); not required with fully automatic changing of the turning tool holder. - Pneumatically adjustable pick-up station (travel 500 mm) in the tool changer area for the turning tool holder and protective ring for semi-automatic changing. - Work table with integrated NC rotary table Ø 1,600 mm, for turning operations and for positioning operations with hydraulic clamping. - Rack and pinion drive in the X-axis via two servomotors controlled in a master-slave process. Lsdpfx Aezi S E Ujmtjrp
