Used Klingelnberg Hnc 35 for sale (9,960)

Year of construction: 1987, condition: ready for operation (used), Workpiece diameter: 10-350mm, max. grinding length: 660mm, clamping length: 1055mm, max. module: 25mm, swivel angle: +/-60°, grinding wheel dimensions: 300-500x100mm, with Faudi cooling lubricant belt filter and Elbaron oil mist separator. No longer fit for operation and can only be used as a basis for a complete overhaul. Hjdpfx Asrgah Hohbjnk

Year of construction: 1990, condition: ready for operation (used), Max. workpiece diameter: 10-350mm, max. grinding length/ width: 690/ 60mm, clamping length: 950-1330mm, swing angle: -60 to 60°, length: 6200mm, width: 4000mm, height: 2500mm, weight: 9t, with oil filtration system, oil mist extraction and additional accessories. Hnedpfeiph T Hox Ahbsk

Condition: ready for operation (used), functionality: fully functional, metric thread pitch (max.): 500 mm, metric thread pitch (min.): 1 mm, grinding length: 500 mm, grinding wheel diameter: 500 mm, rotational speed (min.): 1 rpm, metric thread diameter (min.): 10 mm, rotational speed (max.): 26 rpm, metric thread diameter (max.): 350 mm, clamping length: 1,200 mm, grinding wheel width: 60 mm, spindle speed (max.): 26 rpm, spindle speed (min.): 1 rpm, grinding spindle speed: 3,000 rpm, grinding spindle motor power: 12,000 W, grinding diameter: 350 mm, grinding wheel speed: 3,000 rpm, type of input current: three-phase, center width: 150 mm, Equipment: rotational speed infinitely variable, KLINGELNBERG HSS 350 Grinding machine – Special offer due to stock clearance 🔥 High-precision CNC grinding machine, perfect for gears, worm screws, and custom parts. Fully functional and ready to use. 🛠 Key technical specifications: • Workpiece diameter (max./min.): 350 mm / 10 mm • Clamping head bore diameter: 130 mm • Max. distance between centers: • With front centering tip: 750 mm • With rear centering tip: 1200 mm • Max. workpiece length: Unlimited • Max. shaft diameter (left/right): 130 mm / 150 mm • Max. grinding length: 500 mm • Max. number of gear teeth: 30 • Module (max./min.): 25 / 0.5 • Pitch (max./min.): 500 / 1 mm • Pressure angle (max./min.): 30° / 0° • Max. helix angle: 45° ⚙️ Grinding System Features: • Grinding wheel diameter (max./min.): 500 mm / 300 mm • Grinding wheel speed (stepless): 75 – 3000 rpm • Max. cutting speed: 45 m/s • Drive motor power: 12 kW Hnedpfx Ahohq Uh Hjbjk • Workpiece spindle speed (stepless): 1 – 26 rpm 📐 Grinding Wheel Widths: • For thread grinding: 15 mm • For worm screws up to module 12: 25 mm • For module 12 to 20: 40 mm • For module 20 to 25: 60 mm 💻 CNC Control: FANUC Series 21-It ✅ Ideal for: • Gear manufacturers • Worm screw production • Precision machining workshops • Industrial machinery repair 📌 Limited-time offer due to machinery update Take advantage of this opportunity to acquire a high-performance CNC grinding machine with professional specs and immediate availability!

Condition: new, Year of construction: 2025, Auto clipping machine to pack fruits and vegetables as well as industrial products into netting sleeves which are closed at both ends by a metallic staple/clip. Suitable to be combined as infeed system: AMTEC VERTIwrap auto dosing machine for fruits, vegetables, etc.- At least, at one of the tops, a labelling/identification tag is placed. - Possibility of an automatic change of tube (suitable to carry 200m of net), controlled by a motor. Net extraction through a sliding system with two gears: a slow for making the pack and a fast one for getting back the remaining net and returning to the start position. Very regular pack size for very flexible net being supplied form net pipe with diameter of 200mm. Suitable for packs of 0.5-5.0kg. Control panel for easy operation. - Specifications: max. speed of the machine in neutral: 35 cycles/minute; power: 380V, 2.9kW; air: 1.5m³/min, 6bar; machine dimensions: L1840xW720xH2010mm; weight: 425kg. Hjdpfxjv Nm Dcs Ahbonk Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

Condition: good (used), Year of construction: 2007, max. wheel diameter 500 mm gear width 200-400 mm module 12 turning speeds 0-3250 U/min bracke pressure bis max. 95 Nm inner taper Konus #39 Control Fanuc 16 Hjdevr Hf Espfx Ahbjnk total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2.350 x 2.240 x 2.500 mm HIGHLY FLEXIBLE TESTING OF HARD, FINISHED AND GREEN SPIRAL BEVEL AND HYPOID GEAR SETS The T 60 bevel gear testing machine is a CNC testing machine with three linear axes for the fully automatic hard and soft testing of spiral bevel and hypoid gear sets with a 90° axis angle. It offers versatile objective and subjective testing options with speeds up to 3,250 min and braking torques up to max. 95 Nm.

Condition: good (used), Year of construction: 2006, voltage 110 - 230 V frequency 50 - 60 Hz Power connection 0,5 kVA weight 150 kg dimensions of the machine ca. 1,0 x 0,8 x 1,75 m Stick blade profile control unit - Control via PC control with Windows XP operating system - Digital drive amplifiers, linear motors and measuring systems - Fully automatic position determination of the cutting edges and axis position of the stick blade - Measurement of almost all single-part and continuous processes required for spiral bevel gears and hypoid gears - Machine concept designed for the shortest set-up and changeover lines and Hodpfjymfz Ssx Ahbsnk maximum measuring accuracy - Combination probe for measuring tip and surface measurement - Integrated drawer for accessories - Keyboard integrated in flat drawer - Operating elements and PC protected against unauthorized access with lockable cabinet element

Condition: good (used), Year of construction: 2002, Clampable cutter head type (max.) 460 mm Cutter head weight (max.) 150 kg Mounting disc diameter for cutter heads (Ø) 360 mm Mounting cone for cutter heads Nominal diameter Ø 58,227 mm travel -z axis 200 mm diagram-drawing enlargement ±10 - ± 500 µm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in high gear cutting quality and a long service life can only be achieved with Hedpfxsw N S E Aj Ahbjnk precisely can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Year of construction: 2002, condition: used, z-travel 200 mm Clamping diameter of the cutter heads max. 550 mm Max. permissible cutter head weight 150 kg Mounting plate diameter for cutter heads 360 mm Mounting cone for cutter heads Nominal diameter 500 mm weight of the machine ca. 2,3 t dimensions of the machine ca. 2 x 1,5 x 2,03 m Cutter Head Set-Up- and -Measuring Machine In the manufacturing process for spiral-toothed bevel gears, the quality of the gear cutting gear cutting tools used plays a decisive role. Particularly in dry milling, high gear cutting quality and a long service life can only be achieved with precisely adjusted cutterheads. The Oerlikon cutterhead setting and testing device CS 200 enables quick and easy setting of the individual knives and simple adjustment of the individual knives, it checks the position and documents the measurement results. The measuring sequence on the CNC-controlled testing device is partially automated: The individual actions for carrying out the actions for carrying out the sequence are displayed on the screen via the operator guidance. The positioning of the individual knives in the cutter head and the height of the knife tips is largely automatic thanks to a special sequence and is simultaneously documented by means of a run-out diagram. A subsequent measuring sequence checks the radial position of the inner and outer cutting edges of all knives in the cutterhead. If individual test parameters on the knives do not correspond to the the tolerance specifications, this can be individually repositioned. The combination of semi-automated setting sequence, operator-guided set-up actions and automatic operator-guided set-up actions and automatic measuring sequence, cutterheads can be can be set conveniently, quickly and with high precision. Operator-guided setting and test sequence - Graphic display of the cutter head design and the measurement results with tolerance check Hnsdpfx Aoy A S U Sehbok - Instructions for the operator in plain text Instructions for the operator in plain text (without coded information) - Simple assignment of the measurement results to the knives - Documentation of the setting and measurement results via printer- Setting and test sequence suitable for ARCON®, RSR, Spirapid, SPIRON®, TRI-AC® types - Interface for neutral data

Condition: used, Year of construction: 2006, voltage 110 - 230 V frequency range 50 - 60 Hz Power connection 0,5 kVA Hsdpsyhq T Asfx Ahbjnk Dimensions (HxWxD) 1000 x 800 x 1750 mm weight 150 kg Measuring machine for bar knives. Equipment/accessories: -Measuring tools -Clamping devices -Computer -Monitor -Printer -Cabin -Technical documentation

Condition: used, Year of construction: 2007, max. wheel diameter 500 mm Hypoid adjustment ±70 mm axial cross angle 90 ° Distance Y- 150 - 350 mm Distance Z-axis 120 - 340 mm turning speed range - stepless 0 - 5000 U/min max. torque on the spindle 57 Nm Cone 99,2 mm Pull-in force Tool clamping 23000 N Braking torque max. 93 Nm total connected load 20 kVA total power requirement 15 kW weight of the machine ca. 6 t dimensions of the machine ca. 2,35 x 2,24 x 2,5 m Hsdpfxeukitxj Ahbenk

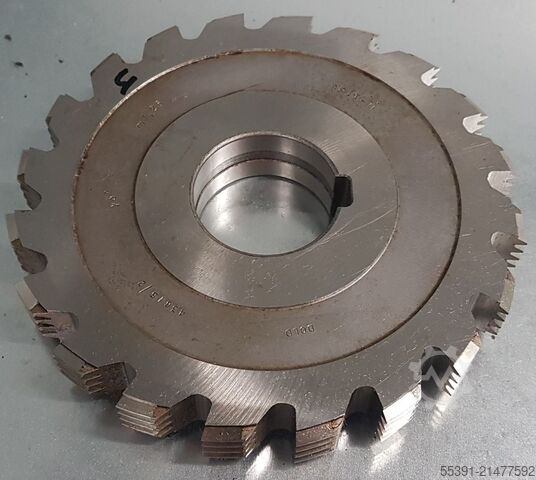

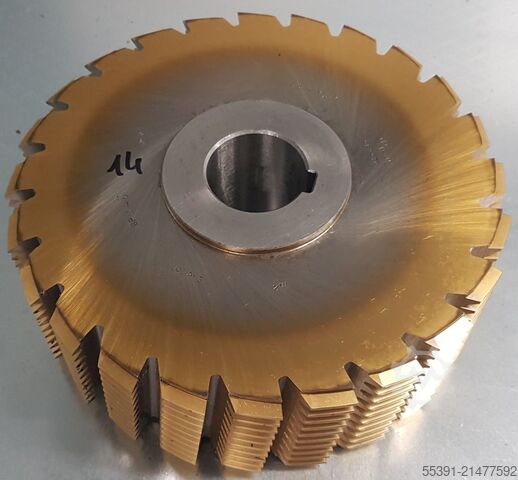

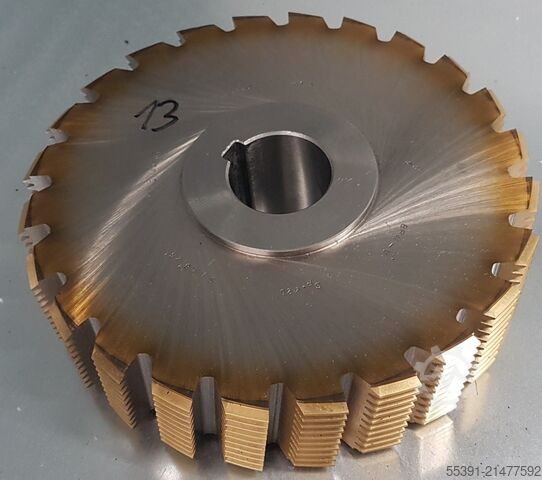

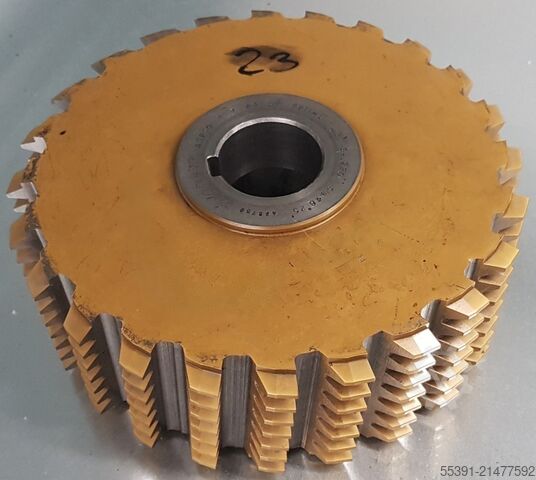

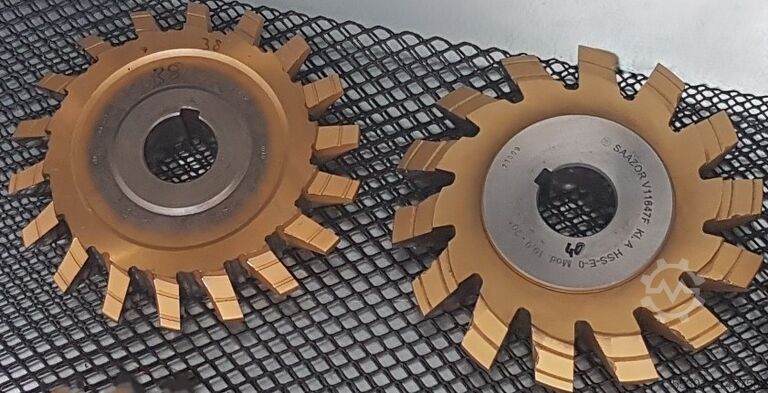

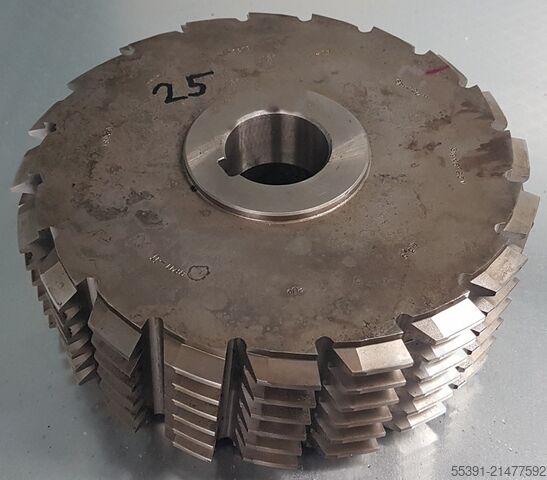

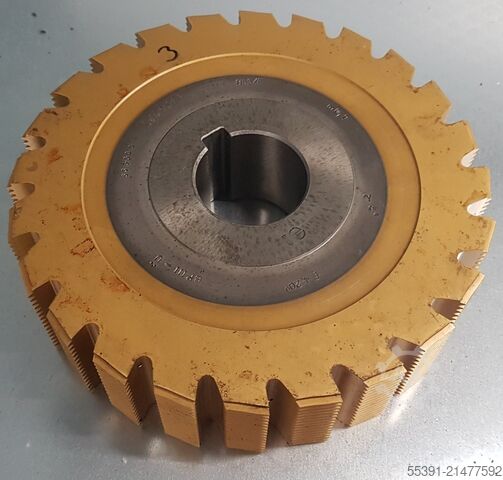

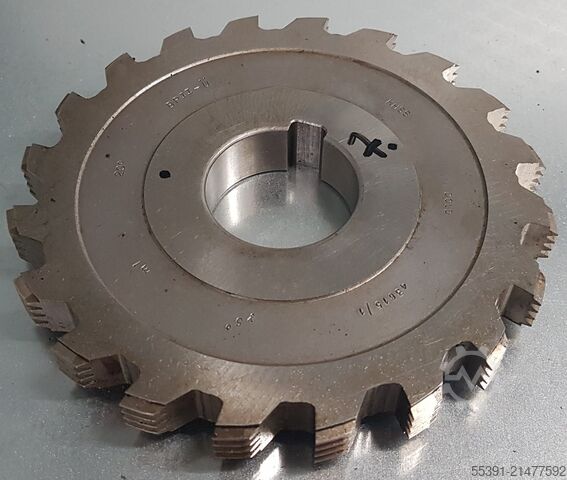

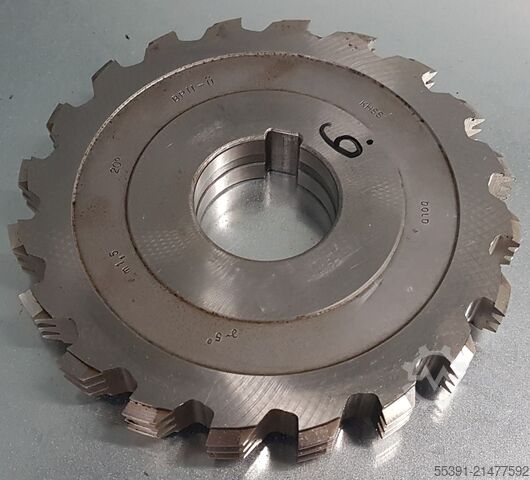

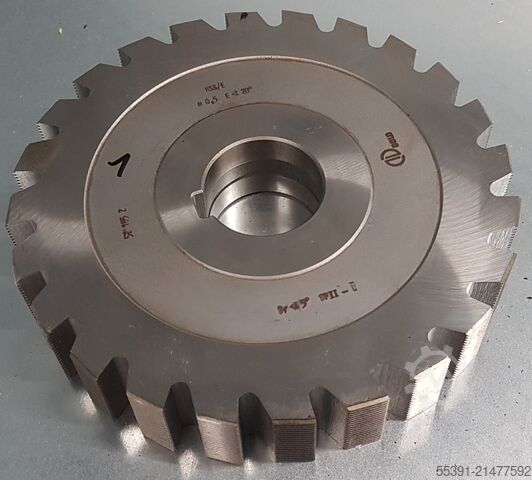

Condition: used, functionality: fully functional, Various used rack cutters / rack milling cutter groups from different manufacturers Manufacturer: Arnold Dold GmbH & Co. KG 24 rack milling cutters available Module 0.5 – gang milling cutter Module 0.7 – gang milling cutter Module 0.9 – TiN coating Module 1 – 2 pcs available – gang milling cutter Module 1.25 – gang milling cutter Module 1.5 – TiN coating Module 1.75 – gang milling cutter Module 2 – 4-flute – minor damage Module 2 – TiN coating Module 2.5 – 8-flute – minor damage Module 3 – reground Module 3 – 7-flute – minor damage Module 3 – 7-flute – reground – BPIII – Ü Module 3 – TiN coating Module 5 – 4-flute – reground Module 5 – 4-flute – TiN coating Module 6 – 3-flute – TiN coating Module 6 – 3-flute – TiN coating – reground Module 7 – 3-flute – reground Module 8 – 3-flute – reground Module 10 – TiN coating Module 10 – reground – finish cutter Module 12 – TiN coating – finish cutter Module 12 – minor damage Module 13 – finish cutter Module 14 – reground Module 16 – reground Pressure angle: 20° BPII-Ü Bore diameter [mm]: 40; 50 Keyway [mm]: 10; 12 Width [mm]: 32.5; 45.5; 44; 17/21; 16/20; 14/18; 21/25; 18/22; 65/73; 48/57; 31; 66/72; 69/77; 70/78; 60/64; 60/66; 82; 72/80; 82; 40; 39; 47; 52; 56; 64 External Ø [mm]: 169; 140; 141; 200; 150; 198; 195; 199; 197; 201; 200; 219; 192; 191 Manufacturer: Saazor – Wälztechnik ZORN GmbH & Co. KG 7 rack milling cutters available Module 1 – 16-flute – TiN coating – minor damage Module 1.5 – 9-flute gang milling cutter; 9 teeth per row; 2 – tangential milling cutter; 6 – tangential milling cutter Module 10 – TiN coating Pressure angle: 20° DIN 3972 II - Ü or DIN 3972 II Cl. A - Ü Bore diameter [mm]: 40 Keyway [mm]: 10 Hnodpfxsytrh Es Ahbek Width [mm]: 52/60; 55/85; 60/90; 33/40 External Ø [mm]: 176; 200; 198; 199 Manufacturer: Klingelnberg – 6 rack milling cutters available Module 2.5; 2.75; 3.25; 3.75; 4.5 Pressure angle: 20° Bore diameter [mm]: 40 Keyway [mm]: 10 Width [mm]: 30/38; 28/36; 35/42; 39/47; 44/52 External Ø [mm]: 148; 149; 150 All technical data subject to errors and typographical mistakes. Price on request Sale exclusively to EU countries.

Year of construction: 2000, condition: used, Punching machine Noble HM 35/350 BKE 200/5 Maximum pressure 35 T 5 mm sheet thickness at 40 kp/mm² Hodpfeg Dgyxox Ahbenk

Condition: used, Year of construction: 2002, max. wheel diameter 275 mm max. module 6 min. module 1,5 Control SINUMERIK 840 C tooth width 5,5 mm spiral angle min. 0 / max. 60 ° max. number of teeth 120 min. number of teeth 5 ratio of transmission 1:10 min. ratio of transmission 1:1 work piece spindle speed max. 110 U/min blade head turning speeds 20 - 110 U/min total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,20 x 2,30 x 2,40 m Internal deburring device U axis / Q spindle chip conveyor coolant device Electrostatic air purifier ELBARON Hodpovxwnwjfx Ahbenk no tools No workpiece clamping device

Condition: used, Year of construction: 1991, max. wheel diameter --- mm gear width --- mm max. module --- min. module --- Control --- total power requirement --- kW weight of the machine ca. --- t Hnodpfx Ahoya Eqaobsk dimensions of the machine ca. --- m

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 min. module: 0,5 gear hobbing diameter - internal: 30 mm max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min total power requirement: 1,6 kVA weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. Hnjdpfxeqvcnne Ahbsk For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, wheel diameter: 400 mm, overall weight: 4,000 kg, distance between centers: 550 mm, spindle speed (max.): 3,000 rpm, controller model: Siemens 840 D, TECHNICAL DETAILS Max. wheel diameter: 400 mm Workpiece diameter: 36–400 mm Centre distance: 135–290 mm Max. spindle speeds (infinitely variable): 3,000 rpm Centre width: 100–550 mm MACHINE DETAILS Control: CNC Siemens 840 D Hsdeywg Hxepfx Ahbenk Dimensions & Weight Space requirement: approx. 2,000 x 3,055 x 2,788 mm Machine weight: approx. 4,000 kg EQUIPMENT Single-flank rolling test Double-flank rolling test Structure-borne noise testing Helical contact testing (double-flank contact) Use of up to 6 test carriages Highest test accuracy and repeatability Machine table with workpiece drive Swivelling pneumatic unit Spray lubrication (Type: Vogel) Oil mist extraction (Type: Elbaron)

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, wheel diameter: 275 mm, wheel width: 150 mm, travel distance X-axis: 640 mm, travel distance Y-axis: 870 mm, workpiece diameter (max.): 275 mm, TECHNICAL DETAILS Wheel diameter: 275 mm Wheel width: 150 mm Maximum module: 6 Minimum module: 1.5 Workpiece diameter: 275 mm Maximum face width: 5.5 mm Spiral angle: 0 - 60° Number of teeth: 5 - 120 Minimum gear ratio: 1:1 Maximum gear ratio: 1:10 Milling Depth Axis (X-Axis) Travel: -25 to 640 mm Max. traverse speed: 6 m/min Workpiece Positioning Axis (Y-Axis) Travel: 870 mm Max. traverse speed: 4.5 m/min Axis Shift (Z-Axis) Travel range: +/- 50 mm Max. traverse speed: 0.657 m/min Generating Rotation Axis (A-Axis) Swivel range: 315° Max. swivel speed: 40°/s Workpiece Spindle (B-Axis) Max. workpiece spindle speed: 300 rpm Outer cone (1:4) clamping diameter: 140 mm Inner cone (1:20): 99.218 mm Workpiece spindle bore: 90 mm Workpiece Swivel Axis (C-Axis) Swivel range: -8.5 to 98° Max. swivel speed: 21.5°/s Tool Spindle (D-Axis) Spindle speed: 60 to 350 rpm Tool Positioning Axis (E-Axis) Swivel range: 0 to 360° Hsdpfx Ahjywgy Sobonk Max. swivel speed: 19.5°/s Machine Distance (V-Axis) Travel: 150 mm Max. traverse speed: 1.6 m/min MACHINE DETAILS Cutter drive motor Power: 20 kW Workpiece drive Power: 14.5 kW Total connected load: 62 kVA Dimensions & Weight Machine weight: approx. 12 t Space requirement: approx. 4,700 x 4,387 x 2,450 mm EQUIPMENT 13 cutters

Condition: used, max. wheel diameter 0-200 mm max. module 25 min. module 0,5 Hodpstuxa Usfx Ahbjnk

Condition: like new (used), max. width of grinding wheel 77 mm Hodpsxgv Afsfx Ahbsnk diameter / bore of grinding wheel 400 / 56 mm - Klingelnberg grinding disc holder (627.020.006) outer diameter Ø 260 mm / inner diameter Ø 56 mm - incl. grinding disc from Carborundum dilumit Outer diameter Ø 400 see pictures technical drawing

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1 Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t Hjdpfxjtumrpe Ahbonk dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Hsdextiunjpfx Ahbsnk Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), Year of construction: 1988, TECHNICAL DATA. Max. clamping length: 90 mm Tool clamping height with tapered shank: 50 mm Tool clamping height with straight shank: 45 mm Max. helix angle: 45° Number of clamping positions: 1 to 99 Max. slide travel: 550 mm Max. grinding wheel diameter: 350 mm Min. grinding wheel diameter: 150 mm Grinding wheel speed (variable): up to 2700 rpm Swivel range of grinding spindle axis: 0° to 15° Grinding slide feed rate (variable): 0.05 to 16 mm/min (with 3rd and 4th axis: 0.05 to 8 mm/min) Workpiece spindle taper: ISO Taper No. 40 Hodpfxowwkacj Ahbjnk Grinding Wheel Data CBN and diamond cup grinding wheel: Ø200 mm → Min. DFF: 66 (3rd axis), 76 (4th axis) Ø250 mm → Min. DFF: 16 (3rd axis), 26 (4th axis) CBN-ES cone grinding wheel: Ø200 mm → Min. DFF: 50 (3rd axis), 60 (4th axis) Ø250 mm → Min. DFF: 0 (3rd axis), 10 (4th axis)

Year of construction: 2002, condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 min. module 1,5 Hnjdpfx Ahsgtvbpebek control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 transmission ratio min. 1:1 spindle speeds max. 110 mm blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, Klingelnberg ZW 301 Gear Measuring Machine with Evaluation Computer Double-flank gear measuring machine with 4-position indexing table - Spur gear - Internal gear - Gear shaft - Computer (evaluation via industrial PC with fully automatic parameter calculation, quality determination, and classification) Workpiece data: Table load including fixture, max. 100 kg Load on support plate/vertical slide including fixture, max. 80 kg Workpiece knife with counterholder on measuring and feed slide, max. 300 mm Workpiece knife with counterholder on machine bed, max. 300 mm Device data: Heidenhain LIF 101 position measuring system Center distance min./max. 45/300 mm Table diameter 150 mm Table height above floor 950 mm Measuring pressure min./max. 5/30 daN Total connected load of the test device: 0.75 kVA Hodpov Ic R Aofx Ahbsnk Total space requirement: LxWxH 1900 x 1200 x 2200 mm Net weight: 750 kg PC, as well as some master wheels with common modules. Weight: 750 kg

Year of construction: 1987, condition: ready for operation (used), Center width: 400-800mm, rotational speed: 1000-2700/min, workpiece diameter: 10-300mm, grinding wheel diameter: 40-300mm, swivel angle: -45 to 45°, length: 3000mm, width: 2500mm, height: 2275mm, with oil mist separation system Hoffmann (new filter inserts), filter system gravity belt filter Faudi, hydraulic unit, additional grinding head for grinding worm gears, grinding mandrels diameter 50, 40, 27, 22, holder for SK40 and MK5, driver sets for different clamping diameters, operating instructions, circuit diagrams in paper form, an inspection is possible. Hodpfxergahxo Ahbsnk
