Used Pfauter Gear Hobbing Machine - Horizontal for sale (70,504)

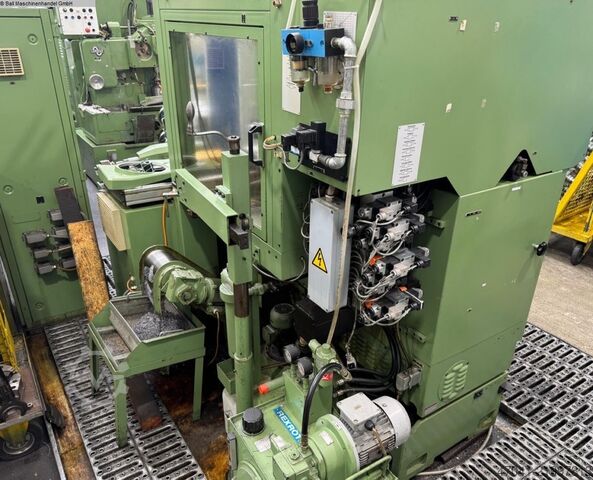

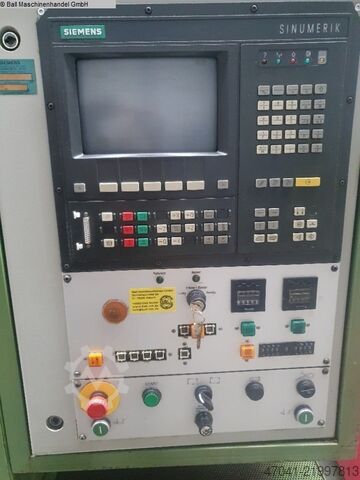

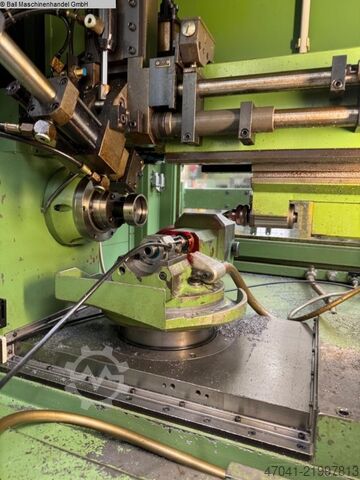

Condition: excellent (used), max. wheel diameter 130 mm gear width 180 mm max. module 2,5 min. module 0,3 turning speeds 140 - 900 U/min min. number of teeth 4 clamping length max. 200 mm Control Siemens max. workpiece diameter 80 mm total power requirement 3,5 kW Nlodpfx Akoy Umizeuob weight of the machine ca. 2,9 t dimensions of the machine ca. 1,8 x 1,6 x 1,9 m

Condition: good (used), max. wheel diameter 145 mm gear width 110 mm max. module 2 min. module 0,3 turning speeds 112 - 1000 U/min min. number of teeth 6 clamping length max. 150 mm total power requirement 3,5 kW weight of the machine ca. 1,3 t dimensions of the machine ca. 1,3 x 0,8 x 1,4 m Nodjy Ivdhepfx Akujlb

Condition: used, Year of construction: 1969, max. wheel diameter 160,175 mm gear width 355 mm max. module 4,5 spindle bore 75 mm Nsdpjvzhf Ssfx Akujlb centre distance 410 mm min. number of teeth 2, 3 cutter diameter max. 115 mm cutter length max. 105 mm axis distance between cutter and workpiece - max. 138 mm axis distance between cutter and workpiece - min. 30 mm milling head -swivable 120 ° milling spindle speeds 70 - 400 U/min axial-feeds 0,25 - 4,0 mm/U radial feeds 0,09 - 1,5 mm/U total power requirement ca. 9,5 kW weight of the machine ca. 3,5 t dimensions of the machine ca. 1730x1400x1440 mm Equipment/accessories: - Interchangeable wheels - Milling arbors - Clamping devices - Documentation

Condition: excellent (used), Year of construction: 1992, max. wheel diameter 130 mm gear width 400 mm max. module 3 Nedpfoyb S R Aex Akujlb min. module 0,5 Control Bosch CC 220 milling spindle speeds (infinitely variable) 300 - 1200 U/min clamping length max. 1160 mm swivel angle for work spindle +/- 45 ° x-travel 230 mm y-travel 170 mm z-travel 400 mm spindle speeds 1 - 125 mm total power requirement 52 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 4,8 x 3,8 x 2,5 m Machine in very nice condition!

Condition: used, max. wheel diameter 40 mm gear width 45 mm max. module 1 Nlsdpfoyh Rmgox Akueb clamping length max. 75 mm number of teeth 5 - 399 hob turning speeds 320 - 3200 U/min weight of the machine ca. 0,6 t Fully Automatic Gear Hobber with Loader for small gears

Condition: good (used), Year of construction: 1991, weight of the machine ca. ca. 6 t The design of the basic machine is characterised by the following features: - horizontal position of the workpiece spindle; vertical position of the milling spindle or milling head of the milling head - The workpiece is held between the workpiece headstock (left) and the tailstock (right). - the radial slide is mounted on the base (X-axis) - the axial slide moves on the radial slide (Z-axis) - the shift milling head is equipped with an automatic angle adjustment (A-axis); the shift slide (Y-axis) moves diagonally to the workpiece diameter - CNC controlled - IBH control - loading device - Many accessories Technical data: Nlsdjub Amfopfx Akujb - largest milling module with hobs according to DIN 8002: 4.5 mm - largest milling module for high-performance milling: 3.0 mm - Number of teeth: 2 - 999 - max. workpiece diameter for manual loading: 200 mm - max. workpiece diameter for automatic loading: 150 mm - maximum workpiece length: 400 mm - largest / smallest milling cutter diameter: 102/40 mm - maximum cutter length: 230 mm - largest / smallest milling arbor diameter (standard): 32/16 mm - Axial slide path = largest milling length Z-axis: 300 mm - Radial slide path X-axis: 140 mm - Milling cutter shift path Y-axis: 100 mm - Milling stock path W-axis: 420 mm - Swivelling angle of shift milling head (left/right) A-axis: 50°/60° Milling coordinates: - Z-axis: 100 - 400 mm - X-axis: 1ß0 - 150 mm - Y-axis (end face of milling spindle): 50 - 230 mm - W-axis (face of tailstock spindle): 165 - 585 mm - Milling cutter speed range standard B-axis: 0 - 1500 rpm - Workpiece speed C-axis: 0 - 350 rpm Feed speeds: - X-axis: 3500 mm/min - Z-axis: 3500 mm/min - Y-axis: 4000 mm/min - W-axis: 5500 mm/min - V-axis (gantry loader): 80000 mm/min

Condition: used, Year of construction: 1969, max. wheel diameter 160 mm gear width 355 mm max. module 4,5 min. module 0,5 centre distance 450 mm total power requirement 11 kW weight of the machine ca. 3,8 t dimensions of the machine ca. 2x17,1,6 m Wheel diameter - max. 160.175 mm Wheel width 355 mm Module - max. 4.5 Spindle bore 75 mm Center distance 410 mm Number of teeth - min. 2, 3 Cutter diameter max. 115 mm Cutter length max. 105 mm Center distance between milling cutter and workpiece - max. 138 mm Center distance between milling cutter and workpiece - min. 30 mm Milling head - swivels 120 ° Milling cutter speeds 70 - 400 rpm Njdpfx Aksvz Ec Ieuslb Axial feeds 0.25 - 4.0 mm/rev Radial feeds 0.09 - 1.5 mm/rev Total power requirement approx. 9.5 kW Machine weight approx. 3.5 t Space requirement approx. 1730x1400x1440 mm Equipment/accessories: - Changing wheels - milling arbors - Clamping device Dra8M7 - documentation

Condition: used, Year of construction: 2001, Technical details: Nodpfx Akoxrwpkjujlb max. wheel diameter: 80/120 mm max. module: 2,5 max. top circle diameter: 65 mm : 22 mm : 140 mm : 120 mm slide travel axial ( Z-axis ): 320/400 mm Dimensions (L/W/H): 3270 x 3240 x 2020 mm weight of the machine ca.: 6 t P60 - The compact all-rounder for wheels, shafts and worms The P60 is the smallest machine in the Gleason line of horizontal hobbing machines. The all-rounder not only mills spur gears with all rollable profiles, but is also the optimal solution for machining steering pinions and worms. with automatic loading system, extraction unit, chip conveyor, with balancing device with 2 tailstocks, with Artec process monitoring system, type CTM-BT1.1 *

Condition: ready for operation (used), thread length: 3,000 mm, Maximum spindle bore is Ø 80 mm. The possible diameter from the traverse path is max. Ø 250 mm and min. Ø 20 mm. Machining length: 3000 mm. Comes with accessories: change gears, steady rest. For further technical data, please refer to the PDF file. Nodpfx Akjv Huihsuolb

Condition: excellent (used), Year of construction: 1980, Horizontal gear hobbing and threading machine for gears, splined shafts, worm screws, threads, and pinions up to 5 meters in length, complete with 3 milling heads models APFW, APGS, APG, set of gears, various steadies, and indexing device. Njdpfsyba Rwsx Akuslb

Condition: ready for operation (used), Year of construction: 1981, functionality: fully functional, VEB Fritz Heckert Nledow Dvanspfx Akuob ZFWVG 250×2000 Maximum workpiece length: 2,000 mm Maximum workpiece diameter: 250 mm Accessories: 2nd milling head, hob cutters in various modules, steadies, clamping devices, etc.

Condition: used, Year of construction: 1985, max. wheel diameter 80 mm gear width 150 mm max. module 2,5 min. module total power requirement 10 kW weight of the machine ca. 2400 kg M I K R O N (Switzerland) Fully Automatic Gear Hobber for Worm Gears Model A 33 / 1 Year 1985 Ser.-No. 14.06/14.07/14.15 _____ max. gear- without feed magazine approx. 80 mm max. gear- with feed magazine approx. 50 mm Module max. 2, / 2,5 Axial milling length approx. 150 mm max. workpiece-mounting length approx. 200 mm Milling slide can be swivelled up to 90 degrees Milling cutter - 24 - 50/63 mm Max. radial distance of milling slide 0-14/18 mm Milling cutter adjustment max. 25 mm Milling cutter speed 212 - 2.000 rpm Axial feed range infinitely adjustable 0,05 - 4,0 mm/workpiece rotation radial infinitely adjustable 0,2 - 200 mm/min. Milling spindle drive 3 kW Total electrical load approx. 10 kW - 50 Hz - 380 Volt Weight approx. 2.400 kg Accessories/Special Features: " Fully automatic operation cycle and minimum idle times due to programmable SIEMENS Program Controls S 5 for all machining steps i.e. rapid gear, feed, milling cutter on/off for the loading device, tailstock, possibly shifting, etc. with unit counter, program numbering including 30 different numeric error displays Pneumatic workpiece-loading and unloading facility parallel to work piece axis upright for rod workpieces approx. 140 mm long x 8 mm , including pneumatic double gripper for loading and unloading of work pieces. Raw parts are inserted into change cassettes externally and then placed into the loading device. The double gripper places the parts between workpiece spindle and tailstock, Nljdpet Hw D Rofx Akueb the tailstock spindle sleeve pushes the parts in the main spindle collet and clamps them simultaneously. The finished parts are ejected from the main spindle, then placed back again into the finished parts cassette by the gripper. The whole process is electrically monitored and checked. The complete loading facility is encased by plexiglass. " Hydraulic work piece clamping device including collets and hydraulic ejector " separate cooling system with magnetic separator * separate hydraulic system * various change gears This machine is set up for worm gears/armature shafts that can be used for adjustable car seats, window lifters, etc.

Condition: used, Year of construction: 1992, max. wheel diameter 150 mm gear width 300 mm max. module 4,5 min. module total power requirement 20 kW weight of the machine ca. 6 t dimensions of the machine ca. m Nlsdpfx Ast Hwxbekuob

Condition: used, Technical details: center height over bed: 260 mm workpiece dia. over bed: 500 mm Nedpfxev U T Dyo Akuolb workpiece dia. over support: 250 mm hobbing length: 2000 mm number of teeth: 2 - 50 feed:: 0,023 - 5,17 / mm/min module max. : 8 / 12 spindle bore diameter: 102 mm workpiece rpm : 18 - 224 U/min tailstock quill adjustment: 100 mm total power requirement: 9,5 kW weight of the machine ca.: 5,2 t dimension machine xH: 3,6 x 2,1 x 2,0 m

Condition: used, Technical details: z-travel: 1250 mm swing diameter over bed: 260 mm Nlodpev U Un Hofx Akusb workpiece dia. over bed: 500 mm workpiece dia. over support: 250 mm center height over bed: 260 mm hobbing length: 2000 mm module max. : 8 / 12 total power requirement: 9,5 kW weight of the machine ca.: 3,8 t

Condition: ready for operation (used), Horizontal gear hobbing machine with master hob, Precimo model HR 3-ND-15. Maximum workpiece diameter: 250 mm. Maximum module: 7. Maximum diameter for module 7: 135 mm. Maximum diameter 250 mm for module 5. Maximum hobbing length: 335 mm. Minimum number of teeth to cut: z6. Maximum distance between centers: 735 mm. Maximum hob speed: 435 rpm. Estimated weight: 3500 kg. Njdpoy Swl Uefx Akuslb

Condition: good (used), Gear hobbing machine, milling machine, tool milling machine, vertical milling machine, roller milling machine, gear hobbing machine, gear hobbing machine, high-performance hobbing machine -Manufacturer: Liebherr, high-performance gear hobbing machine type SS 5- K/500 Nodov Dtmmepfx Akuslb -Working area: Ø max. 500 mm -Max. cutter diameter: 186 mm -Accessories: including extensive accessories see photos -Machine dimensions: 2300/1460/H1870 mm -Dimensions accessories: pallets 1420/1300/H300 / 1200/800/300 mm -Weight: 5300 kg plus 535 kg accessories

Condition: excellent (used), functionality: fully functional, Gear Hobbing Machine WMW MODUL ZFWZ 500 x 5, conventional Country of origin: Germany Technical specifications Nodsy Rh Hyopfx Akuelb Details Maximum workpiece diameter: 500 mm Gear width: 250 mm Max. module: 5 Min. module: 12 mm Total power requirement: 2.2 kW Weight of machine: approx. 1920 kg Machine dimensions: approx. 2500 x 1600 x 1900 mm Cutter diameter max.: 250 - 285 mm Clamping table diameter: 460 mm Table bore: 70 mm Accessories: various Control unit: conventional Additional information: documents

Condition: new, Maximum processing diameter: 200 mm Maximum processing length: 2300 mm Distance between centers: 2500 mm Number of machinable keyways: 4–50 Number of milling cutter speeds: 6 Milling cutter speed range: 50–160 rpm Nlsdpfx Aey N Rbdokuob Number of feed rates: 12 Feed range: 0.41–2.97 mm/rev (workpiece) Distance between the workpiece centerline and milling cutter centerline: 50–165 mm Maximum installed milling cutter diameter: 130 mm Maximum installed milling cutter length: 110 mm Milling cutter shank diameter: 22, 27, 32 mm Milling cutter spindle hole taper: Morse 4 Axial travel of milling cutter spindle: 40 mm Headstock bushing bore taper: Morse 5 Tailstock bushing bore taper: Morse 5 Maximum tailstock sleeve travel: 60 mm Handwheel increment for moving milling head (per revolution): 0.02 mm Handwheel increment for moving milling head (per turn): 2.5 mm Rapid traverse of table: 2.24 m/min Main motor power: 4.0 kW Main spindle speed: 950 rpm Rapid traverse motor power: 1.1 kW Rapid traverse motor speed: 940 rpm Coolant pump motor power: 0.15 kW Coolant pump speed: 2700 rpm Lubrication pump motor power: 0.15 kW Lubrication pump speed: 2700 rpm Machine dimensions (L×W×H): 4225 × 1607 × 1640 mm Total machine weight: 6800 kg

Condition: used, Year of construction: 2002, Technical details: max. wheel diameter: 200 mm gear width: 250 mm max. module: 3 min. module: 0,5 Nsdpoy Nk Idefx Akuelb total power requirement: 45 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation *

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 130 mm max. module: 3 total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Njdpfoy Nk Hgex Akuelb Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm * 2500 mm * 2170mm Accessories : Hydraulical workpiece clamping Automatic loading system Magnetic chip conveyor *

Condition: used, Manufacturer: WMW Type: ZFW-Z 160x3 Gear hobbing machine Max workpiece diameter: ca. 160 mm Max modul: 3 Operated manual and semi-automatic Structure: Sturdy, precision-engineed machine designed for high accurance in gear production Nljdpfx Ajyy N Hyekujb For limited period 10000 Euro for 1x WMW gear hobbing machine 2x WMW UPW25 thread rolling machines!!!!! Just for limited period 2x WMW UPW25 1x WMW gear hobbing machine All for just 10.000 Euro !!!!!

Condition: good (used), max. wheel diameter 630 mm gear width 375 mm max. module 10 clamping table 550 mm table hole 125 mm milling spindle speeds infinitely variable 62 - 390 U/min taper MORSE 5 axial-feeds 0,40 - 6,80 mm/U radial feeds 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle 50 - 425 mm no. of teeth min. 8 milling cutter dia. x width 192 / 215 mm shifting 200 mm Nlodpfsua It Uex Akujb main drive motor 7,5 kW total power requirement 21 kVa weight of the machine ca. 8,2 t Equipment of the machine: - Universal milling head with tangential displacement - Pressure reducing valve for counterholder - Magnetic chip transport - Year of construction approx. 1976

Condition: used, Year of construction: 2008, control Siemens 840D Nedpfx Aowzypnokuolb

Condition: good (used), Year of construction: 1984, max. wheel diameter 250 mm gear width 275 mm max. module 6 weight of the machine ca. 5,5 t The gear hobbing machine ZFWZ 250 is suitable for the economical production of all hob-processable cylindrical gear types, such a: - spur and helical gear, wormgears and worms, splined shafts, keyed shafts, serrated profiles, chain wheels and ratchet wheels,as well as conical and crowned spur and helical gears. Interchangeable wheels Nedpfxsv T Nqas Akuslb and milling accessories Technical data: - Workpiece diameter (max): 250 mm - Module (max): 6 mm - Axial feed travel (max): 275 mm - Tangential feed travel (max): 100 mm - Tooth helix angle (max): 45 degrees - Milling cutter diameter (max): 145 mm - Milling cutter length (max): 170 mm - Table clamping surface (min): 195 mm - Table clamping surface (max): 470 mm Power Milling cutter speeds - Stepped in 2 ranges: 56 ... 250 rpm - (Standard version): 90 ... 400 rpm - Infinitely variable in 2 ranges: 63 ... 180 rpm - (special version DC motor): 140 ... 400 rpm Weights - Machine net: approx. 5000 kg - Electrical cabinet: approx. 800 kg - Hydraulic unit + coolant tank + chip transport: approx. 700 kg Overall dimensions (with oil mist filter) - Length: Standard version: 3950 mm DC drive: 3450 mm (or 3350 mm according to table) - Width: 3300 mm - Height: Machine: 1980 mm Machine with DC drive: 2150 mm Electrical cabinet: 2200 mm
