Used Unbekannt Bending/Straightening Press for sale (17,517)

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, tool height: 200 mm, operating speed: 10 mm/s, working height: 200 mm, bending angle (max.): 180 °, sheet thickness steel (max.): 20 mm, sheet thickness copper (max.): 20 mm, lifting speed: 10 mm/s, bending force (max.): 42 t, Stierli bender 420HE Itodpfjflc Spjx Anwoh Horizontal bending machine, with manual control and angle fine adjustment system Very universal, for bending flat steel, sheet, round steel, profiles, tubes angular or round, forming tools and easy fixing of own tools or special tools, + straightening as straightening press. Bending pressure 42 tons Tool height 200 mm Stroke 0-300 mm stepless Bending capacity 200x24 mm S235 Straightening power for HEA180 Bending and straightening program via selector switch Demonstration machine year 2024 incl. hand and foot pedal Machine as good as new

Condition: as good as new (ex-display), Year of construction: 2024, tool height: 300 mm, stroke length: 350 mm, bending angle (max.): 180 °, pressing force: 82 t, sheet thickness steel (max.): 30 mm, sheet thickness copper (max.): 30 mm, lifting speed: 10 mm/s, bending force (max.): 82 t, Stierli bender 820HE Horizontal bending and straightening machine, with manual control and stroke fine adjustment system STRAIGHTENING with this horizontal press: Fast and precise straightening for welding parts, profiles, beams, sheets, pipes, flat steel, etc.... BENDING with this horizontalpress: Very universal, for bending flat steel, sheet, round steel, profiles, tubes angular or round, forming tools and easy fixing of own tools or special tools, + straightening as straightening press. Iodpogqfmnefx Anwjth Bending pressure 82 tons Tool height 300 mm Stroke 0-300 mm stepless Bending capacity 300x20mm (up to 300x30 with large V-block) S235 Straightening power for HEA260 Bending and straightening program via selector switch Demonstration machine year 2024 incl. hand and foot pedal Machine as good as new

Condition: good (used), Profile bending machine, bending machine, flat iron bender, horizontal bending/straightening press -Bending/straightening press: hydraulic profile bending machine -Base: solid construction, mobile Iedpfx Ast Hmhlonweth -Hydraulic unit: unfortunately without type designation -Piston rod: Ø 55 mm / stroke: 200 mm -Individual components: see photos -Total dimensions: 1180/1060/H1000 mm -Weight: 445 kg

Condition: new, Year of construction: 2025, functionality: fully functional, input voltage: 380 V, input frequency: 50 Hz, stroke length: 200 mm, operating speed: 50 mm/s, reverse speed: 180 mm/s, table length: 3,200 mm, total length: 3,915 mm, total width: 1,605 mm, total height: 2,655 mm, overall weight: 8,000 kg, bending force (max.): 1,000 t, bending angle (max.): 90 °, warranty duration: 24 months, working height: 450 mm, All-Electric Servo Bending Machine Nominal force(KN): 1000 Slider stroke(mm): 200 Throat depth (mm): 360 X-axistravel(mm): 600 R-axistravel(mm): 200 Z-axistravel(mm): 2500 🔹 Smart CNC System – SL100-P with high-end algorithms and 12-inch touchscreen for intuitive operation. 🔹 High-Precision Structure – Finite element analysis (FEA), annealed, and one-time machining for long-term stability and accuracy. 🔹 4-Axis Intelligent Backgauge – AC servo-driven, high-speed positioning with automatic collision avoidance. 🔹 Precision Compensation System – Adjustable convex strips & fine-tuning mechanism for optimal bending accuracy. 🔹 Powerful & Durable Drive – High-torque servo motor, heavy-duty ball screws & sealed protection for longevity. 🔹 Fully Closed-Loop Control – Y1/Y2 magnetic scale feedback, positioning accuracy ±5μm. 🔹 Optimized Electrical System – Closed electrical box, heat dissipation, & neat wiring for reliability and easy maintenance. 🔹 Imported Precision Components – Ball screws & linear guides ensure accuracy without stroke compensation. 🔹 High precision, stability, and smart automation – designed for professional sheet metal bending! Itodev Hchlopfx Anwoh

Condition: used, CNC Press Brake BEYELER - BYSTRONIC Type PR 8 (2500 kN x 3100 mm) Press brake with 6-axis backgauge and CYBELEC control Serial No.: Year of manufacture: 2001 Pressing force: 250 tons Working length: 3100 mm Itedpfjya Iaqex Anwjh Stroke: 365 mm Throat depth: 410 mm Clearance between side frames: 2750 mm Table width: 100 mm, 200 mm with table extension Table height above floor: 840 mm Backgauge X-axis: 620 mm travel Backgauge R-axis: 240 mm Approach speed: 200 mm/s Working speed: 1-10 mm/s Y rapid traverse: 200 mm/s Y working traverse: 1-10 mm/s Y return: 135 mm/s Oil capacity: approx. 400 liters Motor power: 18.5 kW Connected load: approx. 25 kW Power supply: 400 Volt, 50 Hz, 50 Amp. - 8 axis CNC control Cybelec DNC 1200 PS/A, X1 + X2 / R1 + R2 / Z1 + Z2 - 2 freely programmable backgauge fingers, laterally movable (Z1+Z2) - Backgauge (X-axis 620 mm) with 3 gauging points up to max. 1080 mm - Ram with servo valves and measuring system Y1 and Y2 - FIESSLER AKAS safety light barrier - Operation via electric foot switch and/or two-hand control panel - Hydraulic upper tool clamping (TRUMPF system) with 20 mm clamping slot - Tool holder for lower tool, height 160 mm x width 60 mm, with holder slot 14 x 23 mm - Tool system TRUMPF, without tools Space requirement (L x W x H): 0 x 2500 x 3400 mm Machine transport height: 3360 mm Weight: 17,000 kg Good condition

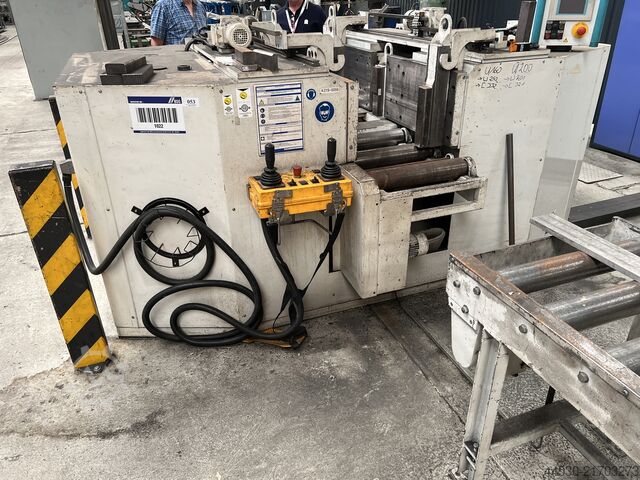

Condition: good (used), Year of construction: 2011, Pressure: 160 t Minimum counter bearing distance: 550 Maximum counter bearing distance: 1550 Max. workpiece width: 400 Cylinder stroke: 450 mm Clearance - horizontal: 400 mm Total power requirement: 18.5 kW Machine weight approx.: 13.5 t Space requirement approx.: 3.65 x 1.7 x 1.62 m Pressing force: 1600 kN Adjustable from 0-1600 kN Power consumption: 18.5 kW Hydraulic pressure: 245 bar Itsdpfxjzd Arne Anweh Minimum counter bearing distance: 550 mm Maximum counter bearing distance: 1550 mm 2 movable straightening beams to apply pressure and counter-pressure Max. workpiece width: 400 mm Mains connection: 400/230 V, 50 Hz N/PE Dimensions (L x W x H): 3.650 x 1.700 x 1.620 mm Machine weight: 13,500 kg Hydraulic unit (L x W x H): 1,700 x 800 x 1,400 mm Control cabinet: 800 x 500 x 1,800 mm Kunkel hydraulic straightening and cambering presses are used in heavy steel construction to pre-tension or align beams and profiles. Especially in modern steel high-rise construction, it is essential, for optical reasons, to give structural components a camber – a slight curvature – so that under load, the impression of straight, horizontal contour lines is maintained. Kunkel machines impress with their highest precision and economic efficiency. With this straightening press, the workpiece can be machined in both directions in a straightening position. All straightening blocks are adjustable. In addition, the machine has a mobile control panel.

Condition: used, pressure 100 t stroke 300 mm Cylinder 205 mm distance between table / ram 520 mm table surface area 1100X350 mm ram surface 350X350 mm total power requirement 7,5 kW with roller conveyor, Itedpeyutqwjfx Anwoh 1: Roller conveyor: 2000x500 inlet 1: Roller conveyor: 2000x500 outlet The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: new, The scope of delivery includes: 1x Top tool, new Tool system: UKB system Trumpf / Wila / LVD with Simple Clamp Type: 15320-500 (15320X) Angle: 28° Radius: R 1.0 mm Length: 500 mm Width: 24 mm Height: 120 mm Load capacity: 800 kN/m max. Material: 42 CrMo4 Weight: ≈ 10 kg Internal reference: DE-KW23-26-03 Explanation: The tool is used in bending presses (also known as die-bending presses) for industrial sheet metal processing. Itedpfx Aezcuqbjnwoh The standardized tool holder, "Simple Clamp safety button," allows the operator to install and remove the segment vertically at any desired point of the press clamping mechanism. Note: This tool is being sold as part of a customer return (purchase date: April 2026) and is therefore offered at a reduced price. Your contacts at our company: Mr. Andre Evering Mr. Mario Klöver Mr. Falk Deutsch General information about the item: This item is offered for pickup only. Any additional transport or shipping of this item will incur additional costs, which can be requested separately depending on the delivery location and scope of delivery.

Condition: used, Year of construction: 1965, pressure 400 t Itedpfx Ansyt R Dljwjh throat 1140 mm stroke 600 mm table surface area 2000x1000 mm Plate 4000x1000x300 mm ram head dimension 2000x1040 mm Cylinder 300 mm Daylight 650 dimensions of the machine ca. 3,9x4x4,2 m Machine has been overhauled. Maximum distance from ram to clamping plate: 1250 mm The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: good (used), Clamping plate, plate field, welding table, welding table, clamping plate, scribing and measuring plate, measuring table, straightening plate, short-stroke heavy-duty cylinder, hydraulic cylinder, support cylinder, hydraulic ram, pressure ram, hydraulic press, bending machine, straightening machine, profile straightening system, strip straightening machine, strip straightening device, shaft straightening system, combined bending machine-straightening press, profile bending machine, bending machine bending/straightening press -Mounting plate: Mounting plate with straightening press -Length: 3260 mm -Width: 1380 mm -Piston diameter: Ø 63 mm -Stroke: 200 mm -Pressure force: t -Overall dimensions: 3260/1380/H1940 mm Iodpfozbhqxex Anwsth -Weight: 2820 kg

Condition: as good as new (ex-display), Year of construction: 2023, tool height: 200 mm, bending angle (max.): 180 °, pressing force: 42 t, sheet thickness (max.): 30 mm, sheet thickness copper (max.): 20 mm, lifting speed: 10 mm/s, bending force (max.): 42 t, Stierli bender 420 CNC Horizontal bending machine, with Siemens controler Itodpfx Anjgqflqswjh Very universal, for bending flat steel, sheet, round steel, profiles, tubes angular or round, forming tools and easy fixing of own tools or special tools, + straightening as straightening press. Bending pressure 42 tons Tool height 200 mm Stroke 0-300 mm stepless Bending capacity 200x24 mm S235 Straightening power for HEA180 Bending and straightening program via selector switch Demonstration machine year 2023 incl. hand and foot pedal Horizontalbendingmachine as good as new Please contact us for more information for this horizontal bender.

Condition: used, functionality: fully functional, Hydraulic straightening press Manufacturer: G + K Year of manufacture: 1992 Max. pressing force: 130 t Table size (bottom): 800 x 500 mm with T-slots Table size (top): 800 x 500 mm with T-slots Installation dimension: 1000 mm System pressure: 250 bar Electric motor: 15 kW Weight: 3400 kg Operating voltage: 380 AC, 24 DC Bsbmm Av Esxr Rnaeuodc Control system renewed 5 years ago Isdpfx Asza S Dasnwjth The machine is equipped with 2 tables, one at the bottom and one at the top, each measuring 800 x 500 mm. A throttle valve is installed on the hydraulic unit for pressure adjustment.

Condition: used, functionality: fully functional, Equipment: documentation/manual, Hydraulic straightening press Manufacturer: G + K Year of manufacture: 1992 Iodpfx Anoza Szrjweth Max. pressing force 130 t Table size (bottom) 800 x 500 mm with T-slots Table size (top) 800 x 500 mm with T-slots Installation dimension 1000 mm System pressure 250 bar Bjbmm Av Eoxr Rnaeujdc Electric motor 15 kW Weight 3400 kg Operating voltage 380 AC, 24 DC Control system renewed 5 years ago 2 tables (bottom) 800 x 500 mm The hydraulic unit allows for pressure adjustment via a throttle valve, which can be monitored on the pressure gauge. The electrical system was overhauled by Schäger Steuerungsbau.

Condition: new, AUTOMATIC DOUBLE SPEED MOTORIZED HYDRAULIC PRESS WITH RAPID POWER 20 TON Max capacity TON 20 Approach speed (in rapid) mm/min 1700 Iedsrvz A Sspfx Anwsth Working speed (in slow) mm/min 440 Cylinder rod stroke mm 300 Cylinder rod diameter mm 45 Shank diameter mm M14 Tank capacity liters 30 Max pressure bar 350 Voltage V 400 Frequency Hz 50-60 Motor Power kW 1.5 Max absorbed current A 3.8 Weight Kg 200

Condition: new, MVD Synchronized Hydraulic Bending Press Ready in stock unless sold out! Mod. I-Bend D 3100/320 Color Videographic Numerical Control ESA S875 W *dxf Itedpfx Aerqvtmjnwsh Controlled axes No. 8 ( Y1-Y2-X-R-Z1-Z2-X5_A1) WILA motorized compensation table Multi-beam barriers NEW ELECTRONICS DSP LASER UNIMEC high-speed motorized rear register (Made in Italy) GIVI MISURE optical scales (Made in Italy) Bending length mm 3100 Power exerted Ton 320 Recess mm 510 Stroke mm 410 Opening mm 635 Upper tools and lower die ROLLERS supplied

Condition: new, Synchronized hydraulic bending press MVD Ready in stock except when sold! Mod. I Bend D 4100/320 Videographic Numerical Control ESA W660 color Iodpfx Aofh N Agenwjth Controlled axes Nr. 7 ( Y1-Y2-X-R-Z1-Z2-X5) WILA motorized compensation table Multi beam barriers NEW ELECTRONIC DSP LASER UNIMEC high speed motorized rear register (Made in Italy) GIVI MISURE optical scales (Made in Italy) Bending length mm 4100 Exercised power Ton 320 Hollow mm 510 Stroke mm 410 Opening mm 635 Upper tools and lower die ROLLERS supplied

Condition: new, Year of construction: 2024, Electro hydraulic press 110 Ton Made in Italy The P110 MR is equipped with: 400 V 50-60 Hz immersed motor control unit. Pump for fast approach and return in 20 bar calibration. Adjustable pressure pump with handwheel to obtain the required power. Pressure relief valve with mechanical block to prevent overpressure. Pressure gauge (standard) that allows to calibrate with extreme precision the delivered power. The P110 MR is the only hydraulic press consisting of 2 laser-cut FE 510 monolithic structure uprights. without welding in the places of greatest stress This feature gives it extraordinary robustness. It is non-deformable and guarantees tight working tolerances. Itsdpfx Ansfh R N Dewsh The P110 MR is equipped with a 30-litre tank and has a rapid descent speed of 1,400 mm/min. Weight : kg 1,100 Max pressure : bar 350 Max. flow rate : t. 110 Rapid flow rate :l/min 34 Slow flow rate : l/min 5 Inside shoulders : mm 1004 Rapid rod feed : mm/min 1.400 Slow rod feed : mm/min : 130 Voltage : V 400 Frequency :Hz 50-60 Power : kW 3 Max. absorbed current : A 7,3 Cylinder stroke : mm 300 Cylinder diameter : mm 200 Stem diameter : mm 110 Piston descent speed : mm/sec 23 Tank capacity : litres 30

Condition: new, Year of construction: 2026, functionality: fully functional, input voltage: 400 V, input current: 7 A, pressing force: 150 t, stroke length: 300 mm, Equipment: CE marking, documentation/manual, MOTORIZED HYDRAULIC PRESS WITH AUTOMATIC DOUBLE SPEED AND RAPID ADVANCE CAPACITY: 150 TONS The monolithic frame is entirely laser-cut and securely bolted in package form. This characteristic makes all our presses deformation-resistant, even in areas subject to the highest stress. All components are manufactured in Italy. Hydraulic power unit with ICME submerged motor 400 V, 50/60 Hz; cylinders and frames made in Italy. GALTECH monobloc distributor. No. 2 single-direction external gear pumps in aluminium by VIVOIL: one dedicated to fast approach and return (set at 20 bar), and one with pressure adjustable via handwheel to set the required force. Maximum pressure valve with mechanical lock to prevent overpressure. 2 MP CETOP high-range modular block. Standard pressure gauge for displaying delivered power. INTECH electrical control panel, certified to current standards and independently CE marked. Maximum capacity: 150 tons Rapid approach speed: 1,450 mm/min Working speed (slow): 105 mm/min Cylinder rod stroke: 300 mm Itedpfx Anoy E Rr Ieweh Cylinder rod diameter: 110 mm Shaft diameter: M30 Tank capacity: 50 L Maximum pressure: 350 bar Voltage: 400 V Motor power: 3 kW Weight: 1,300 kg

Condition: good (used), Clamping plate, plate field, welding table, welding table, clamping plate, scribing and measuring plate, measuring table, straightening plate, short-stroke heavy-duty cylinder, hydraulic cylinder, support cylinder, hydraulic ram, pressure ram, hydraulic press, bending machine, straightening machine, profile straightening system, strip straightening machine, strip straightening device, shaft straightening system, combined bending machine-straightening press, profile bending machine, bending machine bending/straightening press -Mounting plate: Mounting plate with straightening press -Length: 4025 mm -Width: 1990 mm -Piston diameter: Ø 63 mm -Stroke: 110 mm -Pressure force: 20 t -Overall dimensions: 1990/4025/H1920 mm -Weight: 5060 kg Ijdpfxozakf Nj Anwoth

Year of construction: 1996, condition: excellent (used), machine/vehicle number: 121, Further MACHINERY / SPARE PARTS & MACHINE COMPONENTS of this type are available in our warehouse. ON REQUEST Itodpfx Ajh Eib Eonwjh

Condition: excellent (used), Year of construction: 2006, machine/vehicle number: 6513/19, Further MACHINERY / SPARE PARTS & MACHINE COMPONENTS of this type are available in our warehouse. ON REQUEST Iodpewu Sg Esfx Anwsth

Condition: new, pressing force: 300 t, For sale is a hydraulic portal straightening press (H-frame) from manufacturer Durendus with a maximum pressing force of 300 t. The machine features a table size of 1,500 × 2,000 mm, a maximum installation height of 1,000 mm, and a stroke of up to 600 mm, making it particularly suitable for straightening, alignment, and heavy forming applications in industrial environments. The machine shown here was built and delivered to a customer’s specification; we can manufacture this machine as a new unit on short notice. Available Options (upon request): The options listed below are based on completed customer projects and allow targeted adaptation of the machine to specific applications. The base machine is delivered in a functional basic configuration—in practice, it is most often expanded with additional features and configured to meet project requirements. Examples include: * Siemens S7-1200 PLC + 7” display for operator interface * Wireless remote control * Safety edge at the base of the portal columns (600 mm) * Table with T-slots * Motorized bridge positioning * Travel path extension * Larger open height * Light curtain under the bridge * Laser distance measurement * Lifting cylinder in the table ##### Technical Data & Information: Hydraulic Portal Straightening Press – H-frame – 300 t ==== General Specification - Designation: Hydraulic portal straightening press - Type: H-frame / portal press - Manufacturer: DURENDUS - Pressing force: 300 t (adjustable) - Distance between uprights: 1,580 mm - Table size: 1,500 × 2,000 mm - Bridge travel: 1,500 mm - Lateral travel (center): ±500 mm - Max installation height: 1,000 mm - Table height from floor: 950 mm - Ram extension: 200–400 mm - Total weight: approx. 9,500 kg ==== Hydraulic Cylinder - Piston stroke: 0–600 mm - Max working pressure: 250 bar - Return speed: 16 mm/s - Ram speed: 10 mm/s ==== Hydraulics & Drive - Hydraulic pump: ASC - Pump capacity: 60 l/min - Tank volume: 250 l - Motor rating: 11 kW - Pressure accuracy: ±5 bar - Hydraulic unit: top-mounted - Valve technology: DUBLOMATIC Iedpfxeyzfkqo Anwoth - Filter: FILTREC - Oil level monitoring: electronic - Cooling: air cooling ==== Movement System - Bridge drive: 2 × 2.2 kW - Lateral cylinder movement: 0.75 kW - Movable bridge: yes - Laterally movable cylinder: yes ==== Control System - PLC: SIEMENS S7-1200 - Operation: pendant panel / wired remote control - Control: manual valve + electric control - Optional: 7" touchscreen - Optional: wireless remote control - Optional: up to 99 programs storable ==== Safety - Hydraulic overload protection - Electronic overload protection - End travel safety switches (top/bottom) - Safety PLC - CE-compliant design - Optional: safety edge on portal columns ==== Electrical Connection - Main supply: 400 V AC - Control voltage: 24 V DC - Frequency: 50 Hz - Main motor: 11 kW - Total connected load: approx. 18 kW Fields of application: Straightening, tool and mold making, steel construction, heavy forming, maintenance, try-out, alignment work (Hydraulic press, hydraulic straightening press, portal press, portal straightening press, 300-ton press, 300 t press, H-frame press, heavy-duty press, industrial press, forming press, straightening system) ##### The images shown serve as samples and may deviate from the actual configuration.

Condition: used, Year of construction: 2021, machine/vehicle number: HB 2022-A-073, pressing force: 300 t, Portal straightening press with 300 T capacity a) idle and pressing speed up to 17 mm/sec. b) opening speed up to 55 mm/sec c) table size 2500x1600mm d) open height 700 mm e) total size approx. LBH 4500 x 2300 x 3700 mm f) Oil temperature indicator on the tank g) Lubrication via grease nipple h) table in grid construction,with T grooves according to customer's request, otherwise 22mm i) operation on swivel arm, mounted on the bridge j) pressure adjustment from 50 T to 300 T via MONITOR k) bridge moves by two gear motors, via racks l) Cylinder moves to the left and to the right via toothed racks m) Machine body double painted n) Cylinder induction hardened Type of construction Press design PORTAL PRESS Thermally neutral 80 - 120 °C Number of operating sides 3 side Forces Pressing force max. 3,000 kN Free ripping force max. 500 kN Pressure build-up time Closed die Steel to steel Max. 3 sec. Dimensions Max. Opening width 700 mm Stroke and min. opening 700 mm/ 0 mm Table height above floor approx. 9ß0 mm Height above floor (headroom) approx. 3700 mm Hall height min. 5.000 mm Iodpfjh Agnusx Anweth Deflection Determined at max. clamping force with 70% occupancy < = 0.8 mm/m Weight Total weight of press without operating materials and table plate approx. 22 T Speeds Fast closing with 17 mm sec. Pressing speed 8 mm sec. Opening 55 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel after max. 78 db(A) DIN 45635-T16-KL3 Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 350 bar Pressing pressure build-up time 02. mz sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH approx. 93 L/min Oil volume approx. HLPD 46 MW 900 liters Ambient temperature max. 45 °C Oil temperature max. 55 °C Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Hydraulic connection Main motor IE3 22 kW Total connection Approx. 30 kW

Condition: new, Year of construction: 2019, pressing force: 275 t, pressure:275 t distance between columns:3000 mm total power requirement:30 kW weight of the machine ca.:40 t draw back pressure:27 t pump capacity:Axialpumpe mit Proportionalventil :6000 mm :max. 3000 mm Table dimensions:6000 x 3000 mm table height over floor:700 mm distance between table / ram:1100 mm :450 l traversing speed:auf X und Y, 30-33 mm/sec. down speed:2-10 mm/sec :2-50 mm/sec. Cylinder hub:900 mm Iodpfjfxyigjx Anweth Cylinder diameter:440 mm Stestle extension:200 / 200 mm / Ø :40 mm Siemens Control System:S7 1200 Monitor Siemens 9":Touch Panel Tax desk:tragbar

Condition: as good as new (ex-display), Year of construction: 2021, pressing force: 400 t, Gantry straightening press with 400 T capacity a) idle and pressing speed up to 17 mm/sec. b) opening speed up to 60 mm/sec c) table size 6000x3000mm d) open height 1500 mm e) total size approx. LBH 6000 x 5000 x 4500 mm f) Oil temperature indicator on the tank g) Lubrication via grease nipple Itodjhyc Nwspfx Anwjh h) Table in grid construction, i) operation on swivel arm, mounted on the bridge j) pressure adjustment from 60 T to 400 T via MONITOR k) Bridge moves by two gear motors, via toothed racks l) Cylinder moves to the left and right via toothed racks m) Machine body powder coated, or double painted n) T-slots according to customer requirements o) cylinder induction hardened PORTAL PRESS Thermally neutral 80 - 120 °C Number of operating sides 3 side Forces Pressing force max. 4000 kN Free ripping force max. 600 kN Pressure build-up time Closed die Steel to steel Max. 3 sec. Dimensions Max. Opening width 1500 mm Stroke and min. opening 1500 mm/ 0 mm Table height above floor approx. 900 mm Height above floor (headroom) approx. 4500 mm Hall height min. 5500 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.8 mm/m Weight Total weight of press without operating materials and table plate approx. 52 T Speeds Fast closing with 17 mm sec. Sound pressure Sound pressure level, measured at 1.5 m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders 1 pc. Operating pressure max. 280 bar Pressing pressure build-up time 2-3 sec. Pressure accuracy during pressing stroke +/- 5 bar Main pump BOSCHREXROTH approx. 150 L/min Oil volume approx. HLPD 46 MW 900 liters Ambient temperature max. 45 °C Oil temperature max. 55 °C Electrical system Main supply 400 V AC Control voltage 24V DC Frequency 50 Hz Connection hydraulics Main motor IE3 30 kW Total connection Approx. 35 kW
