Horizontal machining center

MAZAK HCN 4000

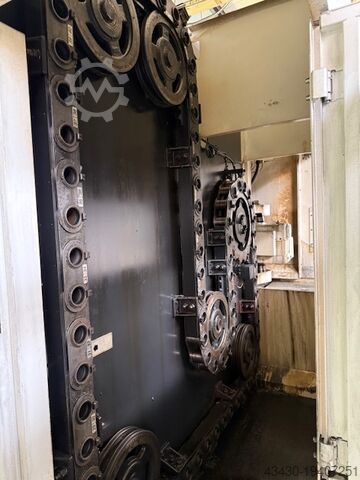

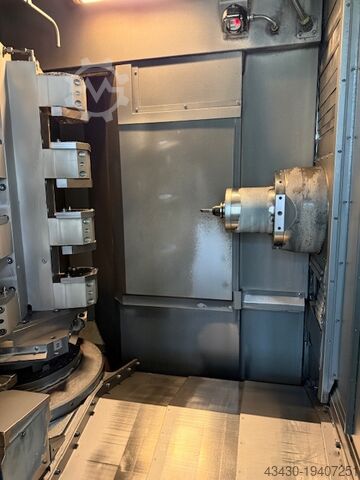

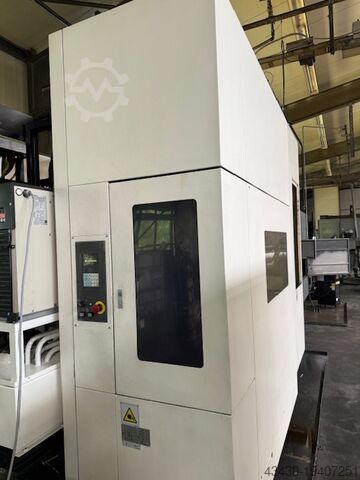

Condition: ready for operation (used), Year of construction: 2018, operating hours: 13,321 h, travel distance X-axis: 560 mm, travel distance Y-axis: 640 mm, travel distance Z-axis: 640 mm, controller manufacturer: MAZATROL, controller model: SmoothG, spindle speed (max.): 18,000 rpm, spindle motor power: 35,000 W, number of slots in tool magazine: 60, number of axes: 4, This 4-axis Mazak HCN 4000 was manufactured in 2018 and features a Mazatrol SmoothG control, through-spindle cooling at 32 bar, and a Renishaw OMP 60 touch probe. With a spindle speed of up to 18,000 rpm and a tool magazine capacity of 60, it's ideal for precise and efficient machining. Consider the opportunity to buy this Mazak HCN 4000 horizontal machining centre. Contact us for more information about this machine. • Table: Pallet size 400 x 400 mm; Number of pallets 2; Indexing 1° increments • Control: Mazatrol SmoothG • Coolant/air: Through-spindle cooling 32 bar; Through-spindle air supply; Niagara flushing • Functions: Tapping without compensating chuck (rigid tapping); G00 tilt function Knodpfxex Enlle Akwjb • Compliance: CE marking Additional equipment • Renishaw OMP 60 touch probe • Renishaw Inspection+ (Version 2022) • Tool length measurement system • Tool ID system • Chip conveyor • Additional filter cartridges Technical Specification Taper Size SK 40

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW Kedpfx Akou Sblwswonb weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Accessories: box table 550 x 550 x 550 mm, vice, coolant

Condition: used, Year of construction: 1984, functionality: fully functional, travel distance X-axis: 1,800 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 2,000 mm, table load: 5,000 kg, spindle diameter: 110 mm, total height: 3,800 mm, total length: 5,000 mm, total width: 3,000 mm, table length: 1,520 mm, table width: 1,225 mm, feed length X-axis: 1,800 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 2,000 mm, Tool holder SK50, Heidenhain control, machine is ready for collection and immediately operational. Knjdpoxga Tnofx Akwsb

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t dimensions of the machine ca. 3,2 x 1 x 2,75 m cube table 500 x 500 x 500 mm Kjdetv Ikljpfx Akwonb

Condition: used, Year of construction: 2004, Technical details: x-travel: 1500 mm y-travel: 1000 mm z-travel: 1000 mm control for program: TNC 530 spindle hours: noch nicht bekannt h milling head speed: 1: 30 bis 930 und 2: 930 bis 4000 / steples U/min tool taper: horiz./vertical: SK 50 (DIN 69871/Din 69872 Form A) max. torque on the spindle: 1000 Nm spindle head swivable left - right: 90 ° feed: 1 - 6000 mm/min feed power: 30 kN kN rapid traverse: 15 m/min Number of tools: 1 St. table clamping surface LxW: 1600 x 800 mm table load: 40 kN kN voltage: 400 V / 50 HZ V total power requirement: 42 kW Weight approx.: 15,2 t compressed air: 6,3 bar dimension machine xH: 3,1 x 4,7 x 2,6 m dimensions: Kühlfilter: 1,9 x 1,6 x 1,4 mm space requirements approx. LxWxH: ca. 38,5 m² m² Applications: Milling, drilling; tapping, boring. with direct coded length measuring systems the guideways of the 3 axes are on flat guideways CTS and external cooling Milling head position controlled +/-90° milling spindle nominal drive power 22 kW with integrated hydraulic power unit up to 100bar operating pressure with coolant unit with filtration, with high pressure pump 60 bar (internal cooling), nominal delivery 20 l/min. and low pressure pump 4 bar (external cooling) as well as spray gun Hinged belt chip conveyor DGS, type SSF 600 P50 Accessories: Measuring probe SK40 Knodpfx Asu Nc Rijkweb Reference tool SK40 Milling head SEMPUCO *

Condition: used, Technical details: spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm Knedpfx Akext El Aswob W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment *

Condition: used, BROACHING MACHINE Kodpjt Hr Dfsfx Akwonb

Year of construction: 1988, condition: ready for operation (used), Travel X/Y/Z: 1500mm/800mm/660mm, spindle speed: 10000rpm, table dimensions X/Y: 1740mm/750mm, tool capacity: 30, taper type: BT50, control: Mazatrol M-32, weight: approx. 11000kg. Knodpfx Aotpp H Nekwjb

Condition: excellent (used), Year of construction: 2011, TECHNICAL DETAILS CNC control: MSX-501III X axis mm: 560 Y axis mm: 560 Z axis mm: 660 Kedpfx Aexfka Nekwonb B axis deg.: 360.000 Table load capacity kg: 400 Cutting feed rate mm/min X,Y,Z: 60,000 Max. rapid traverse m/min X,Y,Z: 50 Spindle speed rpm: 12,000 Spindle power kW: 15 Taper type: ISO-40 Torque Nm: 120 Tool changer type: Chain Tool changer positions: 60 Max. tool diameter mm: 70 Max. tool diameter with adjacent positions empty mm: 170 Max. tool length mm: 450 Max. tool weight kg: 8 Coolant tank capacity l: 500 Through-spindle coolant (high-pressure): Yes EQUIPMENT Double chip conveyor ISO-40 taper High-pressure through-spindle coolant with pump Tool breakage detection probe Part measuring probe RENISHAW MACHINE DIMENSIONS Length mm: 3,755 Width mm: 2,300 Height mm: 2,610 Weight kg: 7,600

Condition: excellent (used), 1. Permanent-magnet chuck, D = 315 mm, with mounting flange according to DIN 55027, size 6. Ksdpsd Eaauofx Akwjnb
