CNC turning and milling center

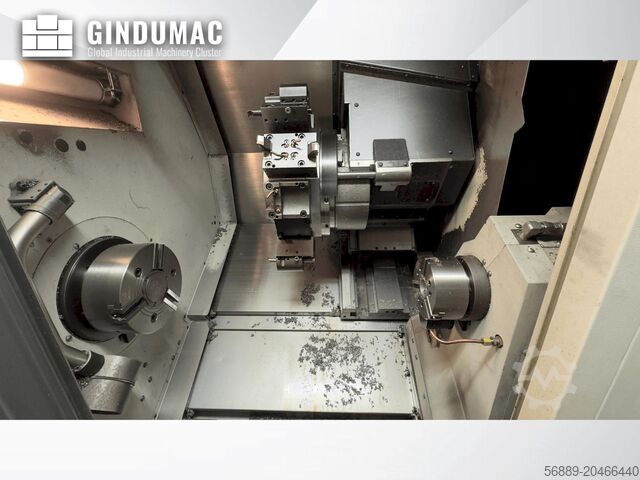

Mori Seiki NL 2500 SY/700

Condition: good (used), Year of construction: 2003, Main spindle: Speed range - main spindle max. 6,000 min/-1 Drive power - main spindle 16 kW Rjdpfx Agev Drigsieck Max. torque 155 Nm C-axis 360 ° Tool turret: Number of tool positions 12 pos. Number of driven tool stations 12 pos. Speed range - driven tools max. 5,000 min -1 Drive power - driven Tools 10 kW Tool holder (VDI 30) Tool shaft 20 x 20 mm Travel paths: x-axis 160 mm z-axis 450 mm Feed rates: Rapid traverse X: 60 m/min Rapid traverse Z: 45 m/min Feed force X: 2.5 kN Feed force Z: 4 kN Rapid traverse C: 200 1/min Max. torque C: 155 Nm Total power requirement Machine weight approx. 3.7 t Space requirement approx. 4.5 x 2.5 x 2.5 m Heidenhain control Hollow clamping cylinder C-axis and tool drive a Chip conveyor Oil and emulsion mist separator with electrostatic filter

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, turning length: 810 mm, turning diameter over cross slide: 800 mm, turning diameter: 320 mm, spindle motor power: 25,000 W, spindle speed (max.): 5,000 rpm, spindle bore: 73 mm, travel distance X-axis: 210 mm, travel distance Y-axis: 110 mm, travel distance Z-axis: 810 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 20 m/min, rapid traverse Z-axis: 50 m/min, rotational speed (max.): 6,000 rpm, CNC FANUC MSX-701 / MAPPS IV CAPACITY Swing diameter over bed: mm 800 Redjwlvlgopfx Agiock Swing diameter over cross slide: mm 800 Maximum turning diameter: mm 320 Standard turning diameter: mm 200 Maximum distance between the center: mm 1.130 Maximum turning length: mm 810 Maximum workpiece size: mm 300 TRAVELS X axis turret 1 and 2: mm 210 Y axis turret 1 and 2: mm +65 / -45 Z axis turret 1 and 2: mm 810 B axis headstock 2: mm 920 MAIN SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 SUB SPINDLE Maximum speed: rpm 5.000 Drive power (30 min / continuous operation): kW 25/22 Maximum bar diameter: mm 65 Spindle bore: mm 73 Spindle diameter in front bearing: mm 120 Spindle mount: JIS A2-6 C-axis resolution: degrees 0,001 FEED DRIVES Rapid traverse turret 1 X/Y/Z: m/min 30/20/50 Rapid traverse turret 2 X/Y/Z: m/min 30/20/50 TOOL TURRET Number of turrets: 2 Number of tool stations per turret: 16 Shaft cross – section for turning tools: mm 20 x 20 Maximum shaft diameter for boring bars: mm 32 Turret switching time (1 station): s 0,18 Maximum speed of the driven tools: rpm 6.000 Drive power for driven tools (5 min/continuous operation): kW 7,5/5,5 DIMENSIONS Installation area with chip conveyor: mm 5.120 x 2.720 Net weight: kg 8.300 Macchina equipped with: • High pressure cooling system • Bar loader interface • Gantry-type piece unloading arm • Cutting effort management system and load monitor • No. 1 double radial motorized tool holder • No. 3 axial motorized tool holders • No. 2 external tool holders • No. 2 double boring bar holders • No. 2 single radial motorized tool holders • No. 2 internal boring bar holders • No. 2 Kitagawa BD 208 self-centering chucks diam. Mm 210 • No. 1 set of jaws for each self-centering chuck • Instruction manuals and CE declaration Year of manufacturing: 2010

Condition: used, Year of construction: 2011, functionality: limited functionality, bar passage: 51 mm, overall weight: 6,000 kg, bar capacity 51 mm – three turrets – three Y axes – fixed/driven tool holders – LNS Sprint 552 bar feeder new in 2011 – Fanuc Control Redpfx Agswvvyreieck

Condition: used, Year of construction: 1999, swing dia. 680 mm max. turning diameter 429 mm turning length 440 mm control MORI SEIKI - MSC-501 turning speeds 5.000 U/min Rsdpfxjwpluls Agisck max. bar material dia. 56 mm travel -x axis 233 mm travel -z axis 510 mm number of tapers in turret head 2x12 CNC Turning- and Milling Center | MORI SEIKI - ZL-150SMC equipped with main/counter spindle, c- axis, 2x turret for driven tools, bar feeder and chip conveyor. The machine is in a well-maintained condition. Please note that the technical details were added from comparable machines. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: ZL 150SMC | ZL150SMC | ZL-150 SMC | ZL 150 SMC

Condition: used, Year of construction: 2010, turning diameter max. 320 mm turning length 810 mm control MSX 701 Number of revolutions max. 6.000 U/min power capacity - main spindel 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm Number of revolutions max. 6.000 U/min power capacity - Sub spindle 22 / 18 kW max. usable bar diameter 52 mm C-Axis 0,001 ° spindle nose JIS A2-5 collet chuck 140 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW Y - Axis 110 mm number of toolpositions 16 pos. Number of driven toolspositions 16 pos. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 7,5 / 5,5 kW x-travel 1/2: 210 mm y-travel 110 mm Rcodpfx Agov E R E Aeisk z-travel 1/2: 810 mm b-axis 900 mm total power requirement 86 kVA weight of the machine ca. 8,1 t dimensions of the machine ca. 8,0 x 3,5 x 2,8 m CNC - Turning- and MillingCenter MORI SEIKI - NZ 1500 T2Y - Main- and Subspindle - 2 turrets, up and below - Y-Axis - 2x 16 driven tool positions

Condition: good (used), Year of construction: 2002, operating hours: 18,000 h, CNC MULTITASKING LATHE MORI SEI MOD. MT 2000 SZ Main Spindle Kw 22 6,000 RPM X/y/z/b Travels: 565 - +/- 80 - 1077 - +/- 120° Milling Head Capto C6 6,000 RPM Motorized Lower Turret 12 Stations Tool Magazine 40 Posts Rcedpfxeu Sg Auj Agijk Year 2002

Condition: excellent (used), Year of construction: 2020, functionality: fully functional, spindle bore: 81 mm, TAKISAWA TM 4000 Y2 ! Very few operating hours ! Control: FANUC 31iB Standard turning diameter on both spindles: 215 mm Spindle bore: 81 mm 2 x Y-axis -50mm +70mm / -50mm +30mm Z-axis travel: 800 mm Max. main spindle speed: 4,200 rpm Rcjdpfx Agjw Hxidoiek Max. sub spindle speed: 5,000 rpm Revolver: 2 x 12-position, driven tools up to 6,000 rpm 1 x power chuck 250 mm / 200 mm 1 x collet chuck Signal lamp Tool presetting device Helical interpolation Raku-Raku tool monitoring Parts ejector Direct path measurement Y1 axis X1 Air blast sub spindle Bar feeder magazine BK 105L High-pressure coolant system KNOLL 30 bar
