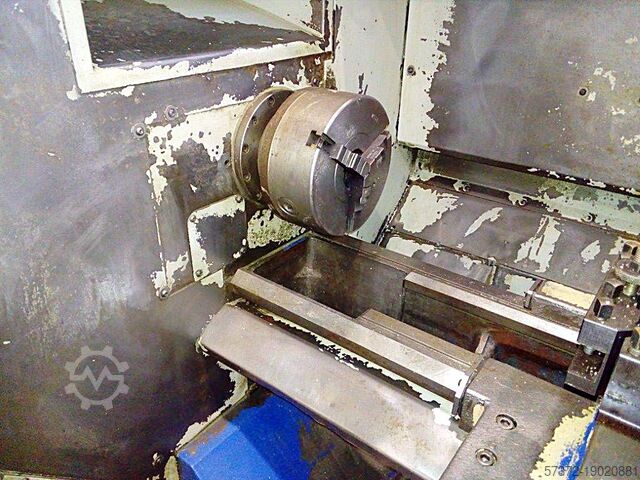

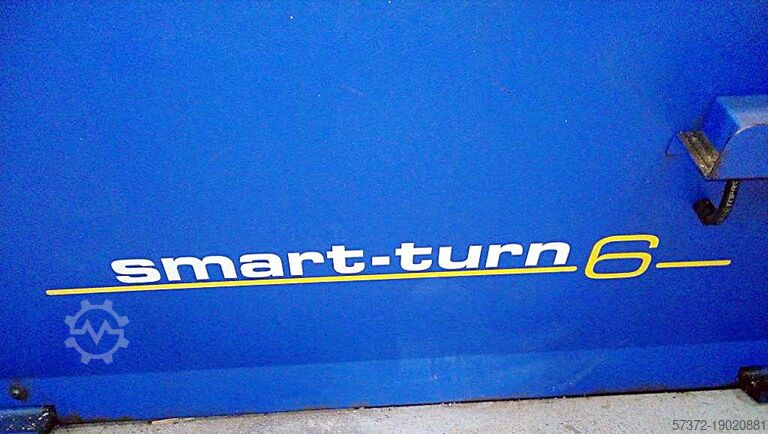

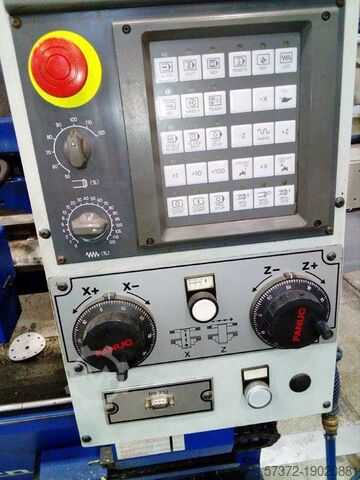

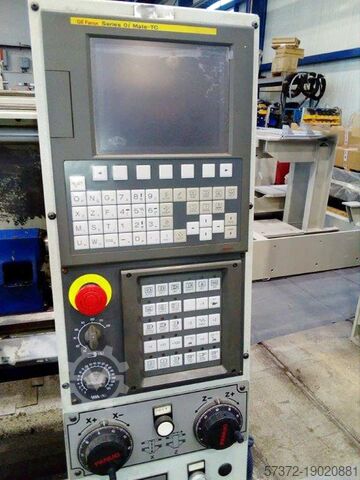

CNC Lathe

Pinacho Smart Turn 6/180-100

Condition: used, Year of construction: 2001, - Fagor 8055 CNC control - Operating modes: manual/cycle-controlled - 8-fold tool turret VDI30 - Overhauled 2023 - Year of construction 2001 Lredpfx Agovf I Dieret Technical data Capacity: - Center height: 200 mm - Center width: 1000 mm - Permissible Ø over guide bed: 400 mm - Permissible Ø over longitudinal slide: 370 mm - Permissible Ø over cross slide: 210 mm - Bed width: 300 mm Headstock: - Bore of main spindle: 65 mm - Main spindle nose: Camlock-n°6 / DIN 55027-n°6 - Morse taper of the main spindle: MK5 - Spindle speeds: 2 - Constant cutting speed: 0-750 / 750-3000 rpm Feed rates: - Working feed Z/X: 0 - 7000 mm/min - Rapid traverse Z/X: 10 m/min Tailstock: - Tailstock shank Ø: 58 mm - Tailstock shank travel: 155 mm - Morse taper tailstock: 4 Motors: - Main motor power: 7.5 kW - DC motor Z-axis power: 6.8 Nm - DC motor X-axis power: 3.4 Nm - Motor pump power: 0.57 kW Dimensions: - Machine weight: approx. 2300 kg - Dimensions WxHxD: 2980 x 1730 x 1610 mm

Condition: good (used), Year of construction: 2009, Control: Heidenhain iTNC 530 Spindle * Diameter: 180 mm * Taper: ISO 50 * Power: 51 kW * Speed: 2,000 rpm (2-speed gearbox) * Torque: 2,668 Nm * Spindle support: 550 mm * Internal high-pressure coolant Ljdpfx Aey R N Ilogrert Travel distances * X: 5,000 mm * Y: 3,500 mm * Z: 2,350 mm * W: 1,000 mm (quill permanently extended 200 mm, at maximum travel – total reach 1,200 mm) Table * Size: 2,000 × 2,500 mm * Load capacity: 28 tons * Hydrostatically supported * B-axis positioning: 0.001° (double pinion, backlash-free) Other features * Tool changer: 60 positions * Siemens axis and spindle motors * Linear scales on all axes + rotary encoder on rotary axis * Handwheel HR 410 * Chip conveyor

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 554 mm turning dia. over face-slide: 370 mm turning length: 1000 mm turning dia. in gap: 860 mm centre distance: 1100 mm control: Fanuc 210i longitudinal traverse (z-axis): 1000 mm Lsdpfx Aev Azdwsgrjrt Transversal stroke (x-axis): 290 mm revolution per minute: 16 - 1800 U/min spindle stroke: 178 mm feed:: 10 m/min. spindle passage: 104 mm spindle nose: D1 - 11 tailstock taper ISO: 6 MT spindle drive: 11/7,5 kW connection voltage: 380 V electrics - voltage/frequency: 3 Ph / 400 V / 50 Hz V/Hz total power requirement: 11 kW Weight approx.: 4,0 t dimension machine approx.LxWxH: 3,3 x 1,8 x 1,7 m

Condition: used, Vertical machining center LEADWELL MCV 610 CR CNC Fanuc 0M X 610 Y 510 Z 410 6000RPM ISO 40 The machine is in our warehouse in Gussago BS, under power Mimu Machine Tools Gussago BS Italy The machining center is a machine tool equipped with numerical control capable of performing multiple mechanical operations with a single set-up on multiple surfaces of the same work piece. It is generally equipped with multiple axes of motion and a automatic tool exchange system and sometimes multiple pallets X axis: 610 Lrodstrbb Ejpfx Agrst Y axis: 510 Z axis: 410 CNC type: Fanuc Spindle revolutions: 6000

Condition: good (used), Year of construction: 2002, functionality: fully functional, spindle speed (min.): 3,200 rpm, total height: 1,700 mm, total length: 2,700 mm, total width: 1,900 mm, overall weight: 6,500 kg, Equipment: documentation/manual, rotational speed infinitely variable, OKUMA ES L II-M Year 2002 A small, very compact lathe with extensive capabilities. Control U-10L, parts catcher, touchsetter, V12 turret VDI 30— all driven positions, manual tailstock, chip conveyor, coolant pump, bar feeder Samsys MUS-3000 year 2007, including equipment, SMW chuck KNCS-N210-52, package with jaws and 24 tools optionally available. Ljdeyna Uijpfx Agrjrt

Condition: used, Year of construction: 2004, Technical details: turning diameter over bed: 610 mm turning dia. over face-slide: 350 mm swing diameter over bed: 610 mm centre distance: 1390 mm control: Fanuc 0i-Mate TC x-axis: plan: ca. 305 mm z-axis: längs: ca. 1350 mm revolution per minute: 22 - 2200 U/min feed:: X + Z-Achse: 5 / 10 m/min. spindle bore: Ø 70 mm tool turret - number of stations: 6 tailstock quill taper MT: MK5 tailstock quill stroke: 150 mm Weight approx.: 2,7 t total power requirement: 15 kW dimension machine xH: 3,7 x 1,7 x 1,7 m dimensions of hydaulic: 630 x 460 x 900 mm other features: -hydr. chuck TONFAU Ø 300mm -hydraulics -Coolant system -control panel -double foot switch accessories: -div. mold jaws -div. soft jaws -6 footrests * Lrjdeu Ix I Uopfx Agrst

Condition: used, Year of construction: 1971, core drilling diameter max. 50-355 mm bore depth 4000 mm swing diameter 1000 mm centre height 500 mm full boring 18-100 mm main spindle bore 163 mm turning speeds 56-710 U/min workpiece weight 6,3/10 t Tailstock 70-600 mm Lrsdpfeyt Rz Djx Agrjt Drill pipes, guide block, drill head, rolling steady rest, support bearing drill heads, jaws 21- 240 mm, Holder, tools, shelves, cupboards The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: excellent (used), Year of construction: 1999, • FANUC 210i - T control (cycles) • Max. distance between centers: 1,250 mm • Max. turning diameter: 400 / 585 mm in offset • Spindle speed: 12 . . . 2,500 rpm • Spindle bore: 54 mm • X-axis: 210 mm • Z-axis: 1,181 mm Lrodpfxow S E R Re Agrst • Cutting gap adjustment: 0.05 – 0.8 mm • Motor power: 7.5 kW • Weight: approx. 2,700 kg

Condition: used, Radial drilling machine with table WEBO type HRH 100 / 3000 Machine No. 10009555/7 -- 1110185 -- 6046 -- Year of manufacture 1979 Drilling capacity: Ø 100 mm in ST 60 at a feed rate of 0.5 mm/rev. Nominal overhang: 3000 mm Maximum overhang: max. 3100 mm Spindle mount: MK 6 Spindle speed: 22.4 - 1600 rpm, 36 steps Feed rate: 0.05 - 2.5 mm/rev, 18 steps Distance spindle - baseplate: 970 - 2335 mm Quill stroke: 325 mm Lrjdpfxjfbt Hus Agrst Swivel range of the arm: 360° Traverseable on bed, bed length: 7500 mm Clamping area of the table: 8000 x 2100 mm - Electric central clamping device - Drilling unit on the machine bed, traversable lengthwise by electric motor - Table consisting of 2 clamping plates with 7 x T-slot, (length 4000 x width 2100 x plate thickness 360 mm) Space requirement L x W x H: 8000 x 4550 x 4300 mm Maximum height: 4300 mm Transport height (bed with drilling machine): approx. 3150 mm Transport weight (bed with drilling machine): approx. 20 tons Transport dimensions table: L x W x H 4000 x 2100 x 900 mm (2 plates stacked on top of each other) Transport weight table: approx. 14 tons Good condition

Condition: good (used), Year of construction: 1999, Parts shown by hand not come. Lrjdpfsw Uigusx Agrst Technical details shown on picture.
