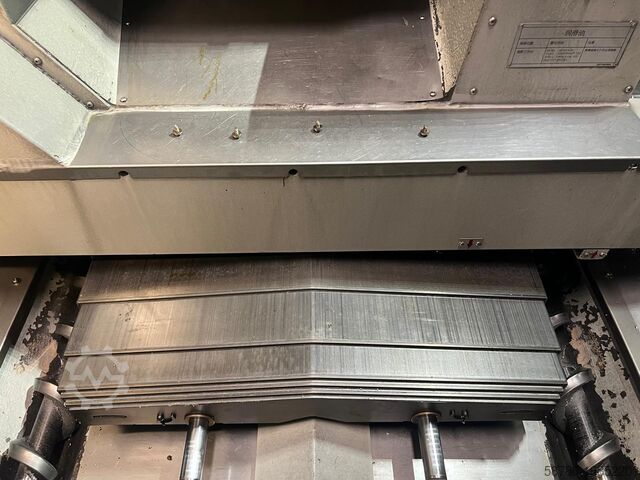

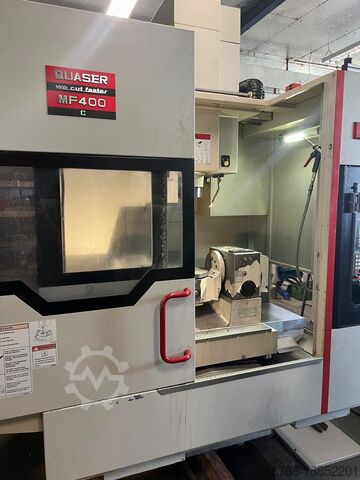

5-axis machining center

Quaser MF 400/12 C

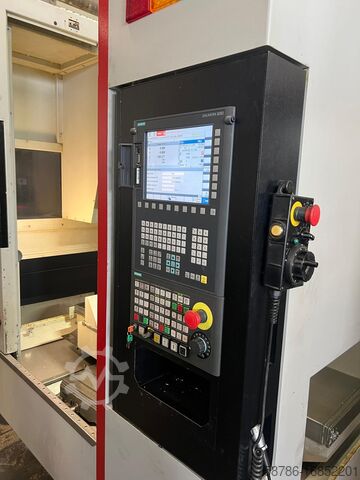

Condition: used, Year of construction: 2014, 5 axis machine QUASER MF400C/12C Year of production: November 2014 Installation date 2015 Table: ∅320 mm Passages: X- 410 mm Y- 610 mm Z- 510 mm A- +30° -120° C- 360° Tool holder: BT40 Tool magazine: 30 pcs Max spindle speed: 12,000 rpm Cooling through the spindle Control: CNC SIEMENS SINUMERIK 828D Tool probe very good condition of the machine machine can be loaded on a standard truck height of the machine 275cm width 245cm length 300cm weight of machine 7300kg Ijdpfx Akeuclilj Tsar

Condition: used, Year of construction: 2010, 2 Number of axles 4 St. tool taper HSK 63 toll turrets 60 Iedpfx Ajqn A Rkek Toar weight 9600 kg

Condition: excellent (used), Year of construction: 2009, operating hours: 12,959 h, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 450 mm, spindle speed (max.): 12,000 rpm, total height: 2,450 mm, total width: 2,400 mm, total length: 3,100 mm, table width: 630 mm, table length: 630 mm, table load: 350 kg, overall weight: 6,800 kg, Kunzmann WF 650 5-Axis Simultaneous Machining Center (2009) Manufacturer: Kunzmann Type: WF 650 5-Axis Simultaneous Machining Center Year of manufacture: 2007 Commissioned: 2009 Condition: Used, very good Machine ON: 46,181 h Spindle hours: 12,959 h Control: Heidenhain iTNC 530 Software Package 1 for iTNC 530 X-axis 650 mm Y-axis 500 mm Z-axis 450 mm Vertical milling head tilting range: -5° + 95° NC built-in rotary table Ø 630 mm Table load: 350 kg Spindle speed: 12,000 rpm Tool holder: SK40 Tool changer with 20 spindles Tools Internal coolant supply: Tool clamp with coolant supply and blow-out device through the spindle. Flow rate 25 l/min at 40 bar Optional water/air through the spindle Paper belt filter Controlled CNC milling head (B-axis) Mounting kit for TS 640 probe head 3D probe with infrared transmission Dimensions LxWxH approx.: 3.1 x 2.4 x 2.45 m Weight approx. 6,800 kg Iasdpexwl T Usfx Ak Tsr Coolant system LxWxH approx.: 1.6 x 2.00 x 0.50 m Scope of delivery: – Documentation – Machine feet – Machine light

Condition: new, Year of construction: 2025, saw band length: 4,420 mm, saw band width: 34 mm, Double-column bandsaw, fully automatic Everising H-360 HB Cutting range round: 0 - 360mm Cutting range square: 360 x 360mm Bundle tension: Width: 180 - 280mm Bundle tension height: 50 - 160mm Drive power: 3.7 kW Saw blade dimensions: 4420 x 34 x 1.1mm Weight: 2310 KG Machine dimension 2500 x 2200mm The standard equipment of the machines is as follows: Solid steel construction in double column principle - NC feed system - Frequency-controlled cutting speed (infinitely variable, inverter-controlled) - Digital cutting speed display - Hydraulically controlled double horizontal clamping vices - Hydraulic saw blade tensioning - Saw band guides (incl. band back guide) made of carbide - Hydraulically pre-tensioned band guides - Precise PLC control (SPS) for all hydraulic and electrical components. - Cutting counter with automatic switch-off - Automatic out-of-stock switch-off - Multi-job function - Bundle clamping device - Driven chip brush - Automatic band breakage control incl. emergency stop - Chip flushing gun - Flexible work light - 2 meter roller conveyor - Tool box - Carbide function Special equipment included: - Variable clamping pressure reduction - Cutting process control Iasdpfx Asq St U Nsk Tor Extensive complete German documentation.

Condition: good (used), Year of construction: 2003, machine/vehicle number: 129-41, functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, number of slots in tool magazine: 48, controller manufacturer: Siemens, table width: 260 mm, controller model: 840D, table height: 540 mm, Equipment: chip conveyor, - Spindle 12,000 1/min - 48 tool positions in chain magazine (chain and guides replaced in 2021) - HSK A63 tool holder Iajdpfstyx Npox Ak Tjr

Condition: good (used), Year of construction: 2008, In good technical condition and fully functional. Control: Fanuc 0i-MF Plus Year of manufacture: 2008 X-axis: 510 mm Y-axis: 360 mm Z-axis: 300 mm Spindle taper: BT-30 Number of tools in magazine: 20 Rapid traverse (X/Y/Z): Up to 48 m/min Motor power: 5.5 kW Machine dimensions (L x W x H): 2,700 x 1,600 x 2,310 mm Machine weight: 2,000 kg Equipment: Renishaw tool probe Chuck Iodpfxjw Eil Hs Ak Tsar CNC-controlled 5th axis TSUDAKOMA TN-101

Condition: ready for operation (used), Year of construction: 2005, A machining center is available. Travel X/Y/Z: 550mm/400mm/425mm, A-axis: +/-100°, rapid traverse: 40m/min, speed: 10500rpm, tool positions: 20, tool holder: SK40, table load: 300kg, control: Siemens Sinumerik. The screen of the machine is defective. Documentation available. On-site inspection is possible. Iodpfx Aswxfa Hok Toar

Condition: good (used), Year of construction: 2011, functionality: fully functional, number of driven tool stations in tool turret 1: 48, number of driven tool stations in tool turret 2: 12, Available immediately and can be viewed under power. Upper X Y Z ballscrews fully refurbished mid 2023 by UK company. Included as shown in pictures -- Live tooling turret NA44A/BMT44 -- Capto C4 milling -- Capto C4 turning holders -- Capto C4 extensions -- 3 x Dual Capto C4 for turret -- Various other turret holders as pictured -- See attached spreadsheet (PDF below), for included holders. -- Renishaw arm -- Part catcher arm + converyor (not used for a long time) -- Old version of CAMplete TurnMill with USB dongle TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 4500 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 11 [kW] - Spindle speeds : 5000 [rpm] - Max. bar diameter : 51 [mm] - Max. turning diameter : 200 [mm] Ijdeycl Epepfx Ak Tjar - C axis indexing precision : 0,001 [°] - Travel : 780 [mm] - Spindle / counter-spindle distance : 980 [mm] TURNING-MILLING SPINDLE - X/Z stroke : 570/1297 [mm] - Y stroke : +/- 100 [mm] - B Axis stroke : 190 (+/-95) [°] - Tool type : Capto C4 - Spindle speeds : 12000 [rpm] - Spindle power : 7,5 [kW]

Condition: used, Year of construction: 2008, functionality: fully functional, machine/vehicle number: -, travel distance X-axis: 725 mm, travel distance Y-axis: 460 mm, travel distance Z-axis: 460 mm, Equipment: rotational speed infinitely variable, Travel paths X/Y/Z: 725mm/460mm/460mm, Work table: size LxW 760mm x 420mm / table load capacity 450kg, Main drive: power 10kW / infinitely variable speed range 10–8,000 rpm / tool holder SK40, Tool magazine: 20 stations / max. tool diameter 100mm / max. tool length 200mm / max. tool weight 7kg, Basic machine data: machine base made of cast iron / weight 4,000kg / machine dimensions (LxWxH) 2.2x2.2x7.6m / electrical connected load 16kVA / compressed air requirement 260l/min – 6 bar, Siemens CNC control, Siemens/Heidenhain digital drives, incl. various tools. Iajdpfxewzl I Ns Ak Tsr

Condition: used, Year of construction: 2012, CNC machining center Manufacturer: Unverzagt Model: UVA 550 Plus Year of manufacture: 2012 Control unit: Siemens 828D Operating hours: approx. 3,000 Travel (X/Y/Z): 600 x 400 x 500 mm Tool stations: 20 Tool holder: SK40 Spindle speed range: 10,000 rpm Hexagon wireless probe Chip conveyor Spindle cooler Iodjwv Tm Nepfx Ak Tsar IKZ (internal cooling system) 16426ä
