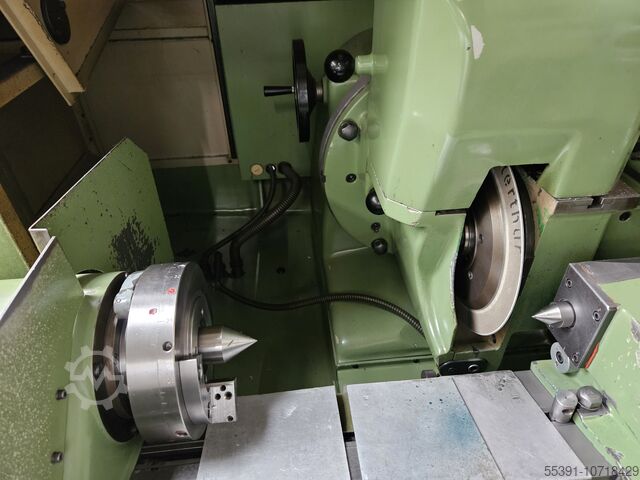

Thread/Worm Grinding Machine Reishauer

Reishauer NRK

Condition: ready for operation (used), max. wheel diameter 150 mm gear width 1 - 200 mm max. module 4 Kodpfxevzhg Ns Ad Isdw min. module 1 control Sinumerik 840 D table diameter 140 mm maximum axial offset 200 mm milling tool taper ISO 40 diameter of hob max. 130 mm cutter length max. 220 mm milling spindle speeds (infinitely variable) 300 - 1200 U/min shifting max. 170 mm milling head -swivable +/- 45 ° feed speeds 1 - 1500 mm/min rapid travel speed 3000 m/min max. workpiece diameter im Magazin: 150 mm total power requirement 50 kW weight of the machine ca. 8,5 t dimensions of the machine ca. 4,7 x 3,6 x 2,6 m Used gear hobbing machine, Pfauter, new in 1992 completely overhauled in 2023 by the specialist company SerWeMa, with Siemens Sinumerik 840 D control system and workpiece magazine.

Condition: good (used), Manufacturer: KOVOSVIT MAS Type: VO 50 / 1600 Year of construction: 1998 Specifications: Metric Metric US Standard Arm length 1600 mm Max. Drill Ø iron 60 mm Max. Tap diameter 42 M Quill stroke 310 mm Max. Distance spindle - table 1505 mm Kdedpfx Ajr Dr T Ied Iew Min. distance spindle - table 320 mm Table / footprint 1470 x 986 mm Spindle speed 2500 rpm Tool holder 6 ISO/Bt/Mk Quill Ø 55 mm Power output 4 kW Dimensions (estimate) length 2900 mm width 1200 mm height 3200 mm weight 4700 kg Please note: The information on this page is given in good faith and to the best of our knowledge, and where possible, has been obtained from the manufacturer, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you check all relevant details.

Year of construction: 1969, condition: ready for operation (used), Max. grinding depth: 80mm, distance spindle table: 145mm, spindle bore: 28mm, connected load: 7kW, length: 2100mm, width: 1400mm, height: 950mm, weight: 1.6t, with documentation, an inspection is possible. Kdedpfx Adjqzkdms Isw

Condition: used, Year of construction: 1969, grinding length 500 mm grinding width 200 mm workpiece height 250 mm total power requirement 5,5 kW weight of the machine ca. 2500 kg dimensions of the machine ca. m J U N G Horizontal High Precision Surface- and Profile Grinding Machine Model HF 50 RD, Year 1969, partially reconditioned in 2021 Serial-no. 4082 _____ Grinding length max. 500 mm Grinding width max. 200 mm Table size 600 x 200 mm Grinding height under grinding wheel approx. 250 mm Table cross travel approx.. 230 mm Table slide cross stroke 0,2 - 8 mm/table stroke Table longitudinal travel max.. 550 mm Table speed longitudinal 1 – 20 m/min. Measurement of grinding wheel 225 x 25 x 51 mm Grinding wheel speed infinitely adjustable 1.000 - 4.500 rpm Vertical feed 0.001 - 0.01 mm/stroke Grinding spindle drive infinitely variable load 0,4 – 1,5 kW Total electrical load 5,5 kW - 380 V – 50 cycles Weight approx. 2.500 kg Accessories/Special Features: • Due to the infinitely variable speed range of the grinding wheel this design is especially suited for grinding of high alloyed steels and carbide, hardmetal, etc. Kdjdpfx Adot Hwzis Isw • Set up switches for plunge-in or normal pendular-grinding with automatic infeed • Automatic infeed of grinding slide during surface- and/or profile grinding, (plunge-in cut)with automatic stop of infeed by contact-Gauge. • motorized rapid feed of grinding head up/down • Manual straight grinding wheel-dressing device mounted above the grinding wheel • Manual Table mounted, swivable magnetic chuck make BRAILLON size 400 x 200 mm • separate converter cabinet for infinitely variable speed regulation and with respective display of cutting speed in m/sec. • Wet grinding facility including coolant tank and bandfilter cleaning device, separate standing, • Including 3 separate flanges, some grinding wheels, service tools, etc. Condition : good – can be inspected here under power, partially reconditioned by a JUNG Specialist (table pistons, lubrication, infeed system, Dresser, covers, etc.) Delivery : ex stock – as inspected Payment : net– after completion of contract

Condition: used, Blow energy: 11000 kg/m Max. stroke: 900 mm Daylight between guides: 750 mm Length of die seat in ram: 750 mm Max. stroke rate: 90 s.p.m. Kdedpevam Ebjfx Ad Iew Die seat length in die holder: 1050 mm Min. die thickness: 350 mm Max. upper die weight: 1100 kg Operating height: 780 mm Anvil weight: 75000 kg Weight of machine approx.: 103000 kg

Condition: good (used), Magnetic table 455 x 170 mm digital display water tank Kdodpfxjtu Il Ts Ad Iow Honing device Wet sanding device

Condition: used, Year of construction: 1983, Bohrleistung in Stahl (-Ø 50 mm throat 1500 mm workpiece height max. 1380 mm Bohrleistung in Guß (-Ø 60 mm Abstand Spindelmitte bis Säule 320 - 1250 mm swival range +/- 180 ° base plate surface area 2640 x 1000 mm max. torque on the spindle 310 Nm Bohrspindel-Ø/ Aufnahme 75 mm /MK 5 bore spindle stroke 310 mm spindle turning speed range 28 - 2500 U/min feed: 0,05 - 2 mm/U power capacity 4 kW weight of the machine ca. 4,3 t Kdodpjtv Ikljfx Ad Ijw dimensions of the machine ca. 3,2 x 1 x 2,75 m cube table 500 x 500 x 500 mm

Condition: used, Year of construction: 1991, bore capacity in steel (diameter) 50 mm arm length 1100 mm workpiece height max. ca. 1000 mm bore capacity in cast iron 60 mm spindle taper MK 5 spindle turning speed range 28 - 2500 U/min feeds 0,05 - 2 mm/U quill stroke 300 mm distance basic plate - spindle nose 630 - 1380 mm crossrail adjustment vertical 750 mm total power requirement 6 kW weight of the machine ca. 4 t dimensions of machine L x W x H 2,74 x 1,14 x 2,59 mm - with thread cutting attachment - Kdedpeu Sblwjfx Ad Iow Accessories: box table 550 x 550 x 550 mm, vice, coolant

Condition: used, BROACHING MACHINE Ksdst Hr Dfepfx Ad Iedw

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 74 sets of diamond discs Kodjxb Ufujpfx Ad Iedw Grinding worm dimensions: Min./Max. external diameter: 280/350 mm Width: 84/104 mm Max. module with limitations: MOD 8.0 (DP 3.2) Number of starts: with limitations up to 3 Max. usable width (shift travel): 90 mm For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 74 sets of diamond discs Grinding stones Turbo separator
