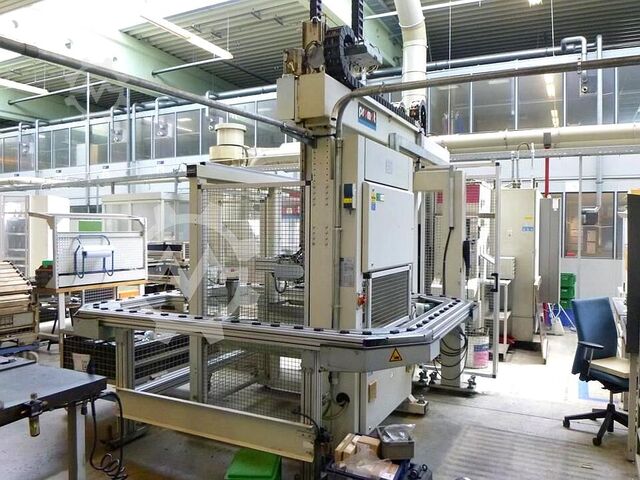

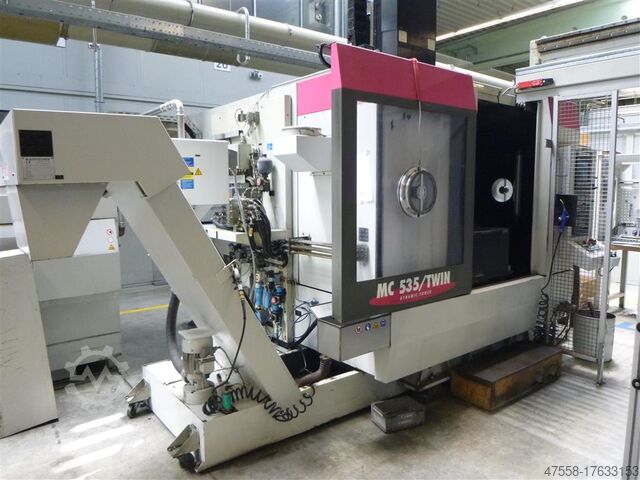

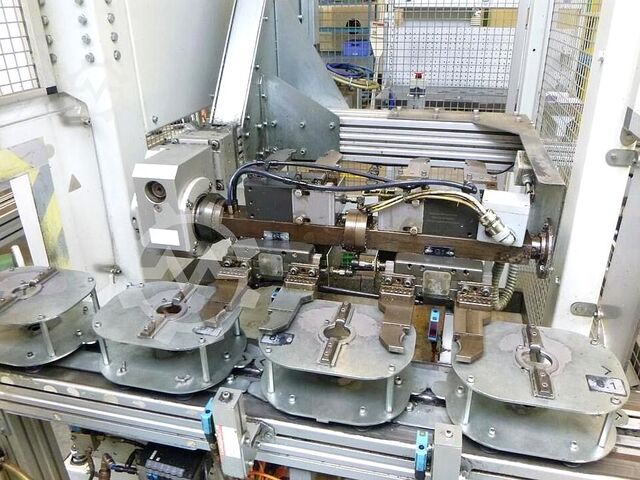

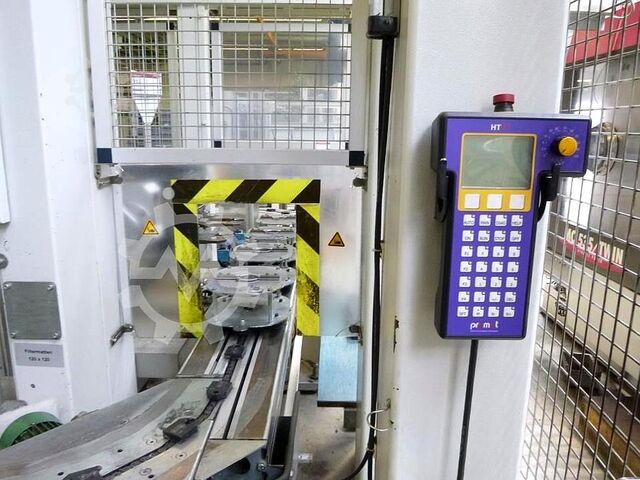

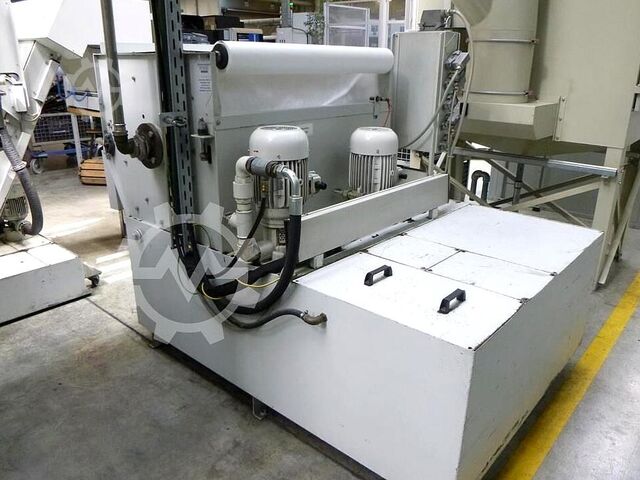

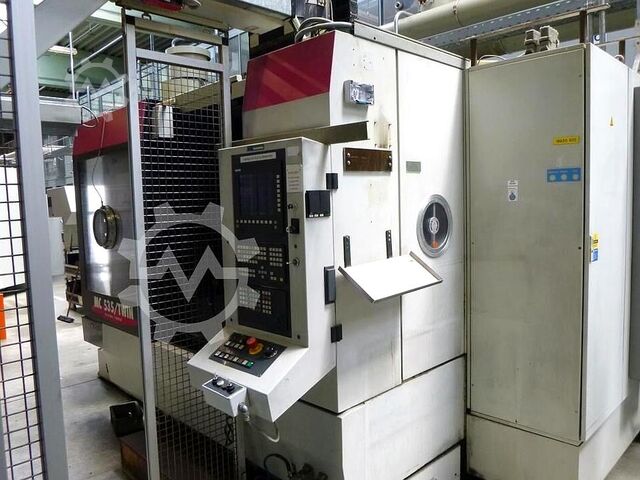

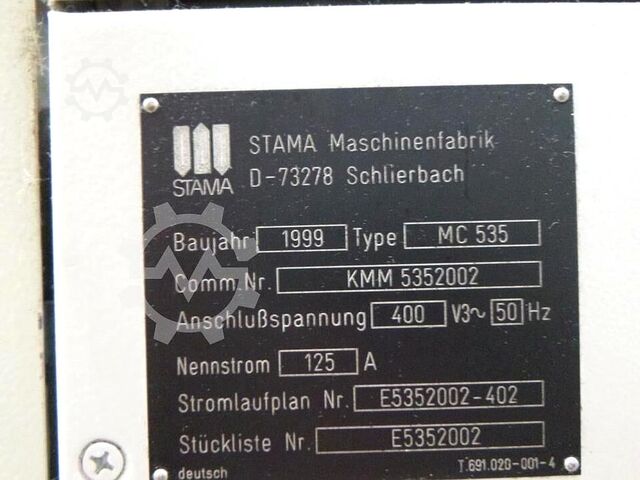

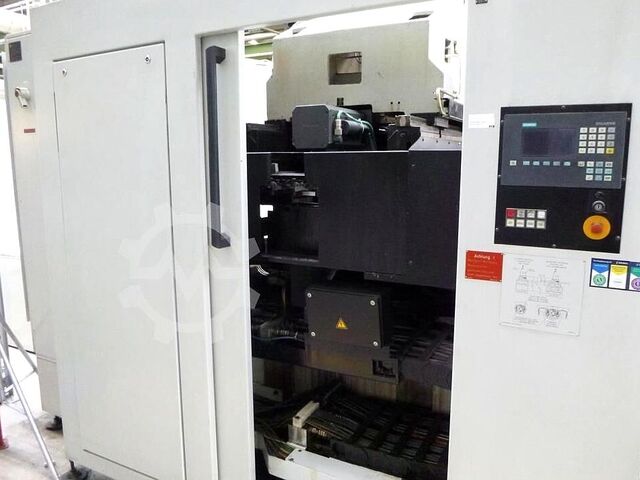

Machining Center - Vertical

Stama MC 535/TWIN

Condition: good (used), Year of construction: 2006, operating hours: 40,000 h, functionality: fully functional, machine/vehicle number: M086, spindle speed (max.): 1,500 rpm, spindle speed (min.): 15 rpm, spindle motor power: 22,000 W, Vertical turret lathe with CNC Control: FANUC Series 18i-TB Number of turrets: 1 Number of tools stations: 12 Ndodpstmq Uksfx Agrsb Chip conveyor: 3508734 Boring bar holder: dia. 50 mm The machine is still under power.

Condition: used, Year of construction: 1999, turning diameter 450 mm Ndjdpfx Agevanvnoreb turning length 380 mm control FANUC

Year of construction: 1964, condition: refurbished (used), machine/vehicle number: 2041, Vertical internal broaching machine with switching plate of the company Karl Klink Ndodpfx Aogyd S Degrjb Type: RSI8DT1 Machine No.: 2041 Year of manufacture: 1964 weight: 3,2 to broaching force: 8.000kg With switch plate ( 2 stations ) Power supply: 380V / 50Hz Rated current: 25 A Connected load: 5,5 kW The machine is completely revised and is therefore in a very good condition.

Condition: excellent (used), Year of construction: 2010, Cylindrical grinding machine Fab. Robbi Group Typ. Omicron 600 RT5 Year 2010 Technical data Make Robbi Group, IT Type OMICRON 600 RT5 Nedpewhm Rfefx Agrjdb Year of manufacture 2010 table Center width 600 mm Sanding length max. 600 mm Swivel range + 9° / - 5° Center height above table 160 mm Workpiece weight between centers 120 kg Workpiece weight for fly grinding 40 kg Tailstock Quill stroke 25 mm Quill diam. 43 mm Internal mounting cone CM 4 Workpiece headstock Rotation speed 0 - 600 Internal mounting cone CM 4 Spindle passage 26 mm Grinding wheel Diameter 450 mm Width min 20 / max 50 mm Bore 127 mm Equipment - Manual or automatic cycle - Automatic dressing compensation - Simplified presetting of grinding wheel and workpiece All information without guarantee. A demonstration under power is possible at any time in our exhibition hall.

Condition: ready for operation (used), Year of construction: 2001, JOHNFORD VTC 880 TWIN PALLET CNC VERTICAL LATHE MAKE JOHNFORD, MADE IN TAIWAN MODEL VTC 880 + APC + ATC YEAR 2001 CONTROL FANUC 18 T MAX SWING DIA 1,000 mm MAX CUTTING DIA 900.0 mm STANDARD CUTTING DIA 800.0 mm MAX CUTTING HEIGHT 800.0 mm TRAVERSES X AXIS 50.0 mm to 810.0 mm Z AXIS 880.0 mm SPINDLE SPEEDS 10 to 800 RPM SPINDLE BEARING DIA 330.0 mm SPINDLE NOSE A2 - 11 SPINDLE MOTOR 18.5 / 22 kW TURRET TYPE AUTOMATIC TOOL CHANGER NO OF TYPES 2 X 12 ATC TOOLS SHANK SIZE BT 50 AND CAPTO PLUS FULL C AXIS MILLING TAPPING X, Z, C, A AND B AXES HIGH PRESSURE COOLANT PAPER COOLANT FILTRATION Nodpfx Agjukuprsrodb SWARF CONVEYOR FULLY OPERATIONAL FULL SET OF MANUALS GOOD RANGE OF TOOLING

Year of construction: 1991, condition: used, max. wheel diameter 400 mm max. number of teeth 150 max. module 5 total power requirement 16 kW weight of the machine ca. 10 t Workpiece Ø, min./max. 30 - 400 mm Number of teeth 6 - 150 Module range, max. 5 Tool holder shaft Ø SK 30 / 20 Tool speeds 4,000 rpm Spindle drive max. infinitely variable 1.8 kW Feeds, longitudinal and cross 0.001 - 12 m/min Workpiece speed, max. (1.5 kW) C Axis 2,000 rpm Workspindle slide 400 mm Tool speed, max. 3,000 rpm Tool holder SK 30 Total electrical load, approx. 16 kW - 380 V - 50 Hz Weight, approx. 10,000 kg Accessories / Special Features Nsdpet Hwylefx Agrjdb * BWO (HECKLER & KOCH) CNC Control model 785 H for altogether 7 axes. Input via monitor. The control has all the supervision and fault diagnosis features necessary for fully automatic working process. * 2 workspindle units, left and right, which can be set at any angle. * CNC controlled: Z and W Axes for tool cross slide. X and U Axes for tool longitudinal slide. * L and O Axes for milling spindle. C Axis for workspindle rotation. * Manually controlled: Tool slide rotary table (B and E Axes). Tool slide vertical infeed (V and Y Axes). Tilt of tool head (A and D Axes). All axes have digital display in the control. * Hydraulically operated workpiece clamping device in conjunction with an automatic loading device using workpiece feed / conveyor belt and swivelling loading device, as well workpiece control by air. * Coolant equipment with chip conveyor. * Noise protection cabin. * Central lubrication. * Built-on hydraulic unit. * Pneumatically driven safety doors. * Deburring device, etc. The machine uses the hypocycloidal milling principal, with electronically synchronized tool and workpiece axes for working straight roof-formed teeth, symmetric as well as asymmetric forms. Advantages are high precision and productivity. Condition : Good to very good. Machine can soon be inspected under power. Delivery : Ex stock, as inspected Payment : Net, after conclusion of contract Thank you for your interest. We always have a good selection of gear machines available on stock.

Condition: good (used), Year of construction: 1992, Table surface area: 1850 x 710 mm Permissible table load: 3000 kg Travel ranges: Longitudinal, automatic (X): 1600 mm Lateral, automatic (Y): 710 mm Vertical, automatic (Z): 850 mm Spindle mounting: SK 50 Speed range: 20 - 2500 RPM Main motor power, AC: 15 kW Transport dimensions L x W x H: 3650 x 2300 x 2700 mm Weight: 9400 kg Accessories / Special features: • CNC path control system, manufacturer HEIDENHAIN, model TNC 360 with 3 scales • Programming language "Plain text dialog" and DIN-ISO • Electronic handwheel HEIDENHAIN HR 330 with magnetic holder • 3D probing system HEIDENHAIN TS 120 • Main spindle compact unit RAC 3 • Control system prepared for 4th axis • Universal milling head system "HURON" with 2 levels, gears run in an oil bath • Hydraulic tool clamping • Coolant system • Central lubrication with interval • German electrical system, drives INDRAMAT • Operator control panel • Operating manual Nsdpfottamksx Agrsdb - Newly refurbished milling head, partially overhauled with new gears, seals and bearings - Oil dispenser for central lubrication renewed Operating hours: 10,032 Program runs: 3,288 Spindle ON: 2,569 Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE – 44143 Dortmund - Wambel / Germany

Condition: ready for operation (used), Year of construction: 2007, travel distance X-axis: 800 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 6,000 rpm, number of slots in tool magazine: 100, number of axes: 4, This 4-axis HELLER MCH 250 was manufactured in 2007. It features a spindle speed of 6000 rpm and a BT50 tool holder. The machine is equipped with an automatic tool changer that holds 100 tools, enhancing productivity. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 horizontal machining centre we have for sale. Contact us for further details. • 4th axis rotary table, 1-degree indexing • Probe (workpiece/tool probing system) Njdpfxoy Epfvj Agrodb Technical Specification Taper Size BT 50

Condition: used, Year of construction: 2000, x-travel 800 mm Ndsdpfxot Hwyro Agreb y-travel 500 mm z-travel 510 mm total power requirement 60 kW weight of the machine ca. 10 t dimensions of the machine ca. m

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 1,000 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: FANUC, controller model: 18i-MB5, spindle speed (max.): 12,000 rpm, spindle motor power: 21,000 W, number of axes: 3, This 3-axis STAMA MC 526 vertical machining center was manufactured in 2008. It features a Fanuc 18i-MB5 CNC, twin-spindle with double tool changer, and a high-pressure coolant system. The machine offers a spindle speed of 12,000 rpm, spindle power of 21 kW, and a tool capacity of 60. X/Y/Z travels are 1000/400/360 mm respectively. If you are looking to get high-quality milling capabilities consider the STAMA MC 526 machine we have for sale.Contact us for more information. • Number of tools (ATC): 60 • Twin-spindle with double tool changer: Yes • Rapid feed (X/Y/Z): 45 m/min • Guideways: Roller guideways Additional equipment • CNC rotary table with continuous rotation (4th axis) • High-pressure coolant • Chip conveyor: Belt-type Njdex D E Rmopfx Agrjdb Technical Specification Taper Size HSK 63
