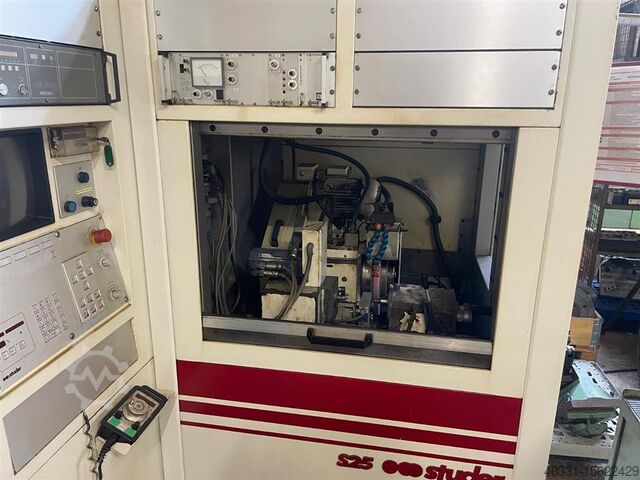

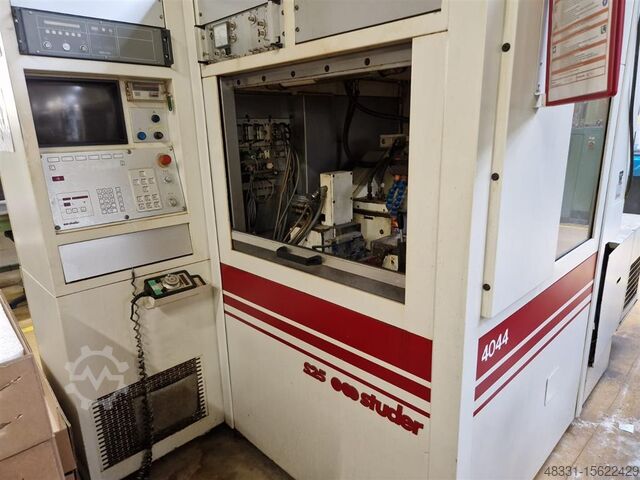

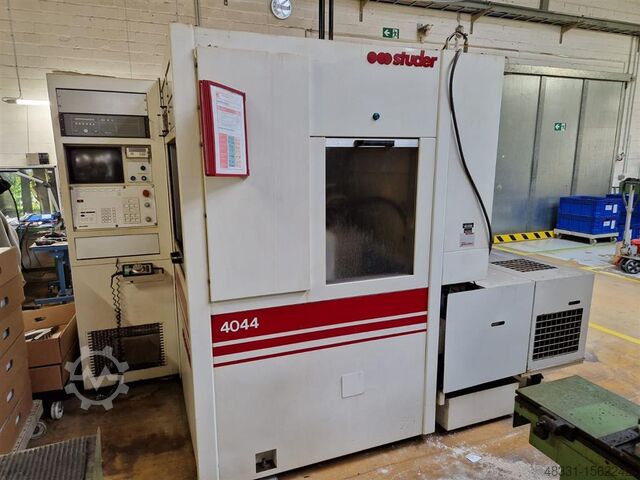

Cylindrical Grinding Machine

STUDER S 25

Condition: used, TECHNICAL DETAILS - distance between centers : 200 [mm] - centers height : 100 [mm] - strokes (X/Z) : 130 / 170 [mm] WHEELHEAD - grinding wheels dimensions : 400 x 63 x 127 [mm] - peripheral speed : 45 [m/sec] - power : 3 [kW] - positioned at : 30 [°] WORKPIECEHEAD - type of cone: MT4 - speeds : 600 - 3000 [rpm] - power : 0,5 [kW] - C axis indexing precision : +/- 0,5 [°] TAILSTOCK - type of cone : CM2 Gjdeuhbxmepfx Aacotu - quill stroke : 30 [mm] ELECTRICAL SUPPLY - voltage : 400 [V] - frequency : 50 [Hz] - installed power : 19 [kVA] DIMENSIONS - floor space : 1760 x 2180 [mm] - height : 2630 [mm] - weight : 4.000 [kg] HOURS - under power : 46.943 [h] - working hours : 21.529 [h] EQUIPMENT - CNC FANUC 16TB - soft options : Studer Release B, Pictogramming - interface : RS232C - electronic deported handwheel - direct measuring rules on axes X/Z - tailstock with fine concentricity adjustment - tailstock pinole hydraulic recoil - swiveling dressing wheel upon table : FISCHER AES-72x230/3 - dynamic wheel balancing device : DITTEL HBA 4000 - prepared for diameter sensor : MOVOMATIC ES400 - prepared for parts loading/unloading robot : FELSOMAT - automatic front door - prepared for cooling - electrostatic aspiration : ELOSTA BF2000 - pneumatic collets chuck - 1 wheel-holder - 1 grinding wheel - support arm for zero gravity wheel change - 1 balancing shaft
