Press Brake

TRUMPF TrumaBend V130

Condition: ready for operation (used), Year of construction: 1998, operating hours: 34,327 h, This 5-axis TRUMPF TrumaBend V130 press brake was manufactured in 1998. It features a 3-meter bending length and a 130-ton capacity, with a stroke of 215mm. If you are looking to get high-quality bending capabilities, consider the TRUMPF TrumaBend V130 machine we have for sale. Contact us for more information about this machine. Ijdpex D Rl Nefx Ac Hjik Application Types Bending

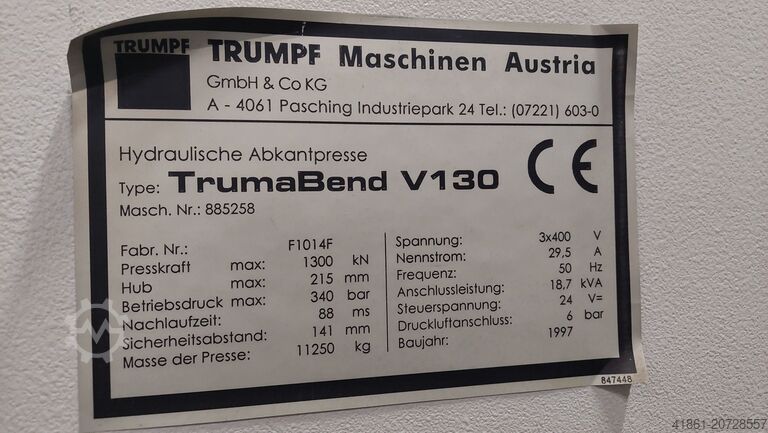

Condition: good (used), Year of construction: 1997, machine/vehicle number: 885258, Offer 25514 Technical Data: - Max. working length: 3060 mm - Frame opening: 2690 mm - Max. pressing force: 1300 kN - Max. distance table/ram: 535 mm - Throat depth: 410 mm - Ram stroke: 215 mm - Stroke speeds: - Downward idle speed: max. 200 mm/sec - Upward speed: 135 mm/sec Iedsx Ew Dqjpfx Ac Hjik - Pressing speed (downward): 1 to 11 mm/sec - Total drive power: 18 kW - Pneumatic connection: 6 bar - Required space: approx. W 3800 x H 2700 x D 2400 mm - Weight: approx. 11,500 kg Features: - 6-axis CNC control system DELEM - Two-hand control panel with foot pedal - Crowning system - CNC-controlled backgauge with height adjustment 5 - 860 mm - Hydraulic upper and lower tool clamping - Pneumatically assisted die table shifting

Condition: good (used), functionality: fully functional, Year of construction: 1997, operating hours: 19,891 h, machine/vehicle number: 885170, control type: CNC control, controller manufacturer: Delem, bending force (max.): 130 t, working width: 3,050 mm, stroke length: 365 mm, throat depth: 410 mm, distance between stands: 2,700 mm, installation height: 535 mm, operating speed: 10 mm/s, reverse speed: 200 mm/s, number of axes: 4, table height: 970 mm, type of crowning: CNC-controlled, travel distance X-axis: 600 mm, back gauge adjustment: CNC-controlled, back gauge: 260 mm, overall weight: 12,950 kg, total length: 3,600 mm, total width: 2,250 mm, total height: 3,000 mm, power: 12.5 kW (17.00 HP), input voltage: 400 V, input current: 35 A, input frequency: 50 Hz, number of support arms: 2, Equipment: CE marking, documentation/manual, emergency stop, foot remote control, Technical data: - Max. working length: 3050 mm Ijdpexdhk Aefx Ac Hsik - Frame opening: 2700 mm - Max. pressing force: 1300 kN - Throat depth: 410 mm - Ram stroke: 365 mm - Pneumatic connection: 6 bar - Space requirement approx. W 3800 x H 2900 x D 2400 mm - Weight approx. 13,000 kg - 4-axis CNC control DELEM - Two-hand control panel with 2 foot switches - Crowning device - Controlled back gauge with height adjustment - Hydraulic upper and lower tool clamping - Die table movement pneumatically assisted - Indicated operating hours: 19,891 h - Hydraulic tool clamping top and bottom - Program-controlled lower tool displacement (I-axis) for 2 positions

Condition: used, Year of construction: 1996, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 215 mm dayligth 385 mm ajustment speed 200 mm/sec working feed 1-10 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10 mm Number of working hours 53.820 h compressed air 5.0 - 7.0 bar oil volume 250 l operating pressure 340 bar voltage 400 V total power requirement 16.0 KVA weight of the machine ca. 11250 kg range L-W-H 3640 x 2210 x 2375 mm - in checked condition - machine video - ?v=23IbxRaZ2KA Ijdpfx Acsxabqbe Hjik Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control model DA 65 * swiveling control panel, front left * 2D graphic programming & product display * tool & program library * including new TFT-LCD industrial monitor - CNC controlled axes: Y1 + Y2 / X / R - CNC electro-motor / controlled back stop (X axis) - CNC electro-motor / controlled height adjustment (R axis) - manual adjustment of the 2x stop fingers, from the front (Z axes) - manual adjustment of the die displacement, from the front (I axis) - WILA manual table crowning, including analog value display - TRUMPF hydraulic upper tool clamp - TRUMPF manual lower tool clamp - 1x freely movable 2 hand / foot control - Safety device at the rear (sliding door) - Safety device at the side (swinging door) - Original operating instructions + CE declaration + circuit diagram

Condition: used, functionality: fully functional, Year of construction: 2002, operating hours: 319 h, machine/vehicle number: B0104S0007, control type: NC control, degree of automation: manual, actuation type: electric, controller manufacturer: Pilz siehe Foto, working width: 3,000 mm, stroke length: 365 mm, throat depth: 850 mm, number of axes: 6, type of crowning: CNC-controlled, back gauge adjustment: CNC-controlled, input voltage: 400 V, input current: 47 A, Equipment: CE marking, documentation/manual, emergency stop, foot remote control, Used but well-maintained hydraulic press brake with low operating hours Manufacturer: TRUMPF Model: TrumaBend V130 Year of manufacture: 2002 Technical Data Manufacturer: Trumpf Model: TrumaBend V130 Year: 2002 Operating hours: 319 h (read) Press force: max. 1300 kN Stroke: max. 365 mm Operating pressure: max. 340 bar Connected load: 18.8 kVA Compressed air connection: 6 bar Isdpfjxl Scxsx Ac Hjik Weight: 12,950 kg

Condition: excellent (used), Year of construction: 1999, Technical Data: Working length: 3050 mm Distance between uprights: 2690 mm Pressing force: 130 t CNC control: DELEM Adjustable backgauge Controlled axes: Z1 / Z2; X; R CNC-controlled crowning Installation height: 535 mm Stroke: 365 mm Throat depth: 410 mm Hydraulic tool clamping top and bottom Ram position measuring system with spring-back compensation via glass scales Program-controlled lower tool shifting (I-axis) for 2 positions Motor power: 12.5 kW Number of backgauge fingers: 2 Iiedpfxsw Tcnce Ac Hjk CE mark Dimensions (L x W x H): approx. 3800 x 2350 x 3150 mm Weight: approx. 14 tonnes Condition: Good condition The seller is not liable for typing or data transmission errors. The machine's appearance, technical condition and wear correspond to its age; used machines are sold without any warranty.

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2000, machine/vehicle number: 885669, bending force (max.): 130 t, working width: 3,050 mm, stroke length: 365 mm, throat depth: 410 mm, clearance between the columns: 2,800 mm, TECHNICAL DETAILS Pressing force: 130.0 t Working area Working width: max. 3,050 mm Max. stroke: 365 mm Throat depth: 410 mm Iijdpfxow Dqckj Ac Hsk Distance between columns: 2,800 mm Number of axes: 6 Control Control: CNC Control type: Delem DA65 Controlled axes: Y1-Y2 + X-R-Z1-Z2 + I + crowning MACHINE DETAILS Dimensions and Weight Overall length: 3,500 mm Overall width: 2,200 mm Overall height: 2,400 mm Weight: 11,000 kg EQUIPMENT WILA hydraulic clamping Angle measurement system Documentation CE marking

Condition: used, Year of construction: 1997, pressure 130 t chamfer lenght 3060 mm distance between columns 2690 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec table width 120 mm table height 1050 mm tiltable up to +/- 10.0 mm Number of working hours ca. 31.800 h compressed air 5.0 - 7.0 bar oil volume 250 l operating pressure 340 bar voltage 400 V total power requirement 23.0 KVA weight of the machine ca. 12950 kg range L-W-H 3660 x 2310 x 2900 mm Machine in a well-maintained condition (!!) with only approx. 31.800 operating hours - in checked condition - machine video - ?v=PBV-MDtZnlE Equipment: - CNC electro-hydraulic press brake - DELEM CNC control model DA 65 * swiveling control panel, front left * 2D graphic programming & product display * Tool & program library * USB keyboard and mouse interface - CNC controlled axes: Y1 + Y2 / X1 + X2 / R1 + R2 / Z1 + Z2 / I axis - CNC controlled back stop (X1 + X2 axis) Isdsxacfmjpfx Ac Hjik - CNC controlled height adjustment of the back stop (R1 + R2 axis) - CNC controlled adjustment of the stop fingers (Z1 + Z2 axis) - CNC controlled, pneumatic die displacement (I axis) - CNC WILA electro-motoric table crowning - TRUMPF hydraulic upper tool clamping - TRUMPF manuel Lower tool clamp - 1x freely movable 2-hand / foot control - Safety device at the rear (sliding door) - Safety device at the side (swinging door) - Original operating instructions + spare parts list

Condition: excellent (used), Year of construction: 2000, Technical specifications: Working length: 3050 mm Distance between columns: 2690 mm Press force: 130 t CNC control: DELEM DA65 2 D graphic Adjustable backgauge Controlled axes: Y1 / Y2; X; R; I CNC table bending compensation: Wila Moducrown Hydr. Tool clamping at the top and bottom Pneumatic tool shifting Number of bending aids: 2 Installation height: 535 mm Stroke: 220 mm Iiodowimvwspfx Ac Hok Thrust: 410 mm Motor power: 12.5 kW CE mark Dimensions (length x width x height): approx. 3800 x 2350 x 3150 mm Weight: approx. 14 tons Accessories: 1 set of standard tools Condition: Good condition, tools in mint condition The seller is not liable for typographical or data transmission errors. The machine's appearance, technology, and wear are consistent with its age; used machines are sold without any warranty.
