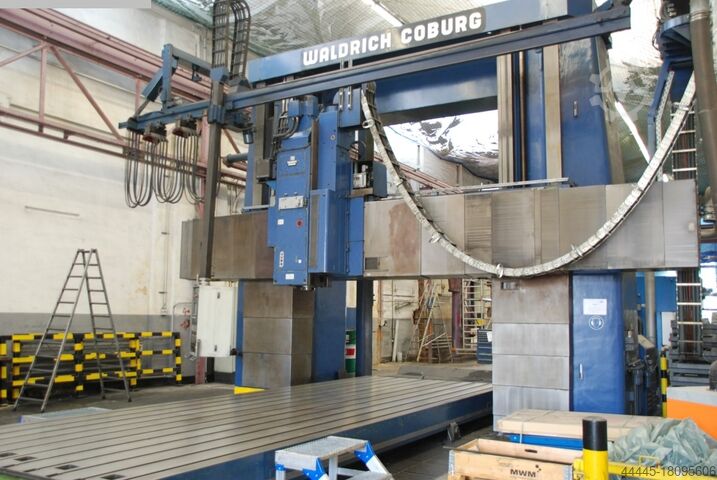

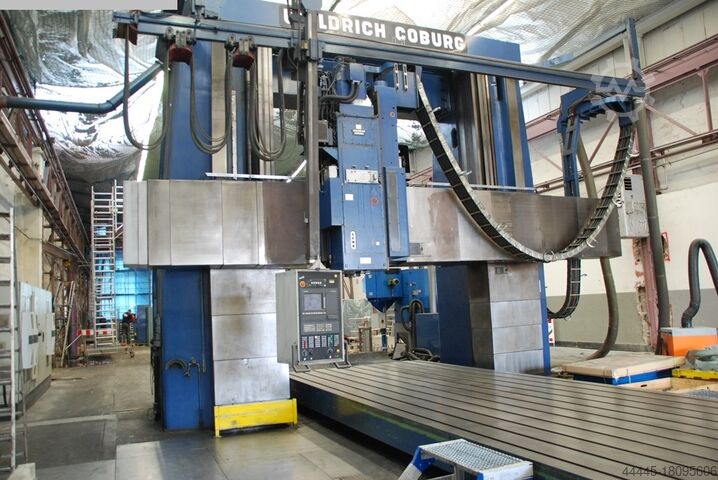

WALDRICH COBURG 20-10 FP 280

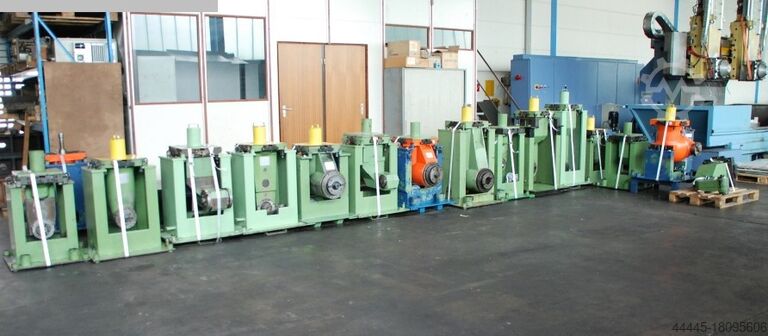

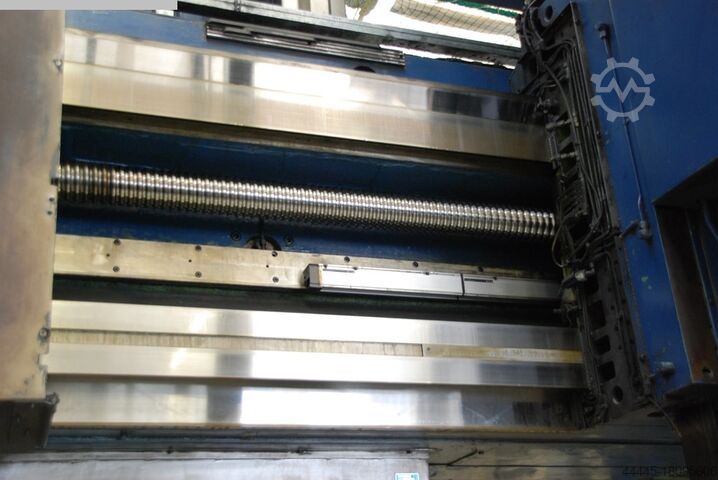

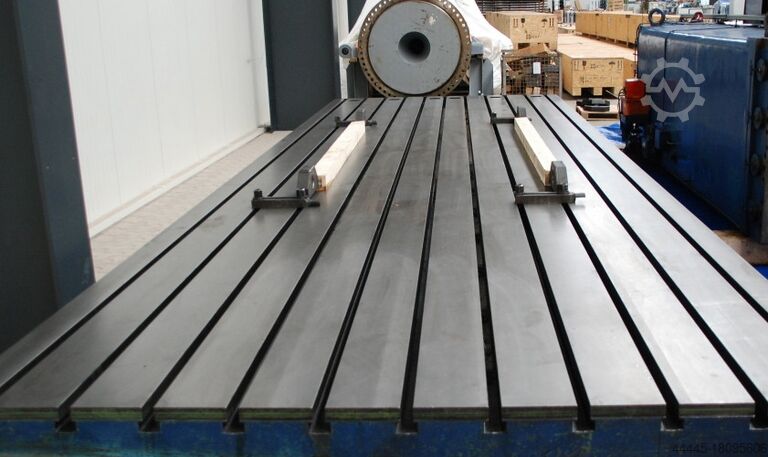

Condition: used, x-travel 17700 mm y-travel 4755 mm z-travel 800 mm milling width 3450 mm distance table - vertical milling spindle 3682 mm table height over floor 500 mm spindle diameter in front bearing 200 mm turning speed range 12 - 450 U/min tool taper ISO 60 axial adjustment of the spindle slide 800 mm creep feed 5 und 50 mm/min feed stepless 10 - 3000 mm/min cross adjustment of cross beam milling head 4745 rapid traverse 2 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min rapid traverse 10 m/min creep feed 3 und 30 mm/min feed stepless 6 - 2000 mm/min vertical adjustment of cross beam 3682 mm rapid traverse 1,5 m/min creep feed 1,25 und 12,5 mm/min feed stepless 5 - 1500 mm/min table-size 17800x2800 mm column daylight 3600 mm Control SIEMENS 840 C Fjdpsvkit Asfx Aa Negi table load 50.000/100.000 kg drive of main spindle 100 kW total power requirement 170 kW weight of the machine ca. 300 t dimensions of the machine ca. 40 x 8,4x 8,6 m + electrically renewed including cabinet, cabling and motors and equipped with a SIEMENS 840 C in 1999. + incl. 16 milling heads and ls the drive of x-axis consists of one hydrostatic screw with hydrostatic rack

Condition: used, grinding diameter 350 mm grinding length 1500 mm centre height 175 mm weight of the machine ca. 3 t High-End Kellenberger 1500U Ideal for spindle producer or overhauler -BEMA Internal grinding device with separate, cooled motor. Grinding spindle and internal grinding spindle motor electrically interlocked! Internal grinding spindle can only be switched on when it is in position. A quantum leap in safety -Infinitely variable grinding spindle speed 1000-1500 rpm -Infinitely variable internal grinding spindle speed 0-100%. -Digital display of grinding spindle speeds -Swivelling angle display top table -swivel angle display grinding headstock -Marposs gaper sensor for external grinding only -fluid gating sensor Marposs internal grinding -Center height up to 250mm possible Machine is already delivered. Fgsdet Ii Rrepfx Aa Nsi Identical machine can be built with additional with additional options. Die Werkzeugmaschine entspricht zum derzeitigen Zeitpunkt nicht den grundlegenden Sicherheits- und Schutzanforderungen wie in der BetrSichV 2015 genannt. Eine Anhebung des erforderlichen Mindest-Schutzzieles ist mittels einer Gefährdungsbeurteilung nach BetrSichV zu ermitteln.

Year of construction: 1996, condition: used, Schütte SF 26S DNT YOM 1996 Number of spindles: 6 Max bar diameter [mm]: 26 Auto bar loader: Cucchi BLT Multi-6 - (YOM 2015) Fgedji Hb Szopfx Aa Nsi Cross slide pos. 1, 3, 4, 6 CN slide pos 2, 5 Spindle stop attachment for main spindles Bar feeding pos. 6 Pickup spindle pos. 6 High pressure coolant system Chip conveyor, hinged belt type Oil mist filter ISI RON/A 2500A, ID 26295

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Fgodohrihyopfx Aa Nei

Condition: used, Year of construction: 2008, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 680 mm, spindle speed (max.): 24,000 rpm, Order no. 5.3-745 1 used Horizontal Milling Center Heckert HEC 400D, built 2008 1 used Horizontal Milling Center Heckert HEC 400D, built 2008 CNC control Sinumerik 840D NC rotary table B-axis Magazine for 80 tools Pallet changing device, 2 pallets 400mm x 400mm Internal coolant supply IKZ chip conveyor Coolant device CNC control Sinumerik 840D NC-rotary table B-axis automatic tool changer for 80 tools pallet changing device, 2 pallets 400 mm x 400mm coolant through spindle device IKZ chip conveyor coolant device Technische Daten / technical details: X-travel longitudinal 650 mm Y-travel vertical 650 mm Z-travel cross / Z-travel cross 680 mm B-axis / B-axis 360 ° Spindle taper HSK 63A Drehzahlbereich Spindel / spindle speed 24000 Upm /rpm Fgodpjrairwofx Aa Nsi Werkzeugplätze / tool places in changer 80 Gewicht der Maschine ca. / weight approx. 13000 kg Technical data, accessories and description of the machine are not binding - Technical data, accessories and description of the machine are not binding.

Condition: good (used), Year of construction: 2015, operating hours: 35,000 h, functionality: fully functional, spindle speed (max.): 6,000 rpm, chuck outer diameter: 250 mm, feed length X-axis: 680 mm, feed length Z-axis: 200 mm, power: 39 kW (53.03 HP), rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, type of input current: three-phase, controller manufacturer: Siemens, controller model: 840 DS, input voltage: 400 V, coolant supply: 6 bar, nominal power (apparent): 45 kVA, Equipment: rotational speed infinitely variable, EMAG VERTICAL SINGLE-SPINDLE TURNING AND GRINDING CENTER EMAG - REINECKER VSC 250 DS Used, year of manufacture 2015 Control: Siemens 840 DS Condition: Used machine in good condition Operating hours (approx.): 35,000 Program run time (approx.): 22,000 hours Operating voltage: 400V Air connection: 6 bar Total power requirement: approx. 45 kVA Cooling unit: water/water Machine dimensions without peripherals (L x W x H): approx. 3200 x 1900 x 2650 mm CYLINDRICAL GRINDING Integrated motor grinding spindle with max. speed 45,000 rpm and max. output 18 kW Touch dressing for ceramic CBN grinding wheels Vertical CNC turning and grinding center Automation / Gantry: EKF basket stacker cell as raw/finished parts buffer for baskets 400 x 600 mm on floor rollers 3 basket stacks enable uninterrupted operation even during basket changes, loading/unloading via loading gantry The machine is well-maintained and EMAG serviced. The production process includes pre- and finish machining of the bore and end faces by hard turning the face surfaces, as well as turning the diameter/bore followed by bore grinding. No driven tools Viewing under power is possible by appointment. Dismantling and loading of the equipment are to be carried out by the buyer. Price and further details on request / special price Fodolfduiepfx Aa Negi All technical details subject to error/typos. Sale only within EU countries.

Condition: used, Year of construction: 1992, Technical details: Fsdpjr R Ek Sofx Aa Negi grinding diameter: 50 mm grinding length: 100 mm centre height: 100 mm centre distance: 200 mm

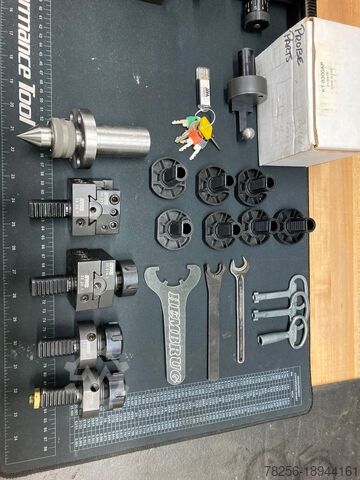

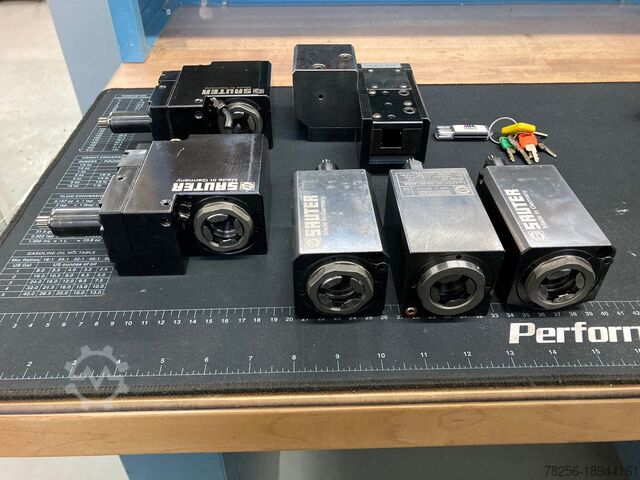

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Hydrostatic Ways Scale Feedback Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Additional Backup Hard Drive with Software Fully Loaded and Tested. Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Fgedpfx Aowcfgbja Nji Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

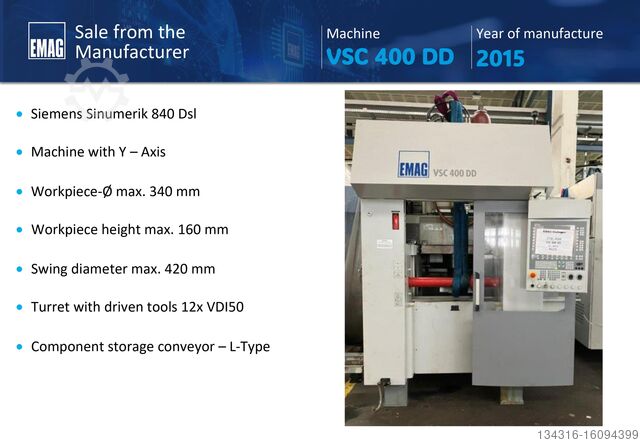

Condition: refurbished (used), Year of construction: 2015, Offered is a vertical turning center EMAG VSC 400 DD. The machine will be mechanically overhauled and rebuilt by EMAG before delivery. Depending on requirements, the machine can be equipped with other peripherals such as coolant systems, external automation and so on. Fedpfstngg Uex Aa Nogi The turning machine for automated machining of chucked components fits perfectly for the machining of series workpieces with the following dimensions: Workpiece diameter: 340 mm Workpiece height: 160 mm Optional the machine can be equipped with an additional millling or grinding unit. CONTROL Siemens 840Dsl TECHNICAL DATA chuck diameter: max 400 mm swing diameter: max. 420 mm X-stroke: 850 mm Y-stroke: 315 mm Z-stroke: 315 mm TOOL CARRIER EMAG wheel turret, 12x VDI 50 with driven tools Delivery time and additional equipment of the machine on request.

Condition: used, overall weight: 495,000 kg, Year of construction: 1991, Complete Mechanical Upgrade by GFM, with increase of Power to 900 Ton/hammer and new CNC in 1991 Numbers ̈of Hammers: 4 Forging force: 3.600 Ton (900t per hammer) Maximum diameter of forging: - circular cross section: Ø 400 mm - square cross section: 320 mm Minimum output diameter: - circular: 60 mm - square: approx 50 mm Maximum length of forging with/without lateral reception: 8.000 mm / 9.700 mm Workpìece weight: 2500 kg Min length: 1500 mm Fgsdpfx Aasv D Ddvo Nsi Max length: 3000 mm Engine forge: 2 x 500 kW, 5500 V, 50 Hz Total power supply (nominal power): ca 1.600 kW Machine weight: 493.000 kg
