Coordinate measuring machine

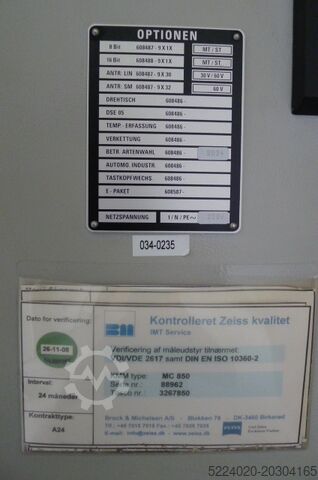

Zeiss MC850

Condition: used, functionality: unexamined, machine/vehicle number: 70513, measuring range X-axis: 850 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 600 mm, workpiece weight (max.): 1,000 kg, type of input current: AC, overall weight: 2,600 kg, input voltage: 230 V, used cmm measuring range (X/Y/Z): 850 x 1200 x 600 mm software: Zeiss UMESS-UX Kfodpfsvd Dlyox Ac Hsa sensor system: Zeiss ST controller: Zeiss 85 8-bit

Condition: good (used), Technical data Technical data coming soon. The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! Kedpfxedl Hdmj Ac Hsfa We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Changes and errors in the technical data, information and prices and subject to prior sale!)

Condition: reconditioned (used), Year of construction: 1993, functionality: unexamined, machine/vehicle number: 084209, measuring range X-axis: 850 mm, measuring range Y-axis: 1,200 mm, measuring range Z-axis: 600 mm, workpiece weight (max.): 1,500 kg, total height: 2,950 mm, type of input current: AC, total width: 1,560 mm, total length: 2,120 mm, overall weight: 3,600 kg, input voltage: 230 V, used cmm Kfjdpfxsvd Dlae Ac Hea measuring range (X/Y/Z): 850 x 1200 x 600 mm software: Zeiss UMESS-UX sensor system: Zeiss ST controller: Zeiss ST 87 8-bit

Year of construction: 1999, condition: excellent (used), machine/vehicle number: 105220 / 105221, Technical data Manufacturer: ZEISS & Stiefelmayer Type: SMM C Year of construction: 1999 Measuring plate Length = 6000 mm width = 2500 mm Weight = approx. 10 t Equipment 2 SMM stands incl. RDS heads Kfjdpfefrbg Ijx Ac Hoa Control cabinets 2 ZEISS Dynalog P3 control panel Climbing aid left and right The machine can be upgraded with new accessories according to customer requirements. Price: on request! Installation and commissioning possible! We would be happy to provide you with a detailed offer. Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices and subject to prior sale)

Condition: good (used), machine/vehicle number: 565301951 / 565201951, Accessories Actuators BWF SII 40 pieces Kfodpedfddzsfx Ac Hoa Measuring system Renishaw Measuring plate 1 X = 8100 mm Y = 1750 mm Z = 300 mm Measuring plate 2 X = 8100 mm Y = 2000 mm Z = 300 mm Measuring volume X = 7300 mm Y = 1600 mm Z = 2800 mm The machine can be upgraded to customer specification with new software. Price: On request! Setup and commissioning possible! We can make you a detailed offer! Note: Our offer is aimed exclusively at professionals! (Changes and errors in the technical data, information and prices and subject to prior sale!)

Year of construction: 1984, condition: excellent (used), Technical data Manufacturer: Stiefelmayer Type: C-MAN S/N: 432309901 Year of manufacture: 1990 Column cross section 160/160 cross arm 80/80 Measuring range X = 4400 mm Y = 1600 mm Z = 1800 mm The machine can be modernized with new accessories according to the customer's requirements. Price: on request! Assembly and commissioning possible! We will be happy to provide you with a detailed offer. Note: Our offer is intended exclusively for professional customers. (Changes and errors in the technical data, specifications and prices and prices as well as subject to prior sale). Kodshpzbcepfx Ac Hsfa

Condition: excellent (used), machine/vehicle number: 26720686, Measuring plate X = 3000 mm Kfjdeff Ea Hspfx Ac Hoa Y = 6000 mm Price: on request! We would be happy to provide you with a detailed offer! Please note: Our offer is directed exclusively to professional customers. (Changes and errors in the technical data, information and prices as well as prior sale reserved)

Year of construction: 1999, condition: good (used), Technical data Type: SMM-D Manufacturer company: ZEISS Type of construction: single- and multi-pedestal design Drives: Highly dynamic DC servo drives, electronically monitored in all axes Control system: Multi-microcomputer system with 3-axis vector control for optimum control behaviour 4th and 5th axis rotary-pivot device DSE 05 Control panel for operation at remote measuring location Manual control of measuring device and DSE 05 via control lever with progressive characteristic, switchable to creep speed Protection class IP 54 for control and operating panel Display of the workpiece or device coordinates by display on the control panel or via the screen on the computer Measuring plate Kfedpfxecilvvj Ac Hja X = 16000 mm Y = 6100 mm Measuring volume X = 8000 mm Y = 3100 mm Z = 2700 mm Scanning head rotary swivel unit DSE 05 Motorized rotation in two orthogonal axes by +- 180° each Incremental measuring system with 0.5* resolution Angular speed up to 40°/second Angular position deviation +- 3 max. Torque: 140 Nm Max. Sensor weight: 1000g Repeatability <=1µm/200mm Performance data Length measuring systems: electro-optical incident light system, resolution 1µm Travel speed: Automatic mode: 0 - 150 mm/s set-up mode: 0 - 80 mm/s Installation and commissioning by our service partners possible. Price: on request We will be happy to provide you with a detailed offer. Note: Our offer is directed at

Condition: used, Measuring machine with manually operated measuring arm STIEFELMAYER high-precision measuring and scribing plate, cast steel/grey cast iron, heavily ribbed Machine no. 22890285 Year of manufacture 1985 Length 2500 mm Width 1500 mm Thickness 350 mm Kodpfx Acjkdnwbs Hofa Plate thickness (top) 50 mm solid material with 300 mm ribs Working height approx. 800 mm - with manually movable measuring arm, measuring range X = 1970 mm, Y = 815 mm, Z = 840 mm - with 3-axis digital display Grundig MZ 1030 - 5 height-adjustable feet Required space L x W x H 2500 x 1500 x 2500 mm Weight 3000 kg very good surface finish

Condition: good (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 47040940, measuring range X-axis: 3,500 mm, measuring range Y-axis: 6,000 mm, measuring range Z-axis: 2,000 mm, type of input current: three-phase, Equipment: documentation/manual, lighting, type plate available, Portal measuring machine Kfsdjwyag Rspfx Ac Hsa Manufacturer: Mora Type: U204-20-35-60 Measuring software: Manufacturer Gemodek, type MS10 Mobile control panel Measuring and evaluation unit 2 PCs, manufacturer HP, type XW4300/Z220 2 monitors, 19/24" Roller shutter cabinet, telescopic drawer cabinet, Manufacturer Lista, width 1,000 mm, 7 drawers Contents: Infrared measuring probe manufacturer Renishaw type PH10M, calibration mandrel, accessories
