MACHINING CENTER

+GF+ Mikron Charmille Mikron VCE 1600 pro

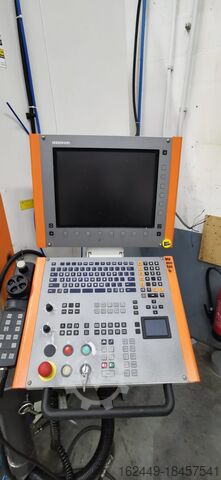

Condition: used, Year of construction: 2009, functionality: unexamined, machine/vehicle number: 73136, travel distance X-axis: 1,350 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 720 mm, nominal power (apparent): 64 kVA, controller manufacturer: Heidenhain, controller model: iTNC 530, total height: 3,150 mm, total length: 5,605 mm, total width: 4,290 mm, overall weight: 12,600 kg, spindle speed (min.): 15,000 rpm, operating hours of spindle: 21,786 h, number of slots in tool magazine: 46, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, +GF+ MIKRON HPM 1350U – 5-Axis Machining Center (Year of Manufacture 2009) Used 5-axis milling machine MIKRON HPM 1350U from 2009. The machine is in operational condition and comes from ongoing production. Equipped with Heidenhain iTNC 530 control, rotary table Ø 1100 mm, 46-position tool magazine, and Renishaw OMP60 touch probe. Operating Hours (Readout): Control powered on: approx. 112,194 h Machine powered on: approx. 72,272 h Spindle running: approx. 21,786 h Programs: approx. 21,654 h Condition: Used machine with normal signs of use, technically operational. Inspection under power possible by arrangement. Work Areas Travels: X-axis: 1,350 mm Y-axis: 1,150 mm Z-axis: 720 mm (vertical spindle) / 895 mm (horizontal spindle) Spindle Standard spindle 15,000 rpm Speed range: 0–15,000 rpm Acceleration to max. speed: approx. 2.5 s Power: 38 kW (S6 = 40% duty cycle, TS = 2 min) Torque: 193 Nm (S6 = 40% duty cycle) Tool holder: HSK-A63 (DIN 69063-1, option ISO-B40/DIN 69871) Max. tool diameter: 130 mm (fully equipped) Bearing: Ceramic hybrid Ø 70 / Cronidur steel Lubrication: Lifetime lubricated Cooling: Water-cooled with corrosion inhibitor Feed Drives Ijdpsx Eh Iqjfx Ahujtb Feed motors: AC Rapid traverse / working feed: 32 m/min (20% duty cycle) 10 m/min (100% duty cycle) max. 15 m/min (40% duty cycle/hour) Position measuring systems X/Y/Z: Linear scales (direct) Rotary Table Clamping surface: Ø 1100 × 1000 mm, flattened on the side Table load: 1,600 kg T-slots: 8 × 18H12 + 1 alignment slot 18H7 (100 mm pitch) Centering bore: Ø 50 H6 Clamping torque: 8,000 Nm Max. mass moment of inertia: 75 kg·m² Table elevation above floor: 1,120 mm Table drive: Direct torque motor Drive torque: 1,600 Nm (40% duty cycle, 2 min) Swivel Axis (A-axis) NC swivel range: +16° to −120° Measuring system: direct, absolute Clamping principle: hydraulic, stepless Max. swivel speed: 4,000 °/min Max. working swivel torque: 600 Nm (S6 40%) Swivel time 0° → 90°: 0.9 s Tool Magazine / Changer 46-position magazine (installed as per documentation) Magazine positions: 46 Tool holder: HSK-A63 (DIN 69063-1), option ISO-B40 Max. tool diameter: 80 mm (fully loaded) 130 mm (partially loaded) Max. tool length: 300 mm Max. tool weight: 8 kg Magazine loading: 200 kg Tool change time (vertical): 11 s Coolant / Chip Disposal External coolant supply (AKZ): 40 l/min, 2.5 bar Internal coolant supply (IKZ) Electrical Data: Installed rated power: 75 kW Connection power: 58 kW Connected load: 64 kVA Control voltage: 24 V DC Operating voltage: 3 × 400 V, 50 Hz Protection class: IP54 Dimensions & Weight Machine weight: approx. 12,600 kg (without accessories) Required space (L × W × H): 5,605 × 4,290 × 3,150 mm

Condition: reconditioned (used), Year of construction: 2006, CNC Universal Milling & Drilling Machine DECKEL MAHO DMU 80 P duoBlock With MILL PLUS iT path control system Year of manufacture: 2006 Travel paths: X 800 Y 800 Z 800 mm Spindle speed range: 0 – 8,000 rpm, stepless (SK 50) Including the following accessories: - NC rotary table, 900 mm x 700 mm clamping surface (maximum table load 1.4 t) - Universal milling head with controlled B-axis - Universal tool changer with 40 magazine stations, double gripper (SK 50) - Fully enclosed guard cabin with sliding doors and interior lighting - ICS – 40 bar (internal coolant supply) - Chip conveyor - Rotoclear - 3D tactile probe Heidenhain TS 641 - Operating modes 3 + 4 - Electronic handwheel - 50 pcs. tool holders SK 50 Iedpfexn Aczex Ahuetb - 3 height-adjustable machine feet - Transport device - Operating manuals

Condition: used, Year of construction: 2006, x-travel 1.000 mm y-travel 1.000 mm z-travel 1.200 mm C-axis 360 x 0,001 ° A - axis ° Control SINUMERIK 840D Powerline SIEMENS Size of table plate 900 x 700 mm milling spindle - taper HSK - A100 spindle turning speed - stepless 12000 U/min toolpiece magazine: chain magazine 180 Stück total power requirement 85 kW weight of the machine ca. 20,5 t dimensions of the machine ca. 6,5 x 6,1 x 3,5 m 5-axis machining center with horizontal milling spindle arrangement SIEMENS SINUMERIK 840D Powerline control system Electronic handwheel NC swivel rotary table Rotoclear window Measuring probe ready Blum laser tool measurement Iodsw E Nnnopfx Ahujtb Vibration sensor Tool taper cleaning 4th operating mode Internal coolant system with 2 pumps, 40 bar and 80 bar Chip conveyor Belt filter system Mist and smoke separator Cooling/heating unit

Condition: ready for operation (used), Year of construction: 2017, Main Drive Number of axis 5 Spindle Speed 15000 RPM Spindle motor power 46 kW Tool taper SK 40 Movement X-Axis Movement 2600 mm Z-Axis Movement 900 mm Y-Axis Movement 1100 mm Control Unit Brand SIEMENS Itedpfsx D Icljx Ahueb Model 840D sl This 5-axis DMG DECKEL MAHO DMF 260-11 was manufactured in 2017. A universal machining centre featuring a travelling column, X-axis linear drive at 80 m/min, and a motor spindle speed up to 15,000 min-1. It includes a swivel head, a 30-tool magazine, and a rigid table measuring 3,200 x 1,100 mm. Consider the opportunity to buy this DMG DECKEL MAHO DMF 260-11 universal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: refurbished (used), Year of construction: 2019, functionality: fully functional, GF Machining Solutions FORM X600 Year of manufacture 2019 - Factory revision 2022 C-shaped design, fixed table with lowerable container Travel paths (X/Y/Z): 600 x 400 x 500 mm Distance between table and quill: 200-700 mm Max. workpiece size: L x W x H = 1200 x 800 x 350 mm Max. workpiece weight: 2000 kg Integrated C-axis for rotation, indexing, and erosion (rpm = 0-100 rpm) Pneumatic chuck of your choice (Erowa/3R Systems) 80 amp ISPG generator Best achievable surface finish Ra 0.08 µm AC FORM HMI user interface 15" LCD color screen, mouse or touchscreen, keyboard, and hand control Incl. 3R-Systems Workpartner WPT1+ - 150 electrode positions - 10 pallet positions Net weight of the system: 5504 kg Machine dimensions: 1790 x 2860 x 3100 mm We will clean, service, and test the machine upon receipt of the order. Optional: - Commissioning and instruction - Transport and installation - Cooling unit Itodpfswh Sigsx Ahuob - Dielectric

Condition: excellent (used), Year of construction: 2019, operating hours: 51,377 h, travel distance X-axis: 350 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 270 mm, workpiece weight (max.): 550 kg, total height: 2,350 mm, total width: 2,025 mm, total length: 2,040 mm, overall weight: 2,920 kg, table load: 550 kg, Equipment: documentation/manual, Sodick EDM die-sinking machine AD35L Itodpex Rp Dtofx Ahujb Dielectric tank 400 l, max. electrode weight 50 kg, machine footprint 2800 mm x 3140 mm. Extraction system is not included in the scope of delivery.

Condition: ready for operation (used), Year of construction: 2018, operating hours: 11,000 h, Control Unit Iodpfsx D D Eijx Ahujtb Brand HEIDENHAIN Main Drive Spindle speed range 15000 Number of axis 5 Movement Z-Axis Movement 700 mm X-Axis Movement 1350 mm X-Axis Rapid Traverse 30 m/min Y-Axis Movement 1150 mm Y-Axis Rapid Traverse 30 m/min Workpiece Workpiece weight 1600 kg Table Table load 1600 kg Tools Slots in storage 30 This 5-axis +GF+ MIKRON HPM 1350U was manufactured in 2018. Ideal for advanced machining, this universal machining centre ensures precision and efficiency. Consider the opportunity to buy this +GF+ MIKRON HPM 1350U universal machining centre. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2008, x-travel 1000 mm y-travel 1000 mm z-travel 1000 mm Control Siemens 840D powerline spindle tunring speed 8.000 U/min drive capacity - main spindle 100/40% ED 32/44 kW tool taper HSK-A 100 number of tool places 354 Pos. rapid traverse ( x / y / z ) 60 m/min size of pallet 800 x 800 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Technical Features: - NC rotary table with pallet carrier - Rotary pallet changer - 40 bar internal coolant supply - Rotating viewing window - Wall-mounted magazine with 300 magazine positions - Rotating wall tool lock, 30 positions (inactive) and 54 positions (active) - Infrared measuring probe Iodpfx Aexcp R Ushustb - SK 50 mechanical tool breakage detector - Tool identification - 4-color signal lamp Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: ready for operation (used), Year of construction: 2009, travel distance X-axis: 1,350 mm, travel distance Y-axis: 1,150 mm, travel distance Z-axis: 700 mm, controller manufacturer: HEIDENHAIN, controller model: i TNC 530, total height: 3,090 mm, table load: 1,600 kg, overall weight: 12,600 kg, spindle speed (max.): 15,000 rpm, swivel angle A-axis (min.): -15 °, swivel angle A-axis (max.): 136 °, number of axes: 5, General Data Measurements width 2300 mm Measurements depth 5100 mm Measurements height 3090 mm Machine weight 12600 kg Control Unit Brand HEIDENHAIN Model i TNC 530 Main Drive Spindle speed range 15000 Spindle motor power HSK-A 63 Number of axis 5 Movement X-Axis Movement 1350 mm Y-Axis Movement 1150 mm Z-Axis Movement 700 mm A-Axis Movement 136° (-16 +120) Table Table load 1600 kg Additional Equipment A.P. cooling through spindle Chip evacuation Tool control with Dual Laser Radio frequency touch probe Air through spindle APS (Advanced Process System) ITC (Intelligent Thermal Control) Itodsx D I Nxspfx Ahueb This 5-axis MIKRON HPM 1350U was manufactured in 2009. A universal machining centre, it offers advanced capabilities for diverse and complex machining tasks. If you are looking to get high-quality milling capabilities, consider the MIKRON HPM 1350U machine we have for sale. Contact us for more information. Application Types Milling

Year of construction: 2017, operating hours: 6,417 h, condition: ready for operation (used), General Data Machine weight 4400 kg Movement X-Axis Movement 600 mm Z-Axis Movement 400 mm Y-Axis Movement 400 mm Itedpsx Nr N Nsfx Ahuob Main Drive Number of axis 4 This 4-axis AgieCharmilles FORM 30 was manufactured in 2017. It features a stroke of 600mm x 400mm x 400mm, with axis speeds up to 6 m/min. The machine can handle workpiece weights up to 1000kg and dimensions of 1000 x 700 x 400 mm. It includes a dielectric unit with a 750l capacity and a robust weight of 4400kg. Consider the opportunity to buy this AgieCharmilles FORM 30 die-sinking EDM machine. Contact us for more information about this machine. Application Types EDM
