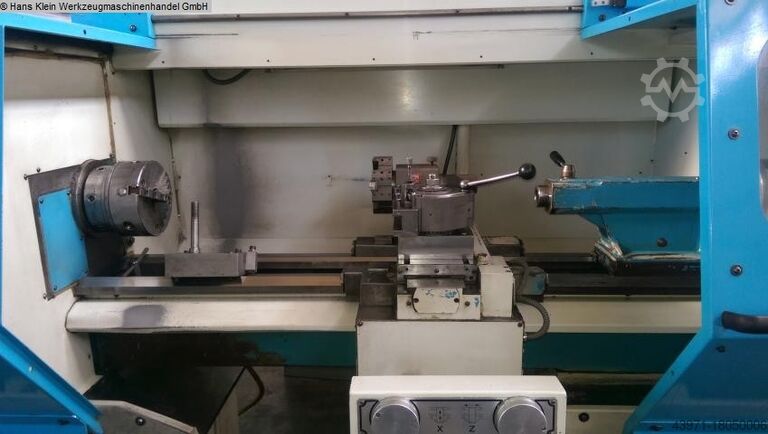

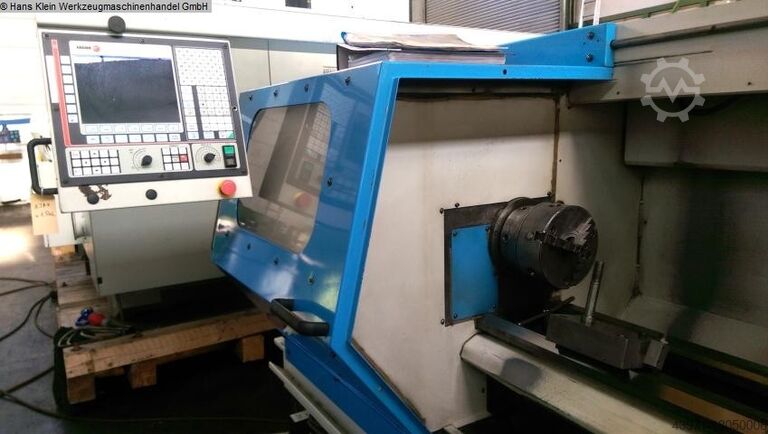

Lathe - cycle controled

AJAX APOLLO 200

Condition: refurbished (used), Year of construction: 2014, functionality: fully functional, total width: 2,500 mm, total length: 4,500 mm, total height: 3,200 mm, Offered is a double spindle pick up turning machine VSC 250 DUO. Cgedpor Nc Ufjfx Af Heu There are 2 nearly identical machines available. Each machine is equipped with 2 independent working spindles and 2 EMAG turrets. The machine can produce 2 identical workpieces with the same machining operation, as well as one workpiece in two successive machining operations. The VSC 250 DUO will receive a general overhaul before delivery and gets a control upgrade to Siemens Sinumerik ONE. The machine can be equipped with other periphery (chip conveyor, coolant system, external automation, etc.), depending on requirements. COTROL Siemens Sinumerik One TECHNICAL DATA workpiece diameter: max. 250 mm workpiece height: max. 150 mm chuck diameter: 250/315 mm swing diameter: 350 mm X-stroke: 745 mm Z-stroke: 300 mm TOOL CARRIER working area 1 1x EMAG disc turrets, 12x VDI 50 without driven tools working area 2 1x EMAG disc turret, 12x VDI 50 with driven tools Price, delivery time and equipment of the machine on request.

Condition: as good as new (ex-display), Year of construction: 2024, functionality: fully functional, Working area Grinding length: 250 mm Centre height: 100 mm Workpiece weight: 30 kg Z-axis: 350 mm Table adjustment: 8 ° degrees X-axis: 190 mm Grinding spindle Grinding wheel diameter max.: 500 mm Grinding wheel width max.: 80 mm Grinding wheel bore: 127 (203) Grinding wheel motor power: 5.5 kW Peripheral speed: 50 m/s Grinding wheel protection cover: D500 x 80mm Workpiece spindle Speed: 1 - 2,000 rpm Workpiece spindle mount: MK4 Tailstock Tailstock quill mount: MK3 Tailstock quill stroke length: 30 mm Cylinder fine adjustment range: ± 0.04 Codsvz Snkopfx Af Hegu Equipment Paper belt filter system Rinse gun Mechanical fume extraction

Condition: used, Year of construction: 2017, Milling machines Travel distance X: 800 mm Travel distance Y :950 mm Travel distance Z: 1020 mm HSC-machines Number of axis: 5 milling machine / machining center Control: Siemens Sinumerik spindle chuck: HSK 100 spindle revolutions: 6000 rpm Speed range to: 6000 U/min table size X: 770 mm table size Y: 770 mm Cjdpfxjyzw Saj Af Hegu max. workpiece weight: 800 kg tool changer: 60 - time input Power : 32 kW Torque: 340 Nm Rapid traverse: 40 m/min feed rate: 40 mm/min spindle cooling chip conveyor control Siemens 5-axis CNC universal machining center Designed for high-precision milling of various materials Extremely rigid construction for heavy-duty cutting Equipped with Siemens Sinumerik control HSK100 spindle, ideal for hard metal machining High process reliability and efficiency Suitable for automotive, mechanical engineering and mold making industries

Condition: used, Year of construction: 1999, Technical details: turning diameter over bed: 554 mm turning dia. over face-slide: 370 mm turning length: 1000 mm centre distance: 1100 mm control: Fanuc 210i longitudinal traverse (z-axis): 1000 mm Transversal stroke (x-axis): 290 mm revolution per minute: 16 - 1800 U/min spindle stroke: 178 mm feed:: 10 m/min. spindle passage: 104 mm spindle nose: D1 - 11 tailstock taper ISO: 6 MT spindle drive: 11/7,5 kW connection voltage: 380 V Cgjdpfjv Azdwsx Af Hsu electrics - voltage/frequency: 3 Ph / 400 V / 50 Hz V/Hz total power requirement: 11 kW Weight approx.: 4,0 t dimension machine xH: 3,3 x 1,8 x 1,7 m

Condition: excellent (used), Year of construction: 2019, operating hours: 403 h, functionality: fully functional, turning length: 1,200 mm, spindle bore: 120 mm, controller model: Siemens 840 Dsl, Equipment: documentation/manual, Technical data: Turning length 1200 mm Chuck diameter 350 mm Working stroke X top/bottom 200 mm Working stroke Y. axis 210 mm (+130/-80) Working stroke Z. axis 1200 mm Maximum travel speed W/X/Y/Z meters/minute 45/40/40/46 Ball screw diameter W/X/Y/Z mm 40/40/40/40 Profile rail guide, B/X/Y/Z mm 45/45/45/55 Tool flight circle 700 mm Maximum center distance 1200 mm Main spindle/counter spindle Spindle bearing diameter 120 mm/160 mm Spindle passage 65/105 mm Spindle bore diameter 80/120 mm Spindle flange/spindle head DIN 55026 A6 / A8 Drive power 100% ED 22 KW/67.4 Drive power, 40% ED 24 KW/80 Nominal speed 1400 rpm Maximum speed 5,700 rpm Torque 100% ED 150 nm/585 Torque 40% ED 191 nm/795 C-axis resolution 0.001 degrees Both turrets: Tool holder: VDI 40 Maximum speed rpm 6000 torque drive 12,000 speed drive Maximum drive power kW: 28.5 torque drive 23.5 speed drive Maximum torque (25% ED) Nm: 85 torque drive 56 speed drive Dimensions: Cjdpfxsvw Upce Af Hegu 4500 x 2500 x 2500 Weight approx. 16000 kg Control: Siemens 840 Dsl

Condition: ready for operation (used), Year of construction: 2010, For sale is a turning line for drive shafts incl. end machining machine (cutting to length & drilling) The line consists of the following machines: Lang -Laru > cutting to length and drilling Cjdpfxeupgbws Af Hogu 3x Emag VTC 250 for turning the drive shafts All machines are connected with an Ewab belt Each lathe is loaded with a KUKA robot The technical data of the machines can be seen in the pictures.

Condition: ready for operation (used), Year of construction: 2017, operating hours: 15,208 h, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, overall weight: 12,000 kg, spindle speed (max.): 15,000 rpm, spindle motor power: 21,000 W, number of axes: 4, This 4-axis DMG MORI NHX 5000 was manufactured in 2017. It features a maximum spindle speed of 15,000 rpm and a travel of 730 mm in both the X and Y axes, with a Z-axis travel of 880 mm. The machine includes a robust pallet size of 500 x 500 mm and a tool capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the DMG MORI NHX 5000 horizontal machining centre we have for sale. Contact us for further details. • Spindle torque: 111 Nm (continuous 85 Nm) • Tool capacity: 40 tools (optional magazine 60 tools) • Rapid traverse (X/Y/Z): 60 m/min • Acceleration (X/Y/Z): 1G • Pallet size: 500 x 500 mm • Number of pallets: 2 • Automatic rotary pallet changer: 2 stations • NC table B axis: direct drive, indexing 0.001°, max speed 100 rpm • Maximum pallet load: standard 500 kg (optional 700 kg) • Direct position measuring system; Linear scale standard • Control system: CELOS Siemens 840D sl with 21.5" ERGOline multi-touch display • Electronic handwheel: Siemens • Coolant through spindle preparation up to 70 bar • Renishaw probe OMP60 • Tool breakage detection system • Machine status signal lamp • Water-glycol spindle cooling unit • Application Tuning Cycle (ATC) • Machine bed: 3-point support • Power connection: L1 L2 L3 N PE • Connected load: 46 kVA • Maximum input current: 67 A • Fuse protection: 125 A • Short circuit current: 1.25 kA • Maximum supply voltage: 4.0 kV • Supply voltage: 400 V ±10 % • Frequency: 50 Hz • Control voltage: AC 230 V / DC 24 V Cjdpfx Afeyt Hwze Hegu • Operating time: 27,715 h • Spindle hours: 15,208 h Additional equipment • Knoll KF110/700 • Knoll Flow Monitor • High-pressure coolant system • 2x clamping towers (250 x 250 x 650 mm) TRIAG incl. accessories • 95x tool holders HSK63 (various clamping devices) Technical Specification Taper Size BT 40

Condition: used, Year of construction: 2012, turning diameter 400 mm swing diameter 420 mm x-travel 850 mm z-travel 315 mm Cgedpfx Afevxwx As Hsu spindle head DIN 55026 - Size 11 spindle bearing diameter 140 mm turning speeds max. 4000 U/min tool turret 12 times C5 Capto rapid traverse x + z axis 45 / 30 m/min feeding force 11 kN total power requirement 58 kW weight of the machine ca. 9 t dimensions of the machine ca. 9,5 x 4,5 x 3 m Hard turning Dry machining Chip conveyor Promot Portal and Cellmaster No clamping device available No tools available no Cellmaster accessories available

Condition: used, Year of construction: 2001, functionality: fully functional, input voltage: 400 V, We offer 4 pieces Emag VL 3 for sale. Three machines with Lifetool. One machine without Lifetool. Year of construction of the machines 2000-2001 General description: Manufacturer: Emag Machine type: VL3 Technical data: Control: Fanuc 21i-T and Fanuc 18i-T Rotation diameter: approx. 210 mm Maximum speed 6,500 1/min Turret: VDI 40 mm, 12 stations Hinged belt chip conveyor Cgjdpfx Aetrdlaof Hju Spindle holder: GR. 5 Circulating parts conveyor. Machine weight: approx. 5.5 t A used three-jaw chuck is included with every machine. The description is non-binding and should be checked during an inspection.

Condition: good (used), Year of construction: 2012, Turning length: 505 mm Cgsdpjxqxg Uofx Af Hou Turning diameter: 360 mm Spindle bore: 76 mm Max. spindle speed: 3500 rpm Turret: 12 positions, driven tools Control: Fanuc 32I
