Milling center cnc

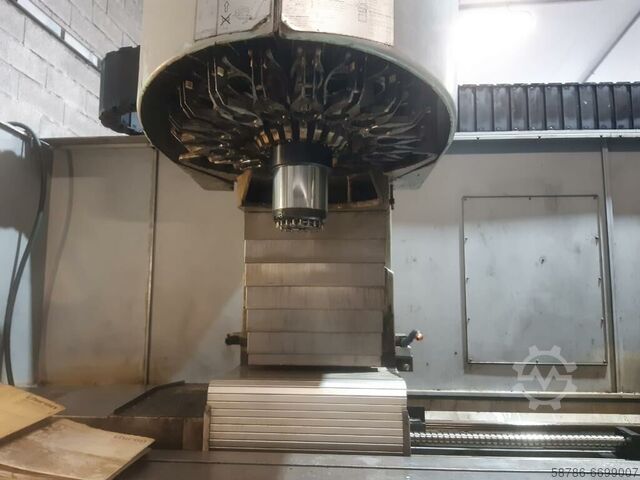

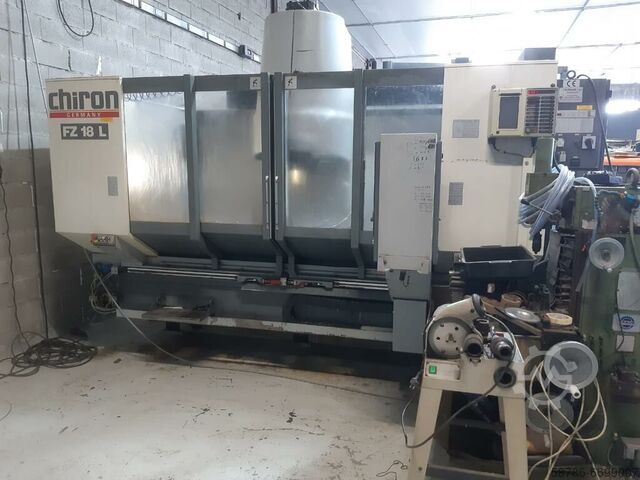

Chiron FZ18L X2000mm 4 axis nikken

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch Hnedpfx Ahod Tm D Ejujg 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Good condition

Condition: refurbished (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 1276, CNC Hot Radial Forging GFM SX-13 New in 1974 / 2022 New control system PLC SIEMENS S7 Machine number: 1276 No. of Hammers: 4 Forging force each hummer: 160 Ton Hammer stroke / min: 700/min Hammer lenght: 240 mm Diameter setting range: 80 mm Maximum forging diameter: Structural steel, round-cross section: Ø 130 mm square cross section: Ø 115 mm Smallest dimensions forged: Ø 25 mm Manipulator A max. displacement: 6820 mm Manipulator B max. displacement: 7150 mm Maximum workpiece length: 6000 mm Rapid speed manipulator: 400mm/sec Total connected power: 300 kW 380 V, 50 Hz Machine dimensions: Forging height over floor: 615 mm Total height pf the machinr over floor: 1665 mm Total machine lenght: 32670 mm Total foundation lenght: 33400 mm Tot. machine width (without auxliary equipments): approx 3885 mm Total foundation width: 16000 mm Hnjdpeq U R T Nofx Ahujg Total weight of the machine: 84.000 Kg

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Hnodpfxjhrihye Ahujg

Condition: used, Year of construction: 1998, swing diameter 2000 mm Hnjdpfx Ahexap Eyoujg table diameter 1800 mm turning height 1500 mm Control Siemens Sinumerik 840 C table turning speeds 0-280 U/min feed range 0-18000 mm/min workpiece weight max. 12000 kg total power requirement 177 kVA Feed drives: - Crossbeam support, vertical and horizontal mm/min - Crossbeam support, rapid traverse 18000 mm/min - Crossbeam adjustment speed 425 mm/min Milling drive: - Milling drive power 30 kW - Number of gear stages 2 stages - Stage jump 3.17 - Speed range of the 1st gear stage 10 - 224 - 950 rpm - Speed range of the 2nd gear stage 32 - 72 - rpm Tool system, cutting force: - Tool system 250.2 - Milling spindle holder according to 69871-A SK 50 - Cutting force on turning tool 50 kN Equipment/accessories: - Tool measuring probe - Various turning tool holders - Various clamping jaws - Various clamping devices - Various SK 50 mountings - Grinding spindle - Powered tools - Tool changer/head changer - Hydraulic unit - Chip conveyor - Technical documentation

Condition: used, Year of construction: 2011, Mazak HC Nexus 5000-II Mazatrol Matrix Nexus Hnedpsv Tvh Ssfx Ahujg Year: July 2011 Pallet Size: 500 x 500 mm Movement: - X: 730 mm - Y: 730 mm - Z: 740 mm Spindle Speed: 12,000 rpm Tool Changer: 40 positions Chip Conveyor: Chrome

Condition: good (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: 155436, Positioning B-axis with minimum increment 0.001 degrees Hnjdpowb Epajfx Ahueg Bar Feeder Interface Automatic part pick-up Synchronized tapping for live tools Coolant through milling head 15 bar Rear belt chip conveyor

Condition: used, Year of construction: 1998, machine/vehicle number: 98BE510071, turning length: 90 mm, spindle speed (min.): 4,000 rpm, spindle motor power: 11 W, overall weight: 6,300 kg, bar passage: 51 mm, 12 position upper turret (6 are driven) -10 position lower turret (5 are driven) - sub spindle - 2 x C axis - equipped with Lns Sprint S2 bar loader with front magazine, fixed and driven tool holders, manuals - Fanuc 18T Control Hnjdpfx Ahjwidp Ijuog

Condition: used, Year of construction: 1981, machine/vehicle number: 78.977, Equipment: documentation/manual, Year of manufacture: 1981 / Year of retrofit: 1996/1997 Control: Siemens 840 C Siemens control for X/Y/Z/W/U/B/V axes Spindle diameter: 200 mm Main motor Siemens: 68 kW Spindle speeds: I gear: 3 - 202 rpm II gear: 180 - 808 rpm X travel: 12,000 mm Y travel: 4,500 mm Z travel: 2,400 mm (supporting sleeve □ 520 mm/travel 1200 mm + W axis 1200 mm) Mount: SK60 (SK50) Facing slide: yes Milling head: 2 units Prepared for CNC rotary table (4th axis) Without rotary table and clamping field (available separately) Hnodpfxsqc Umge Ahueg Full documentation Net weight: approx. 140 tons Video available!

Condition: ready for operation (used), Broadbent Heavy Duty Lathe 1041mm x 10,000mm Year approx. 1973. Swing over bed 1041mm (41”) Swing bin gap1575mm (62”) Distance between centres 9300mm (30’ 6”) Spindle bore 115m (4 ½”) Spindle speeds (18) 3.3 – 360 rpm Spindle motor 30 HP or 40 HP (To be confirmed) Tailstock 6 MT Imperial Metric screw-cutting with change gears. 36” Faceplate with 4 adjustable jaws, Hjdpfx Aov I T Ewohuong 54” Faceplate, Taper turning attachment, Power feed to top slide, 2 x 18” 3 point steadies, 24”/28” Steady.

Condition: used, Technical details: faceplate diameter: 1000 mm swing diameter: 1600 mm turning height: 1200 mm main drive: 75 kW faceplate speeds from - to: 7 - 800 U/min milling motor: 25 kW milling head speed: 7 - 3000 U/min milling spindle - taper: ISO 50 cross rail adjustment - vertical: 800 mm ram head dimension: 240 x 240 mm weight of the machine ca.: 40 to dimensions of the machine ca.: 9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control Hodpfx Asvb Dcaehuong - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor *
