Vertical lathe

EMAG VSC 250 DUO DS

Year of construction: 1996, condition: used, Schütte SF 26S DNT Isdpfei Hb Szox Agqsa YOM 1996 Number of spindles: 6 Max bar diameter [mm]: 26 Auto bar loader: Cucchi BLT Multi-6 - (YOM 2015) Cross slide pos. 1, 3, 4, 6 CN slide pos 2, 5 Spindle stop attachment for main spindles Bar feeding pos. 6 Pickup spindle pos. 6 High pressure coolant system Chip conveyor, hinged belt type Oil mist filter ISI RON/A 2500A, ID 26295

Year of construction: 2001, condition: excellent (used), Multispindle lathe Schütte AG20 Isdjhrihyopfx Agqea

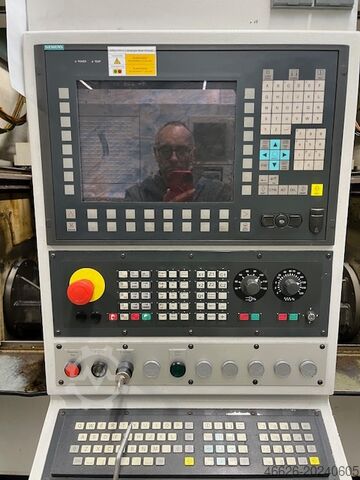

Condition: good (used), Year of construction: 2015, operating hours: 35,000 h, functionality: fully functional, spindle speed (max.): 6,000 rpm, chuck outer diameter: 250 mm, feed length X-axis: 680 mm, feed length Z-axis: 200 mm, power: 39 kW (53.03 HP), rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, type of input current: three-phase, controller manufacturer: Siemens, controller model: 840 DS, input voltage: 400 V, coolant supply: 6 bar, nominal power (apparent): 45 kVA, Equipment: rotational speed infinitely variable, type plate available, EMAG VERTICAL SINGLE-SPINDLE TURNING AND GRINDING CENTER EMAG - REINECKER VSC 250 DS Used, year of manufacture 2015 Control: Siemens 840 DS Condition: Used machine in good condition Operating hours (approx.): 35,000 Program run time (approx.): 22,000 hours Operating voltage: 400V Air connection: 6 bar Total power requirement: approx. 45 kVA Cooling unit: water/water Ijdolfduiepfx Agqsa Machine dimensions without peripherals (L x W x H): approx. 3200 x 1900 x 2650 mm CYLINDRICAL GRINDING Integrated motor grinding spindle with max. speed 45,000 rpm and max. output 18 kW Touch dressing for ceramic CBN grinding wheels Vertical CNC turning and grinding center Automation / Gantry: EKF basket stacker cell as raw/finished parts buffer for baskets 400 x 600 mm on floor rollers 3 basket stacks enable uninterrupted operation even during basket changes, loading/unloading via loading gantry The machine is well-maintained and EMAG serviced. The production process includes pre- and finish machining of the bore and end faces by hard turning the face surfaces, as well as turning the diameter/bore followed by bore grinding. No driven tools Viewing under power is possible by appointment. Dismantling and loading of the equipment are to be carried out by the buyer. Price and further details on request / special price All technical details subject to error/typos. Sale only within EU countries.

Condition: excellent (used), Year of construction: 2004, operating hours: 1,000 h, functionality: fully functional, turning diameter over cross slide: 380 mm, turning length: 350 mm, turning diameter: 200 mm, travel distance X-axis: 240 mm, rapid traverse X-axis: 12 m/min, Hembrug Mill-Turn Machine Model: Slantbed Mikroturn 100 CNC Siemens 840D Control Approximate Actual Run Time Hours: 1,000 Hydeostatic Spindle Hydrostatic Ways Scale Feedback Suspended Granite Bed Garnite Spindle Housing Coolant Pump Coolant Circulation Pump Isdpfx Agswcfgbeqsa Pneumatic Bearing Purge Hydraulic Temperature Control Coolant Temperature Control Return Oil Pump and Reservoir for Remote Location of Hydraulic / Cooling Unit. Options & Additional Purchased Features: Tailstock Vacuum Pump for Vacuum Chucking Programable Controlled Spray Mist C-Axis Milling / Drilling Renishaw Tool Touch Probe Non-Contact Tool Incoming Air Dryer / Filter Thousands of Dollars of Brand New Tooling: Live Center Tailstock Taper Adapter 8” Micro-Centric Pneumatic Chuck 3 Sauter Straight Live tooling heads 2 Sauter 90 degree Live tooling heads 1 Special VDI offset Tooling holder 16 VDI Tool Holders for Turning, boring, and on center drilling. Tool Pick-up Video System Additional Backup Hard Drive with Software Fully Loaded and Tested. Extra Siemens Control Pannel Complete Set of Manuals Machine Upgrades I added at additional cost. New Digital Hard Drive New Backup Hard Drive with software already loaded, plug and play ready, no downtime. New Z-Axis Heidenhain Scale Rewound Hydraulic Pump Motor, factory motor was running too hot for my liking. Replaced Operator Panel, back light on monitor went out, have the original, back light needs replacing. 50 Foot Extended Wiring Harness For Remote Location of Hydraulic / Cooling Unit.

Condition: used, Year of construction: 1992, Technical details: grinding diameter: 50 mm grinding length: 100 mm centre height: 100 mm Isdpfjr R Ek Sjx Agqja centre distance: 200 mm

Condition: refurbished (used), Year of construction: 2015, Offered is a vertical turning center EMAG VSC 400 DD. The machine will be mechanically overhauled and rebuilt by EMAG before delivery. Depending on requirements, the machine can be equipped with other peripherals such as coolant systems, external automation and so on. The turning machine for automated machining of chucked components fits perfectly for the machining of series workpieces with the following dimensions: Workpiece diameter: 340 mm Workpiece height: 160 mm Optional the machine can be equipped with an additional millling or grinding unit. CONTROL Siemens 840Dsl Iedpfxetngg Ue Agqja TECHNICAL DATA chuck diameter: max 400 mm swing diameter: max. 420 mm X-stroke: 850 mm Y-stroke: 315 mm Z-stroke: 315 mm TOOL CARRIER EMAG wheel turret, 12x VDI 50 with driven tools Delivery time and additional equipment of the machine on request.

Condition: used, overall weight: 495,000 kg, Year of construction: 1991, Complete Mechanical Upgrade by GFM, with increase of Power to 900 Ton/hammer and new CNC in 1991 Numbers ̈of Hammers: 4 Forging force: 3.600 Ton (900t per hammer) Maximum diameter of forging: Iedpfx Ajv D Ddvsgqsa - circular cross section: Ø 400 mm - square cross section: 320 mm Minimum output diameter: - circular: 60 mm - square: approx 50 mm Maximum length of forging with/without lateral reception: 8.000 mm / 9.700 mm Workpìece weight: 2500 kg Min length: 1500 mm Max length: 3000 mm Engine forge: 2 x 500 kW, 5500 V, 50 Hz Total power supply (nominal power): ca 1.600 kW Machine weight: 493.000 kg

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, year of last overhaul: 2023, Offered is a VSC 250 vertical turning center, which has been mechanically and electrically overhauled by EMAG. The control system was upgrated to Siemens Sinumerik One. Depending on requirements, the machine can be equipped with various automation options (shuttle, O-type conveyor, L-type conveyor, turn around station) and other peripherals such as chip conveyors, coolant systems, etc. CONTROL Siemens Sinumerik One Iedpfxorq Damo Agqja TECHNICAL DATA Workpiece diameter: 250 mm Workpiece height: 100 mm X-stroke: 860 mm Z-stroke: 200 mm MAIN SPINDLE power 28 kW TOOL CARRIER EMAG wheel turret, 12x VDI 40 Delivery time and additional equipment of the machine on request.

Condition: good (used), Year of construction: 2002, Machine type: CNC Lathe Manufacturer: Reinecker Karstens Kopp - EMAG Model: VSC 250 DS Serial number: M02.43446 Year of manufacture: 2002 Isdpjkyrwwofx Agqea Available immediately Ex site for self disassembly Optionally we can offer dismantling and loading

Condition: ready for operation (used), Year of construction: 2006, operating hours: 83,799 h, functionality: limited functionality, feed length X-axis: 685 mm, feed length Z-axis: 200 mm, travel distance X-axis: 685 mm, travel distance Z-axis: 200 mm, chuck outer diameter: 315 mm, rapid traverse X-axis: 45 m/min, rapid traverse Z-axis: 30 m/min, turning diameter: 400 mm, total length: 5,200 mm, total height: 3,282 mm, total width: 6,300 mm, rotational speed (max.): 4,000 rpm, torque: 460 Nm, overall weight: 10,000 kg, controller model: Siemens 840D, control type: CNC control, Equipment: cooling unit, For sale: EMAG VSC400, year of manufacture 2006. Equipped with Siemens 840 D control system. Features: - Infeed and outfeed conveyor (O-type belt) Iodpsw Dyzisfx Agqoa - Pneumatically controlled transfer unit - Stamping unit - Chip conveyor (ejection to the left) - Coolant system - Tool turret 12x VDI40 Known defects: - Loading hatch - Interior lighting - Z-axis only usable in reduced rapid traverse (working feed unaffected) The machine is powered up and can be inspected.
