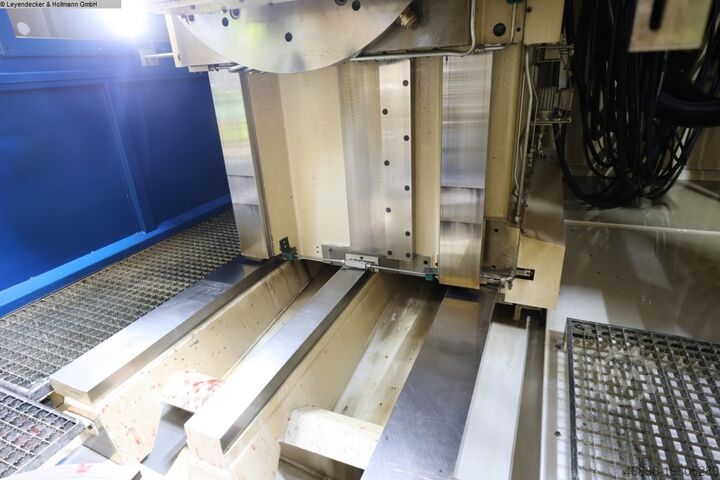

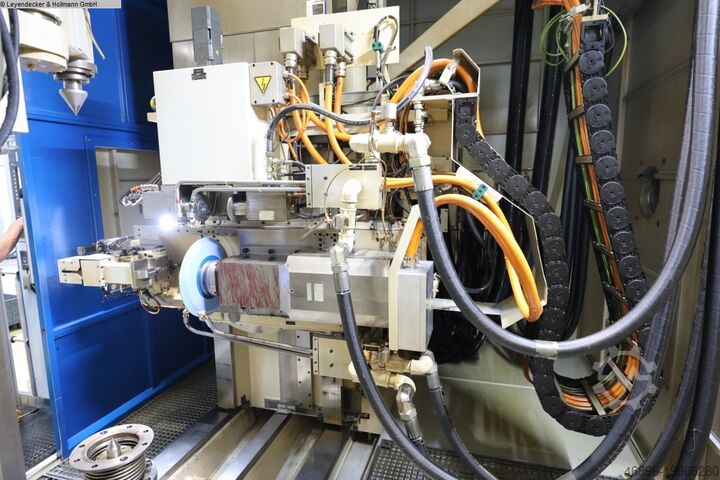

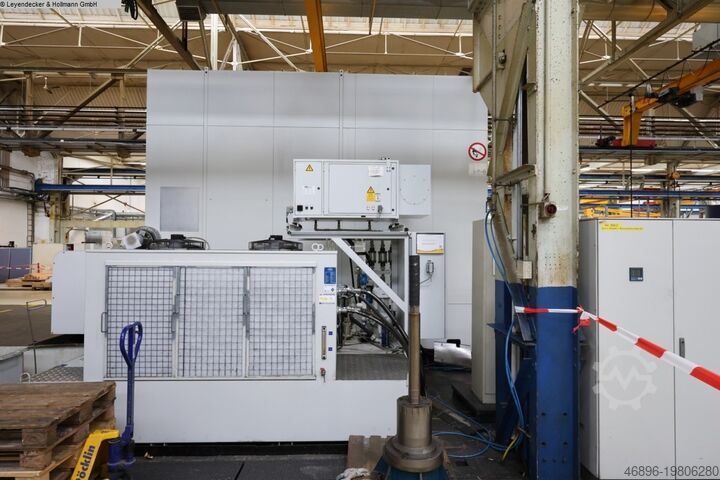

Gear Grinding Machine

GLEASON- PFAUTER P 800 G

Year of construction: 2014, condition: ready for operation (used), A defective CNC precision surface and profile grinding machine ABA is available. Grinding length: 2500mm, grinding width: 1020mm, cross travel: 920mm, cross feed intermittent: 750mm/pulse, cross feed continuous: 5000mm/min, table spindle center distance: 1100mm, magnetic plate dimensions X/Y: 2500mm/1000mm, max. table load: 5000kg, table speed: 60m/min, spindle power: 26kW, grinding wheel dimensions X/Y/Z: 500mm/100mm/203mm, grinding wheel rotation speed: 35m/s. Machine dimensions X/Y/Z: approx. 8000mm/4000mm/3150mm, weight: approx. 20000kg, control: Siemens Sinumerik 840 D-Solutionline, operating hours: approx. 1000h, cycle time: approx. 400h. Including cooling unit Hyfra sigma 13-S, year of manufacture: 2014. The linear drive of the X-axis is defective and has been dismantled. Documentation available. On-site inspection is possible. Dkjdpjwi Tpkofx Ah Sog

Condition: like new (used), Year of construction: 2020, functionality: fully functional, Equipment: documentation/manual, Purchased new in 2021. Was commissioned but has never been operated, Condition is as new. Dkjdewalzyopfx Ah Ssg

Condition: ready for operation (used), Year of construction: 2010, FPT heavy-duty, high-dynamic mobile column boring machine with 5-axis support, model SPIRIT 240-M140. Working range: X-AXIS: 14,000 mm Y-AXIS: 5,000 mm Dkedpewiifhsfx Ah Sog Z-AXIS: 2,500 mm Equipped with 2 rotary tables with a capacity of 50 tons each. Automatic tool changer. Numerical Control: Siemens. The machine is equipped with 3 heads: 1 automatic bi-rotary thousandth TUPCG head, 1 automatic head for large removals TO144 1 D'Andrea head for turning with a working range from diam.150 to diam.1600 mod. U-TRONIC 800.

Condition: good (used), Year of construction: 1988, Description: Heavy-duty, high-precision horizontal lathe with Rohm hydraulic clamping system, slide with two working positions, Sauter 4-position tool turret, circular turning unit, CNC 6 axes, tailstock, chip conveyor. Suitable for both high-volume material removal and high-precision turning. Machine modified with a 2000 mm face clamping plate and increased in size. Year of production: 1988 Made in: Germany Turning diameter over bed: 2500 mm Turning diameter over telescopic covers: 2200 mm Turning diameter over slide: 1400 mm Turning length: 6000 mm Three-jaw chuck table: 2000 mm Spindle bore: 200 mm Attachment for circular turning Dkodpsxmb Adsfx Ah Ssg Workpiece weight: 4,500–40,000 kg Turret head: 4 positions Spindle speed range: 4 – 400 rpm Main motor Siemens 95.5 kW Maximum torque: 40,000 Nm Overall power requirement: 125 kW Control: CNC SIEMENS 8T, 6 controlled axes Machine weight: 43,000 kg Required space: 13,000 x 4,000 mm

Condition: used, Year of construction: 1997, travel distance X-axis: 3,708 mm, travel distance Y-axis: 1,208 mm, travel distance Z-axis: 1,002 mm, feed length X-axis: 5,000 mm, feed length Y-axis: 5,000 mm, feed length Z-axis: 5,000 mm, rapid traverse X-axis: 15 m/min, rapid traverse Y-axis: 15 m/min, rapid traverse Z-axis: 15 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 35 rpm, CNC Bed-Type Milling Machine – Universal Dsdpfjwtpfpjx Ah Sekg ZAYER 20 KF 4000 Year of manufacture: 1997 CNC control: HEIDENHAIN TNC 426/430 Technical specifications: X travel: 3708 mm Y travel: 1208 mm Z travel: 1002 mm Table size: 4000 x 1000 mm Tool holder: SK 50 Spindle speeds: 35–3000 rpm Spindle motor: 22 kW Feed range: 6–5000 mm/min Rapid traverse: 15 m/min Machine weight: approx. 19.5 t ADDITIONAL INFORMATION Electronic handwheel Automatically swivelling milling head vertical/horizontal +/-120° (stepless) Milling head automatically swivelling in the rear axis / 90° rotation Coolant system The machine can be inspected under power. Delivery time: immediately Sale from location Westerkappeln Dismantling, loading available on request.

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours Dkedpfovy Ihdjx Ah Sog - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Condition: reconditioned (used), Year of construction: 2009, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 3,500 rpm, workpiece weight (max.): 8,000 kg, overall weight: 13,500 kg, Equipment: rotational speed infinitely variable, x-travel 3.000 mm y-travel 1.000 mm z-travel 1.000 mm control iTNC 530 HEIDENHAIN table-size 3.230 x 1.050 mm table load 8,0 t spindle taper ISO 50 tool change unit 24 Pos. spindle turning speed range 30 - 3.500 U/min drive capacity - spindle motor 25 kW feed stepless 1 - 5.000 mm/min rapid traverse 10,0 m/min chip conveyor Spiralförderer Dodpevlzznefx Ah Sokg voltage 380 V total power requirement 35 kVA weight of the machine ca. 13,5 t dimensions of the machine ca. 7,40 x 3,65 x 3,60 m hydraulic power unit 1,40 x 0,50 x 0,60 m 0,45 x 0,70 x 0,85 m - Serial No.: VH-30041 - Maschine ON 23.724 h - Spindel ON 7.968 h - CNC-Control: iTNC 530 HEIDENHAIN - Universal Milling Head (Huron-Type), manual - 2x Screw type chip conveyor at front and back of table - Oil chiller unit - Y-Axis guitde ways with new TURCITE - Ball screws and bearings in X/Y/Z axis renewed

Condition: used, Technical details: spindle diameter: 150 mm x-travel: 10000 mm Djdswg R Swepfx Ah Sekg y-travel: 2500 mm bore spindle stroke: 700 mm ram stroke: 700 dimension of the ram: 340 x 340 mm spindle taper ISO: 50 Speed of boring spindles: 1,25 - 1250 U/min. feed speeds infinitely variable: 1 - 5000 mm/min rapid traverse: 5 m/min total power requirement: 120 kW weight of the machine ca.: 115 t dimensions of the machine ca.: 15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways *

Condition: excellent (used), turning length: 5,500 mm, Make: WEIPERT Type: W1400 Control: R&D MTC3 DBC Turning Length: 5500mm Swing over bed Ø: 1400mm Swing over cross slide Ø:960mm Length: 9000mm Width: 2900mm Height: 2900mm Weight: 32000kg Dkjdpewzhzlofx Ah Seg

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 2,500 mm, Equipment: documentation/manual, Zayer mobile column milling machine, horizontal stroke 10000, vertical stroke 2500, slide stroke 1250, spindle 1800n, tool magazine 30 positions, year 1994, Heidenhain 415b control with 15" LCD display replaced last year, cone grinding October 2024 (iso50), always serviced. Currently in use. Dkedswhd Alopfx Ah Seg
