Used Chiron Fz 15 W Baseline-Korbwechsler for sale (106)

Condition: good (used), Year of construction: 2006, Spindle 12000 TR:MN CN SIEMENS SINUMERIK 258-38. Number of hours on the counter: 85 642 hours total machine power 30 KVA stroke X 300 mm, stroke Y 400 mm, stroke Z 425 mm spindle speed 12000 rpm travel speed 60m/min tool attachment SA40 Polhsn D D Nhoccqnogk 2 UNITS AVAILABLE

Condition: ready for operation (used), Year of construction: 2014, operating hours: 24,209 h, Control Unit Brand FANUC Pgslhcewbaq Sscqnjk Main Drive Spindle speed range 12000 Spindle motor power 7.5-15 kW Number of axis 4 Movement X-Axis Movement 730 mm X-Axis Rapid Traverse 75 m/min Y-Axis Movement 400 mm Y-Axis Rapid Traverse 75 m/min Z-Axis Movement 360 mm Z-Axis Rapid Traverse 75 m/min This 4-axis CHIRON FZ 15 W Magnum HS vertical machining center was manufactured in 2014. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this CHIRON FZ 15 W Magnum HS vertical machining center. Contact us for more information. Application Types Milling

Condition: used, Year of construction: 2013, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: SIEMENS, controller model: 840 D SOLUTIONLINE, total height: 3,550 mm, spindle speed (max.): 15,000 rpm, spindle motor power: 27 W, space requirement length: 23,500 mm, space requirement width: 8,600 mm, CONTROLS .. SIEMENS 840 D SOLUTIONLINE WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 5 .. .. among of them simultaneous CNC axes: 3 .. X-axis travel: 730 mm .. Y-axis travel: 400 mm .. Z-axis travel: 360 mm SPINDLE / HEAD .. spindle revolutions (max): 15000 /min .. tool fixture: HSK A63 .. spindle revolutions (max): 1500 /min .. tool fixture: HSK A63 .. drive power: 27 kW TOOL MAGAZINE .. magazin type: chain magazine .. number of positions: 187 AUTOMATIC WORKLOAD EQUIPMENT .. workpiece manipulator: articulated robot .. store type: magazine .. number of store positions: 21 .. pallet length: 2450 mm .. pallet width: 610 mm .. number of pallets: 21 Pgjlhccswaw Rtoqnek ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 23500 mm .. space requirements -front/back-: 8600 mm .. total height: 3550 mm ATTACHMENTS .. chip conveyor: yes .. coolant unit: yes .. band filtration unit: yes .. European CE standards: yes Manufacturing cell for automated production processes consisting of: 1 x SOFLEX system control 2 x Chiron FZ15 W Magnum High speed, year 2013 / 2014 1 x Kardex Shuttle XP500 high-bay warehouse with 21 trays 1 x 6-axis articulated arm robot from Motoman 1 x turning device 1 x SPC drawer 1 x gripper magazine for 6 storage locations 1 x jaw magazine 1 x steel grid enclosure The system would be used for the production of cubic bodies with the dimensions 50x50x17 to 61x117x61. The clamping devices used have a clamping size of 160x160x88.5. By adapting the clamping devices, larger parts can also be handled with the system. Translated with (free version)

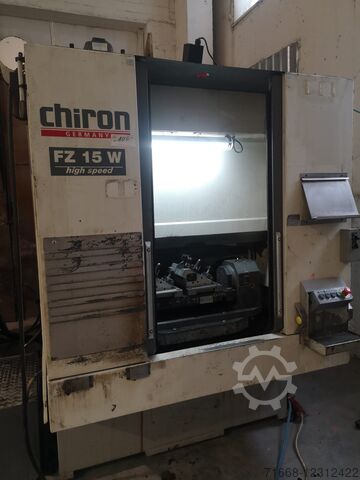

Condition: good (used), Year of construction: 2001, spindle speed (max.): 12,000 rpm, travel distance Y-axis: 400 mm, rapid traverse X-axis: 300 m/min, rapid traverse Z-axis: 425 m/min, Chiron machining center type FZ 15 W high speed Polhovtca Ujccqnogk with chip conveyor year 2001 with turntable 12,000 rpm internal cooling. X 300 Y400 Z 425 2 pcs available more pictures can be sent

Condition: used, Year of construction: 2019, Functionality: fully functional, machine/vehicle number: 337-78, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, feed length X-axis: 730 mm, feed length Y-axis: 400 mm, feed length Z-axis: 425 mm, feed rate X-axis: 75 m/min, feed rate Y-axis: 75 m/min, feed rate Z-axis: 75 m/min, nominal power (apparent): 30 kVA, torque: 95 Nm, controller manufacturer: Siemens, workpiece length (max.): 940 mm, workpiece width (max.): 520 mm, workpiece weight (max.): 400 kg, total height: 2,880 mm, total length: 6,490 mm, total width: 2,725 mm, table width: 1,060 mm, table load: 500 kg, overall weight: 10,500 kg, spindle speed (max.): 12,000 rpm, coolant supply: 70 bar, spindle motor power: 15,000 W, number of spindles: 1, tool length: 300 mm, tool diameter: 78 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Technical data CHIRON FZ 15 W Magnum HS (German) Manufacturer: CHIRON Type: FZ 15 W Magnum HS General features: Machine type: High-performance machining center with vertical spindle Area of application: Milling and drilling for industrial applications Change system: High-speed basket magazine for fast tool change times Automation: Optional integration of robot systems or workpiece handling for series production Pjlovxigfehccqnjgk Main spindle: Spindle speed (max.): 12,000 rpm Spindle power: 22 kW Spindle mount: HSK-A 63 Torque: 95 Nm Travel paths & axes: X-axis: 730 mm Y-axis: 400 mm Z-axis: 425 mm Rapid traverse X/Y/Z: 75 / 75 / 75 m/min Feed length X/Y/Z: 730 / 400 / 425 mm Feed speed X/Y/Z: 75 / 75 / 75 m/min Table & workpiece dimensions: Table width: 1,060 mm Table height: 430 mm Table length: 1,060 mm Table load: 500 kg Workpiece size (max.): 940 x 520 mm Workpiece weight (max.): 400 kg Tool magazine & handling: Tool holder: HSK-A 63 Tool positions: 48 / 64 Tool diameter: 78 mm (140 mm with free positions) Max. tool length: 300 mm Max. tool weight: 10 kg Tool change time: approx. 0.9 s Chip-to-chip time: approx. 2.1 s Electrical & operating data: Input voltage: 400 V Type of input current: Three-phase Operating pressure coolant supply: 30 / 70 bar Air connection: 6 bar Dimensions & weight: Total length: approx. 6490 mm Total width: approx. 2725 mm Total height: approx. 2,880 mm Total weight: approx. 10.5 t

Condition: good (used), Year of construction: 2004, Functionality: fully functional, travel distance X-axis: 550 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 425 mm, rotational speed (max.): 12,000 rpm, The main spindle was replaced in 2022! TECHNICAL DETAILS x-travel: 550 mm y-travel: 400 mm z-path: 425 mm Control: Siemens SINUMERIK 840D Spindle speeds: 12,000 rpm Table size (2x): 660 x 400 mm Spindle diameter: 70 mm Tool holder: HSK 63 Tool changer: 20-fold Feed rates: 1- 60,000 mm/min Rapid feeds: 60,000 mm/min Spindle motor: 14 kW MACHINE DETAILS electr. version - voltage/frequency: 400 / 50 V/Hz Connected load: 32 kVA Machine weight: approx. 7.4 t Space requirement: approx. 4.5 x 2.3 x 2.5 m Pgelhccjukhlyoqnok EQUIPMENT - 20-position tool changer and two work tables in alternation

Condition: used, Year of construction: 2014, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: SIEMENS, controller model: 840 D SOLUTIONLINE, total height: 3,550 mm, spindle speed (max.): 15,000 rpm, spindle motor power: 27 W, space requirement length: 23,500 mm, space requirement width: 8,600 mm, CONTROLS Pgelhccqsv Dwmksnsk .. SIEMENS 840 D SOLUTIONLINE WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 5 .. .. among of them simultaneous CNC axes: 3 .. X-axis travel: 730 mm .. Y-axis travel: 400 mm .. Z-axis travel: 360 mm SPINDLE / HEAD .. spindle revolutions (max): 15000 /min .. tool fixture: HSK A63 .. drive power: 27 kW TOOL MAGAZINE .. number of positions: 187 AUTOMATIC WORKLOAD EQUIPMENT .. workpiece manipulator: articulated robot .. store type: circulation magazine .. number of store positions: 21 .. pallet length: 2450 mm .. pallet width: 610 mm ELECTRICAL SPECIFICATIONS .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 23500 mm .. space requirements -front/back-: 8600 mm .. total height: 3550 mm ATTACHMENTS .. chip conveyor: yes .. coolant unit: yes .. band filtration unit: yes .. European CE standards: yes Manufacturing cell for automated production processes consisting of: 1 x SOFLEX system control 2 x Chiron FZ15 W Magnum High speed, year 2013 / 2014 1 x Kardex Shuttle XP500 high-bay warehouse with 21 trays 1 x 6-axis articulated arm robot from Motoman 1 x turning device 1 x SPC drawer 1 x gripper magazine for 6 storage locations 1 x jaw magazine 1 x steel grid enclosure The system would be used for the production of cubic bodies with the dimensions 50x50x17 to 61x117x61. The clamping devices used have a clamping size of 160x160x88.5. By adapting the clamping devices, larger parts can also be handled with the system. Translated with (free version)

Condition: refurbished (used), Functionality: fully functional, machine/vehicle number: 1121798, Link apron / Z-axis cover for Chiron FZ 15 machines. Original manufacturer: EITEC Chiron no.: 1121798 Polhccotk Av Hjqnjgk Status: Refurbished item Your defective cover must be returned to us. Price is exchange price! Covers for older FZ 12 are also available. Please specify dimensions.

Condition: ready for operation (used), Year of construction: 1996, Functionality: fully functional, machine/vehicle number: 182-69, No reserve price - guaranteed sale to the highest bidder! TECHNICAL DETAILS Connected load: 10 kVA Operating voltage: 3 x 400 V Weight: 4,000 kg Specifications according to manufacturer - no guarantee Travel X / Y / Z: 550 x 300 x 425 mm Tool changing system: Change arms Spindle speed: 10,000 rpm Control system: Siemens Sinumerik Installation dimensions: 3.3 x 2.9 x 3.1 m Pgslewczxtshccqnek Transport dimensions on pallet: 3,550 x 2,240 x 2,450 mm

Year of construction: 1998, Condition: excellent (used), Vertical machining center CHIRON FZ 12 W Magnum High Speed 1998 Manufacturer CHIRON type FZ 12 W Magnum High Speed year of manufacture 1998 Control Sinumerik x-way 550 mm y-way 300 mm z-way 425 mm rapid traverse30m/min spindle mounting ISO SK 40 Pslhcjlnka Docqnegk

Condition: ready for operation (used), Year of construction: 2021, operating hours: 18,693 h, Control Unit Brand SIEMENS Model 840D solution line Main Drive Number of axis 5 Additional Equipment Tool changer: 2x32 tool positions, HSK-A 63, 5kg Coolant package Chip conveyor scraper belt: 1050mm, rear/08, left/15, 18, 200L Coolant system: KF-400-FKA900/ 900L, 70 bar Bridge for cables and hoses Fixture flushing in the machining station Measuring/tool breakage monitoring: RLP40Q measuring probe This 4-axis CHIRON DZ 15 W was manufactured in 2021, offering advanced capabilities for precision vertical machining. Ideal for complex geometries and multi-sided machining, this machine ensures efficient production with its robust design and high-speed operation. Consider the opportunity to buy this CHIRON DZ 15 W vertical machining centre. Contact us for more information. Pgolhccowbk T Roqnsk Application Types Milling

Condition: used, Year of construction: 2011, operating hours: 30,700 h, Functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed length X-axis: 450 mm, feed length Y-axis: 270 mm, feed length Z-axis: 310 mm, controller manufacturer: Siemens, spindle speed (min.): 15,000 rpm, operating hours of spindle: 30,700 h, coolant supply: 40 bar, number of spindles: 1, number of slots in tool magazine: 24, Vertical CNC machining center FZ08K W Magnum Drilling capacity in St60 Ø 16 mm Tapping Ø 16 Milling capacity in St60 60 cm³/min Digital main drive with spindle Air-operated, with tool clamp monitoring 2.2 kW at 100% duty cycle 7.2 kW at 25% duty cycle Travel paths X = 450 mm X = 270 mm Z = 310 mm Tool changer Pick-up chain magazine 24 positions HSK-A 40 DIN 69893 Workpiece changing device 0/180° Clamping surface 2 x 660 x 350 mm With thread and locating holes M16 Ø15H7 Digital feed drive for X, Y, and Z axes With direct drives and Indirect absolute position measuring systems Siemens CNC 840D Windows XP Termocontrol Signal light Coolant system KF 150 / FKA 500 Connection 4x hydraulics / 2x pneumatics High-speed package Rapid traverse speed 70 m/min in the X, Y, and Z axes Acceleration 1.0 g in the X-axis – 1.5 g in the Y-axis – 2.0 g in the Z-axis Pelhov U Um Aoccqnsgk Speed: 15,000 rpm Chip conveyor Rotary table package AWUP100 – 4th axis Measuring probe Renishaw OMP 40-2LS Scale package in all axes Extraction unit with air purifier

Condition: used, Year of construction: 2001, x-travel 550 mm y-travel 500 mm z-travel 400 mm Control Siemens spindle tunring speed 12.000 U/min table surface area 1050 x 450 mm table load 500 kg In our opinion, the machine is in good used condition and can be inspected under power by appointment. Polhovtgw Doccqnegk Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information as well as prior sale!

Year of construction: 2002, Condition: excellent (used), CHIRON FZ 15S with 4 axis in Perfect Condition Pgjlergqu Hehccqnok Machine can be inspected any time under power

Condition: used, Year of construction: 2000, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, controller model: Siemens 840 D, spindle speed (max.): 15,000 rpm, Equipment: documentation/manual, FZ 08 W (swivel table), 12 tool positions, HSK 32, 840 D control, Renishaw measuring probe, 8x pneumatic clamps, main spindle motor overhauled, KSS chip drawer, Pgjlhcjv Sqinscqnek

Condition: used, With KNOLL VRF 300/900 and KNOLL 750 K-1/150 filler Machine specifications: - Courses (X, Y, Z): - Maximum travel distances: - X axis: 300 mm - Y axis: 400 mm - Z axis: 425 mm - Max. power: 14.00 kW - Number of pins: 2 - Maximum spindle speed: 12,000 rpm - Tool change time (chip-to-chip): 2.10 s - Rapid feed (X, Y, Z) max.: 60 – 60 – 60 m/min - Maximum number of tools: 2 x 12 - Tool taper type: HSK-A63 - Part changing device: CHIRON basket tool changer Pjlhcceupkgdeqnjgk - Table: Turntable for coin - Clamping surface: 2 x 660 x 400 mm² - Control: Siemens 840D - Existing special equipment: - Automatic loading door - Preparing the machine for through-spindle cooling - 1050mm chip conveyor - Cooling equipment - Hydraulic unit * Y axis: 400 mm * X axis: 300 mm * Z axis: 425 mm * Max power.: 14,00 kW * Y axis: 400 mm * X axis: 300 mm * Z axis: 425 mm * Max power.: 14,00 kW

Condition: ready for operation (used), Year of construction: 2012, operating hours: 29,801 h, Control Unit Brand SIEMENS Main Drive Number of axis 4 Media Power consumption 39 kVA Pgolewbk Ubehccqnjk This 4-axis CHIRON FZ 15 KWM HS vertical machining center was manufactured in 2012. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ 15 KWM HS machine we have for sale. Contact us for more information. Application Types Milling

Year of construction: 1996, Condition: good (used), Control Siemens Sinumerik Pjlheim Ez Ieccqnjgk Travel X/Y/Z 525/300/405 mm Tool magazine for 20 tools, SK 40 Spindle speed 8000 rpm Table changer Internal coolant filter system Touch probe

Condition: repair required (used), Year of construction: 1998, Functionality: not functional, The machine is intended for parts. The CHIRON FZ 18 W MAGNUM HIGH SPEED CNC milling center manufactured in 1998 in Germany is designed for precise machining of steel and aluminum. The machine's construction is made of the highest quality raw materials to provide the user with long, trouble-free operation and extraordinary stability of work even under the heaviest loads. The efficient spindle with high rotational speed placed inside the workspace in combination with the 20-position tool head significantly shorten the production cycle, while maintaining excellent precision and accuracy. All this makes the CHIRON FZ 18 WM vertical machining center the best choice for most plants. The offered CHIRON vertical milling center is equipped with, among others, a computer for transmitting programs and an intuitive SIEMENS SINUMERIK 810M CNC control for programming machining cycles. The total weight of the machine is 5500 kg. Pgjlhcetp Tbvjcqnjk Technical specifications of the CHIRON FZ 18 W MAGNUM HIGH SPEED CNC milling machine - CNC controller: SIEMENS SINUMERIK 810M - worktable surface (L x W): 1240 x 850 mm - feeds in the X/Y/Z axis: 750/400/600 mm - maximum spindle speed: 10500 rpm - 20-position tool head - machining accuracy (spacing): 0.01 mm - machining accuracy (circular milling): 0.03 mm - spindle taper: SK40 - computer for program transmission - RS233 port - total power consumption: 29 kVA - power supply: 400 V - dimensions (L x W x H): 3143 x 1920 x 3000 mm - machine weight: 5500 kg

Condition: good (used), Year of construction: 2000, Chiron FZ 12 W pendulum table Year of manufacture: 2000 Control: Siemens Sinumerik 840 D travel: X 550 / Y 300 / Z 425 spindle speed: 11000 / min Pjljmp T Nishccqnogk spindle mounting: SK 30 Power: 10 kVA weight: 4000 kg Condition: Used, ready for operation, without rifle power

Year of construction: 2010, Condition: used, 2 Pgjlheqn A Rkeccqnok Number of axles 4 St. tool taper HSK 63 toll turrets 60 weight 9600 kg

Condition: excellent (used), Year of construction: 1997, Data : x-path 300 mm y-path 250 mm z-path 250 mm Control Fanuc 21i- M Table clamping surface 2x (550 x 300 mm) rapid traverse 40/40/60 m/min Accessories: Chip tray & documentation Pgslhcsvbfkxocqnjk (The indexing table in the picture of the machine interior is not supplied)

Condition: ready for operation (used), Year of construction: 2002, General Data Measurements width 1700 mm Measurements depth 3400 mm Measurements height 2600 mm Machine weight 3920 kg Control Unit Model Sinumerik 810D Brand SIEMENS Main Drive Number of spindles 1 Number of axis 4 Movement X-Axis Movement 550 mm Y-Axis Movement 400 mm Z-Axis Movement 426 mm Tools Number of index 20 Media Internal cooling Yes Pgslhswchtksccqnek Additional Equipment ShopMILL Cooling system Full documentation Parameters backup: NCK + PLC Machine Benefits This 4-Axis CHIRON FZ 15 S vertical machining centre was manufactured in 2002. It is equipped with a Siemens Sinumerik 810D control system and features X, Y, and Z-axis movements of 550 mm, 400 mm, and 426 mm respectively. The machine includes a 20-position tool changer and an fourth axis for enhanced machining flexibility. Additional features such as a cooling system and full documentation, including parameters backup for NCK and PLC, make this machine a reliable choice for precision milling operations. The CHIRON FZ 15 S machine we have for sale is an excellent addition to any machining facility. Contact us for more information. Application Types Milling

Condition: used, With KNOLL FKA/900 and KNOLL 600 K 1/400 filler Pgelhcceupkf Toqnek

Condition: ready for operation (used), Year of construction: 2019, operating hours: 26,248 h, Control Unit Brand SIEMENS Model 840D solution line Main Drive Spindle speed range 15000 Main motor power 13 kW (100% ED), 33.8 kW (10% ED) Movement X-Axis Movement 630 mm Y-Axis Movement 400 mm Z-Axis Movement 360 mm Tools Max weight 5 kg Max tool length 300 mm Additional Equipment Automatic loading door Touch probe (Blum TC 52) for workpiece measurement CHIRON RemoteLine for remote diagnostics and teleservice Proportional valves for programmable clamping pressure Tool life monitoring (SIEMENS) This 4-axis CHIRON DZ 15 W was manufactured in 2019, offering advanced capabilities for precise vertical machining. Ideal for complex geometries and multi-face machining, this machine ensures efficient production processes. Consider the opportunity to buy this CHIRON DZ 15 W vertical machining centre. Contact us for more information. Application Types Pgslhccowbaq Eeqnjk Milling
