Used Chiron Milling Machine for sale (106)

Condition: used, MAKE CHIRON MODEL MILL 800 5 axis 5 axis machininng center (milling/turning from bar) Under power in our warehouse in Gussago BS Italy Mimu Machine tools Cedpogmi Unjfx Ah Ispw CNC Fanuc 18iMBS (5 simoultaneous axis 1*) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs 90fjsieew Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2) 60m/min. Spindle ...

Condition: used, 5 axis: yes Milling and turning: yes 5 axis machininng center (milling/turning from bar) Under power in our warehouse MAKE CHIRON MODEL MILL 800 5 axis CNC Fanuc 18iMBS (5 simoultaneous axis 1*) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2) 60m/min. Spindle 20-12.000 min.’ – 140 Nm.12.000 RPM 12,5 KW/Max 34kW Swivelling head (CNC controlled) ± 100° Cpedpsgph Rnofx Ah Iow Low hours This machine can be inspected under power in our Warehouse Mimu Machine Tools (Italy)

Condition: used, MAKE CHIRON MODEL MILL 800 5 axis 5 axis machininng center (milling/turning from bar) Under power in our warehouse in Gussago BS Italy Mimu Machine tools CNC Fanuc 18iMBS (5 simoultaneous axis 1*) X, Y, Z (mm) 800 – 500 - 550 Rapids (Highspeed) 60 m/min Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Peiseler Milling spindle 12.000 giri / 140 Nm (v nota 2) Tools 65 Tool type HSK-A 63 DIN 69893 Tool-change time 1,5 sec (v nota 3) Table 1400x500 Max table load 1200 kgs 90fjsieew Coolant through spindle 70 bar (see note 4) CNC controlled clamping/rotating unit for 6th face machining (v. nota 5) Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2006 Weight 7500 kgs Turning package Max dia 65mm RPM: 15 / 4500 Max 42,5 KW / 90 Nm. Hydraulic clamping 800 Nm. Bar loader ILS-RBK- 10012 65 Cpsdpsgqg Sgofx Ah Iew Diameters min/max 5/65 mm L= 600-1200 mm Highspeed (2) 60m/min. Spindle ...

Condition: ready for operation (used), Year of construction: 2018, operating hours: 29,688 h, travel distance X-axis: 2,000 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 550 mm, controller manufacturer: SIEMENS, controller model: 840D-SL, total height: 1,350 mm, overall weight: 110 kg, spindle speed (max.): 20,000 rpm, spindle motor power: 60,000 W, number of axes: 4, This 4-axis CHIRON Mill 2000 High Dynamics was manufactured in 2018. It features a single-spindle head, HSK-A 63 tool holder, and a maximum spindle speed of 20,000 rpm. The machine offers X-axis travel of 2000 mm, Y-axis travel of 630 mm, and Z-axis travel of 550 mm, with rapid traverse speeds of 75 m/min. Consider the opportunity to buy this CHIRON Mill 2000 High Dynamics vertical machining centre. Contact us for more information about this machine. Additional equipment • Nominal pressure: 200 bar • Test pressure: 260 bar • Temperature range: -10 to 120 °C • Bypass opening pressure: 7 bar • Differential pressure indicator: 5 bar • Maximum voltage (AC): 250 V // Maximum voltage (DC): 200 V • Maximum switching current: 1 A • Switching power: 70 W • Protection class: IP 65 • Weight: 37 kg • Lubrication: Oil-air • Maximum oil reservoir temperature of the hydraulic fluid: 55°C Machine Benefits Technical Machine Benefits • Main spindle max. Torque: 75 nm • Spindle head version: single-spindle Extra Information No swiveling spindle tchgear cooling device: Dimensions: 400 mm (W) x 950 mm (H) x 260 mm (D) Set flow rate: 40 l/min Discharge pressure at 50 Hz: 4.0 bar Rated power: 1.5 kW Maximum rated current: 4.1 A Unit: Dimensions: 600 mm (L) x 600 mm (W) x 1350 mm (H) Weight: 110 kg Rated connected load: 4.60 kW Maximum rated current: 9.20 A Maximum fuse: 16 A Table Rotary table: Transport load without counter bearing: 300 kg Max. axial load: 9000 N Max. radial load: 40000 N Max. tilting moment: 2000 Nm Max. transmittable torque from worm to worm gear: 30 Nm Counter bearing: Transport load for vertical use with rotary table NC1.03: 600 kg Required clamping pressure of the hydraulic clamp (nominal pressure): 75 bar Permissible clamping pressure of the hydraulic clamp: 85 bar Permissible pressure peak of the hydraulic clamp: 120 bar Permissible tangential moment with hydraulic clamp: 1000 Nm Dimensions Cjdpfx Ajx D Dr Aoh Ijpw Machine Depth 600 mm

Condition: ready for operation (used), Year of construction: 2004, travel distance X-axis: 6,000 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 550 mm, controller manufacturer: SIEMENS, controller model: n/a, number of axes: 4, This 3-axis CHIRON Mill 6000 SK was manufactured in 2004, featuring a high-speed motor spindle at 12,000 rpm and a travel range of X 6,000 mm, Y 630 mm, Z 550 mm. It includes a 5-axis milling package, 92 tool positions, and a Marposs collision monitoring system. Ideal for long part machining up to 6,000 mm and pendulum machining. If you are looking to get high-quality milling capabilities consider the CHIRON Mill 6000 SK machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • 92 tool positions hsk-a63 (background magazine) • Long part machining up to a maximum of 6000 mm • Machining of the end face (5th side) horizontally with swivel head (right/left) • Pendulum machining via center partition, max. Workpiece length 1773 mm with sk machining on both end faces (tool length 120 mm) • 4 hydraulic double vices (fixed center jaw) per pendulum section, positioning, and clamping via linear system (hydraulic release, mechanical clamping) Extra Information Additional Equipment High-speed package with Motor Spindle: 12000 rpm, 140 Nm Production Package: Scraper belt conveyor, discharge height 1050 mm Internal coolant preparation KNOLL VRF250 vacuum rotary filter (suitable for steel, cast iron, aluminum, plastic, brass) High pressure 70 bar with HP pump and variable valve Flushing gun per pendulum field Emulsion mist extraction, 2 fans each 800 m²/h Rotating viewing window left and right (1400 mm from machine center) Automatic loading doors Center partition for pendulum machining 5-Axis Milling Package Air Blast Tool Life Monitoring Additional V24 RS232 in the control cabinet BDE/MDE interface (statuses: machine on, machine running, part counter) Marposs (Brankamp) CMS100 Collision Monitoring System 3D machine model for kinematic simulation in the CAM programming system 210 bar hydraulic power unit, 2 clamping circuits, separate system clamping pressure for each pendulum field, clamping pressure control Codpfx Asx Nr Irsh Ispw KOHN linear clamping system 8 KOHN Multi 2000 MFS 125/680 HD hydraulic vices Two-part operator step across the entire operating width of 6000 mm With the 3 axes x, y, z and the swivel head, the software package 5-axis milling can be used to mill shapes, e.g. a curve. The software then synchronizes the axes.

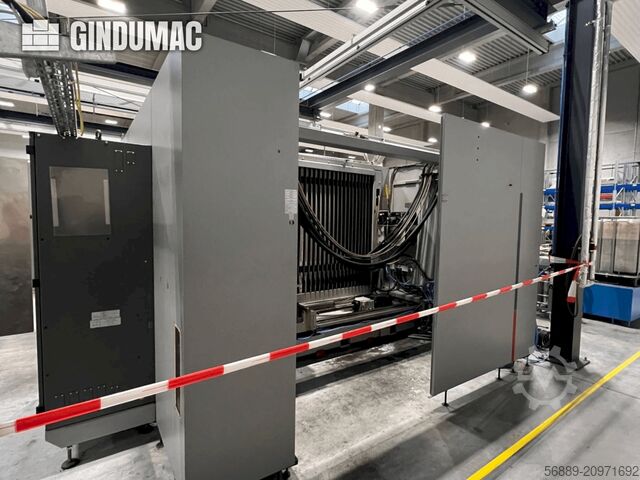

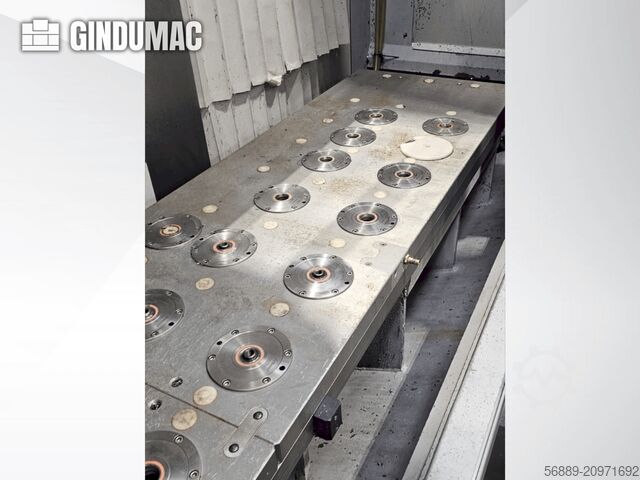

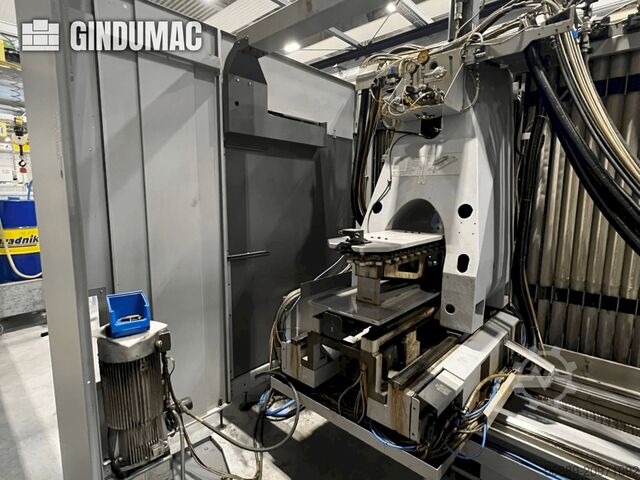

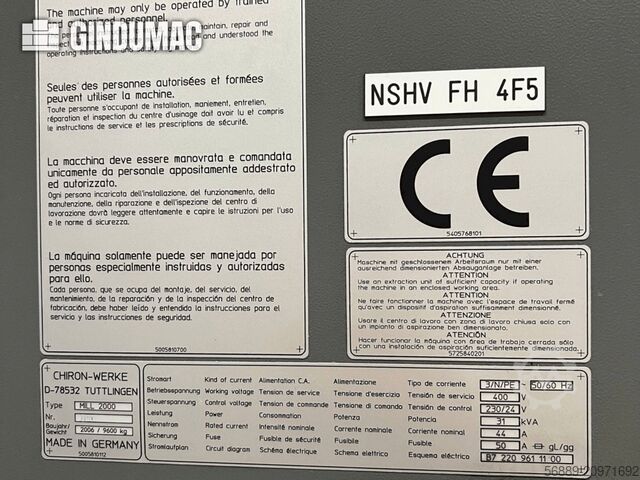

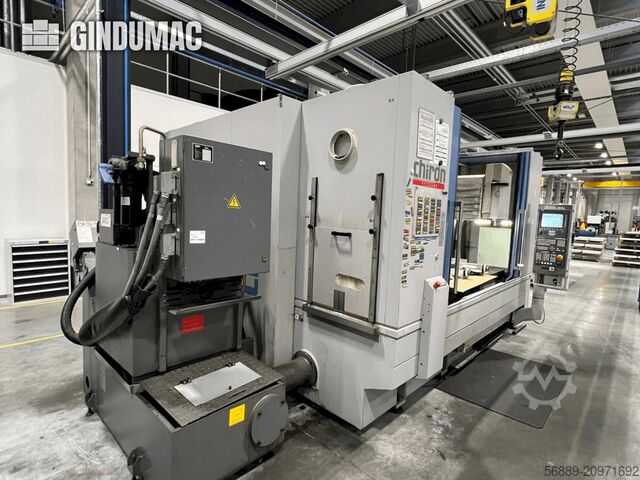

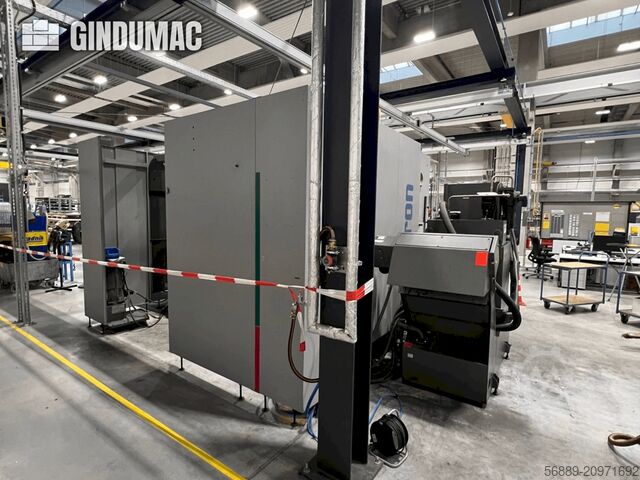

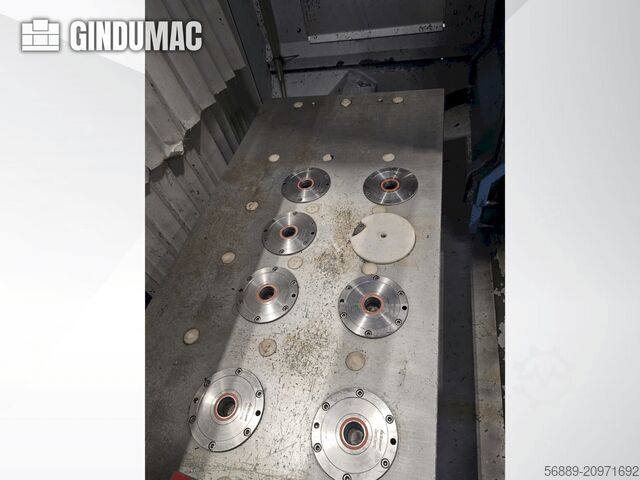

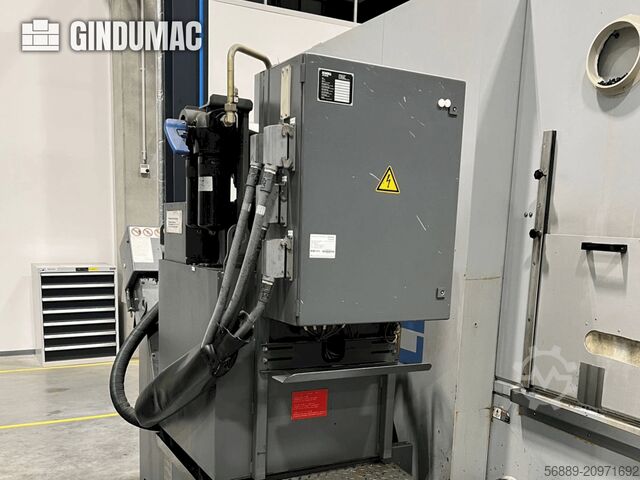

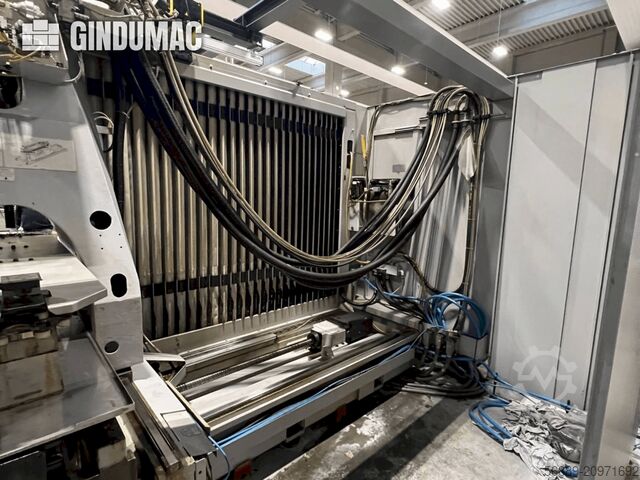

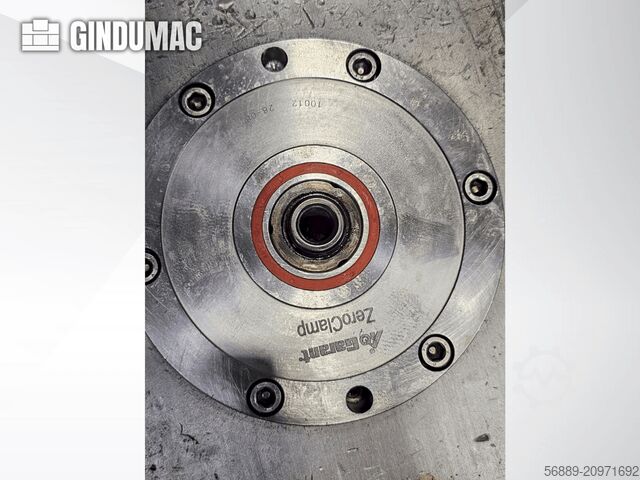

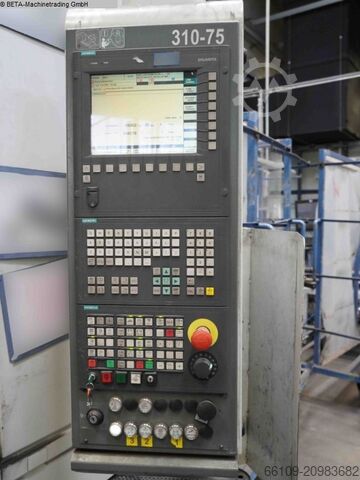

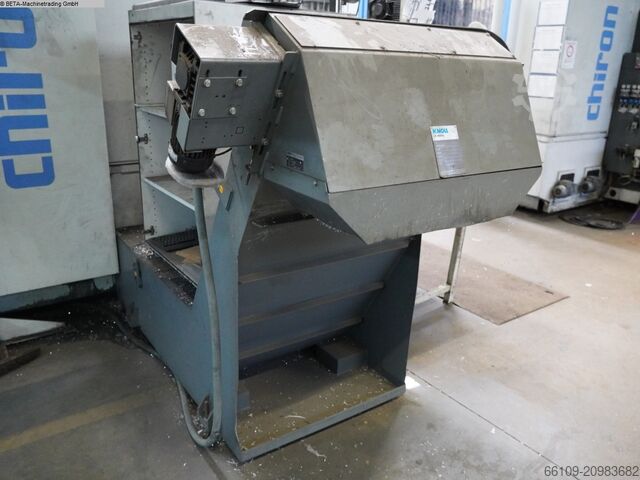

Condition: ready for operation (used), Year of construction: 2003, travel distance X-axis: 2,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 550 mm, controller manufacturer: SIEMENS, controller model: Sinumerik, table width: 550 mm, table length: 2,600 mm, spindle speed (max.): 12,000 rpm, number of axes: 4, This CHIRON MILL 2000 Vertical Machining Center was manufactured in the year 2003. It is equipped with a Siemens Sinumerik control unit. The machine has a spindle speed of 12000 rpm. Cjdsyi Eh Dopfx Ah Ispw Additional equipment • Chip conveyor Machine Benefits Technical Machine Benefits • Rapid feed 40 m/min • Tool magazine with capacity for 24 tools

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, rapid traverse X-axis: 75 m/min, rapid traverse Y-axis: 75 m/min, rapid traverse Z-axis: 75 m/min, nominal power (apparent): 17 kVA, total height: 2,300 mm, total length: 1,500 mm, total width: 2,600 mm, overall weight: 3,400 kg, spindle speed (max.): 30,000 rpm, spindle nose: HSK40, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: documentation/manual, CNC Machining Centre CHIRON FZ 08K S Magnum High Speed Plus (HSP) TECHNICAL CHARACTERISTICS: Cedeyq Nyyspfx Ah Iopw Year of manufacturing: 2007 CNC control: FANUC 18i-MB5 Number of axes: 7 Stroke X axis: 450 [mm] Stroke Y axis: 270 [mm] Stroke Z axis: 310 [mm] Traversing feeds X, Y and Z axes: 75000 [mm/min] Max. bar diameter in turning spindle: 32 [mm] Angular A axis stroke: 360 [°] A axis indexing precision: 0.001 [°] B axis swivelling stroke: -20° / +115 [°] B axis indexing precision: 0.001 [°] Spindle type: HSK40 Max. spindle speed: 30000 [rpm] Tool changer magazin number of stations: 40 Total power required: 17 [kVA] Supply voltage: 400 [V] Dimensions: 1500 x 2600 x 2300 [mm] Weight: 3400 [Kg] INCLUDED EQUIPMENT: x1 RENISHAW tool probe, type TS27R x1 spindle cooling unit x1 coolant tank x1 unit for 6th-face machining x1 SCHUNK clamping vice x84 tool holders - type HSK40 x14 collets - type F35 x1 electrical cabinet air conditioning unit x1 DONALDSON mist extraction unit - type Torit DCE x1 washing gun x1 three-color status light x1 MACHINING INSTRUCTIONS manual x1 operator manual x1 programming manual Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Machines similar to Mikron, Hermle, DMG MORI, Mazak, Hedelius, AXA, Chiron, Matec, Reiden, Lagun, Haas, and Alzmetall, as well as CNC milling, drilling, and tapping machines, and CNC grinding machines

Condition: used, Year of construction: 2001, x-travel 550 mm y-travel 500 mm z-travel 400 mm Control Siemens spindle tunring speed 12.000 U/min table surface area 1050 x 450 mm table load 500 kg In our opinion, the machine is in good used condition and can be inspected under power by appointment. Codpsynnu Defx Ah Iopw Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Subject to changes and errors in the technical data and information as well as prior sale!

Condition: used, Machine has a defect in the main spindle Cedpfx Aequhbgeh Ispw CNC vertical machining center CHIRON type FZ 22 L high speed Machining center with CNC control FANUC Series 21-M serial no. 179-98 year of construction 1999 Travel X: 2000 mm, Y: 520 mm, Z: 630 mm Table size 2700 x 570 mm Table load 525 kg (per meter) Tool holder SK 40 (DIN 69871) Drilling capacity 35 mm Tapping capacity M27 Tool diameter 75 mm Diameter with free secondary positions 105 mm Tool change speed tool - tool 2.0 sec. Tool change speed from chip to chip 4.8 sec. Distance spindle nose - table 190 to 820 mm Spindle speed max. 10,500 rpm Main spindle drive max. 18.5 kW Mains connection 400 Volt, 50 Hz, 32 kVA - Pendulum machining over 2 work areas (partition wall missing) - CNC control FANUC Series 21-M - Tool changer 40-fold - IKZ = internal coolant supply through the spindle - Spray protection cabin with sliding door - Indirect measuring system - Coolant device with chip conveyor opposite - Electronic handwheel Transport dimensions of the basic machine L x W x H 4600 x 2470 x 2950 mm Weight of the machine approx. 7.5 tons. Transport space requirement on the truck L x W x H 12000 x 2470 x 2950 mm Transport Weight on the truck approx. 10 ton. Weight 7.2 tons. good condition - machine has a defect on the main spindle

Year of construction: 1988, condition: ready for operation (used), Verfahrweg X/Y/Z: ca. 1600mm/400mm/425mm, Tischdimensionen X/Y: 1500mm/400mm, Werkzeugaufnahme: SK40, Werkzeugplätze: 20, Spindeldrehzahl: 5000U/min, Maschinendimensionen X/Y/Z: ca. 4000mm/2500mm/2900mm, Gewicht: ca. 7000kg, Steuerung: Siemens Sinumerik System 3, Betriebsstunden: ca. 19855h. Inklusive ca. 12 Werkzeughalter. Documentation available. Eine Besichtigung vor Ort ist möglich. Cedpfx Aowaa Ineh Ijpw

Condition: good (used), Year of construction: 2007, functionality: fully functional, overall weight: 3,600 kg, spindle mount: MK 0, Equipment: chip conveyor, documentation/manual, CHIRON FZ08K W Magnum Highspeed – Precision, Speed, and German Quality For sale: a powerful vertical CNC machining center, the CHIRON FZ08K W Magnum Highspeed, year of manufacture 2007. This machine impresses with its high dynamics, excellent surface finish, and short cycle times, making it ideal for precise series production as well as demanding single parts. As typical for CHIRON, this model stands for robust construction, long service life, and maximum productivity – a proven solution for tool and mold making, the automotive industry, medical technology, and general metalworking. ✅ Highlights - High-speed milling center for fast machining - Very high positioning and repeat accuracy - Compact design with a large working area - Tool changer with high capacity - HSK spindle interface for high speeds and stability Cpedpfxsyhhz Dj Ah Ijw - CNC control system (Siemens/Fanuc, depending on configuration) - Ideal for aluminum, steel, stainless steel, and non-ferrous metals - Made in Germany – durable and easy to service 📊 Typical technical data (depending on model) - Travels: approx. X 800 / Y 500 / Z 500 mm - High-speed spindle - Automatic tool changer - Coolant system / chip conveyor - 3-axis machining Images can be provided upon request.

Condition: used, Year of construction: 2004, operating hours: 77,374 h, machine/vehicle number: IntNr231477, Vertical CNC Machining Center CHIRON MILL 6000 high speed with NC swivel head Year of manufacture: 2004 – major overhaul by manufacturer CHIRON in 2013 The machine underwent a complete factory overhaul by CHIRON in 2013. Operating hours: approx. 80,374 h Spindle replacement: March 2021 – spindle hours: approx. 8,000 h Maintenance performed: January 2024 Technical Specifications: Control: Siemens 840D (PCU50, NCU572.4) NC swivel head High-speed package: Motor spindle 12,000 rpm, 140 Nm Axis travels: X 6,000 mm / Y 630 mm / Z 550 mm Rapid traverse in X / Y / Z: 60 m/min Chip-to-chip time: 3.0 sec (3.3 sec DIN) vertical / 4.7 sec (5.0 sec DIN) horizontal Production package: - Scraper belt conveyor, discharge height 1,050 mm - Preparation for internal coolant supply (IKZ) - Vacuum rotary filter KNOLL VRF250 (suitable for steel, cast iron, aluminum, plastic, brass) - High pressure 70 bar with HP pump and variable valve - Automatic loading doors - Central partition for pendulum machining - 92 tool positions HSK-A63 (rear magazine) - 5-axis milling package - Air blast - Tool life monitoring - Additional V24 RS232 interface in electrical cabinet - BDE/MDE interface (states: machine on, machine running, piece counter) - Marposs (Brankamp) collision monitoring CMS100 - 3D machine model for kinematic simulation in CAM programming system - Hydraulic unit 210 bar, 2 clamping circuits, separate system clamping pressure per pendulum field, clamping pressure monitoring Linear clamping system KOHN Csdpfx Asyg Nqwsh Iopw 8 hydraulic clamping vises KOHN Multi 2000 MFS 125/680 HD Two-part operator platform (tread grid) across the full 6,000 mm operating width Dimensions and Weight: Machine height: approx. 3,000 mm Total weight: approx. 20,000 kg The machine can be inspected under power by appointment. Technical data and details are subject to change or error, subject to prior sale.

Condition: used, Year of construction: 2001, x-travel 300 mm y-travel 250 mm z-travel 251 mm Control Fanuc 16iMB max. turning speeds 15.000 min/-1 tool taper HSK-A 32 Cpedpfx Ahswth Sbj Iew number of tool places 12 Pos. In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2017, x-travel 550 mm y-travel 400 mm Csdpfx Ahoxzk N Ae Ijpw z-travel 400 mm weight of the machine ca. 9000 kg

Condition: good (used), Year of construction: 1997, The photo shows a Fanuc Series 0-M (a popular CNC controller used in the 1980s/90s). It supports X, Y, Z axis interpolation and a tool magazine. Features include a CRT screen and a classic push-button keyboard. 3. Electrical parameters (nameplate) Power supply: 3-phase, 380 V, 50 Hz Control voltage: (not specified, but typically Fanuc 110/220 V → transformer) Auxiliary voltage: 24 V Protection: 16 A (flink) Electrical diagram number: 711 792 01 01 4. Machine construction Vertical CNC machining center (milling machine) with a fully enclosed housing. Worktable with grid of holes for mounting workpieces. Carousel tool magazine (visible in the photo) – most often 12, 20, or 24 tools (depending on version). Automatic tool changer (ATC). Z-axis operates vertically (guideway assembly and telescopic way covers visible). 5. Typical technical data (for Chiron FZ 12/15 machines from this period) (values may differ depending on the model, but these are approximate parameters): Travels (X/Y/Z): approx. 500 – 700 / 400 / 400 mm Table surface: 800 × 400 mm (example) Table load: 200 – 300 kg Spindle speed: 20 – 6000 rpm (some versions up to 8000 rpm) Spindle taper: SK 40 (DIN 69871) Spindle drive: 7.5 – 15 kW (depending on version) Tool magazine: 12 – 24 tools Positioning accuracy: ±0.005 mm Rapid traverse: 30 m/min (X/Y/Z axes) 6. Application Metalworking (steel, aluminum, cast iron, light alloys). 📌 General information: • Manufacturer: CHIRON, Germany • Type: CNC machining center • Control: as seen in the photo (Fanuc Series 0-M) • Automatic tool changer • Heavy-duty worktable with workpiece clamping options • Solid industrial construction 📌 Machine condition: • Used machine, in good condition • Regularly serviced • Shows normal signs of use • Fully functional Cpedpfxew Uab Aj Ah Isw 📌 Application: • High-precision milling • Machining of metal components • Single-part and batch production

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 685 mm, travel distance Z-axis: 630 mm, controller model: Siemens 840D, rotational speed (max.): 20,000 rpm, The machine spindle was replaced in 2022! The original purchase price of the machine was EUR 600,000! TECHNICAL DETAILS Travel range X-axis: 2000 mm Travel range Y-axis: 685 mm Travel range Z-axis: 630 mm Rapid traverse on all axes: 40 m/min Axis acceleration: 0.25 g Max. spindle speed: 20,000 rpm Cpodpfx Ahoymnyko Ijw Max. rotary table speed: 1,000 rpm Tool changer positions: 92 Tool holder: HSK 63 NC swiveling axis: ± 100° MACHINE DETAILS Control: Siemens 840D EQUIPMENT Remote diagnostics and teleservice Maintenance instructions displayed on screen 5-axis milling package Fixed table with integrated rotary table Kessler milling rotary table DTE 520 NC swiveling head with spindle stock Direct measuring systems Chip conveyor (hinged belt) Coolant system HL 450 / 900 (IKZ) Full-flow cleaning via paper band hydrostatic filter HL450 Coolant filtration 50 µm nominal Chip blow gun Coolant recooling unit Additional tray rinsing Machine preparation for air through spindle Work area extraction system Safety package MILL 2000 with reinforced cabin and safety glass Zero point clamping system NSL tur 570-5-Z for DTE 520 Tool breakage monitoring Measuring probe Renishaw OMP 40-2LS Rotating inspection window Chiron Power Service Siemens CNC control with OP019 19" color display Operating mode: 4 MCIS DNC for sending and receiving CNC programs in network operation Siemens tool life monitoring Measurement in JOG (zero point determination during setup in jog mode) Loading and unloading station for tools for main time parallel tool change on background magazine Additional window for background magazine Swiveling control panel for optimal visibility of the work area during setup Note: The two vices on the NC rotary table as well as the tool holders in the tool changer are not included in the offer.

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 630 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 450 mm, controller manufacturer: SIEMENS, controller model: 840D solution line, number of axes: 3, This 4-axis CHIRON DZ18W was manufactured in 2018. Ideal for precision vertical machining, this model offers robust construction and reliable performance. Consider the opportunity to buy this CHIRON DZ18W vertical machining centre. Contact us for more information. Additional equipment • OPTIONAL: robot, entire cell including conveyor belts, PLC, turning station Machine Benefits Technical Machine Benefits • Tool positions: 2x35 • Tool length max: 380 mm Cpedpfxjx D Nmfe Ah Iew Extra Information Splash guard panel with fully enclosed work area/ with loading door, electrically protected/ including replaceable safety windows/ Work area partition with stainless steel louvres/ Height 2340 mm above floor, including machine light/ Mini control panel with start and reset button for M61/M62 pallet organization/ Integrated workpiece changing device IWW 0/180°/ for optimal chip flow with center partition made of sheet steel/ Workpiece changing time approx. 3.5 seconds, weight-dependent, self-regulating/ thanks to self-learning speed control./ Transport load per side 0 - max. 250 kg/ Max. 120 kg weight difference between the two table sides./ Each table side is prepared for the installation of a rotary table package./ Distance between spindle mount and swivel center/point /WW minimum 75 mm/ Travel paths: X-axis 630 mm/ Y-axis 530 mm/ Z-axis 450 mm/ Tank flushing system with coolant connection/ NC rotary table, type ATU 200/ Integrated into the integrated workpiece changing device IWW 0/180°/ With hydraulic clamping, holding torque 1,200 Nm,/ Repeatability +5" with/ faceplate © 225 mm, with centering® 60 -0.008,/ Counter bearing with hydraulic clamping, holding torque 800 Nm./ On the rotary table and counter bearing side. Swivel radius 285 mm/ 7th or 5th NC axis, plug-in ready/ Regulated pneumatic connection for sealing air/ Controlled hydraulic connection for clamping./ Rotary feedthrough 2 x 5-way/ Rotary table side: 4 x hydraulic/pneumatic, 1 x Pneumatics/ 4 x hydraulic/pneumatic on the counter bearing side, 1 x pneumatic/ Working area - rotary table assignment/ AF1 Rotary table ATU 200/ AF2 Rotary table ATU 200/ Double-spindle headstock/ Prepared to accommodate 2 main spindle motors with spindles/ Spindle distance in X-axis 400 mm/ Main spindle drive with 2 AC motors/ Air-operated, with tool clamp monitoring/ 11.0 kW at 100% duty cycle/ 25.3 kW at 15% duty cycle/ Speed up to 12,000 rpm/ Max. torque 140 Nm/ Drilling capacity 2 x 42 mm/ in steel E355/ Automatic tool changer/ with robust, fully encapsulated pick-up chain magazine/ 2 x 35 tool positions/ HSK-A 63 DIN tool shank 69893/ Tool width max. 78 mm/ Tool width with free adjacent positions max. 140 mm/ Tool length max. 380 mm/ Tool weight max. 8.0 kg (max. magazine load 240 kg)/ Tool change time approx. 0.9 s (control system dependent)/ Soan-to-chip time approx. 2.2 s (control system dependent)/ Feed drive for X, Y, and Z axes/ Digital drives with direct position measuring systems, overpressure application/ Rapid traverse speed 75 - 75 - 75 m/min/ Axis acceleration 1.0 - 1.4 - 1.6 g/ SIEMENS CNC control 840D solution line/ incl. 10.4" TFT color screen / full keyboard / operator panel OP010S/ 1280 1 (TCU / NCU 720.3, 1 channel)/ User interface Operate/ NC RAM 3 MB (max. 1 MB available)/ (max. 200 programs available)/ for running part programs according to DIN 66025/ CF card with 8 GB storage capacity (max. 3 GB available)/ Power display, operating hours and workpiece counter on the screen,

Condition: ready for operation (used), Year of construction: 2007, operating hours: 22,500 h, travel distance X-axis: 450 mm, travel distance Y-axis: 270 mm, travel distance Z-axis: 310 mm, controller manufacturer: SIEMENS, controller model: 840D, spindle speed (max.): 15,000 rpm, number of axes: 3, This 5-axis CHIRON FZ 08K S Magnum SK was manufactured in 2007. It features a Siemens 840D control unit, with impressive travels of 450 mm in the X-axis, 270 mm in the Y-axis, and 310 mm in the Z-axis. The machine includes a 40-position tool changer and a high-pressure coolant system. If you are looking to get high-quality machining capabilities, consider the CHIRON FZ 08K S Magnum SK vertical machining centre we have for sale. Contact us for further details. • Overhaul: Factory overhauled and technically updated by Chiron (CMS) in 2017 • Last Spindle Replacement: September 2025 • Last Maintenance: Major annual service (4,000 h) performed in October 2025 • NC Swivel Head Range: −20° / +115° • Rapid Feed X/Y/Z: 75 m/min • Acceleration X/Y/Z: 1g / 1.5g / 2g • Tool Changer: 40 positions, HSK-A40 • Chip-to-Chip Time: 2.6 s (vertical) • Rotary Table: AWU 160 with D105 mm positioning axis • Operating Hours: Approximately 22,500 h Additional equipment Cpjdpfsypb Tpsx Ah Iew • Clamping: Hainbuch Spanntop D100 collet chuck • Bar Loader: IRCO SiMag 100.1-3000 for round and profile material • High Pressure Coolant: 70 bar with Vario valve • Coolant Filtration: Knoll VRF, 400-liter vacuum rotation filter • Chip Conveyor: Scraper belt, 1,050 mm discharge height • Measurement/Monitoring: Renishaw TS27R 3D touch probe; tool life monitoring; tool breakage control • Collision Monitoring: Brankamp Marposs CMS 100 • Guide Channel Sets: Breuning IRCO sets included (by arrangement) • Collets: Hainbuch collets included (by arrangement) • Tool Holders: Approximately 500 pieces HSK-A40 • Spare Parts: Included for this machine type • Operating Materials: Specific operating fluids/materials included

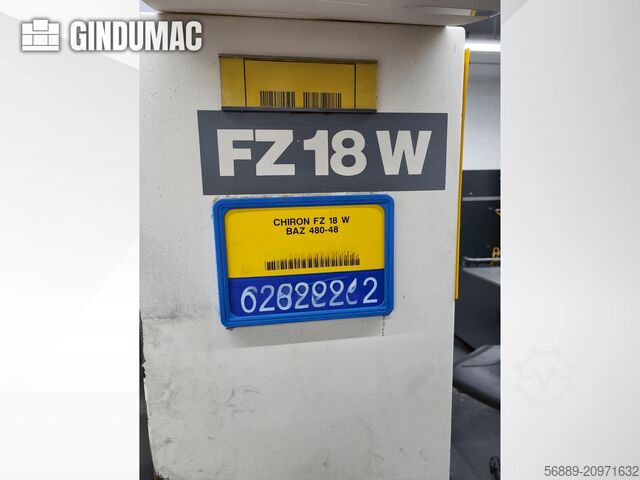

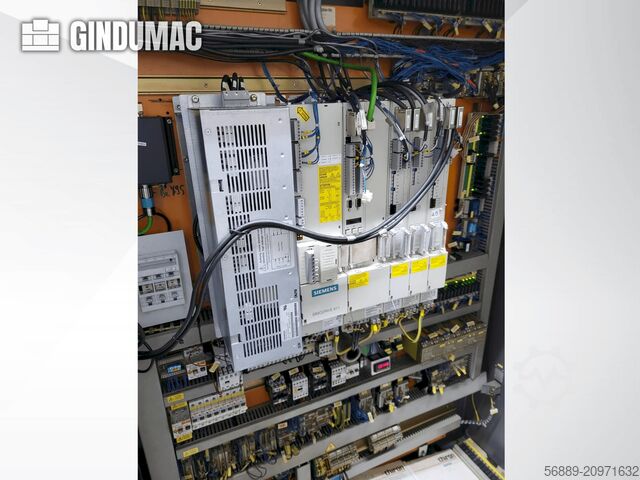

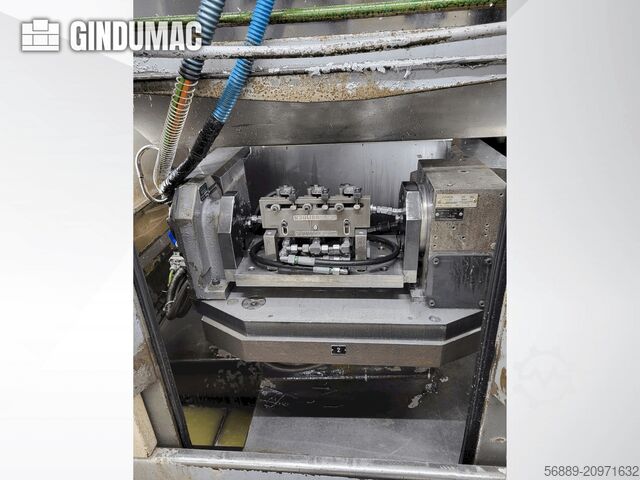

Condition: ready for operation (used), Year of construction: 2019, travel distance X-axis: 800 mm, travel distance Y-axis: 530 mm, travel distance Z-axis: 450 mm, controller manufacturer: FANUC, controller model: 31i-B5, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, tool weight: 8,000 g, number of axes: 5, This 5-axis CHIRON FZ18W was manufactured in 2019, featuring a FANUC 31i-B5 control system and continuous 5-axis control. It boasts a spindle speed of up to 12,000 rpm, a tool capacity of 70, and rapid traverse rates of 75 m/min. Ideal for complex machining tasks with its automatic pallet changer and dual rotary tables. If you are looking to get high-quality milling capabilities consider the CHIRON FZ18W machine we have for sale. Contact us for more information. Cjdpfxoyaz Emj Ah Ijpw • Number of axes: 5 (X, Y, Z + 2 rotary axes via pallet/rotary table) • Spindle: • AC spindle motor: 7.5 kW (100% duty), 22.0 kW (10% duty) • Max torque: 140 Nm • Taper: HSK-A63 (DIN 69893) • Drilling capacity: Ø 42 mm • Tapping capacity: M30 • Milling capacity: 500 cm³/min (steel E355) • Tool changer: • Type: Fully enclosed chain magazine • Capacity: 70 tools • Max tool Ø: 78 mm (160 mm with free adjacent positions) • Max tool length: 380 mm • Max magazine load: 240 kg • Tool change time: ~0.9 s • Chip-to-chip time: ~2.6 s • Feed rates & dynamics: • Rapid traverse (X/Y/Z): 75 m/min • Acceleration: 0.6 – 1.2 – 1.4 g • Drives: Direct digital drives with absolute measuring system • Machine functions/utilities: • Automatic washdown of work area and fixtures • Automatic centralized grease lubrication • Hydraulic unit: 200 bar • Compressed air treatment with filtration to 0.01 µm • Cooling unit for machine components • Measuring, monitoring, software: • FANUC 3D collision control • Tool monitoring and sister tool management • Electrical & interfaces: • Ethernet RJ45, USB, PCMCIA • Remote diagnostics: CHIRON remoteLine • Data monitoring & OEE: CHIRON dataLine • Compliance: CE Additional equipment (robots, automation, peripherals) • Automation/palletizing: • Automatic pallet changer IWV 0°/180° (change time ~3.5 s) • Rotary table ATU 200, 2 units • Positioning accuracy/repeatability: ±5″ • Max clamping torque: 1,200 Nm • Max load per side (APC): 250 kg • Max weight difference between pallets: 0 kg • Coolant and chip management: • Through-spindle coolant (predisposition) • High-pressure coolant system up to 30 bar • Coolant filtration: Drum filter TPF 350 S (50 µm) • Chip conveyor: Hinged belt • Coolant tank: 230 L • Pump: 250 L/min @ 1.4 bar • Probing/tool control: • Renishaw RLP40Q probe (predisposition) • Laser tool breakage control (Single F1000)

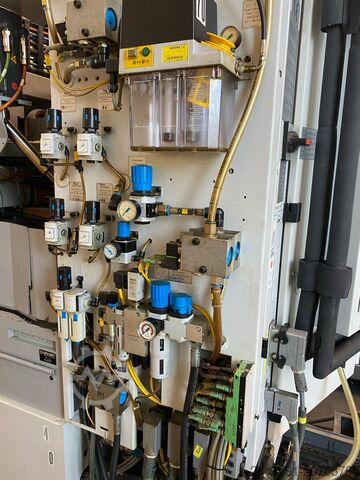

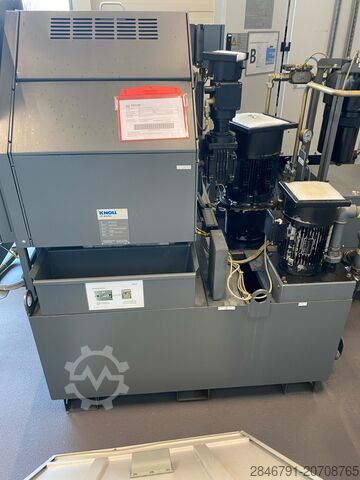

Condition: ready for operation (used), Year of construction: 2012, travel distance X-axis: 550 mm, travel distance Y-axis: 320 mm, travel distance Z-axis: 360 mm, table load: 500 kg, spindle speed (max.): 12,000 rpm, tool weight: 5,000 g, number of axes: 3, This 3-axis CHIRON FZ 12 KW vertical machining center was manufactured in 2012. It features a high-speed spindle with a maximum speed of 12,000 rpm and a rapid traverse speed of up to 60 m/min on the Z-axis. The machine includes a 24-slot automatic tool changer and can handle a table load of up to 500 kg. Ideal for precision machining tasks. Contact us for more information about this machine. Machine Benefits Technical Machine Benefits • Controlled axes: 6 axes • Reach: 704 mm • Acceleration/deceleration: 0 to 12000 min-1 in 0. 6 seconds • Clamping surface: 820 x 440 mm² • Drilling capacity in st 60: Ø 16 mm • Tapping: m 16 • Milling capacity in st 60: 80 cm³/min • Acceleration: x & y axis 0. 7 g, z axis 1. 0 g Extra Information Movement Axis Movement Range and Speed: J1: 340°/360° (option) at 350°/s J2: 200° at 350°/s J3: 388° at 400°/s J4: 380° at 450°/s J5: 240° at 450°/s J6: 720° at 720°/s Allowable Load Moment: J4 & J5: 11.9 Nm J6: 6.7 Nm Cpjdpfxsx Nr I Ee Ah Ijw Repeatability: +/- 0.02 mm Maximum Speed J1: 195°/s J2: 175°/s J3: 180°/s J4 & J5: 400°/s J6: 600°/s Allowable Load Moment J4 & J5: 7.7 Nm J6: 9.8 Nm Tools Automatic Tool Changer: Tool Pockets: 24 Tool Change Time: approx. 0.9 s Chip-to-Chip Time: approx. 2.4 s The workpieces are supplied via an automated feeding system and sequentially loaded into the Chiron machining centres by two Fanuc industrial robots. Once the machining processes are complete, they are removed again. The robots then transfer the components to a transfer system, which transports them to the downstream cleaning system. The integrated washing line ensures reliable cleaning of the components in accordance with the defined cleanliness specifications. After the washing process, two synchronously operating Fanuc robots take over the cleaned parts in the rear section of the system. Depending on the process specifications, these are either palletised automatically or further processed in a downstream step, for example by riveting. The entire system operates fully automatically.

Condition: ready for operation (used), Year of construction: 2012, operating hours: 29,801 h, travel distance X-axis: 729 mm, travel distance Y-axis: 401 mm, travel distance Z-axis: 361 mm, controller manufacturer: FANUC, controller model: Series 31i, spindle speed (max.): 12,000 rpm, number of axes: 4, This 4-axis CHIRON FZ 15 KWM HS vertical machining center was manufactured in 2012. If you are looking to get high-quality milling capabilities, consider the CHIRON FZ 15 KWM HS machine we have for sale. Contact us for more information. Cpedex D Nmlspfx Ah Iew Machine Benefits Technical Machine Benefits • Availability: available from 1/7/25 • Operating voltage: 400 v • Control voltage: 230/23 v • Material processed in the machine: aluminum • Cone type : hsk-63 Extra Information Machine still under power

Condition: ready for operation (used), Year of construction: 2011, operating hours: 21,578 h, number of axes: 4, This 4-axis CHIRON DZ15KWM HS was manufactured in 2011. Ideal for precision vertical machining, this model offers robust construction and reliable performance. If you are looking to get high-quality milling capabilities, consider the CHIRON DZ15KWM HS machine we have for sale. Contact us for more information. Extra Information Cpjdpfjx D Nmrox Ah Isw Machine still under power

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 300 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 250 mm, controller manufacturer: FANUC, controller model: 21i-M series, spindle speed (max.): 10,000 rpm, spindle motor power: 3,700 W, number of axes: 3, This 3-axis CHIRON FZ08W was manufactured in 2006. A vertical CNC machining center featuring a Fanuc 21i-M series control, it offers X, Y, Z travels of 300 mm, 250 mm, and 250 mm respectively. It includes a table size of 550 x 300 mm, a spindle speed of 10,000 rpm, and a 12-position tool magazine. Consider the opportunity to buy this CHIRON FZ08W vertical machining center. Contact us for more information. • Condition: Used • Status: Good • Table size: 550 x 300 mm • Permissible load: 200 kg • Tool magazine: 12 positions Cpodpfx Aheygl D Hj Iow Additional equipment • Chip evacuator

Condition: ready for operation (used), Year of construction: 1995, travel distance X-axis: 550 mm, travel distance Y-axis: 300 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 810D, spindle speed (max.): 10,000 rpm, spindle motor power: 95,000 W, number of axes: 2, This CHIRON FZ 12 W was manufactured in 1995. A vertical machining center featuring a SK30 spindle mount, maximum spindle speed of 10,000 rpm, and a tool magazine with 12 positions. It includes a Sinumerik 810D control system and rapid traverse rates up to 40 m/min. Table size measures 660 x 350 mm. Consider the opportunity to buy this CHIRON FZ 12 W vertical machining center. Contact us for more information. Machine Benefits Technical Machine Benefits Codpfjx D Ryasx Ah Iopw • Control voltage: 230v / 24v • Power supply: 3x 400v, 50/60 hz • Rated power: 16 kva • Rated current: 34a • Rapid traverse (xyz): up to 40 m/min • Table size: 660 x 350 mm • Tool magazine: 12 positions • Tool changeover time: approx. 2 seconds Extra Information When milling with an 80 mm diameter cutter, slight noise was audible in the spindle area.

Condition: ready for operation (used), Year of construction: 2014, operating hours: 24,209 h, travel distance X-axis: 730 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 360 mm, controller manufacturer: FANUC, spindle speed (max.): 12,000 rpm, spindle motor power: 7,500 W, number of axes: 4, This 4-axis CHIRON FZ 15 W Magnum HS vertical machining center was manufactured in 2014. Ideal for precision machining, it offers robust construction and reliability. Consider the opportunity to buy this CHIRON FZ 15 W Magnum HS vertical machining center. Contact us for more information. Machine Benefits Technical Machine Benefits • Number of tools per spindle: 48 • Tool holder: hsk-a 63 • Main spindle max. Torque: 95 nm Extra Information Cjdex D Nl Ujpfx Ah Iepw Machine still under power
