Used Sw Schwäbische Werkzeugmaschinen Ba W06-22 for sale (5)

Condition: ready for operation (used), Year of construction: 2012, Machining centre Manufacturer: SW EMAG Model: BAW06-22 Year of manufacture: 2012 Control system: Siemens 840 D sl Spindle distance: 600 mm X-axis travel: 600 mm Lrjdpjyft R Ssfx Aaqsh Y-axis travel: 630 mm Z-axis travel: 510 mm Max. rapid traverse X/Y/Z: 45 m/min Tool holder: HSK A63 Tool magazine: 2x42 positions Milling spindle speed: 17,500 rpm Drive power: 38 kW Knoll coolant system IKZ high-pressure internal coolant pump 70 bar

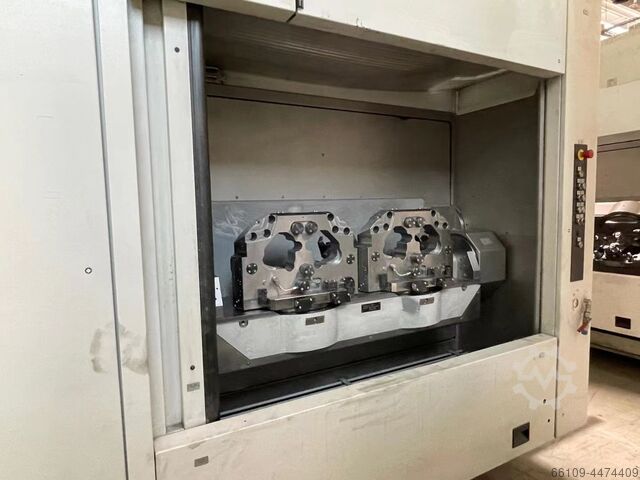

Condition: used, Year of construction: 2007, Double-spindle machining center in 5-axis design (on both sides) Travel x/ y/ z = 600/ 600(975) / 500 mm Number of spindles 2 Spindle distance 600 mm Rapid traverse 45 m/min Spindle speed up to 17,500 rpm Drive power 38 kW Tool magazine 2 x 72 tool positions Ledpfx Aastgu Ixeqerh HSK 63 tool holder CNC control Siemens 840D 1 x tool breakage control 2 x clamping bridge support H75 mm 2 x clamping bridges 5th axis Knoll coolant system, 70 bar 1 x chip conveyor KB1000 1 x drill head indexing 2 x tool planning system control 2 x A/U axis torsion compensation upgrade kit

Condition: good (used), Year of construction: 2020, operating hours: 22,000 h, functionality: fully functional, machine/vehicle number: 2080594, travel distance X-axis: 600 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, operating hours of spindle: 9,500 h, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Control SIEMENS 840D SL Electrical Connection Connection voltage: 3 × 400 V / 50 Hz (grounded) Network type: TN-S or TN-C system Total connected load: 133 kVA Power factor: 0.6 Protection: 200 A gG (5 s) Weight Machine operating weight: 20,000 kg Transport weight: 16,000 kg Tool Magazine Tool change system: Pick-up system Tool management: Fixed-coded tool positions Capacity: 84 tools (2 × 42) Maximum total tool weight: 350 kg Feed Drives Drive type: Three-phase synchronous motors Travel measuring system X/Y/Z: Direct, absolute X Axes (X1 and X2) Rapid traverse: 100 m/min Max. acceleration: 12 m/s² Kv factor: 7 Peak force: 2 × 10,000 N Continuous force: 2 × 5,000 N Positioning accuracy: Tp = 0.008 mm Y Axis Rapid traverse: 100 m/min Max. acceleration: 10 m/s² Kv factor: 7 Peak force: 10,000 N Continuous force: 5,000 N Positioning accuracy: Tp = 0.008 mm Z Axes (Z1 and Z2) Rapid traverse: 100 m/min Max. acceleration: 20 m/s² Kv factor: 7 Peak force: 2 × 5,000 N Continuous force: 2 × 2,500 N Positioning accuracy: Tp = 0.008 mm Main Spindles Spindle arrangement: Horizontal, twin-spindle configuration Lrodpfx Aaext D Ezeqsh Motor spindles, liquid-cooled, synchronous drive Spindle diameter: 40 mm Tool interface: HSK-A63 Lubrication: Minimal quantity lubrication (oil) Mechanical clamping force: > 18 kN Wear limit: 16 kN Speed range: 1 – 17,500 rpm Acceleration time: 0.7 s Power: 2 × 35 kW at 4,200 rpm (40% duty cycle) Rated power: 2 × 26 kW at 4,200 rpm Torque: 2 × 80 Nm (40% duty cycle) / 2 × 60 Nm (rated torque) Machining Area Spindle distance: 600 mm Travel Paths: - X axis: 600 mm - Y axis: 600 mm (optionally 875 mm) - Z axis: 500 mm Workpiece Clamping / Table System Swiveling mount with two separate rotary tables for installation of clamping bridges Swivel time 0–180°: 3.5 s Max. asymmetric load: 800 Nm Rotary table Ø 800 mm, repeatability: < 0.008 mm Maximum workpiece weight: 600 kg Peak torque: 981 Nm Rated torque: 698 Nm Max. table rotation speed: 50 rpm Angular acceleration: 2.5 – 10 rev/s² Positioning accuracy: ±5″ Tangential torque: 4,500 Nm Max. loading moment: 500 Nm Tool Change Times Chip-to-chip for n < 10,000 rpm: > 2.75 s Chip-to-chip for n < 17,500 rpm: > 3.15 s Note The system is delivered without product-specific tools, fixtures, or robot grippers.

Condition: good (used), Year of construction: 2014, operating hours: 48,000 h, functionality: fully functional, machine/vehicle number: 2080233, travel distance X-axis: 600 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 400 mm, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, CNC Control SIEMENS 840D Electrical Connection Connection voltage: 3 × 400 V / 50 Hz (grounded) Network type: TN-S or TN-C system Total connected load: 133 kVA Power factor: 0.6 Fuse rating: 190 A gG (5 s) Weight Operating weight of machine: 20,000 kg Transport weight: 16,000 kg Tool Magazine Tool change system: Pick-up system Tool management: Fixed-coded tool positions Capacity: 84 tools (2 × 42) Maximum total tool weight: 350 kg Feed Drives Drive type: Three-phase synchronous motors Linear measuring system X/Y/Z: Direct, absolute X-Axis Rapid traverse: 100 m/min Max. acceleration: 12 m/s² Kv factor: 7 Peak force: 10,000 N Continuous force: 5,000 N Positioning accuracy: Tp = 0.008 mm Y-Axis Rapid traverse: 100 m/min Max. acceleration: 10 m/s² Kv factor: 7 Peak force: 10,000 N Continuous force: 5,000 N Positioning accuracy: Tp = 0.008 mm Z Axes (Z1, Z2) Rapid traverse: 100 m/min Max. acceleration: 20 m/s² Kv factor: 7 Peak force: 2 × 5,000 N Continuous force: 2 × 2,500 N Positioning accuracy: Tp = 0.008 mm Main Spindles Spindle arrangement: Horizontal, twin spindles side by side Motor spindles, liquid-cooled, synchronous technology Spindle diameter: 40 mm Tool interface: HSK-A63 Lubrication: Minimum quantity lubrication (oil) Mechanical clamping force: > 18 kN Wear limit: 16 kN Speed range: 1 – 17,500 rpm Acceleration time: 0.7 s Power: 2 × 35 kW at 4,200 rpm (40% duty cycle) Rated power: 2 × 26 kW at 4,200 rpm Torque: 2 × 80 Nm (40% duty cycle) / 2 × 60 Nm (rated torque) Machining Area Spindle distance: 600 mm Travel paths: X-Axis: 600 mm Y-Axis: 600 mm (optional 875 mm) Z-Axis: 500 mm Workpiece Clamping / Table System OP1: Tilting support with two separate tilting tables for fixture bridges Ljdpext D Ebjfx Aaqorh OP2: Double tilting carrier (Q-axis) with two direct-drive NC rotary tables (A-/U-axes) Double-sided gearing on the tilting carrier Swivel time 0–180°: 3.5 s Max. asymmetric load: 800 Nm Repeatability Ø 800 mm: < 0.008 mm Max. clamping device and workpiece diameter: Ø 675 mm × 1,430 mm Max. workpiece weight: 600 kg Peak torque: 981 Nm Rated torque: 698 Nm Max. table speed: 50 rpm Angular acceleration: 2.5 – 10 rev/s² Indexing accuracy: ±5" Tangential moment: 4,500 Nm Max. load moment: 500 Nm Tool Change Times Chip-to-chip at n < 10,000 rpm: > 2.75 s Chip-to-chip at n < 17,500 rpm: > 3.15 s

Condition: ready for operation (used), Year of construction: 2017, operating hours: 19,403 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 510 mm, controller manufacturer: SIEMENS, controller model: Sinumerik 840D Solution Line, spindle speed (max.): 17,500 rpm, coolant supply: 70 bar, spindle nose: HSK63, number of spindles: 2, number of slots in tool magazine: 144, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Precision machining center, Siemens Sinumerik 840 D Solution Line control, travels: X-axis 600 mm, Y-axis 630 mm, Z-axis 510 mm, 2 work spindles 1-17,500 rpm, torque motor drive system, equipment includes: Oil distributor for rotary table, pneumatic pressure booster, total magazine extension 144 tool positions (2 x 72), basic hydraulic clamping module, 70 bar high-pressure pump, emulsion mist separation system, automatic loading door, air monitoring, inductive tool breakage monitoring, KNOLL 800 K-1/400 scraper belt conveyor, KNOLL FKA 1200 compact belt filter for cleaning cooling lubricant and much more. Ledpfowgh Hljx Aaqerh
