Used Gildemeister Gs 20-6 for sale (211)

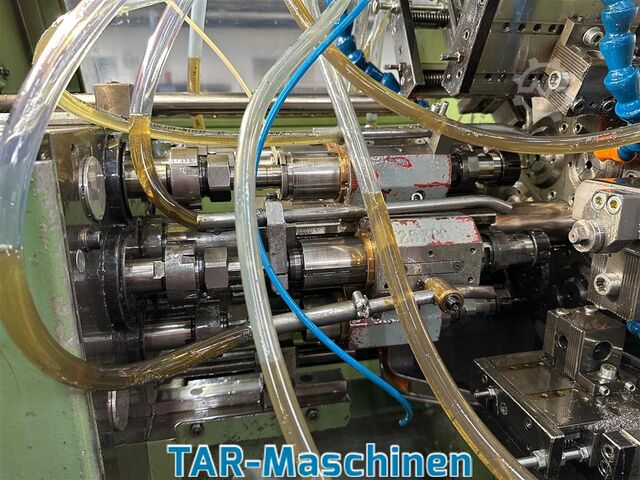

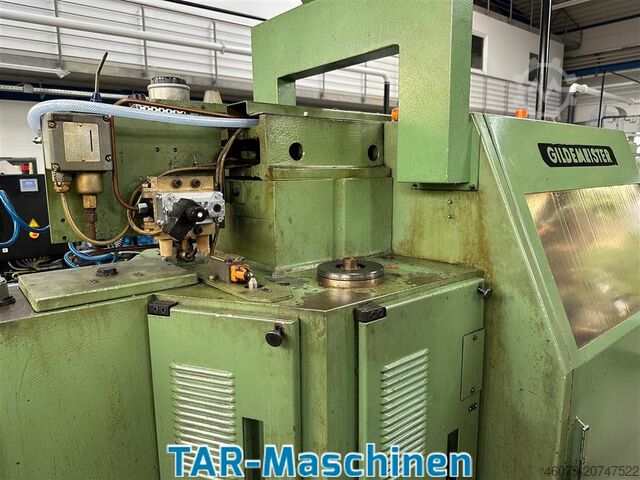

Condition: good (used), LATHE GILDEMEISTER GS20 WHIT BAR LOADER IEMCA PRA Guxdmjb

Year of construction: 1987, Condition: used, Machine/vehicle number: 7.0176, Note: We have 6 pieces of this machine in stock! Manufacturer: Gildemeister Type: GS 36 - 6 A/C Machine No.: 7.0176 Year of manufacture: 1987 Weight: 11t General / technical data: Portal-6Spindle automatic lathe spindle pitch circle: 300mm number of longitudinal slides: 6 number of cross slides: 2 large cross slide stroke: 60mm largest longitudinal slide stroke: 125mm Spindle speeds: Stepless 562 - 3373 rpm Main time range: Stepless 1,95 - 78 sec. Secondary time range: 0,79 - 2,13 sec. Drive power: DC motor spindles 20kW; feeds 8kW footprint: approx. 1720 x 4700mm Remark: The machine is not convertible for bar work. Gvd8O3Dz8 Equipment: - 1 creep feed drive for set-up operation - 1 automatic central lubrication device - 1 coolant device with pipes and pump - 1 cross slide, position 3 (without curves) - 1 cross slide, position 5 - 6 longitudinal slides (without drive, without curves) - Feed for independent longitudinal slide, flexible, position 1-6 - Programmable logic controller IPC 620 - Noise protection 80db - Automatic feed restart with electrical protection of the side door - Schanier belt chip conveyor - Design of the machines with DC drives for speed and feed - KIENZLE terminal 2450-07 with signal interface and data transmission control. Accessories: Electrical version: The electrical equipment consists of a DC main drive with power 20 kW for the spindle drive and a three-phase servo motor for the feed drive with power 8kW (protection class IP 54) and corresponding switchgear and control devices as well as the necessary installation. Total connection of the machine 32kW/h.

Condition: new, TECHNICAL DATA: - Number of spindles: 6 - Maximum bar diameter: 20 [mm] -Bar passage extension on request 25 [mm] - Cross carriages : 4 (pos.1-2-4-5) - Maximum feed length: 100 [mm] - Main spindle speeds : 400 - 4000 [rpm] with threading,400- 5000 [rpm] without threading - Travel time: 0.7 [s] - Cycle time: 1.4 - 60 [s] - Power: 11 [KW] ELECTRICAL PROVISION FOR LOADER INTERFACE Hardware and Software Interface for Loader ELECTRICAL EQUIPMENT consisting of theAC motors (protection type lP 54), main motor and feed with a PLC programmable Siemens S7-1500 DOCUMENTATION: CE certification with manuals Wiring diagrams I Hard copy + 1 Copy on USB with files in Bq77Oo9Uz8 .pdf format EC Directive 2006142lCE - 2014130/EC 2O14I68IUE STANDARD

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 180 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 2.2 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 1.5 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 9 - Number of motorized positions : 4 - Live tools speed : 6000 [rpm] - X/Y stroke : 50/325 [mm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 4 POWER SUPPLY - Supply voltage : 400 [V] MACHINE HOURS - Number of hours under power : 31902 [h] - Number of spindle hours : 12146 [h] Dprzfj EQUIPMENT - CNC : Fanuc 32-iB - Interface : USB - Parts catcher - Parts conveying strip - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump * with paper filtering unit - Bar loader : IEMCA 338-HD - Cooling unit - Electric transformer - Number of turning tool holders : 3

Condition: good (used), Year of construction: 2002, Operating hours: 28,666 h, Functionality: fully functional, Turning length: 587 mm, Turning diameter over cross slide: 260 mm, Turning diameter: 200 mm, Spindle motor power: 7,500 W, Spindle speed (max.): 5,000 rpm, Travel distance X-axis: 160 mm, Travel distance Z-axis: 450 mm, Tool mount: 20 mm, For sale is a CNC lathe with 6 driven tool stations of the brand Gildemeister and the type CTX 310 from the year 2002 The machine is in a well-maintained condition and ready for immediate use. Particularly noteworthy are the low spindle hours and the measuring system Technical data Year of construction: 2002 Max spindle speed: 5,000 1/min Speed at constant power: 833-3890 1/min Spindle power: 7.5 KW Chuck diameter: 210 mm Spindle bore: 68.5 mm Center width: 581 mm Center height: 190 mm Diameter over machine bed: 330 mm Diameter over slide: 260 mm Rotatable diameter: 200 mm Bar passage: 50 mm Travel Z: 450 mm Travel X: 160 mm Rapid traverse Z: 30 m/min Rapid traverse X: 20 m/min Rapid traverse C1: 100 1/min Torque C1: 112 Nm Feed force Z: 4500 N Feed force X: 4500 N Number of axes 2 Turret with tool drive from Sauter Tool positions: 12 Driven tool positions: 6 Cross-section of tools: 20*20 mm Speed of driven tools: 4200 1/min Power of driven tools: 4.2 KW Space requirement set up: 4,165 * 1,594*2,377 mm Space required for transportation: 3,190*1,600*1,700 mm Weight: approx. 3,200 kg Bls9Zpsscu On request, for an additional charge, dismantling, loading & transport can be organized for you throughout Europe Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale BUYING / SELLING PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website

Condition: used, length in total 2000 / 2700 mm band width - mm conveying height - total power requirement 0,5 kW weight of the machine ca. 0,15 t dimensions of the machine ca. 2,7 x 0,6 x 0,3 m Gogqlc Slide-in spiral conveyor Suitable for GILDEMEISTER ASH 160, among others

Condition: used, Year of construction: 2013, turning diameter max. 20 mm turning length max. 80 mm control Fanuc 310is Main spindle: max. usable bar diameter 20 (25) mm inner draw tube diameter 28,5 mm Max. speed main spindle 10.000 min/-1 power capacity - main spindel 3,7 kW Rqxfqx3Ndl max. Torque 9,4 Nm C-Axis C1: 360 ° Subspindle: inner draw tube diameter 28,5 mm Max. speed main spindle 10.000 min/-1 power capacity - main spindel 3,7 kW max. Torque 9,4 Nm C-Axis C2: 360 ° axis stroke: x-axis 1: 50 / 2: 240 mm y-axis 1: 350 / 2: 120 mm z-axis 1: 80 / 2: 300 mm Linear tool panel carrier for slide 1: number of toolpositions 17 pos. inner processing 6 pos. outer processing 6 pos. driven statition 5 pos. Shank diameter 20 mm shaft cross cut 12 x 12 mm collet diameter ESX / ER 16 tool spindle speed range 3x 3.450 / 2x 6.000 min/-1 power capacity - driven tool-stations 5x 0.98 kW max. Torque 3x 4 / 2x 2,3 Nm Linear tool panel carrier for slide 2: number of toolpositions 13 pos. inner processing 4 outer processing 4 driven statition 5 pos Shank diameter 20 mm shaft cross cut 12 x 12 collet diameter ESX / ER 16 tool spindle speed range 3x 3.450 / 2x 6.000 min/-1 power capacity - driven tool-stations 5x 0,98 kW max. Torque 3x 4 / 2x 2,3 Nm feeds: rapid traverse ( X / Y / Z ) max. 40 m/min feed power max. 2,5 kN Accelaration max. 5 m/s² total power requirement 56 kVA weight of the machine ca. 4,8 t dimensions of the machine ca. 8,0 x 2,5 x 2,0 m CNC-Short-Lathe GILDEMEISTER - Sprint 20-8 - 8 Achsen ( 2x X / 2x Y / 2x Z / 2x C ) - Main- and Subspindle - Bar-Feeding-Magazine FMB turbo 3-36/ 3200A - Coolant System DELTATHERM

Year of construction: 1973, Condition: excellent (used), 3 Gildemeisters AS32-6 in good state for sale D8F9Egp Including different separate spare parts, among which a new tapping device, a new bronze crown wheel for the main drive, a cross drill device, several gripping spindles for processing the rear of product and several other spare parts

Year of construction: 2024, Condition: new, Gildemeister 20 completely rebuilt to new condition -AC motor for production time control -AC motor for threading -GM-type soundproof casters 0U2T7Ojx -frequency converter for spindle speed programming -bar passage 20mm ,25mm , 28mm with integral loader -Optional : X and Z axis NC cross slides, NC pickup with NC pickup slide -EC brand

Condition: new, Lathe completely overhauled under the electrical and mechanical profile as new with painting Electrical cabinet replacement with PLC Siemens 1500 Series Pendant control panel Replacement of cables and micro switches Revision of the main motor Substitution of disposable lubrication oil pump Tools cooling pump replacement Door closing control with electromechanical system Pneumatic group Loader interface Bar end position 1 Replacement of all bearings Carriages overhaul Replaced camshafts Replacing all lubrication distributors Replacing working clutches and threads Pneumatic take-up spindle Fixed and rotating front spindles Diameter variant 20 CE certification with attached documents Beigzf3Hi0

Condition: good (used), Year of construction: 2003, Functionality: fully functional, Control: Fanuc 160i B Main spindle Speed: 10,000 rpm Power: 5.5 kW Torque: 14 Nm Bar capacity: max. 20 mm C1 axis: 0.001 Z1 axis travel: 80 mm Counter spindle Speed: 10,000 rpm Power: 5.5 kW Torque: 14 Nm C2 axis: 0.001 Travel X2 / Z2 axis: 240 / 300 mm Rapid traverse in X2 / Z2 axis: 40 m/min Tool carrier I (X/Y) Technology: Linear slide Internal machining: 6 stations Tool holder: 20 mm External machining: 6 stations Tool holder: 12 x 12 mm Driven tool stations: 5 Tool drive: 3,450 / 6,000 rpm Tool holder: Collet chuck, ESX 16 Travel in X/Y axis: 50/350 mm Rapid traverse in the X/Y axis: 40/30 m/min Bar loader GENIUS 226 Tool carrier II (Y) Technology: Linear slide Internal machining: 4 stations Tool holder: 20 mm External machining: 4 stations Tool holder: 12 x 12 mm Driven tool stations: 5 Tool drive: 3,450 / 6,000 rpm Tool holder: collet chuck, ESX 16 Traverse path in Y2 axis: 120 mm Rapid traverse in the Y2 axis: 40 m/min MACHINE DETAILS Bl8G8C2Vouo Weight: 4200 kg Connected load: 30 kVA Operating voltage: 400 V / 50 Hz EQUIPMENT Chip management: Chip conveyor Coolant management: Other equipment: Signal lamp

Condition: good (used), Year of construction: 2003, GILDEMEISTER NEF 320 Cycle lathe year of construction 2003 Control HEIDENHAIN MANUALplus 4110 Dptjxv Machine number 01110006461 Center distance 750 mm Equipment: Three-jaw lathe chuck SCHUNK-ROTA-S-Plus Ø 160 mm Tailstock Tool turret with 8 pockets 1 set of VDI holders Multifix steel holder head size B Coolant device Operating instructions/documentation Machine parameters on storage medium All other accessories shown in the photos and video are not included in the scope of delivery and are therefore not part of this sale. The scope of delivery only includes the accessories that are expressly listed here, in the order confirmation and invoice. Equipment, technical data & plans - illustration, content and information without guarantee, therefore not binding - see "PDF". PRICE net 11.900 € FCA D-77866 Rheinau excluding packaging Delivery time immediately Subject to prior sale / payment immediately upon completion of purchase

Year of construction: 1989, Condition: used, CNC control, numeric control, from GILDEMEISTER GDM 65/2A GILDEMEISTER type Eltropilot EP20 GD-2A Camuko78La year of manufacture 1989 Order: 150 299 Ser. No.: 0.854.183 Mains connection: 220 VAC 50 Hz Rack with 20 module places - 11 Built-in modules Dimension W x H x D 480x 260 x 220 mm Weight approx. 7 kg The control comes from a lathe Gildemeister GDM 42/2A. Further components from the Gildemeister can be found under stock no: 60343, 60346, 60347

Condition: reconditioned (used), Year of construction: 2003, CNC lathe GILDEMEISTER CTX 420 linear V 3 With control Heidenhain ELTROPILOT 4290 Year of manufacture: 2003 Max. turning diameter: 324 mm Max. rotatable length: 600 mm Max. Rotation diameter: 680 mm Spindle bore: 79 mm Max. Spindle speed: 4500 rpm With the following accessories: Sliding guard with interior lighting 12-slot turret with 12 driven stations 50 pcs. VDI 40 tool holders Bl7Iwrhnhhz 5 pcs. Driven tools VDI 40 1 pc. Hydraulic lynette Tailstock with quill Chip conveyor Hydraulic jaw chuck Forkardt 0 250 mm Foot switch for jaw chuck + tailstock adjustment Coolant unit 210 l ( 20 l/min ) 6 bar Operating instructions

Condition: used, TECHNICAL DETAILS - Spindle number : 6 - Max. bar diameter : 20 [mm], 25 [mm] in option - Cross slides number : 4 - Max. supply length : 100 [mm] - Spindle rotation speed : 420 - 5000 [Rpm] - Indexing time : 0,7 [s] - Machining time : 1,4 - 60 [s] Cytrpbwd8O - Power : 11 [kW] - Dimensions : 5800 x 1500 [mm] - Weight : 6000 [kg] EQUIPMENT - 4 cross slides posts 1 2 4 5 - 1 chip conveyor - 5 drillers - 1 IEMCA PRA41/31/P feeder DBMS-36 (1995)

Condition: used, Year of construction: 2004, Operating hours: 11,022 h, Functionality: fully functional, Machine/vehicle number: 07520000211, Turning length: 1,070 mm, Turning diameter over cross slide: 400 mm, Turning diameter: 560 mm, Spindle motor power: 37 W, Spindle speed (max.): 4,000 rpm, Spindle bore: 79 mm, Travel distance X-axis: 485 mm, Travel distance Y-axis: 160 mm, Rotational speed (max.): 12,000 rpm, Equipment: Rotational Speed Infinitely Variable, Gildemeister GMX 200 Linear with tailstock and steady rest for sale. Included is a cooling water treatment and a proper tool selection HSK 63 - A. The machine is being sold due to lack of orders. 49700 switch-on hours, 11022 spindle hours. Machine can be inspected and tested at any time. Loading possible without problems. Dprxk2

Condition: excellent (used), Year of construction: 2008, Control Siemens ... Sinumerik 840 D Turning diameter ... 400mm turning length ... 600mm Inclined bed Y axis ... 64mmmm Dpskfl Counter spindle Spindle bore ... 51mm Driven tools bar loader Machine weight ... 3700kg Spindle speed ... 0-6000/min. Axis X ... 160mm The machine is in good condition, possible to test under power.

Condition: excellent (used), Swing over bed 212 mm Distance between centers 750 mm Spindle speeds 10-4'000 rpm Control: HEIDENHAIN Manual Plus Csexpx7Zr0 Misc. accessories MARCELS MASCHINEN CH

Year of construction: 2002, Condition: used, Tool presetter GILDEMEISTER-DE VLIEG Type EGS 5045 / Microset DPS 100 Make No. 83-10-102 Year of construction 2002 travel X-axis approx. 400 mm travel Z-axis approx. 400 mm tool holding fixture in the mounted rotary table: Ø 50 mm Bolt circle diameter of the tool holders in the mounted rotary table Ø 340 mm inner cone in the mounted rotary table Ø 245 mm Heqgazvx Tool mounting plate as rotary table with 8 mounting holes Ø 50 mm Centering diameter of the mounted tool mounting plate: Ø 102 mm Rotary flange mounting with centering diameter: Ø 102 mm Rotatable flange support with outer diameter: Ø 155 mm Rotatable flange support with 3x M10 mounting holes, bolt circle: Ø 130 mm Mains connection 230 Volt, 50 Hz - Measuring electronics Microset DPS 100 - Rotary table with 8 tool places - interfaces: 1x RS232, 2x measuring system (X/Z) - Profile projector with screen Ø 100 mm magnification 20x and two circular matte disks - Matt screen fixed with crosshairs - Axis movement via manual quick adjustment with pneumatic clamp - fine adjustment via hand wheels - rotating rotary table with pneumatic clamping - Metal base with 3 drawers space requirement L x W x H 1100 x 1000 x 800 mm weight 400 kg good condition

Condition: reconditioned (used), Year of construction: 2001, Cycle-controlled lathe GILDEMEISTER NEF 720 With MANUAL PLUS 4110 control Year of manufacture: 2001 Spindle bore: 92 mm Center distance: 1500 mm O rotation over bed: 710 mm O rotation over cross slide: 410 mm Njfg0Nov Center height: 350 mm Speed range: 36 - 1800 rpm infinitely variable With the following accessories: Sliding guard with interior lighting Multifix tool holder Coolant device 3 jaw chucks Forkhardt 0 315 mm ICP contour programming Tailstock with extendable drilling quill Chip tray Operating instructions

Condition: good (used), Year of construction: 2002, Functionality: fully functional, Heidenhain Manuel Plus 4110 Swing diameter 320mm center distance 750 mm drive power 9 kW Torque 410 Nm Dpn2B9 Speed 4000 rpm Feed 5000 mm/min Tailstock Accessories: Manual turning with handwheels Machine light Coolant device

Condition: excellent (used), Year of construction: 2002, Functionality: fully functional, GILDEMEISTER CTX 420 LINEAR CNC LATHE WITH DRIVEN TOOLS AND C AXIS Type: CNC lathe Manufacturer: GILDEMEISTER Model: CTX 420 linear Control: SINUMERIK 840D Country of manufacture: Germany Year of manufacture: 2002 Technical parameters: Head: 12 tools for VDI 40 toolholders. Driven tools: 12 C axis Maximum RPM: 5000 rpm Drive power: 25 KW Turning diameter: Ø 324 mm Maximum turning length: 600 mm Three-jaw chuck on the main spindle: ROTA NCW 265-71 Through spindle, through: Ø 79 mm Maximum shaft diameter: Ø 65 mm Cooling system Belt conveyor - workpiece receiver Chip conveyor Technical and operation documentation (DTR) Machine weight: 6000 kg External dimensions: 4350 x 2440 x 2080 mm Description: The offered CNC GILDEMEISTER CTX 420 Linear lathe was used for our production and is continuously serviced by the manufacturer's authorized service. The machine is fully operational and in very good technical condition. Test capabilities: Dpl2Ft The possibility of testing at our plant. Possibility of checking the technical condition by an independent service technician. Optional equipment: Additional set of jaws (4 sets: soft and hard) 2 pieces of standard holders Location: Address: 4 Składowa street 55-002 Dobrzykowice For questions or to arrange a viewing, please contact us.

Condition: excellent (used), Year of construction: 2003, Gildemeister CTX 320 linear CNC lathe Year of manufacture: 2003 Control: Siemens 840D with Shopturn Turning length: 600 mm Buajkmdy8G Turning diameter: 400 mm Bar passage: 52 mm Turning speed: 6000 rpm Motor power: 16 kW X-axis travel: 160 mm Y-axis travel: 450 mm Chuck diameter: 210 mm Turret: 12-fold VDI 30 Weight: 3700 kg

Condition: used, Year of construction: 1985, core drilling diameter max. 18 mm Btru2Z70Ra bore depth 320 mm swing diameter mm total power requirement 33 kW weight of the machine ca. 6 t dimensions of the machine ca. m

Condition: reconditioned (used), Year of construction: 2005, Cycle-controlled lathe GILDEMEISTER NEF 520 With MANUAL PLUS 4110 control Year of manufacture: 2005 Spindle bore: 70 mm Center distance: 1000 mm O rotation over bed: 500 mm O rotation over cross slide: 290 mm Center height: 250 mm Dpozgl Speed range: 10 - 3050 rpm infinitely variable With the following accessories: Sliding guard with interior lighting 8-station Sauter VDI 30 turret with driven tools 10 pcs. VDI 30 tool holders 2 pcs. driven tools VDI 30 Coolant device 3 jaw chucks SCHUNK ROTA 0 250 mm ICP contour programming Tailstock with extendable drilling quill Chip tray Operating instructions
