Used Elumatec Dg 104 for sale (6)

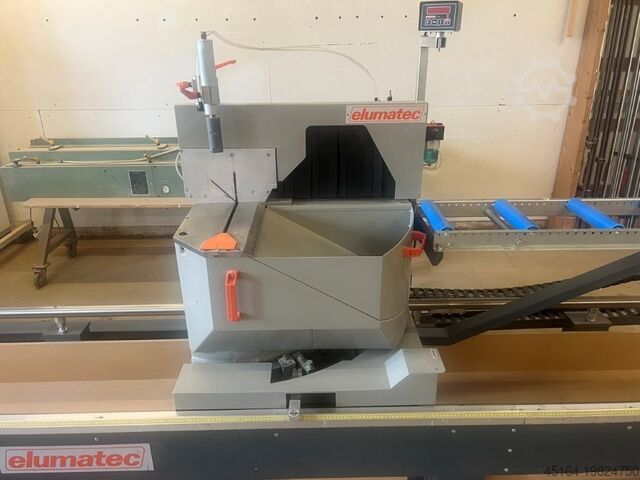

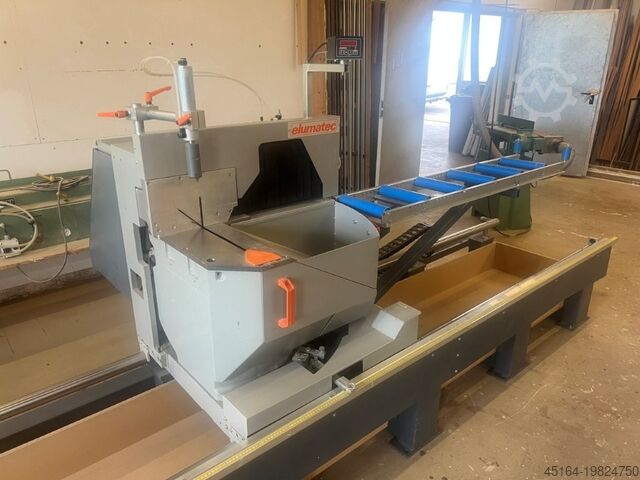

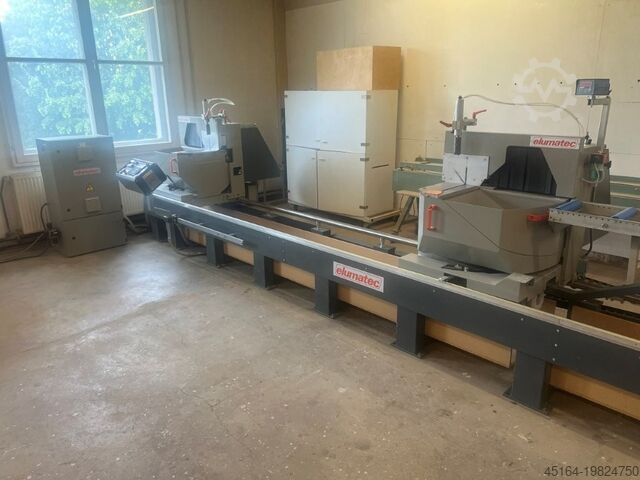

Condition: used, Year of construction: 1994, Cutting length scale up to 5000 mm, saw blade 420 mm, roller conveyor 1500 mm, electro-motorized movement of the right unit, digital measurement display, saw units swiveling and tiltable. Storage location: customer Nodpfx Asw Sadreb Iecl

Condition: excellent (used), Year of construction: 2024, operating hours: 193 h, functionality: fully functional, travel distance X-axis: 7,200 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 340 mm, cutting width (max.): 335 mm, workpiece length (max.): 6,000 mm, milling spindle speed (max.): 6,000 rpm, section length (max.): 6,000 mm, TECHNICAL DETAILS - Profile Milling Machine Processing length: 7,200 mm Number of axes: 4 Control: eluCAM graphical, Windows XP user interface Workstations: 2 independently operating stations Turret tool changer: 8 tools, servo motor driven Tool holder: BT 30 Disc mill diameter: 180 mm Tool length: 150 mm (from point of attachment) Travel distances Travel X-axis: 7,200 mm (without end-face processing), 7,080 mm (with end-face processing) Travel Y-axis: 480 mm Travel Z-axis: 340 mm Rapid traverse X-axis: 60 m/min Rapid traverse Y-/Z-axis: 30 m/min Positioning accuracy: ±0.1 mm/m Spindle Milling spindle speed: 1 to 6,000 rpm Milling spindle power: 6.0 kW Supply Air connection: min. 7 bar Ncjdswprmzopfx Ab Iol Air consumption: 100 l/min Electric connection: 400 V, 3~, 50 Hz, 35 A EQUIPMENT two independent workstations with light barrier and camera system Non-swiveling inclined milling head for 2 tools, Er20A, up to 18,000 rpm Inclined milling head swiveling 4 × 90°, Er20, up to 22,000 rpm Inclined milling head non-swiveling for steel, Er20A, 1,554 rpm Fixed saw head i=1:1, for D=300 mm saw blade, suitable for 90° cross cuts Carbide saw blade Z=100, D=300 mm, cutting width 3.2 mm Tool holder i=1:3.86 for 18,000 min⁻¹, ER25 Cooling/lubricating unit for steel processing Disc milling holder BT30, D=16 mm Disc cutter D=92 × 6 mm, Z=14, D=16 mm, carbide teeth TECHNICAL DETAILS - Double Mitre Saw Max. cutting length: 6,000 mm Min. cutting length at 90°: 335 mm Min. cutting length at 45°: 335 mm Saw blade diameter: 420 mm Cutting angle (rotation): pneumatically adjustable 90° and 45° inside, intermediate angles and 22.5° acute manually adjustable with digital display Cutting angle (tilt): pneumatically adjustable 90° and 45° inside Saw direction: saw blades move from bottom to top Control Control type: E580/1 Length adjustment: automatic with positioning control Saw blade tilt: pneumatically automatic between 90° and 45° Positioning accuracy: ±0.1 mm/m Positioning: pneumatic locking Operating system: Windows Saw unit Speed: 2,800 rpm Power per motor: 4,000 W (5.5 HP) Saw blade cooling: available Air consumption per cycle without cooling: 40 l Air consumption per cycle with cooling: 64 l Supply Electric connection: 230/400 V, 3-phase, 50 Hz Air connection: 7 bar Dimensions and Weight Length: 7,550 mm Width: 1,600 mm Height: 1,450 mm Weight: 1,750 kg EQUIPMENT Automatically closing protective covers Electronic positioning of the heads with +/- 0.1 mm/m accuracy Digital angle display for manually adjustable special angles Pneumatically adjustable saw blade rotational and tilt angles Operation via Windows control with 8.4" display and handwheel Cooling system for saw blades included Saw unit with bottom feed for optimal cutting force

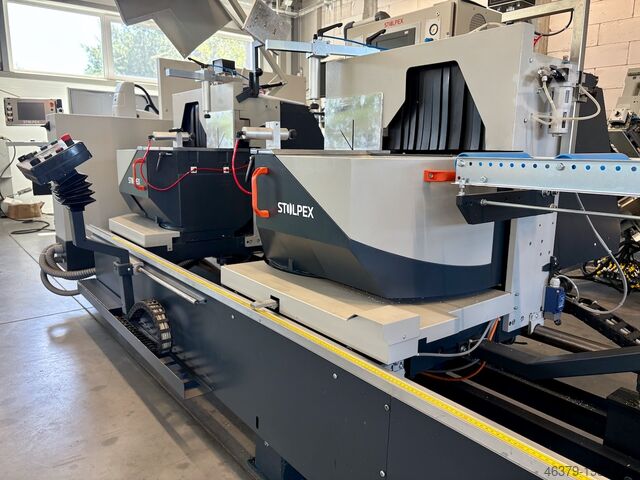

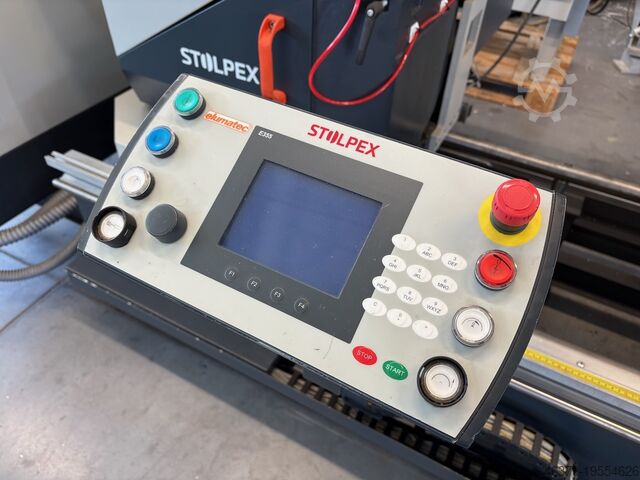

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Year: 2011 - technically efficient, ready to work – after full service - Cutting length: 6000 mm - Discs: 420 mm (bottom cutting) - E355 control - Digital angle indicator - Pneumatic angle adjustment 45-90 degrees - Cutting to outside dimensions, without correction Ncsdpfxewy Emcs Ab Iol - Cooling and lubrication system - Roller feeder - Vertical and horizontal pneumatic clamps - Automatically lowered and raised disc guards

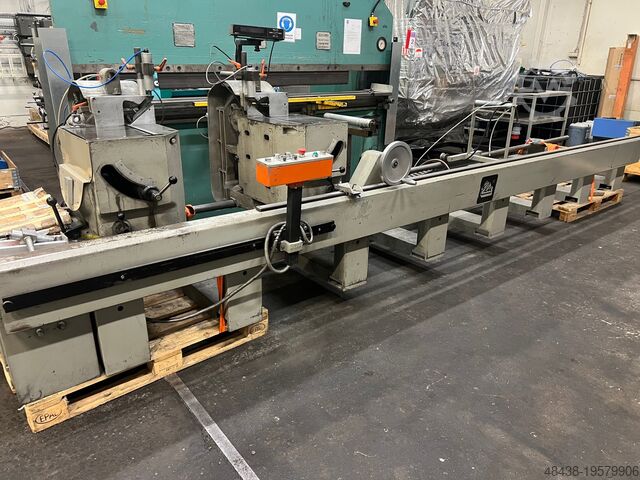

Year of construction: 1985, condition: good (used), Offer 22556 Technical data: - Saw blade diameter 420 mm - saw blade bore 30 mm - max. cutting length 3000 mm - smallest cutting length at 90° + 45° 335 mm - cutting range see diagram enclosed - tilting range inwards manual 90 - 22,5 ° - inclination range inward manual 90 - 45 ° - Saw blade speed 2800 rpm - drive 380 V / 2 x 4000 Watt - Compressed air supply 7 bar - Air consumption per working cycle approx. 64 l - space requirement approx. W 4500 x H 1950 x D 1600 mm - weight approx. 1400 kg - with: - cutting length adjustment with positioning control - positioning control renewed approx. 2002 by WOLFF Nodpfx Aoimdlreb Ijcl - saw unit swiveling and tilting for high and wide profiles, - as well as shift cuts

Year of construction: 2008, condition: used, Saw blade diameter: 420 mm Max. cutting length: 6,000 mm Nodpfx Abjw Axmbe Ijcl Min. cutting length: 335 mm Automatic length positioning and angle adjustment via E 555 control with Windows and USB connection Motorized angle adjustment for swiveling both saw heads Moving roller conveyor Minimum quantity spray device Weight: approx. 1800 kg

Condition: excellent (used), Year of construction: 2008, Maximum cutting lenght : 3000 mm Minimum cutting length at 90° 350 mm Minimum cutting length tilted at 45° 350 mm Pivoting range inwards 90° - 45° (up to 22.5° manual with digital display) Tilting range inwards pneumatically 90° - 45° Ncjdpexc Tyyofx Ab Iel For cutting range, see cutting diagram Saw blade diameter 420 mm Saw blade speed 2,800 rpm Power supply 230/400 V, 3~, 50 Hz Power output per motor 4 kW Compressed air supply 7 bar Air consumption per working cycle 40 l without spraying, 64 l with spraying WINDOWS 2000 Software
