Used Giben Panel Saw for sale (12)

Condition: used, Year of construction: 1999, - Usable cutting length: 1600 mm - Saw blade overhang: 100 mm - Panel thickness: 6 - 22 mm (+/- 1 mm tolerance per panel and within a panel) Panel dividing saw with infeed table and destacking device Manufacturer: Giben Type: Prismatic 2 h100 SPT Year of manufacture: 1999 Technical data - Usable cutting length: 1600 mm - Saw blade overhang: 100 mm - Clamping chuck opening: 117 mm - Working height: 950 mm - Lifting table dimensions: 1600 x 2700 mm - Max. stack height: 620 mm - Dimensions: 2444 x 1220 mm, 2500 x 1250 mm - Panel thickness: 6 - 22 mm (+/- 1 mm tolerance per panel and within a panel) High-speed saw carriage - 2 guide shafts: 40 mm - Saw carriage drive via frequency-controlled motor - Feed speed: 1 - 100 m/min - Return speed: 100 m/min Ibjlhcdwszuyywo Eja Adjustment of the saw carriage speed from the control panel. Automatic cutting length control according to the panel dimensions - Scoring saw speed: 5035 rpm - Carbide-tipped saw blade speed: 3760 rpm - Main saw motor power: 11 kW - Scoring saw motor power: 2.2 kW - Main saw blade: 400 mm - Main saw spindle: 75 mm - Scoring saw blade: 215 mm - Scoring saw adjustment from the outside in stepped increments to: 0.025 mm - Changing the main saw and the scoring saw via a quick-release system (pneumatic) Sliding table - Support table in the sliding table area with free-running roller rails - Top-mounted sliding table with 3 floating clamping chucks with patented, foldable lower clamping chuck fingers - Sliding table drive via servomotor - Drive torque: 6.5 Nm - Feed speed: 1 - 60 m/min - Return speed: 60 m/min - Cable routing via drag chain - 2 front aligners Automatic infeed via lifting table - Dimensions: 1600 x 2700 mm - 4-column spindle lifting table with 12 free-running roller groups - Automatic package height counting when lifting the panels via control - Min. panel dimensions: 2000 x 1200 mm - Max. stack height without pit: 620 mm - Max. load: 12 t - Infeed height: 330 mm Support table - 2 pcs support table with PVC surface 2000 x 510 mm Machine control G-Drive 1D Extraction - 1 extraction port on the pressure bar: 115 mm - 1 extraction port on the lower side of the machine bed: 200 mm - The chip extraction takes place directly at the saw unit via sheet metal ducts into a chip duct arranged along the saw line, which is sealed with flexible rubber lips. Performance parameters - Average cycle time/saw cut: approx. 25 s Quality - Cutting accuracy: +/- 0.15 mm is guaranteed (for straight panels) - Angularity: +/- 0.15 mm/m Note: The technical data and descriptions are a transcript of the original order confirmation. Data is for informational purposes only and is not binding.

Condition: excellent (used), Technical data: • Cutting length: 3800 – 4500 mm • Cutting height: up to 115 mm • Main saw blade diameter: 400 mm (optional 430 mm) • Scoring saw blade diameter: 215 / 300 mm • Saw blade arbor: 75 mm (main saw blade), 50 mm (scoring saw blade) • Speed: • Main saw blade: approx. 3695 rpm • Scoring saw blade: approx. 4565 rpm • Motor power: • 7.5 – 13.2 kW (50 Hz) • up to 15.9 kW (60 Hz) • Feed rate: 0 – 130 m/min Ibolhcoy Syauedw Eea • Return speed: 130 m/min • Air pressure: 5 – 6 bar • Air consumption: 10 – 30 l/min • Extraction: • Connection: 115 / 200 mm • Flow rate: 1215 – 3675 m³/h

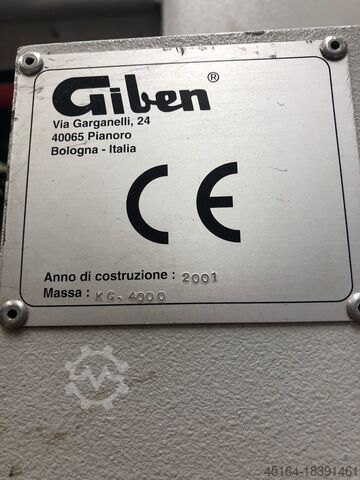

Condition: used, Year of construction: 2001, Cutting width: 3300 mm Cutting length: 3350 mm Weight: approx. 4000 kg Saw blade projection: 100-(115) mm Saw carriage: Feed speed: 100-(130) m/min. Return speed: 100-(130) m/min. Main saw blade: 400-(430) mm Motor: 7.5-(11-13.2) kW Scoring unit: 215 mm Motor: 2.2 kW Pusher: Rapid feed: 160 m/min. Return speed: 60 m/min. Extraction: Air speed: 30-35 m/sec. Extraction nozzle: 200 mm / 115 mm Compressed air: Pressure: 5-6 bar Consumption: 20-30 l/min. Ibolhcdwevvkqgj Eja Storage location: Nattheim

Condition: used, Year of construction: 2006, with automatic lifting table feeding system with 4 precision spindles, ensuring the stack is always held evenly at the correct level. Equipped with 4 powered roller groups. Lifting table dimensions: 6000 x 2200 mm. Feeding side: left (from the operator's perspective). Max. stack height: 450 mm. Lifting table height (bottom): to be defined. Speed for lifting and lowering: 0.7 m/min. Lifting table drive: 3 kW. Powered roller group: 4. STANDARD CONFIGURATION. Usable cutting length: 6000 mm. Lifting table feeding: Yes. Working height: 950 mm. Saw blade overhang: 100 mm. Clamping device opening: 117 mm. Machine control: G Drive RT. Number of clamping devices movable in X: 1. Number of clamping devices movable in X and Y: 1. Number of fixed clamping devices: 1. Min. material thickness (with side alignment): 10 mm. Min. material thickness (with lifting table feeding): 10 mm. Min. panel dimension (with lifting table feeding): 2400x1200 mm. Max. panel dimension (with lifting table feeding): 5500x2070 mm. Max. panel dimension (without lifting table feeding): 5800x2010 mm. Safety device according to CE: included. Supply voltage: 400 V / 50 Hz. MACHINE CONFIGURATION. Machine bed: The machine bed structure made of steel is welded using arc welding and then milled and finished on CNC machines. The rigid structure of the machine bed guarantees both high cutting quality with high cutting speed, as well as the enormous durability of the entire machine. Saw blade overhang: 100 mm. Power of main saw motor: 7.5 kW. Power of scoring saw motor: 2.2 kW. Diameter of main saw blade: 400 mm. Diameter of scoring saw blade: 215 mm. Feed rate of saw carriage: Forward: 1-170 m/min. Return: 170 m/min. Motorization of saw carriage feed: Servo drive. Diameter of dust extraction port (bottom, 1x): 200 mm. Diameter of dust extraction port (top, 2x): 115 mm. Thanks to the rigid machine bed construction, the masses are distributed in the best possible way, which prevents twisting and thus guarantees an absolutely vertical run of the saw blade. Machine table made of steel with individual, removable support elements made of high-quality, durable material. The saw carriage runs on two round guides, which are mounted horizontally on one level. Large prism rollers (diameter 86 mm), with spring-loaded counter rollers, ensure smooth linear feed, as well as very low contact pressure and enables virtually wear-free operation of the saw carriage. The weight and forces acting on the saw carriage are evenly distributed on the two guides (50/50) and on each individual prism roller. The saw carriage runs absolutely without lubricant on the guides. The two guides are located away from the cutting line, outside the direct dust area. The diameter of the guide rods is 40 mm, making them the largest and most stable guides used in this sector. Pneumatic quick clamping system; for quick and convenient tool changes. This system is extremely reliable in operation, as it is mechanically clamped via a flange with a bayonet lock and spring force and unlocked via a pneumatic quick coupling. The flange must be rotated by approx. 10° in order to remove it. Due to excellent accessibility and the fact that the operator does not need any other tools, the tool change is very easy and can be carried out in seconds. The scoring saw adjustment is made from the outside. Ibelhcdwszn N Iko Eea

Condition: good (used), Code: 0188 Brand: GIBEN Model: ONIX SP 90 CHALLENGE LINE - CE Standard Automatic horizontal panel saw with clamps for cutting wood panels, multilayer panels, furniture, composite materials, sandwich panels and various materials - CE Standard Cutting dimensions mm 4400 x 4300 Blade projection mm 90 Blade carriage: feed speed 5/100 mt/min - return speed 100 mt/min Main blade diameter mm 350 - Motor Hp 12,5 Scoring blade diameter 180 mm - Motor Hp 2 Pusher: feed speed 1/25 mt/min - return speed 60 mt/min Frontal loading of panel stack and pusher with clamps N° 3 front air cushion tables Automatic pusher with side upper guides equipped with 7 pneumatic clamps. The steel clamps keep the stack blocked throughout the panel sizing cycle up to the last trim cut. Automatic lateral aligner Automatic adjustment of the blade projection in relation to the height of the pack to be sawn. Electronic control of the speed and position of the saw carriage Easy access to the saw carriage Pneumatic unit for rapid tool removal G-VISION control: Giben machine control software installed on a PC. Multi-tasking Microsoft Windows XP/2000/NT operating system for easy networking Advantages: Sequential control of cutting patterns, number of panels, and pattern sequence change. Parametric control of the feed speed of the saw carriage according to the stack height and trim width. Direct control of machine functions. Setting of cutting patterns. Suction: diameter suction inlets 200 mm Compressed air 6-7 bar Overall dimensions of assembled machine: mm 6400 x 7500 x 1800 h Ijlhcdjw Ec Risw Esba Overall dimensions for transport: machine mm 6500 x 1500 x 1800 h - pusher mm 5200 x 1200 x 1200 h Total weight kg 3200

Condition: good (used), Year of construction: 2018, functionality: fully functional, power: 7.5 kW (10.20 HP), input voltage: 400 V, input frequency: 50 Hz, saw blade diameter: 380 mm, Equipment: documentation/manual, Number of clamps: 6 Cutting length: 3800 mm Max. saw blade overhang: 90 mm Air tables: 4x Features include “post-forming” for a single panel or a stack of laminated panels, a linear motor for moving the saw carriage without any friction or mechanical components, a speed exceeding 200 m/min, and an acceleration of almost “1g”, among many others. PRISMA EVO is a cutting center without a motor on the saw carriage (patented), and thanks to this extraordinary innovation, all causes of vibration are definitively eliminated, which improves the quality of the cut surface and ensures a longer blade life. PRISMA EVO uses linear guides with ball bearings for all sliding movements of the saw carriage, the pressure beam, and the side pressure device as standard. The feeder of this model is automatic, electronically controlled, and equipped with a brushless motor. The side aligner is “permanently engaged,” which guarantees a faster cross-cutting cycle for a single strip. The side aligner slides on a linear guide, ensuring smooth and clean movements, and is wear-resistant and virtually maintenance-free. Ieljy S Rhcjhcdw Ejba

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, Equipment: documentation/manual, Giben panel saw model Prismaic 2 SPT H 100 – Year 2002 Machine in excellent condition, fully operational and ready for use. Equipped with side rear loading. Cutting width: 4300 mm. ✔ Function tests performed ✔ Complete maintenance (pneumatic, mechanical, and electronic) Machine inspected and overhauled by a company specializing in service and maintenance. Ijlhcdey R D Rhsw Eeba 📞 Contact us for more information or to schedule a demonstration.

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, We offer this Giben KG.8250 slab bandsaw, ready for use, manufactured in 2001. Manufacturer: Giben Model: KG.8250 Year of manufacture: 2001 Condition: ready for use Identification category: 1426 Identification type: 844 Ibsljzaiwdshcdw Eea Machine type: slab bandsaw If you have any questions or require further information, please do not hesitate to send us a message or call us.

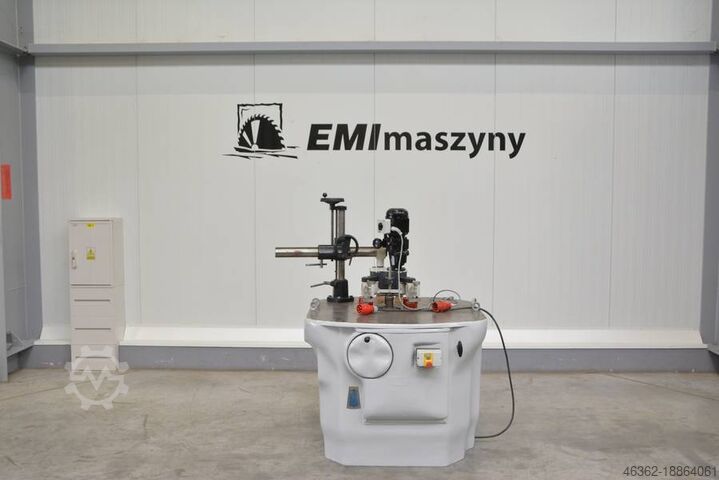

Condition: like new (used), Spindle diameter: 40 mm Lenz roller feed for curved elements Smooth speed adjustment Feed motor power: 0.25 kW Feed rotation: left/right Safety switch Manual spindle height adjustment Table width: 104 cm Ibslhcev Uz S Sedw Eea Table length: 98 cm Machine construction: cast iron

Condition: used, Technical specifications: Ibolhcdozd Evvew Esa Max. planing width: 500 mm Max. planing height: 250 mm Cutterhead diameter: 110 mm Number of knives: 3 2 feed speeds Manual lifting Power supply: 380 V Motor power: 4 kW Overall dimensions: Length: 1000 mm Width: 1100 mm Height: 1400 mm

Condition: used, Complete factory for the production of furniture cabinets, composed by: SZ0M23) Angular Panel Saw "GIBEN" Tip 17 (mm 5600x2700) with "SIRIO" automatic unloading and stacking system SZ0M25) Panel Saw “GIBEN” Mod. GammaDue (mm 3800x2200) SZ0M26) Panel Saw (Multi-saws) “GABBIANI” (finished panels mm 4250x2120) SZ0M27) Laminating Line “BARBERAN” for melamine papers (glue on paper) SZ0M29) Pressing Line “COLOMBO REMO” (mm 1400 x 9600) for paper / veneer / laminates SZ0M30) Pressing Line “FRIZ” (mm 1400 x 6200) for paper / veneer / laminates SZ0M41) 4-sides Sizing & Edge Banding Line “IMA” Combima fast handling “RBO-BIESSE” SZ0M42) 4-sides Sizing & Edge Banding Line “IMA” Combima softforming with a second double side Sizing & banding machine STEFANI and automatic handling equipment Ibolhjcr U Urecdw Eja “TOMASSINI” SZ0M39-40) Edge Banding Line (single side) for narrow pieces “HOMAG” Mod. KAL 310 with Splitter "NARDELLO" Mod. Elegance SZ0M35-36) Multi-Borer “BIESSE” Techno Logic with Loader + Unloader “TOMASSINI” SZ0M45) CNC Multi Boring and Dowels Inserting Line “BIESSE” Techno FDT with fast handling “RBO-BIESSE” SZ0M37) CNC Working Center “MORBIDELLI” Mod. Author 600 KL SZ0M56) Reel Cutting and winding machine “CEFLA-DUSPOHL” Tipo RSW 2200 T SZ0M01) Wooden strips end-cutting Line "OGAM+SALVADOR" SZ0M07) Wooden strips end-cutting and stacking Line “SALVADOR+SACOT” SZ0M08) Wooden strips end-cutting and stacking Line “SALVADOR+CMA” SZ0M11-17) Preparing Line for honey-comb panels SZ0M18) No. 6 Mutli-openings (daylights) hot hydraulic presses "COLOMBO REMO" SZ0M21) Sizing and top & bottom Calibrating line for honey-comb panels "GABBIANI + CELASCHI + ELMAG + COSTA Sanding Machines" And many other machines (i.e. multi-borer "VITAP", circular saws, glue spreaders, etc.), saw-dust suction system, rollers ways, shelvings, fork-lift, transpallets, etc. Machines still installed at the end-user's factory. They can be inspected by appointment.

Condition: good (used), functionality: fully functional, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, cutting height (max.): 70 mm, cutting width (max.): 1,200 mm, saw blade diameter: 125 mm, rotational speed (max.): 3,800 rpm, total length: 6,000 mm, total height: 1,300 mm, overall weight: 3,500 kg, year of last overhaul: 2024, cutting length (max.): 4,200 mm, collet bore: 75 mm, cutting height with scoring (max.): 2 mm, extraction nozzle diameter: 250 mm, feed length X-axis: 4,500 mm, feed rate X-axis: 7 m/min, main saw diameter: 350 mm, saw blade speed: 3,800 rpm, saw drive: 7,500 W, space requirement length: 6,500 mm, space requirement width: 3,000 mm, Saw for rip cutting but also for sawing. It is very well suited for longitudinal edging of lumber flanks and then cutting to width before planing. With this machine, sawing lumber is incomparably lighter than on classic saws even with a carriage. It can work in automatic and semi-automatic cycle . It has 4 ranges of aggregate position as far as the length of the element is concerned, which means that the aggregate does not have to return all the way to the end of the machine, which shortens the time of cutting the raw material. It significantly facilitates and accelerates the manipulation of Ibolhouyvnijcdw Eea with the preparation of lumber for planing, and the even cut makes the alignment saves time on planing the element. Working on it is relatively safe because during the cutting itself, the operator does not have direct contact with the material being cut, and the workpiece is pressed from above with a pressure beam using compressed air. Activation of the pressure beam and the feed of the cutting unit, is carried out using a foot pedal .It is also suitable for cutting boards with a jigsaw .Also equipped with components for various applications. It is ideal for small and medium-sized carpentry shops that process thick massive lumber. The machine is massive and durable.
