Used Schelling Panel Saw for sale (29)

Condition: used, machine/vehicle number: 007486, Max. panel width: 2100 mm Max. panel length: 4300 mm Hjdpfx Aot Sn Azefcoi Main saw blade projection: 135 mm

Condition: used, machine/vehicle number: 006006, Max. panel width: 2300 mm Max. panel length: 4300 mm Hodpfou Rv Uqsx Afcoi Main saw blade projection: 135 mm No of Rip saw Grippers: 7 No of Cross Cut Grippers: 20 Second flexible pusher: yes Panel Rotation Station: yes

Condition: used, machine/vehicle number: 005445, Max. panel width: 3200 mm Max. panel length: 2120 mm Main saw blade projection: 165 mm No of Rip saw Grippers: 4 No of Cross Cut Grippers: 9 Hsdpfx Afsiiiuyocji Panel Rotation Station: yes Thin sheet loading: yes

Condition: used, machine/vehicle number: 006211, Max. panel width: 4300 mm Max. panel length: 2200 mm Main saw blade projection: 135 mm No of Grippers: 10 Second flexible pusher: yes Hedpeiwbfujfx Afcei Panel Rotation Station: yes

Condition: used, machine/vehicle number: 007504, Position 1: Vertical Storage Systems IMA + SCHELLING-AH 6 Position 2: Angular Beam Panel Saws IMA + SCHELLING-AH 6 Hedpfxjwuucio Afcei Position 3: Panel Feeding and Loading IMA + SCHELLING-AH 6

Condition: like new (used), Year of construction: 2022, 127 saw operating hours!! Cutting dimensions: 5800 x 5800 mm Saw blade diameter: 360 mm Motor power: 18.0 kW, 400 V, 50 Hz Scoring saw blade diameter: 300 mm Scoring motor power: kW, 400 V, 50 Hz Cutting height: 6 - 105 mm Working height: 970 mm Saw feed speed: 5 - 160 m/min Saw return speed: 160 m/min Carriage return speed: up to 80 m/min Equipment/Features: - Roller rails for a cutting length of 5800 mm - Angle stop on roller table, length 1450 mm - Dual-rail, hardened precision guidance for feeding unit, drive rack - Feed carriage with rack-and-pinion drive (servo drive) - Double clamp, 8 pcs, positions at 65/265/465/1065/1965/2865/3765/4665 mm - Format setting device, max. top layer overhang 10 mm Sawmachine FH4 580 - Machine table, heavy-duty steel construction, precision guides - Central blower for all air-cushion tables - Frequency control for blower motor - Saw unit, vibration-free design, quick-release tool change system - Saw feed with rack and pinion - Scoring unit, motorized adjustment from control panel - Automatic cut length setting - Automatic central cleaning - Pressure beam with cleat recesses - Safety curtain with swivel-mounted plastic strips - Strip aligners before and after pressure beam, alignment range 40 - 2200 mm - Laser alignment light with green laser beam - LED work lighting for cutting area - Angle stop at air-cushion table, length 2100 mm - 3 air-cushion tables, movable, 2100 x 700 mm - Safety fence 18.3 m total length, overall height 1800 mm MCS Evolution Main control computer with Windows 10 OS, 8 GB RAM, 128 GB SSD Hjdpfxoyftpue Afcsi Standard machine functions: - Cut plan entry with graphical display - Cut plan generator - Cut plan import from HPO via network or USB - Animated display of production processes - Text diagnosis / help - Display of target/actual values - Strip trimming automation - Stress-relief cut programs - Slow infeed/outfeed cutting - Continuous, automatic adjustment of pressure beam force - Continuous, automatic adjustment of pressure for strip aligners - Continuous, automatic adjustment of cutting length - Short stroke for pressure beam - Pushing with open clamps Extended machine functions: - "Easy" control panel with 24'' TFT monitor and integrated control buttons, mounted on height-adjustable swing arm - Software for label printer and editor Label printer TSC MB240T HPO 6.0 Advanced optimization program including license Cutting optimization software for creating cut plans - All panel types are optimized in parallel across all available processors (batch optimization) - Entry and optimization of mixed part lists - Multiple panel types in a single parts list possible - Automatic division into individual optimization runs - Import of parts lists from MS Excel - Use of optional (filler) parts - Additional specification for finished dimensions and edge thickness - Consideration of grain direction (structure) of the panel - Consideration of stress-relief cuts - Offcut definition possible - Re-optimization of individual runs possible HPO Stock: - Planned panels are debited from the board database, offcuts are recorded; offcut labels are printed HPO Fleximport: - Import capability for any ASCII text files into HPO optimization program MACHINE ALREADY DISMANTLED AND STORED!

Condition: ready for operation (used), Year of construction: 2007, machine/vehicle number: 220.242, functionality: fully functional, saw blade diameter: 350 mm, cutting length (max.): 4,300 mm, No reserve price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Cutting Data Nominal cutting length: 4,300 mm Maximum saw blade diameter (S): 350 mm Scoring blade diameter (V): 300 mm Maximum saw blade projection above table (U): 95 mm Stack Height and Panel Thickness Maximum stack height (P): 80 mm Minimum panel thickness (P): 3 mm Strip Aligner Minimum aligning force: 300 N Maximum aligning force: 990 N Additional Specifications Maximum clamp opening (K): 90 mm Working height: 970 mm Overall height: 2,020 mm Machine Accuracy Positioning accuracy: ± 0.1 mm (measured at feed-in) Cutting straightness: ± 0.1 mm over 3 m cutting length Electrical Power and Speeds Main saw motor power: 15 kW Hjdpox Sqpmjfx Afcji Saw carriage forward speed: 5 – 120 m/min Saw carriage return speed: 120 m/min Feed-in forward speed: up to 80 m/min (Europe 25 m/min EN 1870-13) Feed-in return speed: up to 80 m/min EQUIPMENT Strip aligner Label printer Optimization software HPO/F N5

Year of construction: 1997, condition: ready for operation (used), Technical Specification Hodpfx Afsx D D S Nocei Max. Cutting Length 4200 mm This SCHELLING FL 430/410 panel saw was manufactured in 1997. It features a cutting length of 4200 mm, a slider of 4100 mm, and a saw blade diameter of 450 mm. The saw blade projection is 130 mm, and it can handle package heights up to 120 mm. Powered by a robust 31 kW motor, this machine offers reliable performance for your cutting needs. Contact us for more information about this machine. Application Types Sawing (Wood)

Condition: excellent (used), Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution 2.0 with Software SP2 on Windows XP Lifting table (mm) 2200 x 4300 Twin Pusher Clamps / grippers 7 Max. cutting width (mm) 4250 Max blade projection (mm) 135 Max. clamps opening (mm) 125 Scoring Unit (max saw diameter 200 mm) Main Sawing Unit (max saw diameter 460mm / power (KW 21 / HP 28) Adjustable speed of the saw carriage (m/min) 6 - 150 Hedpfoillukex Afcei Front supporting Air cushion tables (No.) 3 Total power (Kw) 43 (ca.) OPTIONAL: Optimisation software: HPO

Condition: excellent (used), Horizontal Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution Software Outside Rollers table for pre-loading (mm 5400 x 2200 ca.) - OPTIONAL Lifting table (mm) 4420 x 2200 No. 2 Rear pushers (one with clamps / grippers) No. 9 clamps Max. cutting width (mm) 4300 Useful stroke of the pushing system (mm) 4300 Max blade projection (mm) 135 Max clamps opening (mm) 125 Hedpfx Afsp N D Atscji Scoring Unit (max saw diameter / power) 200 mm / Kw 1,9 Main Sawing Unit (max saw diameter / power) 480 mm - Kw 27 Adjustable speed of the saw carriage (m/min) 6 - 150 Front supporting tables with Air blowing system (N.) 4 Total power (Kw) 36 (ca.)

Condition: excellent (used), Horizontal Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution Software Lifting table (mm) 4300 x 2200 No. 2 Rear pushers (one with clamps / grippers) No. 8 clamps / grippers Max. cutting width (mm) 4200 Useful stroke of the pushing system (mm) 4200 Max blade projection (mm) 135 Max clamps opening (mm) 125 Scoring Unit (max saw diameter / power) 200 mm Main Sawing Unit (max saw diameter / power) 460 mm - Kw 21 Adjustable speed of the saw carriage (m/min) 6 - 150 Front Turning table (rotating at 90°) with air blowing system (mm 2100 x 4100) Total power (Kw) 36 (ca.) Hedpeq Rffijfx Afcji

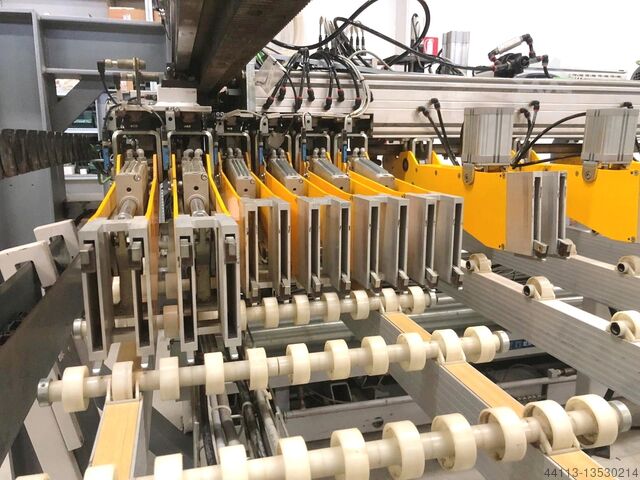

Condition: excellent (used), Horizontal Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution Software Rear Lifting table No. 1 Rear pushers Twin Pusher No. 9 clamps Max. cutting width (mm) 3300 Useful stroke of the pushing system (mm) 3300 Max blade projection (mm) 105 Max clamps opening (mm) 105 Hedsp R Sdhjpfx Afcji Scoring Unit (max saw diameter / power) 200 mm Main Sawing Unit (max saw diameter / power) 360 mm - Kw 18 Adjustable speed of the saw carriage (m/min) 5 - 120 Front supporting tables with Air blowing system (N.) 3 Total power (Kw) 21 (ca.)

Condition: excellent (used), Horizontal Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution Software Outside Rollers table for pre-loading (mm 4500 x 2200 ca.) Lifting table (mm) 4300 x 2200 Turning device (rotating unit) at 90° No. 2 Rear pushers (one with clamps / grippers) Twin Pusher No. 10 clamps / grippers Hedoq Rfahspfx Afcei Max. cutting width (mm) 4300 Useful stroke of the pushing system (mm) 4300 Max blade projection (mm) 135 Max clamps opening (mm) 133 Scoring Unit (max saw diameter / power) 200 mm Main Sawing Unit (max saw diameter / power) 460 mm - Kw 27 Adjustable speed of the saw carriage (m/min) 0 - 150 Front supporting tables with Air blowing system (N.) 4 Total power (Kw) 36 (ca.)

Condition: excellent (used), Horizontal Panel Beam Saw - With rear lifting table Numerical Control MCS Evolution Software SIEMENS WinAC RTX Outside Roller table for pre-loading (mm 5600 x 2200) + Pre-Loading Buffer Lifting table (mm) 4300 x 2200 Turning device (rotating unit) at 90° Hjdpfx Ajt Ah Nisfcji No. 2 Rear pushers (one with clamps / grippers) Twin Pusher - DUPLUS2 No. 12 clamps / grippers Max. cutting width (mm) 4300 Useful stroke of the pushing system (mm) 4300 Max blade projection (mm) 145 Max clamps opening (mm) 150 Scoring Unit (max saw diameter / power) 200 mm Main Sawing Unit (max saw diameter / power) 480 mm - Kw 27 Adjustable speed of the saw carriage (m/min) 6 - 150 Front supporting tables with Air blowing system (N.) 4 Total power (Kw) 42 (ca.) OPTIONAL: Optimisation software: HPO

Condition: excellent (used), Panel Beam Saw - Without rear lifting table Numerical Control MCS Evolution Software Windows XP Rear pusher With No. 7 clamps / grippers Max. cutting width (mm) 4300 Useful stroke of the pushing system (mm) _____ Max. blade projection (mm) 105 Max clamps opening (mm) 105 Scoring Unit (max. diameter saw) mm 200 Main Sawing Unit (max. diameter saw / power) mm 360 - Kw 18 Adjustable speed of the saw carriage (m/min) 0 - 160 No. 3 Front supporting tables with Air blowing system Total power (Kw) 35 Hjdpfx Aju A R D Dofcei

Condition: good (used), Year of construction: 2005, Panel saw Schelling FMH580 Year 2005 Without lifting table Hedpfxoq Apigj Afcsi Saw blade diameter 450 mm Scoring saw blade diameter 200 mm Saw blade over table max 125 mm Clamping opening max 113 mm max package height 110 mm min package height 15 mm Motor power main saw 50 Hz, 19 kW Working height 970 mm Overall height 2070 mm Panel lengths / widths: Fiber cement board max 2500 / max 1250 mm Plywood/ chipboard/ OS boards 2400- 5600 / 1200 - 2600 mm

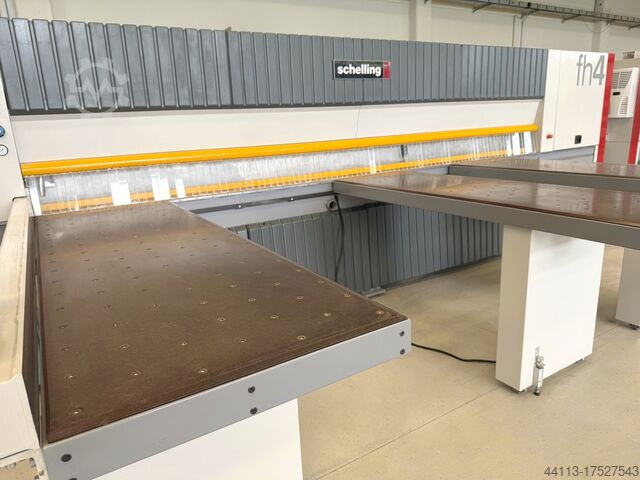

Condition: excellent (used), Year of construction: 2009, machine/vehicle number: 241.125, functionality: fully functional, Horizontal Beamsaw of the manufacturer Schelling, designed for cutting wood-based material Hedpsx Ebzdefx Afcei HPO – cutting optimization program Saw blade projection: max. 95 mm Saw carriage feed up to 120 m/min Cutting lengths: Model FH 4 430 - 4.300 mm Can be inspected in working condition until beginning 2026. (dismantling planned) Maximum Saw blade Diameter - 350 mm Projection - 95 mm Clamp opening 90 mm Power Saw motor - 15 kW Scorer Diameter 300 mm Feed rate forward up to 80 m/min reverse 80 m/min Saw feed rate forward up to 120 m/min reverse 120 m/min

Condition: good (used), Year of construction: 2011, machine/vehicle number: 2212.287, Automatic panelsaw Schelling Typ:FH 6 430 Maskin nr:221.287 År:2011 Panel beam saw Schelling with automatic, rear-feed,lifting table. For sawing board material, chipboard, MDF, Plywood, Board, Laminate etc. Techn info: Software MCS Evolution 2.0, SPS, Soft-SPS-Siemens WinAC Operating system WINDOWS XP PC with keyboard and mouse TFT monitor 17" Cutting length 4300mm, automatic detection of the start of the plate Cutting width 4300mm Machine accuracy of the cut length 3m +-0.1mm Positioning accuracy measured at input +-0.1mm Max diameter saw blade 460mm, spindle 30mm Pre-scoring blade 200mm, spindle 20mm motor operation is set from the control console Max panel thickness 120mm Panel stack aligner Main saw blade motor 27kw Saw blade over table 135mm Safety curtain Air cushion table with 3pcs air ball nozzles, radial ventilator fan Table sizes 2650x850mm 620x850mm 2650x2550mm Pressure beam with automatic adjustment of pressure to cut length and package height Package straightener before and after the pressure beam Max package height 120mm (incl. sum of curvature and board thickness tolerance) Pusher with 12 grippers Max clamp opening (gripper) 133mm Min-max force package straightener 400/2000N Speed saw carriage forward 6-150m/min Speed saw carriage back 150m/min Forward feed speed (pusher) up to 25m/min (according to EC Europa EN1870-13) other countries 80m/min Speed feeding back up to 80m/min Push-off device 3 pcs Lift table length x width 4350x2550mm Hydraulic unit Standard version 1600mm lifting height 1.25/2.5m/min raising speed, 1.25/5m/min lowering speed Maximum load 1200 kg/m2 total 9 tons Roller track driven rollers, frequency controlled for stack on lifting table 4100x2600mm Max stack weight 6500 kg Max stack length 1060mm Slots for forklift 4 pcs, distance in the middle 1200mm, slot width 300mm Light curtain for personal protection Roller conveyor driven for package frequency controlled input to lifting table left 5600x2600mm max load 6500kg Hsdpfxotk It So Afcsi Roller conveyor driven for packages frequency controlled input to lifting table right 5600x2600mm max load 6500kg Slots for forklift 2 pcs, center distance 900mm, slot width 400mm 2 positioning stops with roller for stack alignment Light curtain (double beam) for personal protection Roller table after saw depth 4300mm, free-running ployamide rollers Angle stop at the rolling table Infeed guide two-lane (beam length 7200mm) 2-sided hardened precision guides rack and pinion drive, two-sided Input carriage (pusher) gear rack servo drive, non-contact measuring system Gripper, (scissor clamps) in pusher 12 pcs Automatic adaptation of the clamping force to the package height (progressive clamping force) can be set to 0 Pusher for panels thickness greater than 6mm,material thinner than 6mm is fed manually Central cleaning system feed trough (pusher) Compressed air 6-8 bar, approx. 1600l/min Power 38 kw, 70 A. 3x400 volts, 50 Hz, operating voltage 24 VDC Dust extraction 4000m/h, air speed 30m/s Diameter connection 80mm (angle connection), 120mm /pressure beam), 150mm (sawdust channel) Total setup area without driven roller conveyors including protective grid approx: 11650x7300mm Driven roller tracks left-right 5500+5500mm Stock no: 2002125BXACEO Subject to incorrect technical data presented

Condition: ready for operation (used), Year of construction: 1995, This SCHELLING FLM 365.002 panel saw was manufactured in 1995. It features a main saw blade diameter of 400 mm and a scoring saw blade diameter of 200 mm, with a maximum saw blade projection of 80 mm. The machine is capable of processing materials like acrylic and glass-fiber reinforced plastic, with a maximum panel length of 3000 mm and a maximum thickness of 80 mm for acrylic. Consider the opportunity to buy this SCHELLING FLM 365.002 panel saw. Contact us for further details. • Technical data: • Main saw blade diameter: 400 mm • Scoring saw blade diameter: 200 mm • Max. saw blade projection: 80 mm • Max. clamp opening: 100 mm • Max. stack height: 60 mm • Main motor power (50/60 Hz): 15 / 18 kW • Saw unit feed speed: 0.2 – 22 m/min • Saw unit return speed: 22 m/min • Forward feed speed: 10 m/min • Backward feed speed: 10 m/min • Working height: 930 mm • Performance and requirements: • Processable materials: Acrylic, glass-fiber reinforced plastic (GFRP) • Max. panel length: 3000 mm • Max. panel width: 2200 mm • Max. thickness (Acrylic): 80 mm • Max. thickness (GFRP): 60 mm • Edges: deburred • Panel flatness: max. wave 5 mm • Thickness tolerance: ±0.2 mm • Electrical power consumption: approx. 25 kW • Supply voltage: 380 V / 50 Hz • Compressed air requirement: approx. 100 l/min (6 bar) • Extraction requirement: approx. 4000 m³/h (air speed 32 m/s) • Equipment (included with the machine): • Scoring unit • Servo-driven feed (0 – 40 m/min) Hsdpfx Asyhqlrjfcei • Side guides on roller table, automatic adjustment; adjustment range 80 – 2200 mm • Safety light curtain with separate support frame • Hold-down clamps (according to machine configuration) • Cooling and spraying system • Computer control – COMMANDER (PLC/SPS) with display, membrane keyboard, diagnostic system • Graphical display of cutting plans • Electrical cabinet and control integrated in the machine • Slow scoring / pre-cut function

Condition: excellent (used), Motor power 1.2 HP, 400 V, 50 Hz Speed 2800 rpm Drilling table size 650 x 330 mm Cross adjustment 300 mm Depth adjustment 150 mm Height adjustment 170 mm Hsdpfxovzrams Afcei Table height 880 mm Weight approx. 280 kg

Condition: excellent (used), Spindle Moulder SCHELLING FZ 4 Heavy-duty cast-iron construction Motor speeds: 2250, 3000, 4500, 6000, 9000 rpm Motor power: 4.5 kW, 400 V, 50 Hz Spindle diameter: 30 mm Spindle height adjustment: 100 mm Table dimensions (L x W): 1100 x 900 mm Extraction port diameters: 120 & 80 mm Spindle with forward and reverse rotation Electric motor brake Milling fence rotatable and finely adjustable OERTLI milling fence jaws with aluminium inserts INCLUDES HOLZHER power feed unit 3 rollers 4 speeds Machine dimensions (L x W x H): 1100 x 900 x 1200 mm Machine weight: approx. 750 kg Note on used machines: Hedpfx Afoxt N Dvscsi • Errors in technical specifications and prior sale are excepted. • Listed prices are ex-works prices - free loading at location! • The machines have been cleaned and function-tested. • All machines are sold as inspected, without any form of warranty. Buyers are welcome to inspect machines at the location. • Special agreements are only valid in written form. (We only respond to enquiries with your address and telephone number!)

Year of construction: 2016, condition: good (used), functionality: fully functional, Storage System Machine Designation Vacuum Stacking Device Machine Number: 150.138 Type: VS 16 Length of Carrier Track (Travel Path): 28.5 m Bridge Span (Travel Path): 16 m Overall Height: 3600 mm Clearance Height: 2700 mm Maximum Stacking Height (incl. supports): 2000 mm Stack Gap: 100 mm Positioning Accuracy: ±5 mm Support Height: 60 mm Input Stack Height: 1900 mm Hedpfxjxdtv Re Afcji Length Adjustment Vacuum Load Handling Length: 2000 – 4200 mm Vacuum Suction Capacity: 2 x 40 m³/h Table: Panel Sizes for laminated chipboard, laminated MDF boards, laminated HDF boards, solid wood and composite panels, blockboards, honeycomb panels Length: 1250 - 4100 mm Width: 330 - 2100 mm Thickness: 4 - 100 mm

Condition: ready for operation (used), Schelling Planer AH 60 Hjdpfx Asx S Ndijfcji Planing width: 60 cm Table length: 3200 mm 4-knife cutterhead with segmented planer knives Heavy cast iron construction Function tested

Condition: not inspected (used), Year of construction: 1993, power: 11 kW (14.96 HP), cutting width (max.): 4,300 mm, saw blade diameter: 400 mm, cutting length (max.): 4,260 mm, cutting height with scoring (max.): 105 mm, Equipment: scorer, Machine including Laweco conveyor lines with lifting device, load capacity 5,000 kg, platform size 4,100x2,100 mm. The machine comes from a company liquidation. Hsdpfx Asx Iuzxsfcji

Condition: excellent (used), For panels measuring 5600 x 2600 (2700 mm), thickness from 2 mm to 60 mm N° 2 double-deck infeed roller conveyors, 1 x 6.000 mm long and 1 x approximately 3.800 mm long Hydraulic lifting table (5600 x 2700 mm ca.) System with rubber wheels (11 top + 11 bottom) for panel pressure/feeding Sliding bridge with 45 suction cups and 5 supports (for panel stack alignment) 1st Rear - Pusher, with 11 clamps Rotating table (90° panel rotation) with plastic wheels 1st Panel Saw AH8 580 - Max cutting width mm 5600 (Max blade projection mm 165) Scoring Unit (max. diameter saw / power) mm 200 ca. (Kw 2,2 ca.) Main Sawing Unit (max. diameter saw / power) mm 520 ( Kw 32) Adjustable speed of the saw carriage (m/min) 0 - 150 Sliding crosspiece with 7 pushers for cut panels With 4 supports (for panel stack alignment) and 3 motorized chains Hodoxvc N Dspfx Afcoi 2° Rear - pusher, with No. 25 (27) clamps/grippers 2nd Panel Saw - Max cutting width mm 2700 (Max blade projection mm 165) Scoring Unit (max. diameter saw / power) mm 200 ca. (Kw 2,2 ca.) Main Sawing Unit (max. diameter saw / power) mm 520 (Kw 32) Adjustable speed of the saw carriage (m/min) 0 - 150 Waste evacuation system with grinder VECOPLAN (Kw 55) Plastic wheels coated table for cut panel output Stacking system for cut panels with N° 2 front support tables with air blowing system 400 x 6300 mm + N° 8 lifting tables (4 are 1300 x 1600 mm and 4 are 1300 x 1410 mm) - Total power KVA 130
