Used Kaltenbach Kbs 750 Dg for sale (1)

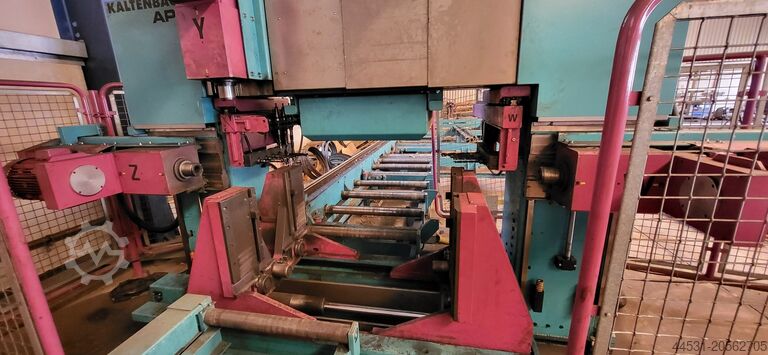

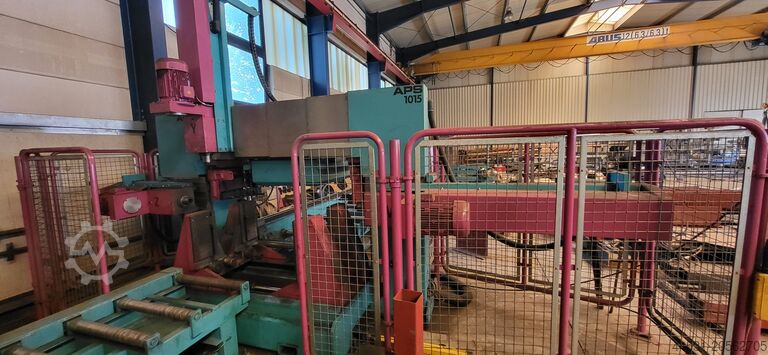

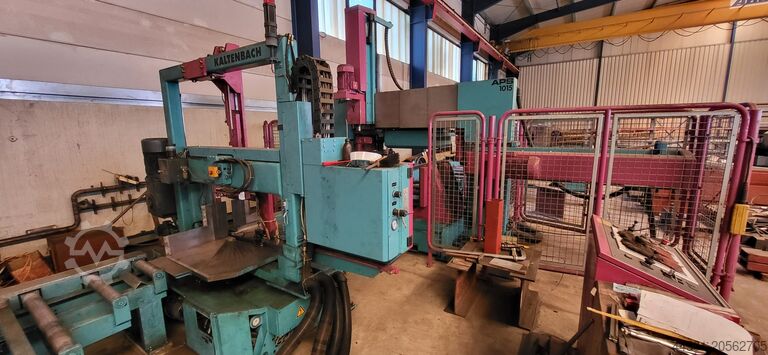

Condition: used, Year of construction: 2022, machine/vehicle number: 0102-260011, Kaltenbach KBS750 DG Bandsaw Line with T14 transport system Kaltenbach KBS 750 double mitre horizontal bandsaw with LS270 NC cross-cut fence and T14 transport system in steel trade version - operation and programming are carried out at the control panel. This Kaltenbach KBS 750 DG horizontal bandsaw is a very fast and powerful bandsawing machine that is ideally suited for sawing sectional steel such as horizontal double T-beams, L-steel U-steel, flat material and rectangular tubes. KALTENBACH KBS 750 DG band saw Semi-automatic two-column bandsaw for sawing profiles with double miter swivel device. Technical data Cutting capacity: with 90° saw cut 750 mm × 500 mm +70°: 730 × 500 mm -70°: 710 × 500 mm +60°: 670 × 500 mm -60°: 650 × 500 mm +45°: 550 × 500 mm -45°: 520 × 500 mm +40°: 500 × 500 mm +30°: 390 × 500 mm Technical data: Min. profile cross-section: 10 × 10 mm Saw blade dimensions: 6990 × 41 × 1.3 mm, type bimetal M42, Z3/4 Drive power: Saw with frequency control: 5.5 kW Hydraulic unit (4.9 l/min): 1.5 kW Cutting speed: 15-100 m/min, continuously adjustable from the control panel Feed: work feed: 0-300 mm/min Fast forward and return: 2500 mm/min Working height: 640 mm Compressed air connection: 6-8 bar Air consumption: 500 NL/min (according to DIN 1342) Bjdpfxey Rimue Apbjdc Saw weight: approx. 3200 kg Saw dimensions: 3230 × 1160 × 2420 mm Electrical system: Version according to EN 60204-1 Mains connection: 3 phases + N + PE / 50 Hz Power consumption: 17 kVA Fuse protection: 35 A Machine equipment Kaltenbach KBS 750 DG Very robust two-column guide for maximum precision. Inclined saw arm for higher performance and accuracy. Automatic table lowering during material transport Infinitely variable speed control via frequency converter. Hydraulic belt feed, manually adjustable NC-controlled angle adjustment with absolute value encoder Automatic cycle: Clamping - sawing - unclamping Horizontal clamping device: Fixed front stop, opposite clamping block via cylinder. Manually adjustable pressure reduction. Vertical tensioning device: Directly next to the belt; manually adjustable pressure. Backlash-free linear guides. Automatic adjustment of the belt guides Automatic cutting pressure control Remote diagnosis possible (telephone line required by customer) Hydraulic belt tensioning with electronic monitoring Automatic release at standstill Automatic stop in the event of belt breakage Micro-spraying system for clean operation and long service life Integrated chip container Separately driven chip brush Electronic slip monitoring Hydraulic heating
