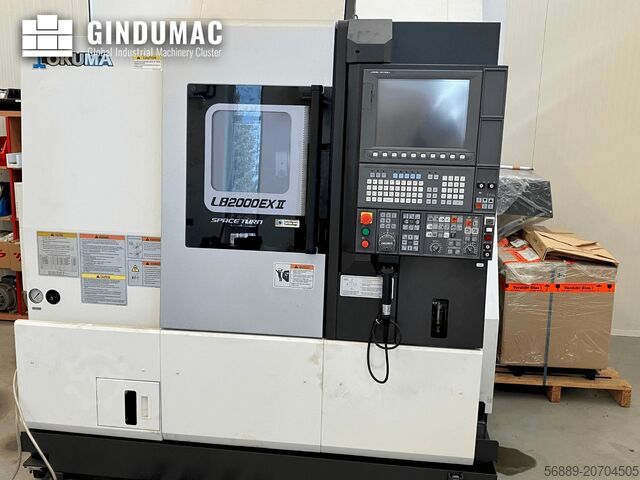

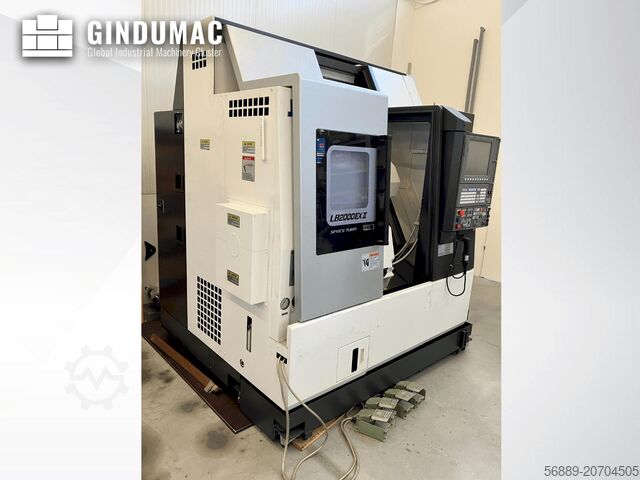

Used Okuma Lb2000 Ex Ii for sale (1)

Condition: new, Year of construction: 2018, functionality: fully functional, Standard technical data: Swing diameter over bed: 580 mm Swing diameter over carriage: 470 mm Maximum machinable diameter: 360 mm Max. workpiece length: 250 mm Traverse (X): 260 mm Traverse (Z): 350 mm Traverse (Y): 100 mm (+/- 50) C axis: 360 degrees (0.001-degree increments) Spindle speed: 50-6,000 rpm Spindle nose: JIS A2-6 Spindle bore diameter: Ø62 mm Front spindle bearing diameter: Ø100 mm Turret type: M-V12 Number of tools: 12 Tool size: 20x20 mm Tool shank diameter: Ø32 mm Tool change time: 0.1 sec Driven tool speed: 45-6,000 rpm Rapid traverse (X): 25 m/min Rapid traverse (Z): 30 m/min Rapid traverse (Y): 12.5 m/min Main motor power (15 min/continuous): 11/7.5 kW (PREX) Driven tool motor power: 5.5/3.7 kW (PREX) Machine dimensions (L x W x H): 2,020 x 1,734 x 2,250 mm Machine weight: 4,050 kg Control: OSP P300L Standard specification: 1 OKUMA CNC Lathe Model LB2000 EXII MYC with OSP-P300L CNC Controller, including CE mark & EMC 1 set European Standard Specification 1-1. V12 radial turret head, 1 set 1-2. Spindle, 1 set (1) Spindle speed: 50-6,000 rpm (1 set) (2) Spindle motor PREX 11/7.5 kW (1 set) (3) Spindle: JIS A2-6; bore Ø62 mm (1 set) (4) C-axis control, 360 degrees (0.001-degree increments) (1 set) (5) SR1146 hydraulic cylinder for chuck (1 set) 1-3. MT4 tailstock 1-4. Dual-action foot pedal for chuck and tailstock side, 2 sets 1-5. Driven tool motor PREX 5.5/3.5 kW (2 min continuous) 1 set 1-6. Driven tool speed: 45 - 6,000 rpm, 1 set 1-7. Work area lighting, 1 set 1-8. Full enclosure, 1 set 1-9. Chip tray, 1 set 1-10. Door interlock, 1 set 1-11. Lubrication monitoring, 1 set 1-12. Automatic chuck open/close on main spindle, 1 set 1-13. Chip air blow, 1 set 1-14. Foundation bolts, 1 set 1-15. Tool setter, 1 set 1-16. CE marking, 1 set 1-17. IEC standard compliance, 1 set 1-18. Transformer, 1 set 1-19. Coolant system with 250W pump, 1 set 1-20. OSP-P300L CNC control with 15" color touchscreen monitor, 1 set 1-21. OSP-P300L Advanced One Touch IGF-M-E kit specification (1 set) * Multitasking machines coordinate conversion (1 set) * Multitasking machines profile generation (1 set) * Advanced One Touch IGF (graphical programming assistant with dialogue-based interface) (1 set) * Real 3D simulation (1 set) * Cycle time monitoring (1 set) * Load monitor (1 set) * NC operation monitor (1 set) * Cycle time reduction function (1 set) * Hi-Cut Pro (machining-specific servo optimization) (1 set) Codpoy H H Afefx Af Hogu * Variable spindle speed control (1 set) 1-22. 2-stage position indicator lamp, 1 set 1-23. Program storage: 2GB, 1 set 1-24. Operation memory: 2MB, 1 set 1-25. Spindle orientation, electric, 1 set 1-26. Inch/metric conversion, 1 set 1-27. Ball screw pitch error compensation on X/Z axes, 1 set 1-28. Workpiece ejection monitoring, 1 set 1-29. Lifting hooks, 1 set 1-33. TAS-C thermal compensation on the frame 6” chuck Chip conveyor
