Used Okuma Genos L3000-E for sale (3)

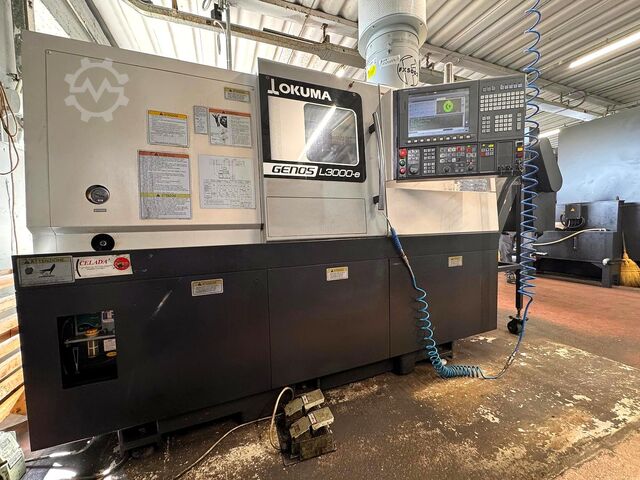

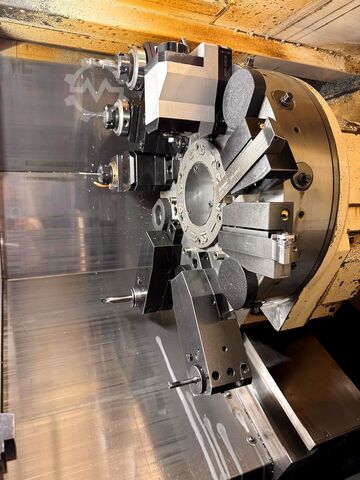

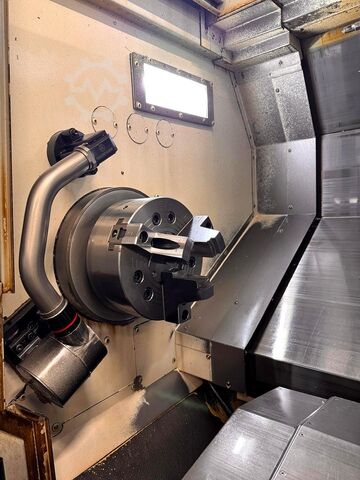

Condition: ready for operation (used), Year of construction: 2022, operating hours: 347 h, spindle speed (max.): 3,800 rpm, travel distance X-axis: 235 mm, travel distance Z-axis: 520 mm, spindle motor power: 22,000 W, overall weight: 4,600 kg, number of slots in tool magazine: 12, number of axes: 3, This 3-axis Okuma GENOS L3000-e (Mx450) was manufactured in 2022. It features a powerful 22 kW main spindle motor with a maximum speed of 3,800 rpm. The machine includes a V12 radial turret for milling, a chip conveyor, and a touch setter for tool presetting. If you are looking to get high-quality turning capabilities, consider the Okuma GENOS L3000-e (Mx450) horizontal turning machine we have for sale. Contact us for further details. - Operating Hours: 521 hours- Spindle Running Time: 347 hours- Control Unit: OSP-P300LA-e / OSP P300L-R-TD Kit- Main Spindle Motor Power: 22 kW- Main Spindle Speed: 3,800 rpm- Chuck: 10" Hollow clamping chuck (250 mm) Type N210A8- Spindle Bore: 80 mm- Spindle Nose: A8- Turning Diameter (VDI Turret): 300 mm- Max. Turning Length (VDI Turret): 450 mm- X-Axis Travel: 235 mm- Z-Axis Travel: 520 mm- C-Axis Range: 360° (0.001° resolution)- Rapid Feedrate (X / Z): 25,000 / 30,000 mm/min- Tool Turret: V12 Radial Turret with driven tool stations (VDI40)- Turret Stations: 12 (all 12 can be driven)- Driven Tools Power / Torque / Speed: 7 kW / 23.7 Nm / 4,500 rpm- Tailstock: NC Tailstock (MT5 taper, 5.0 kN thrust force)- Supply Voltage: 400 V- Phase: 3 P- Frequency: 50/60 Hz- Rated Capacity: 28.6 kVA- Full Load Current: 41.2 A- Largest Motor Rating: 96 A- Short Circuit Ratings: 2.5 kA- Machine Dimensions (without chip conveyor): 2,545 mm x 1,870 mm x 2,057 mm- Optional Equipment & Components: * V12 radial turret for milling function * Chip conveyor with side discharge * Grundfos high-pressure pump (0.8 kW) * Touch Setter M (Tool presetter) * Tool carrier VDI40 * Real 3D graphics simulation & One Touch IGF dialog programming * 1 set of soft jaws & 1 set of hard jaws * 3 pcs. Boring bar holders * 3 pcs. External turning holders * 2 pcs. Face turning holders * 8 pcs. Reduction sleeves (2x 16, 20, 25, 32 mm) * 1 pc. Reduction sleeve MK02 * Parts catcher (max. material dim. D51mm x 150mm, max. weight 2.3kg) * Bar feeder interface * Grippex bar gripper (40mm shank diameter, gripping range 3-60mm) * Hand wash gun set (incl. pump, spiral hose, switch) * Transformer Technical Specification Counter Spindle No Ljdpfx Aho Aa Aufoaoah Driven Tools Yes

Condition: repair required (used), Year of construction: 2013, operating hours: 11,000 h, functionality: limited functionality, turning length: 1,000 mm, turning diameter: 350 mm, spindle bore: 68 mm, spindle speed (max.): 3,800 rpm, overall weight: 6,500 kg, chuck outer diameter: 250 mm, The machine has a crack in the turret housing and in the cross-slide. Although everything is operational, due to this damage it is better suited as a source for spare parts. All attachments, servomotors, coolant pump, control unit, chip conveyor, etc. are in impeccable condition. Lasdjynf Nfopfx Ahajh

Year of construction: 2019, operating hours: 1,370 h, condition: excellent (used), functionality: fully functional, OKUMA GENOS L-3000 - for powerful cutting and long tool life for all batch sizes thanks to flat guides and heavy turret design TECHNICAL DETAILS turning diameter over bed: 520 mm Machinable turning diameter: 300 mm workpiece length: 450 mm traverse paths X / Z: 235 / 520 mm C axis: 360 / 0.001 ° Control: OKUMA OSP-P300LA-e Laodpfxent T Afs Ahajh rapid traverse X / Z: 25 / 30 m/min riveting stroke: 400 mm spindle speed: 38 - 3800 rpm spindle mounting: A2-8 spindle bore: 80 mm diameter spindle bearing: 120 mm tool holder: M-V12 with 12 places tool size: 25 x 25 mm tool diameter: 40 mm Tool speed: 45 - 4500 rpm switch-on time: 5267 h control time: 1919 h Spindle time: 1370 h MACHINE DETAILS dimensions L x W x H: 2545 x 1870 x 1791 mm Weight: 5000 kg Spindle power (20 min/continuous): 22 / 15 kW Spindle torque: (20 min/continuous): 412 / 281 Nm Tool power (30 min/continuous): 7.0 / 3.3 kW Tool torque (30 min/continuous): 23.7 / 14.2 Nm
