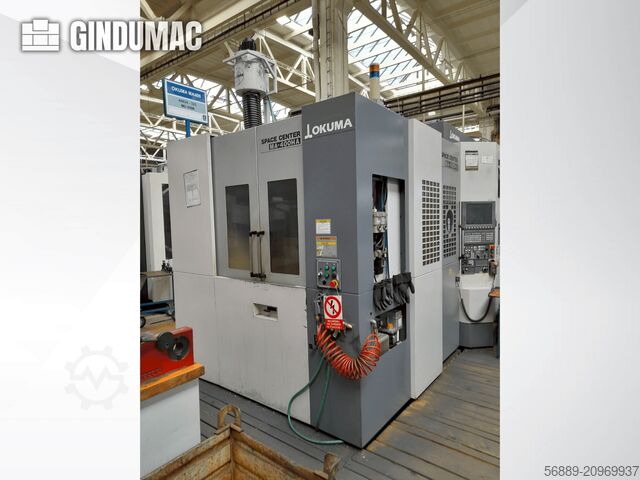

Used Okuma Ma-400Ha for sale (5)

Condition: good (used), Year of construction: 2004, functionality: limited functionality, travel distance X-axis: 560 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, controller manufacturer: Okuma, controller model: OSP-E100M, workpiece length (max.): 600 mm, workpiece width (max.): 710 mm, workpiece weight (max.): 400 kg, total height: 2,760 mm, total length: 4,535 mm, total width: 2,415 mm, table width: 400 mm, table length: 400 mm, table load: 400 kg, overall weight: 10,000 kg, spindle speed (max.): 8,000 rpm, distance table center to spindle nose: 710 mm, spindle motor power: 15,000 W, spindle nose: BT40, number of spindles: 1, number of slots in tool magazine: 40, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, rotational speed infinitely variable, Okuma Space Center MA400HA Horizontal Machining Centre Machine Type: CNC Horizontal Machining Centre Year: 2004 Control: OSP-E100M Axes: 4 No. of Pallets: 2 Condition: Good - There is an issue with the pallet changer. Includes Cromar Swarf Conveyor Coolant Filtration System Technical Specifications Pallets: 2 Size of Pallets: 400 x 400mm X Axis Travel: 560mm Y Axis Travel: 610mm Z Axis Travel: 625mm B Axis Travel: 360 Deg Rapid Traverse: 60m/min Spindle Centre to Pallet Top: 50 - 660mm Spindle Nose to Pallet Centre: 85 - 710mm Max Pallet Load: 400kg Max Workpiece Dimensions: 600 x 710mm Tool Pockets: 40 Spindle Taper: BT40 Spindle Power: 15kW Spindle Speed: 8,000rpm Machine Dimensions: 4535 x 2415 x 2760mm Machine Weight: 10,000kg Credpewcd Evefx Alajc Notes: *Specifications are given in good faith but not guaranteed*

Condition: used, Year of construction: 2007, operating hours: 20,000 h, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 625 mm, nominal power (apparent): 49 kVA, controller manufacturer: Okuma, controller model: OSP-P200M, table width: 400 mm, table length: 400 mm, table load: 400 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 15,000 rpm, operating hours of spindle: 58,000 h, coolant supply: 30 bar, spindle motor power: 22,000 W, spindle nose: SK40 Big Plus, number of spindles: 1, number of slots in tool magazine: 100, input voltage: 400 V, type of input current: three-phase, pallet changer: automatic, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Well-maintained 3-axis Okuma MA-400HA horizontal machining center for sale The Z-axis module requires an overhaul. If more than 30% of the maximum rapid traverse speed is selected, the axis does not move. The machine is still in daily production and can be inspected at any time. The machine is offered including: - 100 SK tool holders (without tools) included - Renishaw OMP60 measuring system incl. probe and module (for tool breakage control and tool length measurement via mechanical touch sensor) - Expanded control options (larger storage for offsets, tool corrections, axis mirroring, manual measurement, scaling up/down) - DNC-DT interface - 30 bar through-spindle coolant supply - 6 pallets incl. fixtures for machining round parts. Smallest fixture diameter 160mm, largest fixture diameter 370mm Cedoyvga Uspfx Alaorc - Mayfran Consep 2000 II chip conveyor including nonwoven-free coolant filtration system

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 625 mm, Machine type: Horizontal machining center Manufacturer: OKUMA Type: MA-400HA Year of manufacture: 2008 Control system: OSP P200M Country of origin: Japan Delivery time: short-term, by arrangement 4-axis machining center, high productivity, including various accessories Machine equipment: - ConSep chip conveyor system with high-pressure pump - Various software packages - Touchsetter with length measurement and breakage detection - Work area shower Technical details: - Travels - Axes X-axis (column right-left) mm 560 Z-axis (table forward-backward) mm 625 Y-axis (spindle up-down) mm 610 B-axis 1° 0 - 360° - Number of pallets: 2 (pallet changer for 2 pallets) - Pallet size (mm): 400 x 400 - Max. pallet load capacity (kg): 400 - Max. pallet workpiece dimensions (mm): 500/600 x 710 - Spindle speed (rpm): 15,000 - Main spindle (10min/cont): 22/18.5 kW - Tool holder: BT40 - Tool magazine: 60 positions Optional: - Transport organization and execution - Machine delivery and installation Crodpfx Aljy Tvrveasc - Machine commissioning

Condition: ready for operation (used), Year of construction: 2007, Control Unit Brand OKUMA Model OSP-P200M Main Drive Cjdpfx Aox D Nf Uelajrc Spindle speed range 15000 rpm Movement X-Axis Movement 560 Y-Axis Movement 610 Z-Axis Movement 625 This 4-axis Okuma MA-400HA horizontal machining center was manufactured in 2007. It features a 560mm X-axis, 610mm Y-axis, 625mm Z-axis, and a table size of 400x400mm. The machine includes a 15,000 rpm spindle, 100-tool matrix magazine, and OSP-P200M control. It also boasts a 6 APC/pallet pool and a Mayfran Consep 2000 chip conveyor. Consider the opportunity to buy this Okuma MA-400HA horizontal machining center. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2008, travel distance X-axis: 560 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 600 mm, controller manufacturer: OKUMA, spindle speed (max.): 8,000 rpm, number of axes: 4, This 4-axis Okuma MA-400HA horizontal machining center was manufactured in 2008. It offers robust construction and precision for demanding machining tasks. If you are looking to get high-quality milling capabilities, consider the Okuma MA-400HA machine we have for sale. Contact us for more information. Additional equipment • Tool change gearbox has a defect Machine Benefits Technical Machine Benefits Cjdpfex U Trvex Alaorc • Pallet size: 400x400 mm / 2 pallets • B-axis rotary table (indexable)The following repairs were made: 12/2022 – replacement of the control unit (U2319 – Replacement of the ATC gearbox 05/2022 – Replacement of the X-axis telescopic cover (H1090-0025-98-2) Replacement of small parts took place regularly (hoses, sensors, bulbs, etc.). The condition of the spindle is fine, without major damage. Until the last moment, the machine produced accurately and within tolerance. Regarding the non-functional tool change gearbox – there is increased clearance in the gearbox, so when changing the tool, when entering the spindle, it is not in the optimal spindle axis. The bearing/cam/ is probably damaged in the gearbox. Service work is performed by an authorized service for OKUMA machines.
