Used Panhans 680/200 for sale (2)

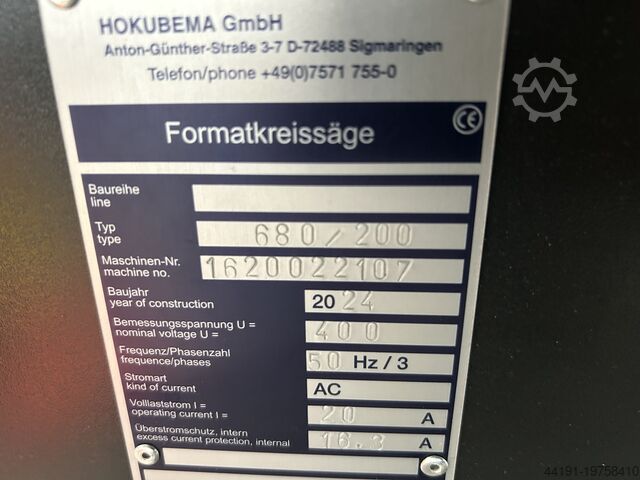

Condition: new, Year of construction: 2024, New machine Year of manufacture: 2024 Equipment and technical data: - Robust German engineering for trimming, crosscutting, sizing, miter cutting, etc. - Operator controls placed overhead with swivel-mounted control panel at eye level, including template holder - 7" touchscreen control for electronically positioning cutting height, saw blade tilt adjustment, rip fence width stop, and optionally for scoring unit height and side adjustment; tool database for 50 saw blades and display of current RPM - Electromotoric height and tilt adjustment; saw blade tilt range from 0 – 47° - APA saw blade quick-release system; main saw blade RPM: 3000/4000/5000/6000 - Guard swings away on both sides, protective hood with interchangeable wide/narrow insert for saw blades up to Ø 450 mm - Rip fence with 1250 mm motorized cutting width - Sliding carriage with 3200 mm cutting length, lockable every 50 mm - Cross-slide with support roller and extendable support in both directions, mm scale length stop extendable up to 3500 mm, with 2 movable flip stops and 1 end stop; simultaneously usable as miter/fence stop, continuously adjustable from 0-46°, with automatic length compensation and index positions at 15°, 22.5°, 30°, 45° - Pushbutton control with electronic soft start (Start/Stop) - Electronic wear-free motor brake - Cutting length: 3200 mm - Max. cutting height: 155 mm at 90°, 105 mm at 47° - Motorized rip fence cutting width: 1250 mm - Cross-slide length stop extendable up to 3500 mm - Max. saw blade Ø 450 mm, Ø 400 mm blade can be retracted under the table - Cast iron table dimensions: 1200 x 665 mm; with additional table extension: 750 x 655 mm; table widening: 1430 x 940 mm - Table/working height: 900 mm - Extraction ports: 120 mm on machine body, 80 mm on protective hood - Motor output: 5.5 kW / 7.5 HP - Electrical supply: 400 V / 50 Hz - Sliding carriage, length and width fence profiles anodized - Machine body and swing arm powder-coated in anthracite RAL 7021; upper guard cover RAL 5000 violet blue; machine body RAL 7035 light grey - Required space: 7110 x 4150 mm - Weight: approx. 1050 kg, up to 1250 kg depending on configuration - CE compliant, GS tested, BG Wood Dust tested Nwodpfew I Ummex Afxsn Special equipment: - Includes scoring unit 0.55 kW with electromotoric positioning for side and height adjustment via LED display and memory function; when the scorer is switched on, the unit automatically moves to the set position; when switched off, it automatically moves under the table to a side park position, allowing larger saw blades (over Ø 350 mm) to be used without removing the scoring blades - Includes MAIN SAW THREE-PHASE MOTOR WITH 7.5 kW (10 HP) instead of 5.5 kW - Includes Quickstep scoring system: Tool-free manual scoring width adjustment from 2.8 to 3.8 mm via index steps of 0.05 mm, incl. one set of saw blades 125 x 2.8-3.8 x 50 mm Z = 12+12 - Includes SWING-AWAY DEVICE FOR THE CROSS-SLIDE for quick and ergonomic movement to park position - Includes length stop with digital display on each stop flap, adjustable to 0.1 mm, max. length 3300 mm - Includes transport pallet

Condition: as good as new (ex-display), Year of construction: 2021, operating hours: 3 h, Year of construction: 2021 Condition: as good as new (approx. 3 operating hours) Technical specifications Roller carriage length 3200mm Cutting length 3400mm Cutting height max. 155mm at 90°, 105mm at 46° Cutting width width stop 1250mm Saw blade max. Ø 450mm Table size cast iron table top 1200 x 655mm Additional table extension 750 x 655mm Table extension 1430 x 940mm Table height +/-20?mm 900mm Main saw blade speed 3000 / 4000 / 5000 / 6000 rpm Net weight approx. 1150kg Technical description For trimming, cutting to length, formatting, mitre cutting etc. The complete saw shaft unit is dynamically balanced, double-guided swivel segments made of grey cast iron with double column guide for height adjustment and the long circular saw shaft with 2 ball bearings ensure absolutely smooth running. The double roller carriage with ball bearings is smooth-running and maintenance-free. Precise and backlash-free running over the full length, guided by hardened and ground round steel guides with remote locking in a 50 mm grid. Sturdy yet lightweight cross slide made of steel profiles with a support roller on the outer narrow side, cross slide widening on the wide side Length stop on the cross slide with mm scale and telescopic extension extendable up to 3500 mm; with 2 robust and backlash-free sliding stop flaps, 1 end stop with support for long strips; length stop can be used as an angle mitre fence on both sides, infinitely variable from 0° to 46° with mechanical length compensation; all common mitre angles (15°, 22.5°, 30°, 45°) can be quickly set using a fixing system. Electromotive width stop with cutting width 1250 mm to the right of the saw blade, dimension input on the control panel at the top via positioning control to 0.1 mm, stop can be folded down for free table surface; Safety cut-off bar between width stop and roller carriage in case of crushing hazard With pull-out tool drawer Top operation with control panel positioned at eye level, swivelling, incl. Including template holder and with 7" touchscreen control for cutting height, swivelling adjustment and speed Electromotive height and swivelling adjustment via positioning control Swivelling range of the saw blade from 0° - 46° Digital displays for degree setting, cutting height, speed and cutting width APA saw blade quick-clamping system Safety guard can be swivelled to both sides, Protective cover with interchangeable wide/narrow insert Push-button control with electronic soft start (start/stop) Electronic, wear-free motor brake Saw blade Ø 400mm can be lowered under the table Extraction nozzle Ø 120mm on the machine body, Ø 80mm on protective hood CE conformity GS tested Length stop analogue Nsdjq H Sqdepfx Afxewn Cross slide standard Cutting length 3400 mm Three-phase motor 5.5 kW Width stop 1250 mm electromotive Scoring unit 1750 0.55 KW (0.75 HP) With manual height and side adjustment via external handwheels externally mounted hand wheels With saw blade quick clamping system APA Quickstep scoring system Tool-free manual adjustment adjustment of the scoring width From 2.8 to 3.8 mm with 0.05 mm grid adjustment per single step, incl. 1 Set of saw blades 125 x 2.8 - 3.8 x 50mm | Z = 12+12 Replacement HM scoring saw blade 125 x 2.8 - 3.8 x 50 mm Z = 12+12 (set = 2 pieces) for QuickStep scoring system
