Used Trumpf Trulaser 1030 for sale (8)

Condition: excellent (used), Year of construction: 2014, 3 kW resonator power Ncedpfeyxc Afex Abuop

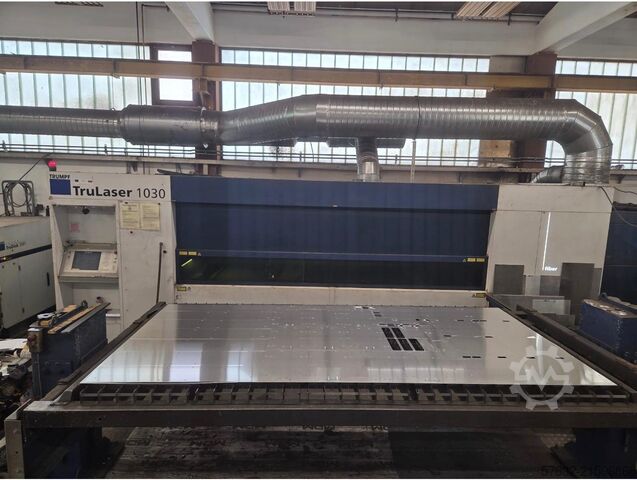

Condition: ready for operation (used), Year of construction: 2011, controller manufacturer: SIEMENS, controller model: SINUMERIK 840D, overall weight: 10,400 kg, total height: 2,900 mm, number of axes: 3, This 3-axis TRUMPF TruLaser 1030 was manufactured in 2011, featuring a robust fiber laser, TruDisk 2001, with a 2 kW output and a maximum material thickness capacity for mild steel at 25.0 mm. It operates with a SIEMENS SINUMERIK 840D control and can handle a maximum workpiece weight of 720 kg. If you are looking to get high-quality cutting capabilities, consider the TRUMPF TruLaser 1030 machine we have for sale. Contact us for more information. Machine Benefits Technical Machine Benefits • Laser output: 2 kw • Laser type: fiber trudisk 2001 • Beam on working: 30000 hours Ncsdjyap Sbepfx Abuep • Electric consumption entire unit: 11 kw • Control: siemens sinumerik 840d, b&r automation pc 620 • Simultaneous positioning speed: 85 m/min (x+y) • Working area (x x y x z): 3000 x 1500 x 75 mm • Brass: 3. 0 mm • Copper: 3. 0 mm • Mild steel: 25. 0 mm Extra Information Machine still under power Dimensions Machine Depth 7800 mm

Condition: used, Year of construction: 2010, Trumpf TruLaser 1030 – Laser Cutting Machine - B&R Automation PC 820 CNC Control - TruCoax 2500 Laser - Serviced annually by Trumpf (last service July 2025) - Year of manufacture: 2010 Technical Specifications: Working Area: - X-axis: 3078 mm - Y-axis: 1550 mm - Z-axis: 76 mm Maximum Material Thickness: - Mild steel: 16 mm - Stainless steel: 8 mm - Aluminium: 6 mm Speed: - Max. cutting speed: 40 m/min - Cutting acceleration: 2 m/s² - Positioning acceleration: 9 m/s² Accuracy: - Smallest programmable increment: 0.001 mm - Position deviation: ± 0.1 mm/m - Average positioning scatter: ± 0.03 mm Laser: - Max. laser power: 2500 W - Wavelength: 10.6 µm Ncsdeyghm Dspfx Abujp - Power stability: ± 2 % - Power distribution: TEM00 Compressed Air Consumption: - Standard cutting: 333 l/min - Air cutting: 500 l/min Electrical Data: - Drive type: maintenance-free three-phase motors - Connection: 65 kVA - Protection at 400 V: 100 A Dimensions & Weight: - Dimensions (W x H x D): 7396 x 2291 x 3287 mm - Total weight: 8850 kg

Year of construction: 2010, condition: ready for operation (used), Laser power: 2000W, wavelength: 10.6µm, working dimensions X/Y/Z: 3000mm/1500mm/75mm, max. material thickness mild steel/stainless steel/aluminum: 15mm/6mm/5mm, max. table load: 550kg, travel speed: 60m/min, positioning accuracy: +/-0.1mm, repeatability: +/-0.03mm. Machine dimensions X/Y/Z: approx. 7400mm/3300mm/2300mm, weight: approx. 8900kg. Documentation available. An on-site inspection is possible. Ncedpfexxzh Djx Abuep

Condition: used, functionality: fully functional, Year of construction: 2014, operating hours: 69,775 h, machine/vehicle number: A0216A0232, control type: CNC control, degree of automation: semi-automatic, laser type: fiber laser, laser hours: 61,591 h, laser power: 3,000 W, sheet thickness (max.): 15 mm, sheet thickness steel (max.): 15 mm, sheet thickness stainless steel (max.): 10 mm, sheet thickness aluminum (max.): 10 mm, sheet thickness brass (max.): 4 mm, sheet thickness copper (max.): 4 mm, table length: 3,015 mm, table width: 1,515 mm, overall weight: 9,400 kg, Equipment: centralized greasing system, cooling unit, documentation/manual, The machine is in good condition for its age. Ncedsx S Hv Ajpfx Abusp

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2012, operating hours: 18,000 h, machine/vehicle number: A0215A0232, laser power: 2,500 W, sheet thickness (max.): 15 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, positioning accuracy: 0.1 mm, overall weight: 8,900 kg, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 1,500 mm Laser power: 2,500 W Maximum sheet thickness (mild steel): 15 mm Maximum sheet thickness (stainless steel): 6 mm Maximum sheet thickness (aluminum): 5 mm Nedpsyb Rzyefx Abuecp Axis speed: max. 60 m/min Positioning accuracy: ±0.1 mm MACHINE DETAILS Dimensions & Weight Dimensions (L × W × H): approx. 7,400 × 3,300 × 2,300 mm Machine weight: 8,900 kg Mains connection: 400 V / 50 Hz Connected load: 65 kVA Control voltage: 24 V Required fuse protection: 3 × 100 A Compressed air connection: 7–14 bar Nitrogen connection (N₂): 29 bar Oxygen connection (O₂): 14 bar Operating hours: approx. 18,000 h EQUIPMENT Automatic pallet changer FocusLine laser technology NitroLine laser technology Maintenance-free AC servo drives

Condition: used, Year of construction: 2021, Working area 3000 x 1500 mm Max. laser capacity 4 Kw (TruDisk 4001) Max. thickness 25/20 mm (Mild steel/Stainless steel) Integrated camera for process surveillance (with monitor interface) Control: Siemens Sinumerik 840 D SL with 18” touch screen Automatic speed regulation Ncjdpfxsxr U U Re Abuop Programmerbel automatic shut down of the machine Kobber cutting package Brass cutting package Equipped with: Automatic pallet changer Price when bought in 2021: Euro. 365.000

Condition: new, Year of construction: 2025, laser source manufacturer: TRUMPF, laser power: 6,000 W, Equipment: CE marking, TruLaser 1030 Lean Edition Offer Cost-Effective Swiss-Made Machine Efficient and Powerful Laser Cutting When it comes to laser cutting, value for money counts: the sturdy machines of the TruLaser Series 1000 Lean Edition perform their tasks efficiently and economically. With their relatively low investment cost, they are profitable even at low utilization rates. With 6 kW of power, they cut all materials up to 25 mm thickness and deliver top-quality results. Get started immediately: the machines are intuitive to operate, and cutting data is already integrated. Wide Range of Materials and Features Mild steel, stainless steel, aluminum, copper, brass, and FlyLine Technologies and processes for maximum process reliability and durability Collision protection, nanojoints Easy Operation Pre-qualified cutting data, cutting guide, online lens monitoring, multi-sheet processing, fully automatic pallet changer Including: - TruLaser 1000 Lean Edition - Fully automated pallet changer and 6 kW laser - Programming software - Training & Services: * E-learning package for programming software * Operator training for software * Operator training for the machine Nedpfjxn Irbex Abujcp TRUMPF Quality Worldwide, our rapid remote service support addresses your needs quickly and reliably. For further technical details, please refer to the technical data sheet or visit our website. If you have any questions, don't hesitate to contact us. About TRUMPF: With 100 years of company history, we've helped shape thousands of sheet metal fabrication operations in Germany alone. We share this experience every day with our customers. Thanks to innovative machines and features, the most comprehensive service concept on the market, and our experts in software, automation, and smart factory solutions, we always provide tailored offers to meet your requirements. PS: We are also happy to support you with financing. TRUMPF Financial Services offers financing, leasing, and pay-per-use models to help you successfully overcome financial and business challenges.
