Used Trumpf Trubend Cell 5000 for sale (6)

Condition: ready for operation (used), Year of construction: 2017, operating hours: 10,020 h, pressing force: 173 t, controller manufacturer: TRUMPF, controller model: TASC 6000, Press brake manufactured in 2017. This TRUMPF TRUBEND CELL 5000 with TRUMPF TruBend 5170 features a maximum press force of 1700 kN and a stroke length of 445 mm. It includes the BendMaster 60 robot for automated handling and a TRUMPF TASC 6000 control system for efficient programming. If you are looking to get high-quality bending capabilities, consider the TRUMPF TRUBEND CELL 5000 press brake we have for sale. Contact us for further details. Djdpfx Aqsza U Nfjcech - Press Brake Model: TruBend 5170 (Extended Version)- Press Brake Max Press Force: 1700 kN- Press Brake Max Working Pressure: 340 bar- Press Brake Length of Stroke: 445 mm- Press Brake Voltage / Frequency: 400 V / 50 Hz- Press Brake Connected Load: 29 kVA- Press Brake Control Voltage: 24 V- Robot Model: BendMaster 60- Robot Connected Load: 17 kVA- Robot Weight: 2600 kg- Robot Voltage / Frequency: 400 V / 50 Hz- Control System: TRUMPF TASC 6000 (Graphical workshop programming, network capability)- Included Equipment: Extended version press brake, BendMaster 60, automated material handling/grippers, fencing and safety enclosuresTRUMPF BENDMASTER 60- Working Hours: 56,582 h (As of 14.05.2025)- Load Capacity: 60 kg (Sheet metal piece plus gripper)- Sheet Metal Capacity: Up to 40 kg- Supply Voltage: 400 V (3~ Phase)- Frequency: 50 Hz- Connected Load: 14 kVA- Control Voltage: 24 V- Max. Fuse Rating: 32 A- Manipulator Axis System: 6-axis backgauge sensor system- Floor Track: Ground track rail extended to 10 m- Control Unit: PC-based TRUMPF control with terminal (Monitor, mouse, keyboard)- Material Handling Features: Contour recognition sheet sensor, double sheet detection sensor, rotary union for rapid tool-less gripper exchange, gripper coupling on BendMaster- Included Vakuum/Gripping Gear: 3 modular vacuum grippers without separation unit, 1 mechanical tong gripper with rotary axis (including 3 sets of additional jaws)- Feeding Station: 1 sheet extraction station with linear axis- Peripheral Accessories: 1 gripper changing console (max. 4), 1 mobile fanning magnet, safety enclosure fence with access door Technical Specification Bending Length 4250 mm

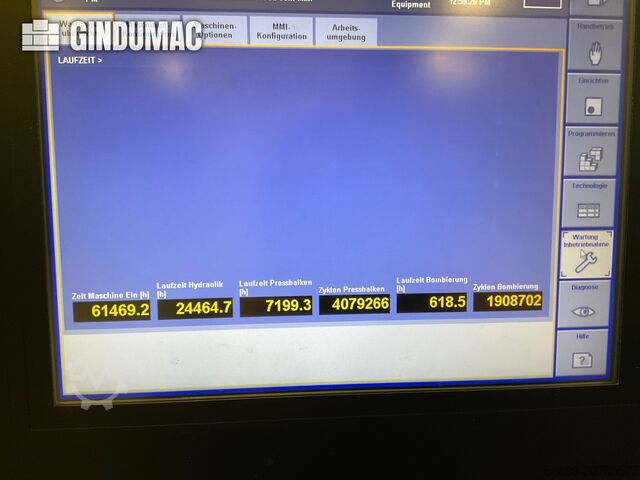

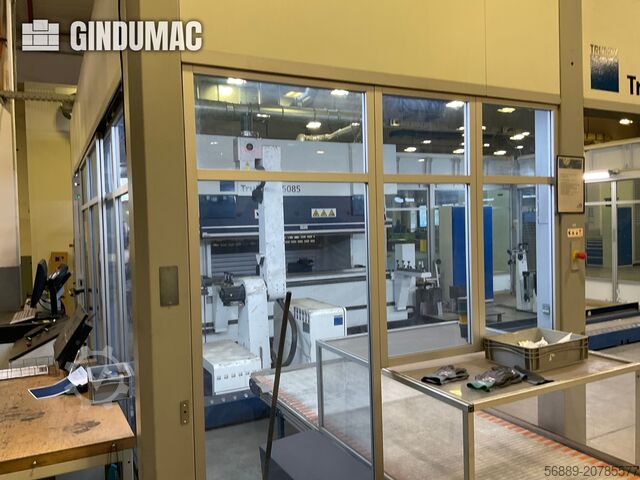

Condition: ready for operation (used), Year of construction: 2015, operating hours: 61,469 h, controller manufacturer: TRUMPF, controller model: TASC 6000, This TRUBEND Cell 5000 with TruBend 5085 extended version (2720 mm x 850 kN) and BendMaster 60 was manufactured in 2015. World's first bending automation with image recognition for maximum flexibility. Sheet metal parts up to 40 kg, 6-axis backgauge sensor technology. Maximum repeat accuracy thanks to angle sensor technology (ACB) in automated operation. It features a stable all-steel frame, electro-hydraulic top drive, and a modern block hydraulic system. The control unit is a TRUMPF TASC 6000 with a 15-inch touchscreen and network capabilities. Ideal for precise bending operations, consider the opportunity to buy this TRUMPF TruBend Cell 5000 press brake. Contact us for more information about this machine. • Machine: TruBend 5085 (2720 mm x 850 kN) with BendMaster 60 • Stable all-steel machine frame • Press beam with spherical bearing and tilt adjustment • Electro-hydraulic top drive with 4-cylinder technology • Generous edge clearance • Flat front covers • Modern block hydraulics • Electronic pressure balance • Measuring system with glass scale and spring compensation • Hydraulic oil in the machine (lifetime lubrication) • Oil cooler • Control cabinet cooling via air-to-air heat exchanger • Modern machine design • Stop/Backgauge • Stop system • Backgauge system: 2 axes (X and R) • Tool clamping • Upper tool holder, manual clamping, hardened • Lower tool holder, hydraulic clamping, hardened • Lower tool shift, 2 positions, pneumatic • Crowning • Manual crowning • Control • TRUMPF TASC 6000 • Graphical workshop programming • Windows XPe (embedded), Pentium 4, 2.8 GHz • 2 GB RAM • 15-inch touchscreen • Network-enabled • Teleservice via modem • Operation • Control panel with LCD keypad and foot switch • Communication rail • Safety • Standard safety devices • BendGuard safety device for upper tools up to 390 mm • CE marking Additional equipment • TRUMPF BendMaster automation (standard features) • Robot/Handling • Stable base and manipulator in die-cast aluminum • Load capacity 60 kg (workpiece plus gripper) • Low-profile welded floor track • Sheet metal sensor for contour detection • Rotary feedthrough for easy gripper change • Gripper coupling on the BendMaster • Sensors for 4-axis backgauge system Djdpfx Aqox Imqlocsch • Electric drives • Double sheet detection • NC gripper transfer station • Vacuum generation for suction grippers • Control • TRUMPF PC control with operator terminal • Teleservice via modem • Operation via screen, mouse, and keyboard • Safety • Safety fence with access doorWorld's first bending automation with image recognition for maximum flexibility Sheet metal parts up to 40 kg, 6-axis backgauge sensor technologyMaximum repeat accuracy thanks to angle sensor technology (ACB) in automated operationTruBend 5085 (2720 mm x 850 kN) with BendMaster 60

Condition: used, Year of construction: 2018, controller model: , _____ Description: Year of manuf. : 2018 Control : Technical data Year of manufacture:2018 Pressing force approx.:3200 kN Folding length approx.:4420 mm Control system:TASC 6000 Projection:420 mm Free upright clearance approx.:3680 mm Usable installation height approx.:615 mm Machine weight approx.:23400 kg Equipment :- Sturdy machine frame :- Press beam, stress relieved with high bending strength :- Spherical bearing of the press beam (inclined position) :- Electro-hydraulic top drive with 4-cylinder technology :- Optical set-up and positioning aid :- Generous edge clearance :- Flat front covers :- Block hydraulics :- Electronic pressure compensator :- Measuring system with glass scale and deflection compensation :- Hydraulic oil in the machine (lifetime lubrication) :- Oil cooler :- Control cabinet cooling via air-to-air heat exchanger :- Modern machine design Extended equipment :- 6-axis backgauge system :- Hydraulic upper tool clamping :- CNC crowning :- Work area lighting front and rear BendMaster (150) :- Sturdy base body and manipulator in cast aluminium construction :- Load capacity 150 kg, plate plus gripper :- Low floor track in welded construction :- Sheet sensor for contour detection :- Rotary feed-through for easy gripper change :- Gripper coupling on BendMaster :- Sensors for 4-axis backgauge system :- Electric drives :- Double sheet detection :- Regripping station NC :- Vacuum generation for suction gripper :- Platform (300 mm) for the bending press Extended BendMaster equipment :Extended BendMaster equipment - Track extension to 12 m :- Sensor system for 6-axis back gauge :- Gripper changing console Dcjdpfxjyy Hgqs Aqcoh :- Vacuum gripper, undefined :- Modular vacuum gripper with separation (material for 3 grippers) :- Gripper coupling :- Tong gripper :- Sheet removal station with linear axis :- Side door on right for safety fence

Condition: good (used), Year of construction: 2009, functionality: fully functional, operating hours: 14,367 h, stroke length: 445 mm, throat depth: 420 mm, travel distance X-axis: 860 mm, controller model: TASC 6000, working width: 4,420 mm, bending force (max.): 320 t, distance between stands: 3,680 mm, installation height: 615 mm, control type: CNC control, degree of automation: automatic, back gauge adjustment: CNC-controlled, number of axes: 6, type of crowning: CNC-controlled, actuation type: hydraulic, Equipment: CE marking, angle measuring system, documentation/manual, foot remote control, safety light barrier, TruBend Cell 5000 – Robotic Bending Cell 320t Complete Service History - 6-axis backgauge system with control cabinet air conditioning - Sensors for 6-axis backgauge - Hydraulic upper tool clamping - CNC crowning - Preparation for ACB - MobileControl - Rear work area lighting - Front work area lighting - Operator comfort package with screen, mouse, and keyboard - BendGuard - BendMaster 150 - Track extension 16,000 mm - NC grip re-orientation station - Double sheet detection - Right-hand side door for safety fence - Vacuum gripper - 3x pneumatic gripper couplings - Robust machine frame in full-steel construction, ram stress-relieved annealed - 4-cylinder upper drive - Block hydraulic system with low-noise double pump - Backgauge with CNC-controlled X and R axes - Hydraulic upper tool clamping - Hydraulic lower tool clamping - Control cabinet cooling via air-to-air heat exchanger - Machine control network connection Control - TRUMPF TASC 6000 Dcjdpfjylankox Aqcjh Safety - Standard safety equipment

Condition: ready for operation (used), Year of construction: 2016, functionality: fully functional, TRUMPF TruBend Cell 5000 – Robotic Bending Cell | Year 2015 TruBend 5130X Press Brake BendMaster Robotic Bending System Djdpoxdfqmjfx Aqcsch Control System: TASC 6000 (robot and press are programmed via the machine interface) Press Brake Specifications: Press force: 130 tons Bending length: 3,250 mm Year of manufacture: 02.2016 More information and video available on request ...

Condition: excellent (used), Year of construction: 2017, operating hours: 3,200 h, pressing force: 130 t, Space requirement: 11,500 mm x 10,000 mm + Increased installation height/lift + 230 mm + 4-axis backgauge system + Rear work area lighting + Front work area lighting - TruBend documentation Automation BendMaster (60) Standard equipment: BendMaster - Sturdy base frame and manipulator made of cast aluminum construction - Load capacity 60 kg, sheet plus gripper - Low-level floor track in welded construction - Sheet sensor for contour detection - Rotary feedthrough for quick gripper change Gripper coupling on the BendMaster - Sensor system for 4-axis backgauge system - Electric drives - Double sheet detection - NC regrip station - Vacuum generation for suction grippers Control - TRUMPF PC control with operator terminal - Teleservice via internet - Convenient operation: screen, mouse, keyboard Safety - Safety fence with access door Special equipment + Track extension to 10 m Dcedpfx Aqjxayl Djceh + Gripper change console + Modular vacuum gripper without separation (materials for 3 grippers) + Modular vacuum gripper with separation (materials for 3 grippers) + Clamp gripper with rotary axis + Sheet removal station with linear axis + Additional pallet for sheet removal station + Right-hand side door for safety fence (or left-hand side in combination with ToolMaster) Machine - Robust machine frame entirely in steel construction - Press beam - Spherical mounting of pressure beam with inclined position - Electro-hydraulic upper drive system with 4-cylinder technology - Optical set-up and positioning assist with control valves - Generous free space for bending - Flat front covers - Block hydraulic system - Electronic pressure gauge - Measuring system with glass scale and spring-back compensation - Hydraulic oil in machine (lifetime lubrication) - Oil cooler - Electrical cabinet cooling via air-to-air heat exchanger - Modern machine design Backgauge System - 2-axis backgauge system, X and R axes Tool Clamping - Hydraulic upper tool clamping - Lower tool holder, hydraulic clamping, hardened - Lower tool displacement, 2 positions, pneumatic Crowning - CNC crowning Control - TRUMPF TASC 6000 - Graphical workshop programming - Windows XPe (embedded), Pentium 4 with 2.8 GHz clock speed - 2 GB RAM - 15-inch touch screen - Network capability - Teleservice via internet Operation - Control panel with LCD keypad and foot switch - Communication rail - MobilControl Safety - Standard safety equipment - CE marking
