Used Trumpf Trulaser Tube 7000 for sale (5)

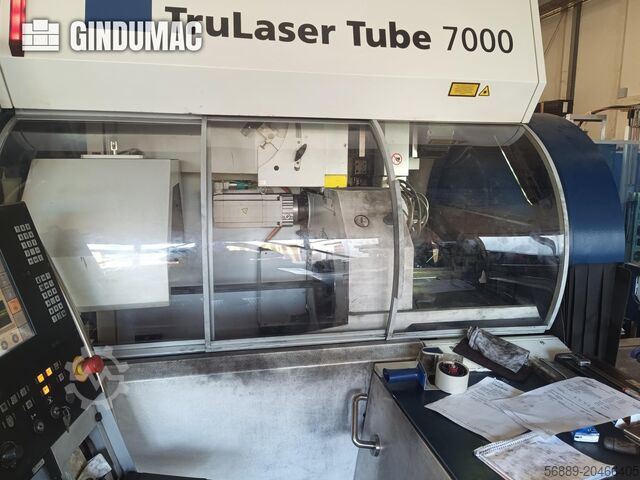

Condition: ready for operation (used), Year of construction: 2010, travel distance X-axis: 6,500 mm, This TRUMPF TruLaser Tube 7000 KT02 was manufactured in 2010. It features a working area of 6500 mm on the X-axis and can handle circular diameters up to 200 mm. Equipped with a CO₂ laser TruFlow 2000 and a laser cutting head with a 155 mm lens, it's ideal for precise tube cutting. Contact us for more information about this machine. • Circular diameter: 200 mm • Reject station: 3 m with brush table • Reject tray • Process/software features: NoLine, PowerLine, ContourLine, Laser power control, Programmable cutting pressure, Program repeat, Automatic blow-off, Work interruption lighting, Hole-punching function (laser) • Laser: CO₂ laser TruFlow 2000 • Laser cooling unit • Cutting head: Laser cutting head with 155 mm lens • Control unit: 84D • Connectivity/data transfer: RJ-45 network connection, USB connection; network connection incl. installation • Safety: CE marking, Multi-beam light barriers, Capacitor power 1600 N/cm², Safety with macro stops Additional equipment • Accessories: • Spare parts case for cutting heads • 1 x remote control kit • Clamping jaw set Ø 216 / 200 mm • U-shaped guide rails for reject station with ID = 200 mm • Automation: • LoadMaster Tube 6 m with belt support, 2 grippers • Options for LoadMaster Tube 6 m: • Circular diameter 250 mm • Shorter belt support • Swivelable conveyor section • Additional gripper Ø 200 mm • Additional gripper Ø 250 mm • Special equipment: • Flexible reject station 4.5 m (prototype) instead of reject station 3 m, without brush table • Special installation for flexible reject station • LoadMaster (series version 103) • Installation 100 mm higher (use of wire mesh container possible), decision upon acceptance • Services: Hodpfxex D I H Do Afpok • Installation, commissioning, training

Condition: used, functionality: fully functional, Year of construction: 2016, degree of automation: automatic, laser power: 3,600 W, sheet thickness (max.): 10 mm, pipe diameter (max.): 254 mm, pipe length (max.): 6,500 mm, workpiece weight (max.): 4,500 kg, We are offering this used TRUMPF TruLaser Tube 7000 laser cutting machine, year of manufacture 2016. Resonator 3.6 kW 6.5 m loading + 6.5 m unloading, two conveyor tables for workpiece sorting Hodpfxjylvd Io Afpjk Automatic profile magazine 4.5 tons + manual loading Bevel cutting up to 45 degrees Increased profile/pipe diameter up to 254 mm Max cutting thickness 10 mm Internal weld seam sensor External sensor (detects seamless pipes) If you have any questions or require additional information, please send us a message or contact us by phone.

Condition: excellent (used), functionality: fully functional, Year of construction: 2013, control type: CNC control, degree of automation: automatic, actuation type: electric, sheet thickness steel (max.): 8 mm, For Sale: TRUMPF TruLaser Tube 7000 (2013) – 3600W Tube Laser Cutting Machine We are offering a TRUMPF TruLaser Tube 7000 in very good working condition. This high-performance tube laser system delivers precise, flexible, and efficient tube processing for demanding production environments. Key Specifications: Model: TruLaser Tube 7000 Laser Power: 3600 W Year of Manufacture: 2013 Maximum Tube Diameter: 250 mm Maximum Raw Material Length: 9,200 mm Maximum Finished Part Length: 6,500 mm Maximum Material Thickness: Mild Steel: 8 mm Stainless Steel: 6 mm Aluminum: 5 mm Cutting Speed: 0.8 – 10 m/min Bevel Cutting Capability: Up to 45° Features: Flexible unloading system with part sorting Highlights: ✔ XXL tube processing capacity ✔ High-quality bevel cuts up to 45° ✔ Reliable and proven TRUMPF technology ✔ Ideal for structural steel, mechanical engineering, and industrial fabrication The machine is well maintained and ready for inspection. Hodpoylnw Tofx Afpek For further information, pricing, or to arrange a viewing, please contact us.

Condition: used, functionality: fully functional, Year of construction: 2019, laser hours: 5,780 h, laser power: 4,000 W, TRULASER TUBE 7000 FIBER 4kW Year of manufacture: 07/2019 Laser power: 4kW fiber Laser on: 5780 h (!) Hodeyalb Eepfx Afpek Technical information: - Max. outside diameter: 254 mm - Loading and unloading - Loading with LoadMaster Tube: 6,5m / Automatic unolading: 4,5m - RapidCut  Use of a dynamic additional axis  More than fourfold accelerations possible Bevel cut technology package  Bevel cutting up to 45°  Contains electrically movable feed-through chuck - PierceLine  Optimized piercing process - Technology package for tapping • Additional machining processes such as flow drilling, tapping and twist drilling • NC controlled spindle with standard clamping system (standard interface HSK-A32) • The application and technology parameters of the tool adapter and tools should be requested from the respective supplier • 8-fold tool changer ...and many more options!

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2010, operating hours: 11,851 h, controller model: Siemens Sinumerik 840 D, laser power: 3,600 W, sheet thickness steel (max.): 8 mm, working length: 6,500 mm, working width: 250 mm, Laser cutting machine with comprehensive equipment! The machine was last serviced by TRUMPF on 21.03.2025. Machine will remain powered on until 12.09. TECHNICAL DETAILS Working area: 6,500 x 250 mm Laser power: 3,600 W Accuracy: 0.1 mm Material Thicknesses Max. mild steel thickness: 8 mm Hodpfxew Nqxhs Afpek Max. stainless steel thickness: 6 mm Max. aluminium thickness: 5 mm Performance Max. speed: 100/60/60 m/min Control: Siemens Sinumerik 840 D MACHINE DETAILS Laser hours: 11,851 h Operating hours: 47,778 h Dimensions & Weight Machine dimensions (L x W x H): 17,300 x 8,600 x 3,000 mm Weight: 19,000 kg EQUIPMENT Circumscribed circle diameter 200 mm 3 m unloading station with brush table Front unloading station NitroLine FocusLine SprintLine Laser power control Automatic shutdown function Work area lighting CO2 Laser TruFlow 3600 Laser logbook function Chiller unit Cutting head with 155 mm lens Teleservice RJ network connection and USB port USB interface CE marking Light barriers Extraction and compact dust collector Protective cabin with Makrolon panels Clamping jaws D 15-200 mm U-shaped guide rollers for unloading station D = 200 mm 6 m unloading station with brush table Circumscribed circle diameter 250 mm incl. clamping jaw set and guide rollers SeamLine Tube Additional cutting head with 155 mm lens LoadMaster Tube 6 m with bundle support, 2 grippers Circumscribed circle diameter 250 mm LoadMaster Tube 6 m Low-scratch bundle support LoadMaster Tube 6 m Swiveling conveyor section LoadMaster Tube 6 m
