Used Voumard 5A for sale (5)

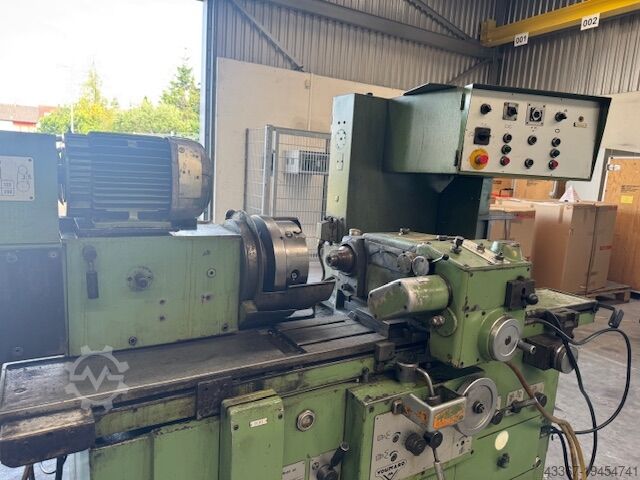

Condition: ready for operation (used), Year of construction: 1991, functionality: fully functional, Internal grinding machine | Brand: VOUMARD | Type: 5A LP 1000 Year of manufacture: 1991 Range of parts: Gear wheels, guide rollers, centring bushings. The machine can be inspected under power by appointment. Condition: In working order, ready for use. TECHNICAL SPECIFICATIONS: Working area - Internal grinding diameter: 5 mm - Internal grinding diameter max.: 200 mm - Max. Grinding depth: 250 mm - Peak height: 180 mm - Peak distance: 1.000 mm Working spindle - Spindle bore: Ø 80 mm - Swivelling capability: 0° Folhcdwjzzcmyozsgg Sliding spindle carriage - Minimum and maximum swivel range: 25 degree - Minimum longitudinal movement: 3 mm - Maximum longitudinal movement: 600 mm - Table speed, continuously adjustable: 0 - 10 m/min - Workpiece weight: 0,25 tons Grinding wheel / disc - Diameter max.: Ø 60 mm - Width max.: 25 mm - Borehole: Ø 12 mm - Rotational speed: 3.600 - 40.000 rpm - Operating voltage: 380 V, 50 Hz - Control voltage: 24 V - Total power requirement: 8,7 kW - Machine weight approx.: 2,7 tons Dimensions: - Machine (L x W x H): 2,9 x 1,2 x 1,9 m - Water tank (L x W x H): 1,4 x 0,8 x 0,65 m - Motor (L x W x H): 0,8 x 0,4 x 0,65 m ACCESSORIES: - 4-jaw chuck, Ø 250 mm - 1 steady rest and various spindles No guarantee is given for the completeness and accuracy of the technical data and equipment. - Subject to prior sale -

Year of construction: 1972, condition: ready for operation (used), A Voumard internal cylindrical grinding machine completely overhauled in 2020 is available. Grinding diameter range: 5mm-200mm, grinding depth: 250mm, speed: 1000rpm, speed control: continuously variable. An on-site inspection is possible. Foley E S Hmshcdwzegg

Condition: excellent (used), Hydraulic with semiautomatic cycle Internal grinding diameter 5-200 mm Fgolhcdsylbhxjwzjg Grinding depth 250 mm Workpiece spindle head center height 180 mm Spindle bore 50 mm Table travel -600 mm Misc. accessories MARCELS MASCHINEN AG

Condition: excellent (used), internal diameter 5-200 mm grinding depth 230 mm swing diameter 50 mm centre height 180 mm internal grinding diameter 5 - 200 mm spindle bore 50 mm spindle speeds 120 - 1000 mm inclination 90 ° table movement in milling step automatic 3 - 600 mm/min spindle turning speed range 3600 - 40000 U/min spindle diameter 90 mm total power requirement 10 kW weight of the machine ca. 2,6 t dimensions of the machine ca. 3,1 x 1,6 x 1,8 m Fgelhcdwjy D T U Aszeg

Condition: used, Grinding diameter 5-200 mm Max.grinding depth 250 mm Center height 180 mm Max.workpiece length 500 mm Spindle bore diam. 50 mm Felhcdoza Hk Uowzegg Workpiece spindle speed 125-1000 rpm Workpiece spindle tilt 90° Table travel 3/600 mm Table speed 0-10 m/min Spindle speed 3600-40000 rpm Power 8-10 CV Dimensions 3200x1630 mm Weight 2700 Kg
