Used Emag Vlc 100 for sale (3)

Condition: excellent (used), Year of construction: 2013, Working area Chuck diameter 160 mm Weight max. 86* kg Swing diameter 200 mm X-travel (working stroke) 380 mm Z-travel 660 mm Loading time (depending on clamping device) 1 – 2 sec. Main spindle 2 number Spindle flange according to DIN 55026 5 size Spindle bearing – Ø front 80 mm Maximum speed 6000 rpm. Main drive, see description 2 number Feed drive Rapid traverse speed, X 60 m/min. Rapid traverse speed, Z 60 m/min. Feed force in X/Z 3.75 / 7.5 kN Ball screw diameter in X / Z 32 / 40 mm Disc turret, see description Electronic equipment in accordance with VDE 0113 Operating voltage 400 V Control voltage direct current 24 V -alternating current 230 V Frequency 50 Hz Connection value Connection power without Lt 36 kW Nedpfevz S Siex Agrswl Connection power with Lt 39 kW Rated current 64 A Supply line fuse 80 A Dimensions and weight Depth 2800 mm Depth including chip conveyor 4350 mm Width 1200 mm Width with automation 1600 mm Height 2500 (2800) mm Weight approx. 7000 kg

Year of construction: 2016, condition: like new (used), Offered is a vertical turning-grinding center VLC 100 GT, with the retrofit construction year 2022. With the pick-up spindle unit, workpieces can be fed directly from the transport conveyor belt to the working area. Due to its modular design, the VLC 100 can be configured for a wide range of applications. The pictures show an example of a combination of turning tools (block steel holders) and grinding spindles for soft or hard machining (inside, outside). Depending on the workpiece or technology, these machining modules can be easily adapted. Nwsdpfjh Tm Duox Agrjl CONTROL Siemens 840Dsl TECHNICAL DATA Workpiece diameter: max. 100 mm Workpiece height: max. 150 mm X-stroke: 605 mm Z-stroke: 530 mm POWER main spindle 18 kW grinding spindle 12 kW TOOL CARRIER 2x block steel holder VDI / Capto console with grinding spindle 12 kW, 60000 1/min Price, delivery time and equipment of the machine according to agreement.

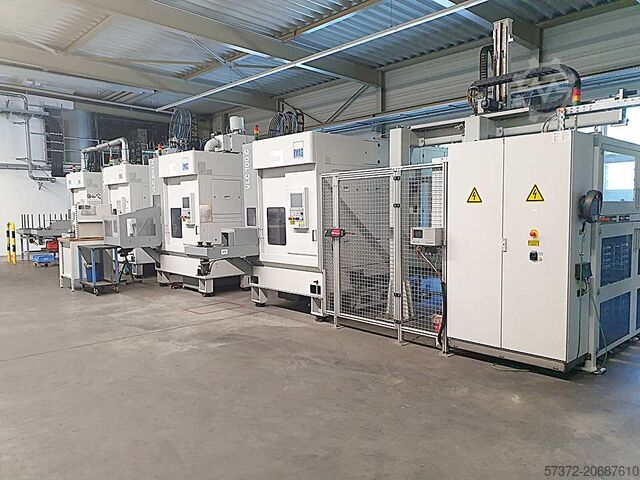

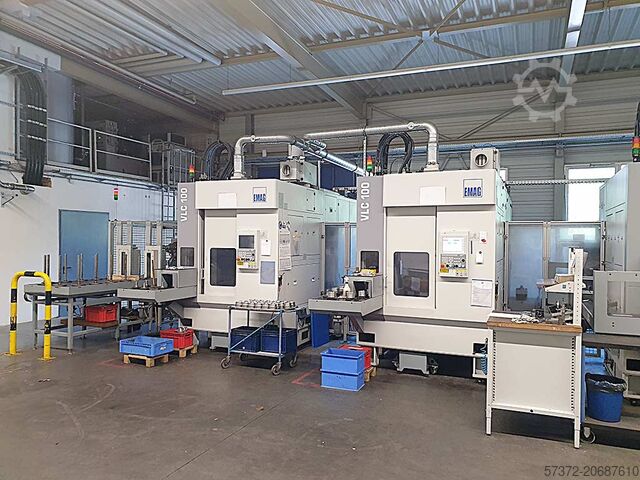

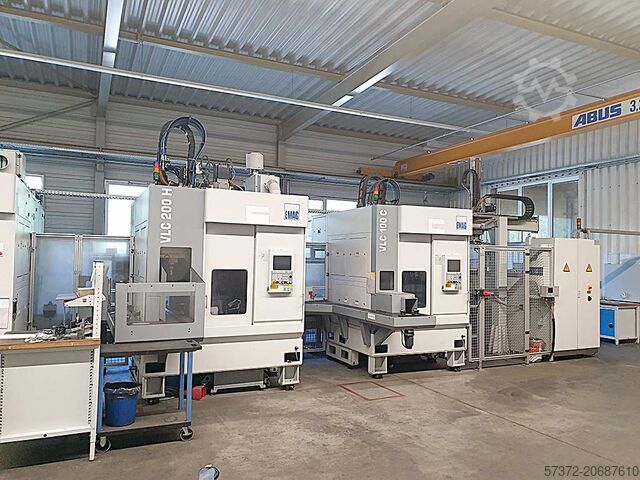

Condition: ready for operation (used), Year of construction: 2015, A high-performance planetary gear production line EMAG including automation and peripheral equipment is available. 1) Raw parts storage (stacker) EMAG. 2) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 3) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 4) Vertical hobbing machine EMAG VLC200H, max. workpiece diameter: 200mm, max. module: 4, travel X/Y/Z: 790mm/120mm/400mm, swivel range: +/-35°, control: Siemens 840D sl. 5) Vertical chamfering/deburring machine EMAG VLC100C, max. workpiece diameter: 100mm, max. workpiece height: 150mm, travel X/Z: 900mm/375mm, control: Siemens 840D sl. 6) Internal automation EMAG TrackMotion with 2x TransLift carriages. Type: transfer automation, purpose: part feeding/intermediate station transport/part removal, control: HT8. 7) O-belt automation for each EMAG machining machine with pallet and belt buffer, max. pallets: 24pieces/machine. 8) Marking press Markator for part marking. 9) Part handling unit EKF Automation in gantry design. 10) Basket stacking cell EKF Automation for the finished parts storage, number of stacks: 3. Documentation available. An on-site inspection is possible under power connection. Nedpfox Dm D Iex Agrswl
