Used Ulrich Klingel Bs50 for sale (56)

Condition: used, Year of construction: 1999, Technical details: max. wheel diameter: 5 - 260 mm gear width: 400 mm max. module: 15 min. module: 0,5 gear hobbing diameter - internal: 30 mm Itedjqvcnnepfx Anwsh max. helix angle: > 85 ° Aussenverz. max. helix angle: > 45° Innenverz. Testing Range vertical: 400 mm dist. between centers: 5 - 600 mm table diameter: 260 mm max. table load: 100 kg speeds: 30 1/min total power requirement: 1,6 kVA weight of the machine ca.: 900 kg dimensions of the machine ca.: 200 x 1300 x 2150 mm CNC Gear Tester in good condition, out of OEM Test Lab. For measuring of spur and helical toothing, additional of rotationally symetric parts as true running, coaxiality, axial runout, etc. with tool changer ( 4 nos.) *

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, wheel diameter: 400 mm, overall weight: 4,000 kg, distance between centers: 550 mm, spindle speed (max.): 3,000 rpm, controller model: Siemens 840 D, TECHNICAL DETAILS Max. wheel diameter: 400 mm Workpiece diameter: 36–400 mm Centre distance: 135–290 mm Max. spindle speeds (infinitely variable): 3,000 rpm Centre width: 100–550 mm MACHINE DETAILS Control: CNC Siemens 840 D Dimensions & Weight Space requirement: approx. 2,000 x 3,055 x 2,788 mm Machine weight: approx. 4,000 kg Isdpfxoywg Hxj Anweth EQUIPMENT Single-flank rolling test Double-flank rolling test Structure-borne noise testing Helical contact testing (double-flank contact) Use of up to 6 test carriages Highest test accuracy and repeatability Machine table with workpiece drive Swivelling pneumatic unit Spray lubrication (Type: Vogel) Oil mist extraction (Type: Elbaron)

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, wheel diameter: 275 mm, wheel width: 150 mm, travel distance X-axis: 640 mm, travel distance Y-axis: 870 mm, workpiece diameter (max.): 275 mm, TECHNICAL DETAILS Wheel diameter: 275 mm Wheel width: 150 mm Maximum module: 6 Minimum module: 1.5 Workpiece diameter: 275 mm Maximum face width: 5.5 mm Spiral angle: 0 - 60° Number of teeth: 5 - 120 Minimum gear ratio: 1:1 Maximum gear ratio: 1:10 Milling Depth Axis (X-Axis) Travel: -25 to 640 mm Max. traverse speed: 6 m/min Workpiece Positioning Axis (Y-Axis) Travel: 870 mm Max. traverse speed: 4.5 m/min Axis Shift (Z-Axis) Itodpsywgy Sefx Anweh Travel range: +/- 50 mm Max. traverse speed: 0.657 m/min Generating Rotation Axis (A-Axis) Swivel range: 315° Max. swivel speed: 40°/s Workpiece Spindle (B-Axis) Max. workpiece spindle speed: 300 rpm Outer cone (1:4) clamping diameter: 140 mm Inner cone (1:20): 99.218 mm Workpiece spindle bore: 90 mm Workpiece Swivel Axis (C-Axis) Swivel range: -8.5 to 98° Max. swivel speed: 21.5°/s Tool Spindle (D-Axis) Spindle speed: 60 to 350 rpm Tool Positioning Axis (E-Axis) Swivel range: 0 to 360° Max. swivel speed: 19.5°/s Machine Distance (V-Axis) Travel: 150 mm Max. traverse speed: 1.6 m/min MACHINE DETAILS Cutter drive motor Power: 20 kW Workpiece drive Power: 14.5 kW Total connected load: 62 kVA Dimensions & Weight Machine weight: approx. 12 t Space requirement: approx. 4,700 x 4,387 x 2,450 mm EQUIPMENT 13 cutters

Condition: good (used), Year of construction: 2002, max. wheel diameter 275 mm gear width 55 mm Ijdpetumrpjfx Anwsth max. module 6 min. module 1 Control 840 C Siemens total power requirement 100 kW weight of the machine ca. 16,7 t dimensions of the machine ca. 5,2 x 2,3 x 2,4 m m

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Technical Data Grinding/Workpiece Diameter: up to approx. 300 mm (partially up to 350 mm) Grinding Length/Stroke: approx. 550 mm (slide travel) Module range (for hobbing cutter resharpening): min. module approx. 0.5 to max. module approx. 25 Number of flutes: typically 1–99 pieces (depending on tool set) Grinding wheel diameter: approx. 150–300 mm Itsdpfextiunsx Anwjh Grinding wheel speed: up to about 2,700 rpm Centre distance (workpiece spindle): typical range 400–800 mm Swivel/Pitch range: e.g. grinding wheel head swivel 0–15° Machine weight and space requirement: approx. 4.2–4.9 t weight; space approx. 3 × 2.6 × 2.3 m Electrical data: operating voltage e.g. 380 V three-phase, control 24 V, auxiliary voltage 220 V

Condition: excellent (used), Year of construction: 1988, TECHNICAL DATA. Max. clamping length: 90 mm Tool clamping height with tapered shank: 50 mm Tool clamping height with straight shank: 45 mm Max. helix angle: 45° Number of clamping positions: 1 to 99 Max. slide travel: 550 mm Max. grinding wheel diameter: 350 mm Itsdpfx Ajwwkacenwsh Min. grinding wheel diameter: 150 mm Grinding wheel speed (variable): up to 2700 rpm Swivel range of grinding spindle axis: 0° to 15° Grinding slide feed rate (variable): 0.05 to 16 mm/min (with 3rd and 4th axis: 0.05 to 8 mm/min) Workpiece spindle taper: ISO Taper No. 40 Grinding Wheel Data CBN and diamond cup grinding wheel: Ø200 mm → Min. DFF: 66 (3rd axis), 76 (4th axis) Ø250 mm → Min. DFF: 16 (3rd axis), 26 (4th axis) CBN-ES cone grinding wheel: Ø200 mm → Min. DFF: 50 (3rd axis), 60 (4th axis) Ø250 mm → Min. DFF: 0 (3rd axis), 10 (4th axis)

Year of construction: 2002, condition: used, max. wheel diameter 275 mm gear width 55 mm max. module 6 Iodegtvbpopfx Anwoth min. module 1,5 control Sinumerik 840C tooth width 5,5 mm spiral angle 0/60 ° max. number of teeth 120 min. number of teeth 5 transmission ratio max. 1:10 transmission ratio min. 1:1 spindle speeds max. 110 mm blade head turning speeds 20-110 1/min total power requirement 100 kW weight of the machine ca. 16700 kg dimensions of the machine ca. 5200x2300x2400 mm

Year of construction: 1987, condition: ready for operation (used), Center width: 400-800mm, rotational speed: 1000-2700/min, workpiece diameter: 10-300mm, grinding wheel diameter: 40-300mm, swivel angle: -45 to 45°, length: 3000mm, width: 2500mm, height: 2275mm, with oil mist separation system Hoffmann (new filter inserts), filter system gravity belt filter Faudi, hydraulic unit, additional grinding head for grinding worm gears, grinding mandrels diameter 50, 40, 27, 22, holder for SK40 and MK5, driver sets for different clamping diameters, operating instructions, circuit diagrams in paper form, an inspection is possible. Isdpfx Anergahxeweth

Condition: used, floor-plate length 1050 mm floor-plate width 1050 mm floor-plate height 60 mm weight of the machine ca. 0,2 t dimensions of the machine ca. 1050x1050x0,1 m Iodpfx Aneu Sbfkjweth table plate of PFSU 1600, Ø 1050 mm

Year of construction: 1990, condition: ready for operation (used), Max. workpiece diameter: 10-350mm, max. grinding length/ width: 690/ 60mm, clamping length: 950-1330mm, swing angle: -60 to 60°, length: 6200mm, width: 4000mm, height: 2500mm, weight: 9t, with oil filtration system, oil mist extraction and additional accessories. Iedpfx Anoiph T Heweth

Condition: excellent (used), Year of construction: 2007, max. wheel diameter 400 mm weight of the machine ca. 4 t Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : KLINGELNBERG Single- and double-flank rolling test machine with structure-borne sound testing model R 30 year 2007 _____ Workpiece outer diameter min. / max. 36 / 300 mm Center distance between workpiece and counter wheel 135 - 290 mm Spindle speeds max. 3.000 rpm Drive torque max. up to 2196 rpm 20 Nm Drive torque max. 2196 – 3.000 rpm 14,7 Nm Spindle drive 4,62 kW Total drive approx. 10 kW - 400 V - 50 Hz Total weight approx. 4.000 kg Accessories / Special Features: Ijdpfx Anjxvdryewjth • The machine is a universal rolling tester designed for the following testing procedures: o Single-flank rolling test o Double-flank rolling test o Structure-borne noise testing in single and double-flank contact o Helix testing in double-flank contact • WINDOWS PC control for measurement data acquisition and analysis with the NoisyS32 testing software • SIEMENS control panel for operating the machine and evaluating the test cycles • Complete enclosure with electrically monitored sliding doors • Attached control cabinet, various accessories, operating instructions • Unfortunately, the license dongle for activating the measurement software is currently missing. We hope to receive it from the supplier of the machine. Condition : very good condition ! Almost unused ! Soon : Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading We always have a large selection gear machines – CNC or conventional - available. Please let us know your requirements.

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, grinding wheel diameter: 200 mm, workpiece length (max.): 200 mm, TECHNICAL DETAILS Grinding wheel diameter: 100–200 mm Maximum workpiece length: 200 mm MACHINE DETAILS Control: Siemens 840D or equivalent CNC axes: 3–5 axes Drive power: 5–10 kW Coolant tank: 100–200 litres Itedeya Dy Hjpfx Anweh EQUIPMENT Coolant filtration system Universal applicability for different tool types and geometries High flexibility through CNC programming and adaptable clamping devices Process reliability thanks to integrated cooling and filtration system Easy maintenance due to modular design and central supply units

Condition: used, The Klingelnberg GKP 90 bevel gear testing machine was designed as a universal machine and is used by manufacturers of gears and transmission technologies for noise and contact pattern testing on bevel and hypoid gears. Technical Data • Diameter: 540 (400) mm • Hypoid: ±50 mm • Pinion spindle diameter: 90 mm • Dimensions (LxWxH): 1,800 x 1,800 x 1,600 mm • Machine weight: approx. 2,800 kg *Information and data are provided without obligation. Subject to prior sale. Isdpfx Asxpq Nlonweth Special Features: The machine is intended for noise and contact pattern testing on bevel and hypoid gears of all gear types. By simulating operational conditions, applying various rotational speeds, and switching load states between drive and coast, the optimal installation distance for standstill can be determined. • Digital actual value display for 2 axes • Infinitely variable speed adjustment via frequency inverter • Electrically secured and removable safety guard • Accessories: Large number of workpiece holders • Condition: Very good

Condition: refurbished (used), functionality: fully functional, The Klingelnberg PKE 300 H (PSKE 900) bevel gear testing machine was designed as a universal machine for the flexible machining of gears and is used for single flank rolling tests on bevel gears with evaluation Picture shows machine in actual condition as retrofit / modernized. Performance description: Wheel diameter: 450 (300) mm Axle angle: 90 degrees Hypoid: +/- 60 mm Itjdpfx Aetncnhsnwsh Space requirement approx.: 1.4 x 0.8 x 1.5 mm Machine weight approx.: 1,100 kg Further information on possible options, current purchase price on request. *Information, dates are non-binding, subject to prior sale

Condition: used, Year of construction: 1980, max. wheel diameter 2500 mm Iodot Hw Aaepfx Anwjth gear width 0 mm max. module 34 min. module 1 total power requirement ca. 15 kW weight of the machine ca. 15 t dimensions of the machine ca. 4,20 x 2,00 x 2,90 m Extra große ZR-Prüfmaschine, Gegenhalter

Condition: used, Year of construction: 1975, max. wheel diameter 160 - 1.600 mm gear width 250 mm max. module 20 min. module 1,5 total power requirement 1 kW Iedpfet Hwptsx Anweth weight of the machine ca. 3 t dimensions of the machine ca. m

Condition: ready for operation (used), Year of construction: 2023, operating hours: 150 h, functionality: fully functional, measuring range X-axis: 230 mm, measuring range Y-axis: 230 mm, measuring range Z-axis: 550 mm, workpiece weight (max.): 300 kg, empty load weight: 2,550 kg, TECHNICAL DETAILS Workpiece Data: Module range: min. 0.3 mm – max. 20 mm (0.1 – 20 mm) Helix / lead angle: min. 0° – max. 90° Inspection diameter for gears between centers: max. 400 mm Workpiece diameter: max. 490 mm Vertical measuring range (Z-axis): 550 mm (700 mm) Horizontal measuring range / rolling path (X-axis): ± 115 mm Permissible mass moment of inertia: max. 5 kg·m² Permissible workpiece weight: max. 300 kg Center distance: min. 50 mm – max. 800 mm (50 – 1,000 mm) Chart Recording: Magnification: 50x / 100x / 200x / 500x / 1,000x / 2,000x / freely selectable Longitudinal magnification: 0.5x – 1x – 2x – 4x – 5x – 10x – 20x Machine Accuracy: VDI/VDE 2612 Part 1 and 2 as well as 2613 Group I At +18 °C to +22 °C, reference temperature 0.5 K/h; 2 K/d; 2 K/m MPEE₀ ISO 10360-2 (2010): 1.8 + L/450 mm VDI2631 Radial guideway deviation: 0.2 µm Roundness Ø100/L: 0.3 µm Flick 15W/U/L: 1.5 µm Flick 50W/U/L: 1.5 µm Straightness Ø70/L: 0.4 µm Coaxiality: 1.2 µm Total runout: 1.5 µm Machine Accuracy At +15 °C to +35 °C Reference temperature: 2 K/h; 12 K/d; 2 K/m MPEE₀ ISO 10360-2 (2010): 1.8 + L/250 mm VDI2631 Radial guideway deviation: 0.4 µm Roundness Ø100/L: 0.5 µm Flick 15W/U/L: 1.8 µm Flick 50W/U/L: 1.8 µm Straightness Ø70/L: 0.6 µm Coaxiality: 1.4 µm Total flatness runout: 1.8 µm Evaluation Software: Spur gears – external and internal helical gearing up to 60° Standards: DIN 3960 / 3962, free tolerances, AGMA 2015, ANSI B92.1, DIN 5480, ISO 1328:1995, JIS B1702:1998, JIS B1702:2016, GBT 10095:2008, ISO 1328:2013 Functions: Profile and flank line, tooth thickness variation, pitch and two-ball measurement, crowning, bevel, trapezoidal and bevel gear teeth Root and tip circle measurements, determination of tip and root diameter over up to six teeth or up to four teeth at three measuring heights or all teeth at one height on a special measuring sheet Gear Measurement Contact pattern measurement: 3 x profile and 3 x flank line Topography: 10 profiles x 10 flank lines (30 x 30 grid points) Measurement of all teeth on separate special measuring sheet Block gear measurement: up to 10 gearings Alignment measurement: up to 6 gearings and apex determination Storage formats: ASCII format, ASCII mka file, ASCII csv file (grid point deviation) Storage capacity: up to 5,000 workpiece measurement programs MACHINE DETAILS: Net weight incl. standard equipment: approx. 2,150 kg Net weight with active vibration isolation: approx. 2,550 kg EQUIPMENT Iedpjxamnrjfx Anweth - PC with software included (currently installed on machine) - Measuring probe and extensions are included - 2x calibration spheres - Surface roughness standard - 2x 3-jaw chucks for various diameters - 1x measuring mandrel for aligning the upper and lower measuring tips - Stand for dial gauge - Driver fixture for a wider range of parts - Transport locks

Condition: used, Year of construction: 2008, max. wheel diameter 300 mm max. module 8 min. module 0,7 Control SINUMERIK 840 D min/max. pitch cone angle - 90 / + 90 ° workpiece spindle - bore 127 mm grinding wheel diameter 50 - 230 mm spindle speeds (infinitely variable) 7.500 U/min total power requirement 146 kW work piece spindle speed 700 U/min weight of the machine ca. 21 t dimensions of the machine ca. 9,5 x 3,6 x 3,1 m Measuring probefor tooth gap(integrated on the grinding head) External grinding spindle cooling system ELBARON oil mist extraction (integrated in the machine) Hoffmann coolant filter system Was used for the serial production of spiral-toothed ring gears No clamping devices No grinding wheels / grinding wheel flanges No dressing wheels Ijdpfxovxww Sj Anweth

Condition: repair required (used), functionality: not functional, Pictures show : 2-spindle drilling head , pneumatic clamping device , hydraulic feed device Iedpfx Aszd Uryonwjth . Technical data : Continuous drilling capacity 50 mm Normal drilling capacity 65 mm Spindle motor , pole-switchable 3 / 5 kW 4 infinitely variable speed ranges Gear stage 1 50 - 375 and 100 - 750 rpm Gear stage 2 100 - 750 and 200 - 1500 rpm Distance from spindle nose to table approx. 800 mm Spindle stroke 200 mm Column diameter 160 mm Projection 325 mm Entire table 650 x 500 mm Height approx. 2.1 m Normal weight approx. 0.7 to . Equipment and scope of delivery : - Table clamping from the front - Coolant device - Electric cabinet - without table height adjustment - Hydraulic feed device - the hydraulic unit is missing ! (drill feed can be operated manually via a cross lever)

Condition: ready for operation (used), Festo 8022601 / ESBF-BS-50-570-* electric cylinder, used, in good condition, fully functional, scope of delivery as per photos. Itedpfx Ansx Erlvjwoh

Condition: ready for operation (used), Festo 8022601 / ESBF-BS-50-570 -* electric cylinder J808, used, in good condition, 100% functional, delivery as shown in the photos Itsdpfx Anjx Erl Ajwjh

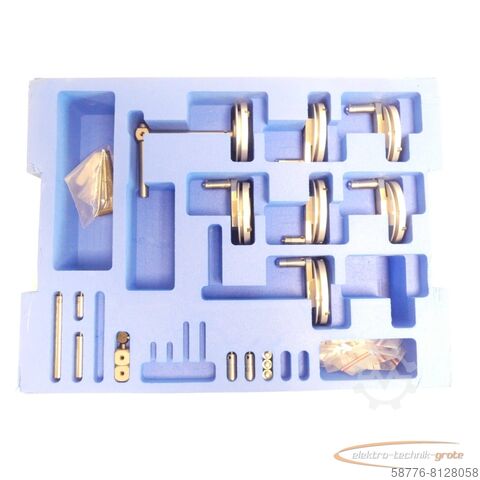

Condition: new, Klingelnberg pushbutton kit 318271A ,unused in opened original box, 100% functional, scope of delivery according to photos Itjdpfx Asi Ebv Isnwsh

Condition: new, functionality: fully functional, Year of construction: 2026, BS-500 PRO Even the best road coating wears during exploitation. Heavy traffic, unfavorable weather conditions, and other factors negatively affect the asphalt. Bitumen pressure distributor BS-500 PRO – is the number-one equipment to protect the load-bearing structure of the road with surface treatment. The model has a safe and inexpensive heating system, responsible for maintaining the required temperature of the emulsion. The 500-liter emulsion tank is insulated with solid mineral wool. Technical Specifications Engine power (petrol, air cooled)-4.3 kW (5.8 hp) Emulsion tank capacity-500 l Productivity-28 l/min Nozzles on the spraying bar- 7 pcs Spraying width-1.7 m Diesel cleaning system Spraying bar is modularised, consisting of 3 sections, with rubber protection plates that protect against contamination and emulsion in unplanned areas Remote control of the spraying bar Electric starter Tank self priming function Ijdpfevuaccex Anweth Emulsion tank heating system Ability to connect a third party compressor for cleaning the spraying bar

Condition: excellent (used), Year of construction: 2022, Equipped with a leadscrew mechanism and safety device to prevent tool breakage. Program for single or continuous cycles. Electronically controlled motor braking during single cycles. Motor with pole-reversing capability. Doubled return speed. Spindle speeds are continuously adjustable. Oil circulation lubrication. Table adjustment from the front. Thread cutting capacity, M8 to M45 in E335. Threads per hour: 600. Normal drilling capacity: 50 mm. Thread depth: 150 mm. Drilling depth: 200 mm. Overhang: 325 mm, table area: 650 × 500 mm, overall height: 2150 mm. Weight: 680 kg. Isdsy Sxq Espfx Anwjth

Condition: new, 0 1170 x 580 x 580 mm operating pressure 2,2 - 8,0 bar Ijdpfoupxd Dox Anwsth dimensions 1,22 x 0,93 x 1,70 m air consumption at 6 bar 350 l/min weight of the machine ca. 0,15 t
