CNC turn-mill center

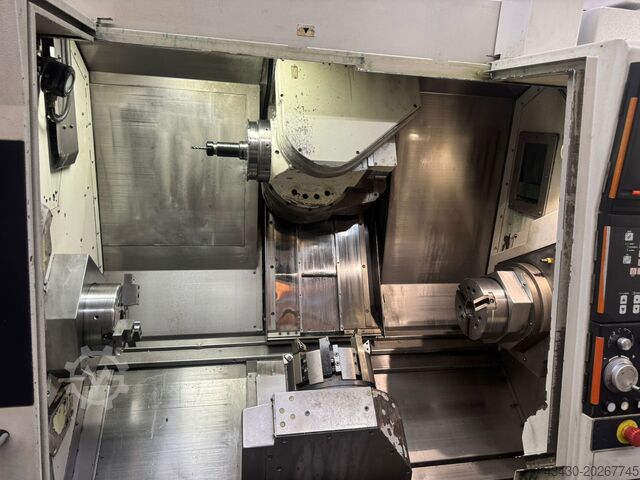

MAZAK INTEGREX 200 III ST

Condition: ready for operation (used), Year of construction: 2003, MAZAK INTEGREX 200 III-ST milling turning center CN: Mazatrol 640 MT PRO Year 2003 Hours: 87,613h Iedpfx Afsk D Ez Iopobc Max diameter: 660 Races: X 580mm X2 150mm Z 1.045mm Z2 1.010mm Y +/- 80mm W 1050mm main spindle: power: 22kw max rotation: 5000 rpm Chuck: Kitagawa BB208 (210mm) bar passage: 65 mm secondary spindle: power: 18.5kW maximum rotation: 5000 rpm Chuck: Kitagawa BB-208 (210mm) bar passage: 65 mm Milling spindle: Power: 18.5kW Maximum rotation: 12000 rpm Tool magazine capacities: 40 x km63 (120 tools km63 with the machine) Lower tower: 9 tools Chip conveyor Mayfran consep B-axis tilt for turning tools flash tools HOB 5 simultaneous axes C axis on main spindle and secondary spindle Bar feeder interface New spindle, replaced by MAZAK on 06/2022 Machine visible in operation in France (loan to the Belgian border)

Condition: excellent (used), Year of construction: 2005, operating hours: 5,607 h, functionality: fully functional, machine/vehicle number: 181174, turning diameter: 660 mm, travel distance X-axis: 580 mm, travel distance Z-axis: 1,045 mm, swivel angle B-axis (max.): 225 °, swivel angle C-axis (max.): 360 °, TECHNICAL DETAILS Machine type: 5-axis simultaneous & 5-axis freeform – CAP Tool System Year of manufacture: 10/2005 Max. swing diameter: Ø660 mm Max. machining diameter (upper/lower turret): Ø660 mm / Ø270 mm Max. machining length: 1016 mm X-axis travel (upper turret): 580 mm X2-axis travel (lower turret): 150 mm Z-axis travel (upper turret): 1045 mm Z2-axis travel (lower turret): 990 mm B-axis travel: 225° C-axis travel: 360° Chuck size: 8" Main spindle speed: 5000 rpm Main spindle bore: Ø51 mm Min. main spindle indexing: 0.0001° Chuck size 2nd spindle: 8" Speed of 2nd spindle: 5000 rpm Travel of 2nd headstock (W-axis): 1050 mm Rapid traverse speed of 2nd headstock (W-axis): 30,000 mm/min Min. indexing of 2nd spindle: 0.001° Turret type (upper): With ATC Tool shank height (upper): 25 mm Boring bar shank diameter (upper): Ø40 mm Turret type (lower): Drum turret with 9 stations Number of tools (lower): 9 tools Tool shank height (lower): 25 mm Boring bar shank diameter (lower): Ø32 mm Turret indexing time (lower): 0.14 s per switching operation Milling spindle speed: 12,000 rpm Milling spindle machining capacity: milling Ø100 mm, end milling Ø32 mm, drilling Ø30 mm, tapping M27 Ibsdjwcl Uxjpfx Afpjc Rapid traverse speed X-axis (upper turret): 38,000 mm/min Rapid traverse speed X2-axis (lower turret): 38,000 mm/min Rapid traverse speed Y-axis: 26,000 mm/min Rapid traverse speed Z-axis (upper turret): 38,000 mm/min Rapid traverse speed Z2-axis (lower turret): 38,000 mm/min Rapid traverse speed C-axis: 400°/min Jog feed speed X-axis (upper turret): 2,000 mm/min Jog feed speed X2-axis (lower turret): 2,000 mm/min Y-axis jog feed rate: 2,000 mm/min Z-axis jog feed rate (upper turret): 2,000 mm/min Z2-axis jog feed rate (lower turret): 2,000 mm/min C-axis jog feed rate: 2,000°/min Tool shank / tool holder capacity: CAPTO C6 – 20 tools Max. tool diameter: Ø90 mm (Ø125 mm with free adjacent positions) Max. tool length: 300 mm Max. tool weight: 10 kg Tool change time (tool-to-tool): 1.3 s Main spindle motor (30 min / continuous operation): AC 22 kW / AC 15 kW 2nd spindle motor (30 min / continuous operation): AC 18.5 kW / AC 15 kW Milling spindle motor (20% ED): AC 15 kW Coolant pump motor: 1.2 kW Power consumption (continuous operation): 66.0 kVA Compressed air connection: 5 bar, 500 l/min Coolant tank capacity: 300 l MACHINE DETAILS Machine height: 2,597 mm Operating times: - Total time switched on: 2026:04'40" - Automatic operating time: 1323:07'43" - Automatic cutting time: 669:16'50" - Total cutting time: 5606:49'54" - Total operating time: 2028:04'40" EQUIPMENT Various machining tools included Test and demonstration on site possible
