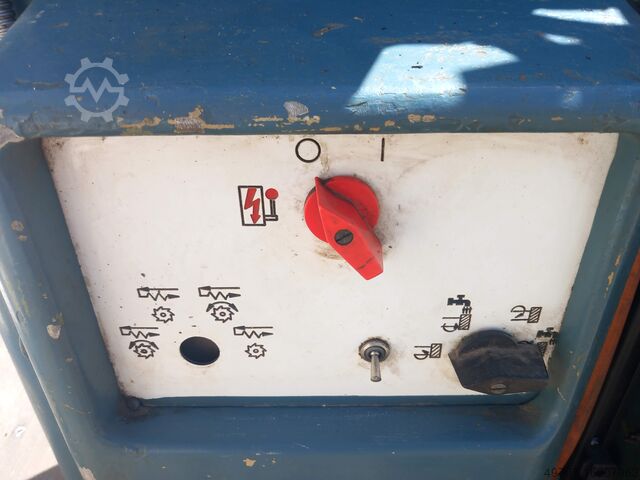

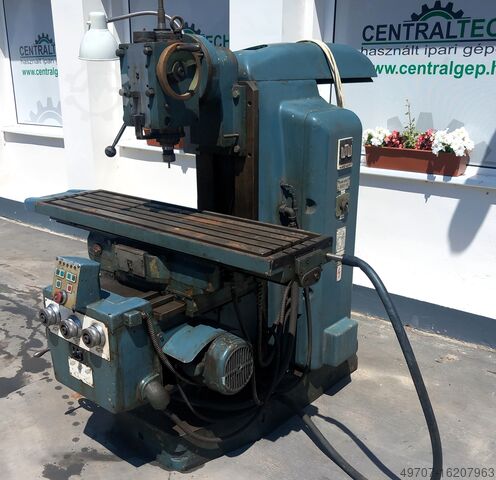

Vertical milling machine

VEB Fritz Heckert FU 250x1000

Condition: used, Universal tool milling machine Brand: OPTIMUM Model: MT 100 Year of manufacture: 2018 – workshop tested Machine no.: J33021808035 Geometric acceptance with test report Accessories: - 3-axis digital display DPA 2000 - Vertical milling head SK 40 with drawbar thread M 16 - Fixed table 1,120 x 260 mm (T-slot: 14 mm) - Machine lamp - Coolant system - Manual central lubrication - Operating manual Used as seen, without warranty Gedsw Rlvqopfx Ahzoiw The machine technically corresponds to the state of the art at the time of manufacture.

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm Gedpfx Asvc Avhshzsiw table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Equipment: -cooling water pump with feed -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice *

Year of construction: 1981, condition: used, Manufacturer: Deckel Type: FP 4 Table: Dimensions: 1000 x 470 mm Longitudinal movement (X-axis): 700 mm Transverse movement (Y-axis): 400 mm Vertical movement (Z-axis): 450 mm Spindle overhang: 50 - 450 mm Spindle mount: ISO 40 Number of spindle speeds: 18 Spindle speed range: 31.5 - 1600 rpm Number of horizontal spindle speeds: 18 Horizontal spindle speed range: 31.5 - 1600 rpm Godpfoihp U Dox Ahzoiw Machine weight: 2000 kg Feeds (X, Y, Z axes): 18, 10 - 500 mm/min Accessories: Milling head with quill Table: 1000 x 470 mm

Condition: good (used), Year of construction: 1980, Table size 1300 x 355 mm Tool holder, vertical + horizontal ISO 50 Travel X-axis 1000 mm Y-axis 350 mm Z-axis 450 mm Vertical milling head, swiveling R + L Quill stroke 100 mm Speed range 22.4 – 1400 rpm Feed range 6.3 – 630 mm/min Rapid traverse 2.5 m/min Drive power approx. 5 kW Space requirement L x W x H 1900 x 1800 x 2100 mm Weight 3200 kg Accessories / Special features: • 3-axis digital display, make FAGOR • Swiveling vertical milling head (R-L) with quill adjustment 100 mm • Vertical and horizontal milling spindle ISO 50 • Milling spindle vertical + horizontal • Large Clamping table 1350 x 350 mm • Feed and rapid traverse in all axes • Wide, stable guideways Gjdpfevu Dv Tox Ahzoiw • Central lubrication • Swiveling control panel • Coolant system • EMERGENCY STOP switch Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 1977, Technical details: x-travel: 1050 mm y-travel: 500 mm z-travel: 500 mm spindle taper ISO: SK40 spindle head swivable left - right: 90 ° quill travel: 180 mm range of revolution per miute: 36 - / 18 step U/min feed:: X+Z: mm/min feed:: Y: - 900 mm/min. rapid traverse : X/Z: / Y: 900 mm/min table surface area: 1200 x 550 mm total power requirement: ca. 10 kW machine weight approx.: 4400 kg dimension machine xH: 3,1 x 2,5 x 2,2 m Console design with tilting, tilting and swiveling table, as well as adjustable vertical milling head. Machine with 3-axis digital readout (with resolution 0.01mm) with feed and individual drive of all three axes stepless feed X-axis: Support lengthwise = 700mm; univ. milling table lengthwise 350mm = total lengthwise: 1050mm Accessories: Comparable with the pictures Godju Ndd Repfx Ahzeiw *

Condition: new, WM6350F ROGI universal milling machine, 400V-3Ph Drilling capacity in steel ----- 50 mm Milling capacity in steel ----- 25 mm Face milling capacity ----- 100 mm Horizontal motor ----- 2.2 KW Vertical motor ----- 2.2 KW Speed range, horizontal milling spindle ----- 60 ~ 1350 rpm Speed range, vertical milling spindle ----- 90 ~ 2000 rpm Spindle taper ----- ISO 40 Table ----- 1270 x 320 mm Weight ----- 1500 KG INCLUDED * 3-axis digital readout, brand SINO * Automatic feed for work table X, Y, Z Giedega T Arspfx Ahzow * Automatic spindle feed * LED lighting * Cooling system * Deluxe control panel * Tilting milling head, left/right, 0 - 45 degrees * Rotatable work table OPTIONAL * Pneumatic draw-in bar

Condition: used, Year of construction: 1977, Technical details: x-travel: 450 mm y-travel: 200 mm z-travel: 400 mm spindle taper ISO: SK 30 distance table/horizontal spindle: max. 400 mm cross rail adjustment - horizontal: 400 (manuell) mm range of revolution per miute: horizontal: 30 - 1275 / 18 step U/min spindle taper: horiz.+vertikal: SK30 distance between table/spindle: vertikal: max. 430 mm quill travel: 60 mm swival range +/-: 90° Grad Gsdovc Awfepfx Ahzsiw range of revolution per miute: Vertikalspindel: 50 - 215 / 18 step U/min clamping surface area: 860 x 240 mm table swivable approx.: 45° feed:: 0 - 1.000 / steples mm/min rapid traverse: 2.000 mm/min. total power requirement: 6,0 kW machine weight approx.: 3100 kg dimension machine xH: 1,6 x 1,6 x 1,9 m Coolant device 3-way DRO Heidenhain control panel Optional accessories *

Condition: ready for operation (used), A CNC universal tool milling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, table dimensions X/Y: 1000mm/500mm, quill stroke: 100mm, tool holder: SK40, spindle speed: 3150rpm, feed rate: 2m/min, rapid traverse: 5m/min, max. workpiece weight: 400kg. Machine dimensions X/Y/Z: approx. 3900mm/3300mm/2100mm, weight: approx. 3300kg, control: Heidenhain TNC 150. An on-site inspection is possible. Gisdpfxexwcu As Ahzow

Condition: not inspected (used), JAFO FYN 50 NB – CNC Vertical Milling Machine For sale is a CNC vertical milling machine from JAFO, model FYN 50 NB, year of manufacture 1988. The machine is fully operational and ideal for precise milling operations on workpieces up to 700 kg including clamping device. ⸻ Technical Data • Travel (X/Y/Z): 800 × 500 × 500 mm • Table working area: 500 × 1,400 mm • Number of T-slots: 7 • Slot width: 18 mm • Slot pitch: 63 mm • Max. longitudinal table travel: 800 mm • Max. vertical knee travel: 500 mm • Max. transverse spindle head travel: 500 mm • Feed rate: stepless 0–4,000 mm/min • Spindle taper: ISO 50 • Head swivel angle: ±45° • Distance spindle axis to vertical guides: max. 590/90 mm • Spindle speed: 56–1,800 rpm • Rapid traverse: 4,000 mm/min • Spindle drive motor power: 5.5 kW • Operating voltage: 380 V, control voltage 24 V • Total power consumption: 10 kW • Dimensions (L×W×H): 2,080 × 1,700 × 2,260 mm • Total weight incl. hydraulic unit: 4.5 t ⸻ Equipment & Features • Vertical, swivelling milling spindle on a transversely adjustable ram • Hydromechanical tool clamping system • Separate feed drives with DC motors and permanent magnets • Power transmission via toothed belt to preloaded ball screws • Automatic lubrication system for spindle drive and guideways • Hydraulic counterweight for the knee • Manual adjustment via electronic handwheel • Heidenhain control at the swivelling control panel, control cabinet mounted on the machine base • Documentation and operating manual included • Additional images and videos available upon request ⸻ The machine is immediately ready for operation. • Inspection possible at any time • Europe-wide transport available ⸻ Contact Maschinenhandel Nord Gerstenstraße 2 17034 Neubrandenburg 📞 All prices net plus VAT. Subject to modifications and errors. Gjdpfx Aoxk Tzgohzsiw

Condition: used, Year of construction: 1970, functionality: fully functional, 1 used: Universal milling machine, second-hand • Manufacturer: Klopp • Model: FW 11/4 Gedsw R T A Espfx Ahzeiw • Year of manufacture: unknown, approx. 1970 • Table clamping area: 1100 x 300 mm • Spindle taper: SK 40 • Swivelling milling head: 2x 110° • Spindle speeds: 40/80/120/240/480/960 • Feeds: 12–340 mm/min Accessories: Various tool holders and cutters, 1 set of collets Hydraulic vice with pneumatic support pins Vice jaw width: 160 mm
